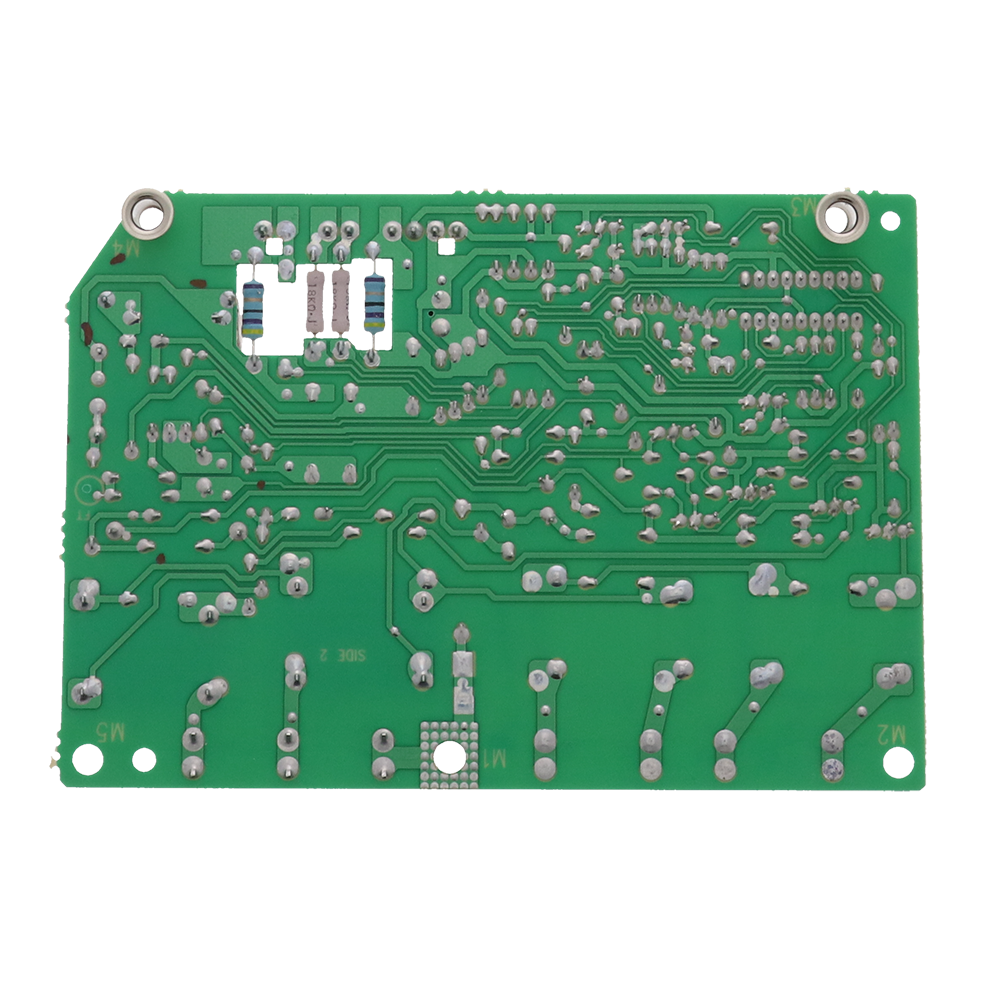

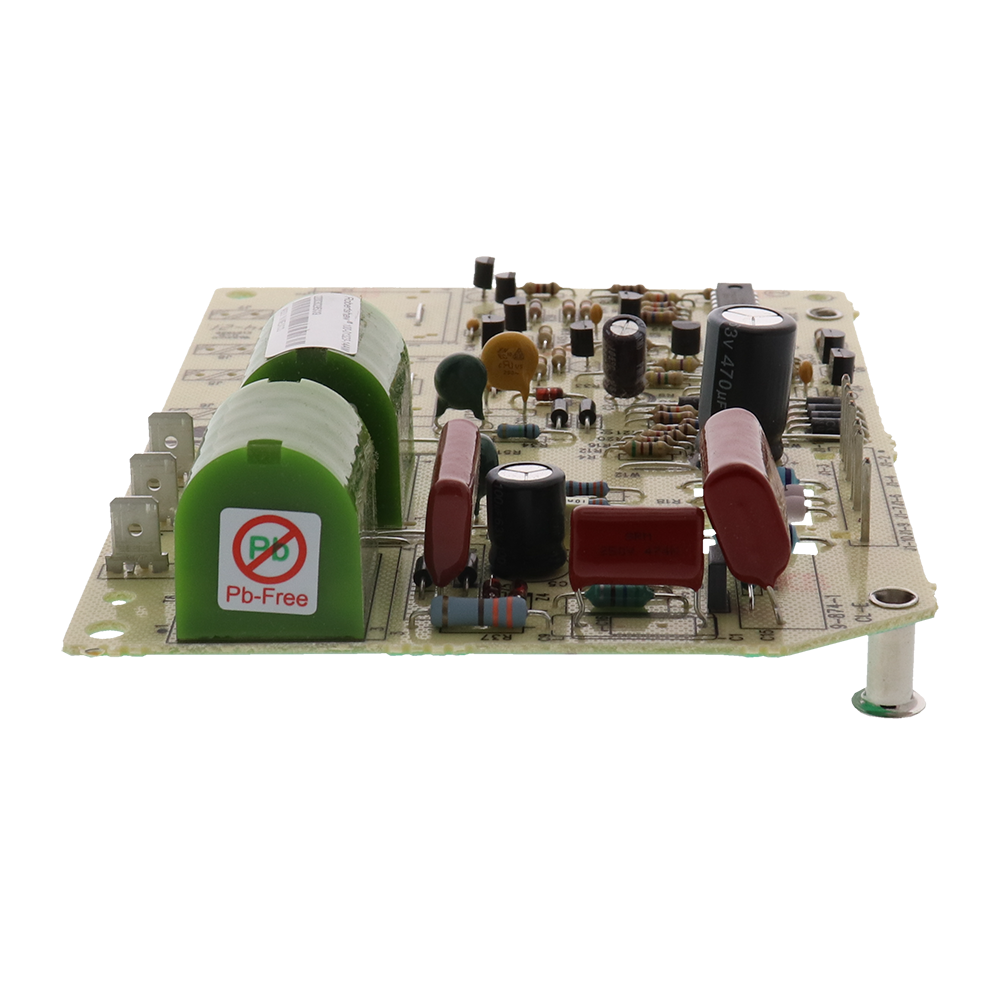

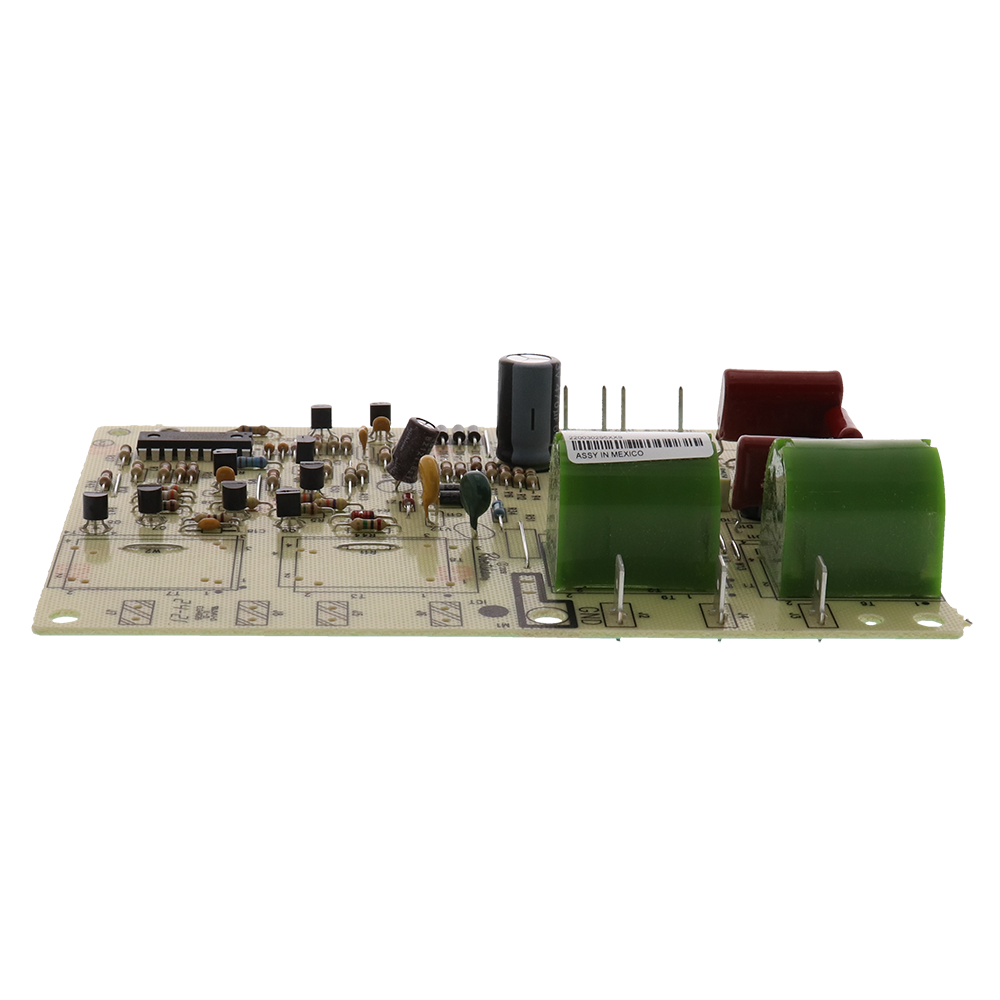

Whirlpool Range spark module / ignition module (MODULE-SPARK (4+2) DSI) WPW10511278, Replaces W10511278

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Surface burners do not spark or ignite.
• Oven bake or broil burner does not ignite when its spark electrode is otherwise intact.
• Ignition is intermittent or spark output is weak.
• Repeated clicking or sparking occurs without reliable burner ignition.

Check Before Replacing

• With the range disconnected from electrical power, visually inspect the module, wiring connectors, and spark leads for loose connections, damage, or visible burn marks.
• Observe whether the affected electrode produces a spark while the ignition control is activated; absence of spark does not by itself prove module failure.
• Check that the electrode is clean, properly positioned, and not visibly cracked before condemning the module.
• A qualified technician may verify the required supply voltage at the module and inspect the ignition circuit using the appliance service documentation.

Pro Tip

Part Details

Installation Notes

• Disconnect electrical power to the range or switch off the range circuit breaker before servicing.
• Wear protective work gloves when accessing or handling the module.
• Reconnect wiring to the same terminals and positions as the original module; verify the part and appliance wiring against the applicable service information before restoring power.
• After installation, restore power and verify ignition operation for the affected functions without bypassing safety controls.

Verified Compatible Models

AGR5630BDB1, AGR5630BDB2, AGR5630BDS1, AGR5630BDS2, AGR5630BDW1, AGR5630BDW2, AGR6303MFB0, AGR6303MFS0, AGR6303MFW0, AGR6603SFB0, AGR6603SFS0, AGR6603SFW0, IGS426AS1, IGS505DS0, IGS505DS1

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
