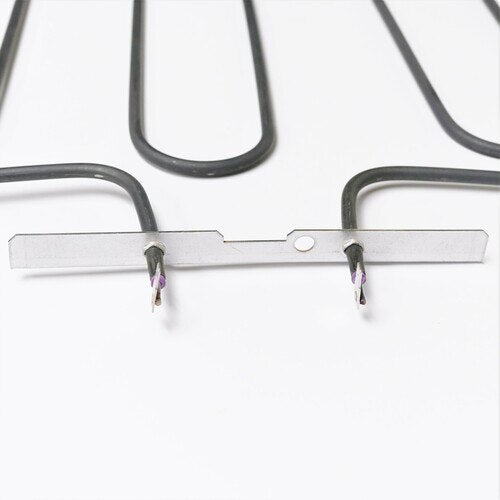

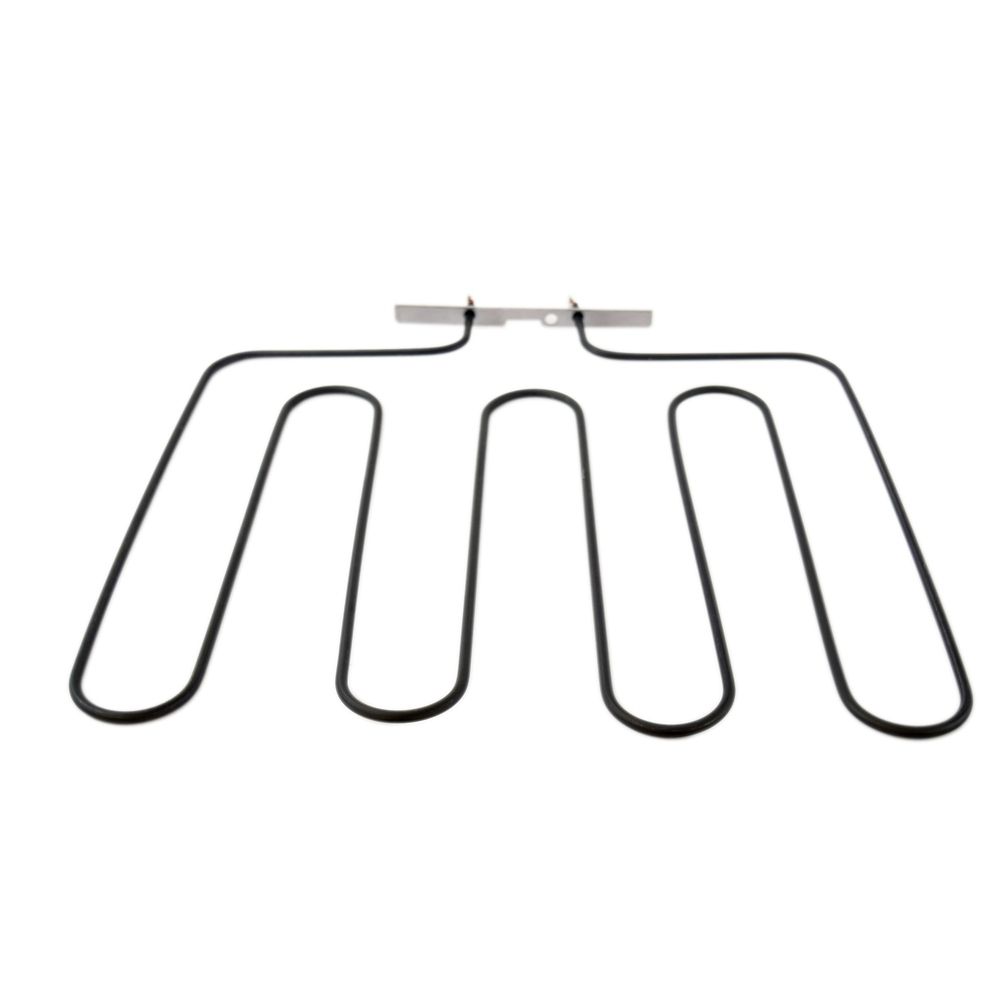

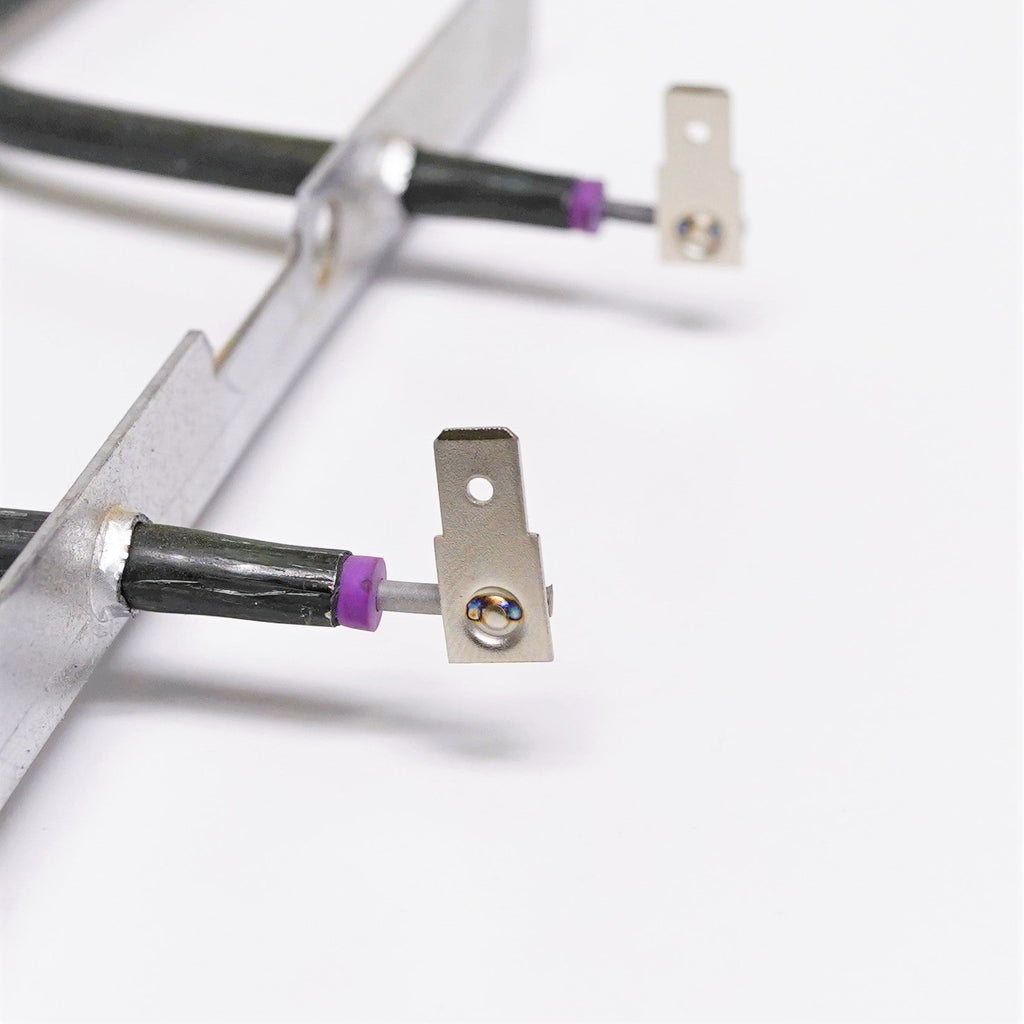

Whirlpool Range Bake Element WPW10546517, Replaces W10282948, W10546517

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• No heat from the bake function
• Slow preheating or unusually long bake times
• Uneven baking caused by insufficient bottom heat
• Visible cracking, blistering, or a break in the element sheath

Check Before Replacing

• With power disconnected, visually inspect the bake element for breaks, blistering, or burn damage.
• Confirm the appliance has power and that the oven controls are set to Bake before concluding the element is faulty.
• If qualified to perform electrical testing, check element continuity only with the appliance disconnected from power and follow the model-specific service documentation.
• If the element appears intact but the oven still fails to heat, have the wiring, control, and supply circuit evaluated rather than replacing the element based on symptoms alone.

Pro Tip

Part Details

Installation Notes

• Disconnect electrical power by unplugging the appliance or switching off the range/oven circuit breaker before installation.
• Allow the oven to cool completely and use appropriate hand protection when handling the element.
• Follow the appliance model's installation or service instructions because access and element configuration can vary.
• After installation, restore power and verify normal Bake operation only after all covers, panels, and connections are properly secured.

Verified Compatible Models

AWO6313SFB00, AWO6313SFB01, AWO6313SFB02, AWO6313SFS00, AWO6313SFS01, AWO6313SFS02, AWO6313SFW00, AWO6313SFW01, AWO6313SFW02, AWO6317SFB00, AWO6317SFB01, AWO6317SFB02, AWO6317SFS00, AWO6317SFS01, AWO6317SFS02, AWO6317SFW00, AWO6317SFW01, AWO6317SFW02, IBD350DS00, IBD350DS01, IBD350DS02, IBD350DS03, IBD350DS04, IBS300DS00, IBS300DS01, IBS300DS02, IBS300DS03, IBS350DS00, IBS350DS01, IBS350DS02, IBS550DS00, IBS550DS02, JJW3830LL00, JMW2430IM03, JMW3430HP00, KEMS309BSS00, KEMS309BSS01, KOCE500ESS01, KOCE500ESS05, KOCE500EWH11, KODE300ESS20, KODE500ESS02, KODE500ESS04, KODE507ESS05, KOSE500EBS20, KOSE900HBS21, MEW9627FZ20, MMW9730FZ06, MOED6027LZ00, WOC54EC0AS00, WOC54EC0AS04, WOC54EC0HS20, WOC54EC7HB20, WOC54EC7HS20, WOC54EC7HS21, WOC54EC7HW20, WOC95EC0AS00, WOD51EC7HW02, WOES7030PZ01, WOS51EC0HS00, WOS51EC7HB21, WOS72EC7HS02

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
