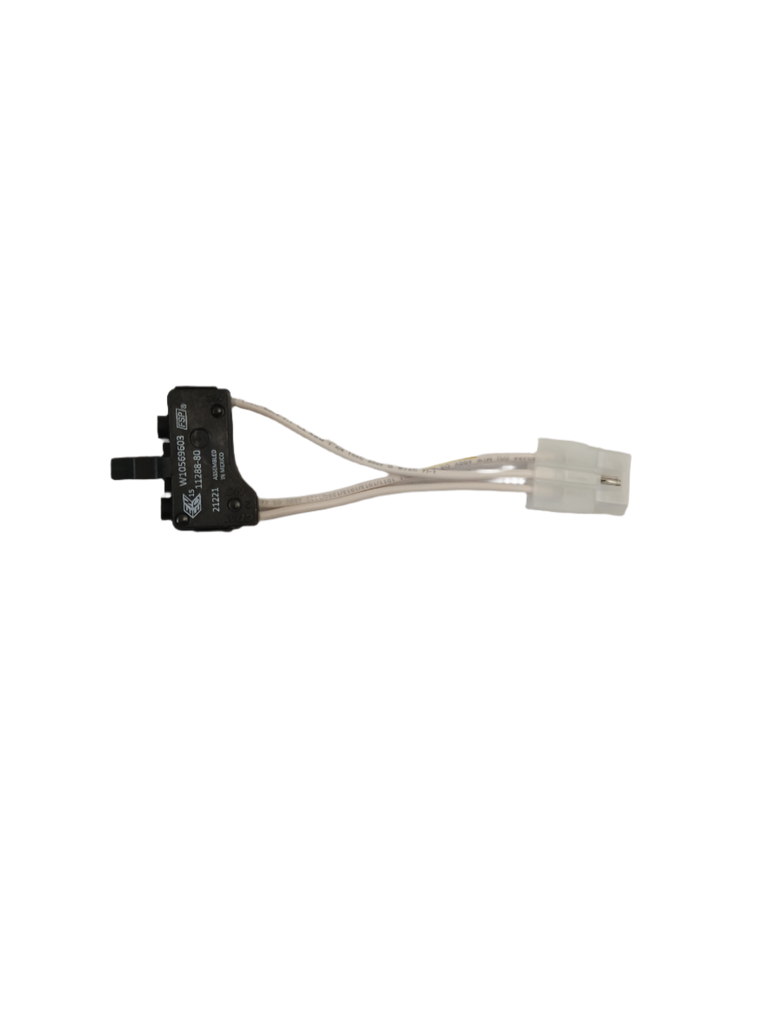

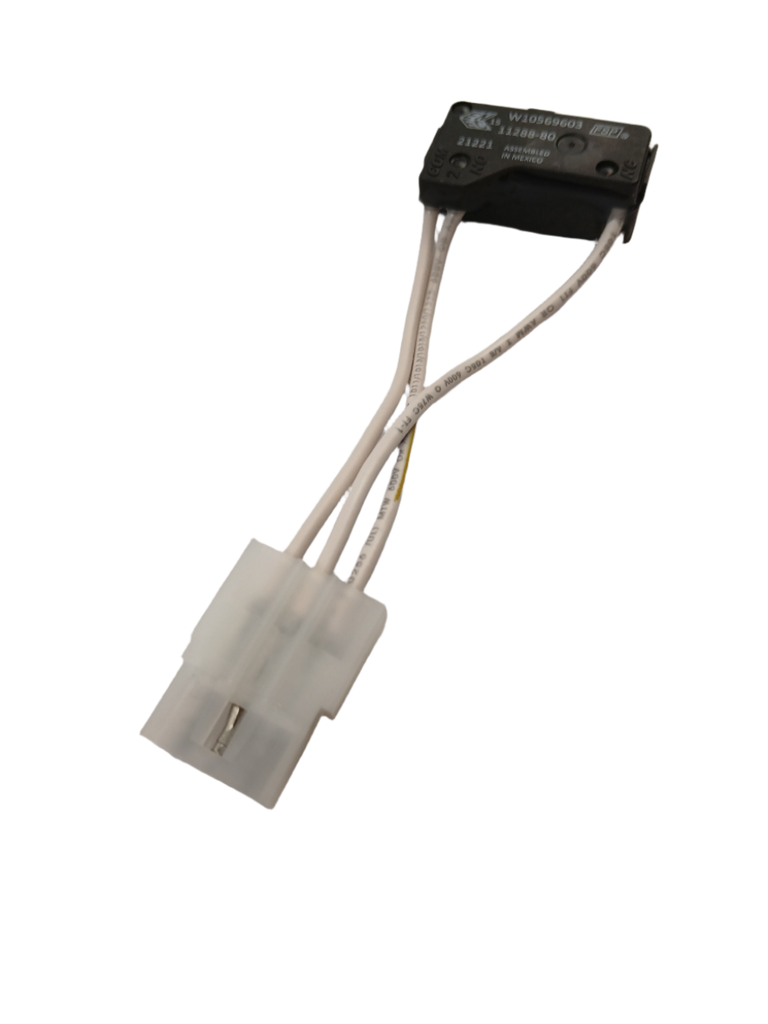

Whirlpool Corporation Dryer Door Switch Assembly WPW10569603, Replaces W10569603 – Superseded by WP3406107

Genuine Whirlpool dryer door-switch assembly that detects the door position and prevents normal dryer operation when the door is open.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Dryer does not start with the door closed.
• Dryer continues running when the door is opened.
• Dryer drum light or door-switch circuit does not operate, where equipped.

Check Before Replacing

• With power disconnected, inspect the switch and actuator area for visible breakage or looseness.
• Verify that the door mechanically engages the switch when closed.
• Use the appliance's wiring diagram or service procedure to test switch continuity in the specified door positions; do not assume terminal configuration.

Pro Tip

Part Details

Key Features

• Whirlpool OEM part number WPW10569603.
• Dryer door-switch assembly.
• Black component.
• Documented as replacing W10569603.
• Documented successor WP3406107 is sold as the replacement for WPW10569603.

Installation Notes

• Disconnect electrical power before servicing the dryer.
• Verify the replacement switch's terminals and wiring against the appliance wiring diagram before installation.
• After installation, confirm that the dryer stops or will not operate when the door is open.

Verified Compatible Models

1CWED4800DQ0, 1CWED4900DW0, 1CWGD4800DQ0, 7EWED1705YM2, 7EWED1730YW1, 7EWED1730YW2, 7MMEDC300DW0, 7MMEDC300DW1, 7MMEDX655EW0, 7MMEDX655EW1, 7MMGDC300DW0, 7MMGDC300DW1, 7MMGDC300DW2, 7MMGDC300DW3, 7MMGDC300DW4, 7MMGDC410AW2, 7MWED2040JM0, 7MWED2140JB0, 7MWGD1705YM4, 7MWGD1900DW2, 7MWGD2040JM0, 7MWGD2140JB0, MEDC215EW1, MEDC465HW0, MGDC465HW0, WED4616FW0, WED4950HW0, WED4985EW0, WED5000DW1, WED7000DW0

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
