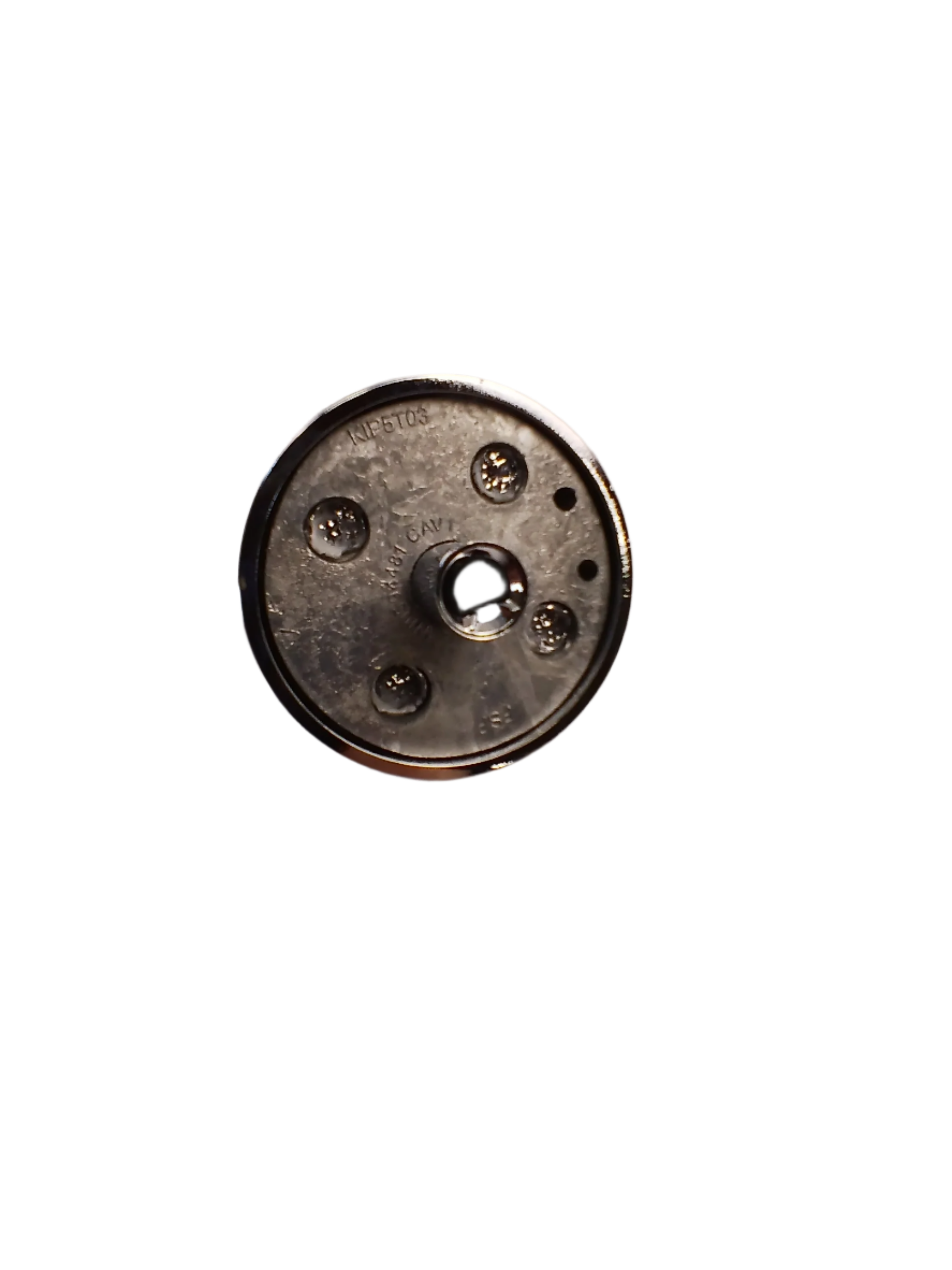

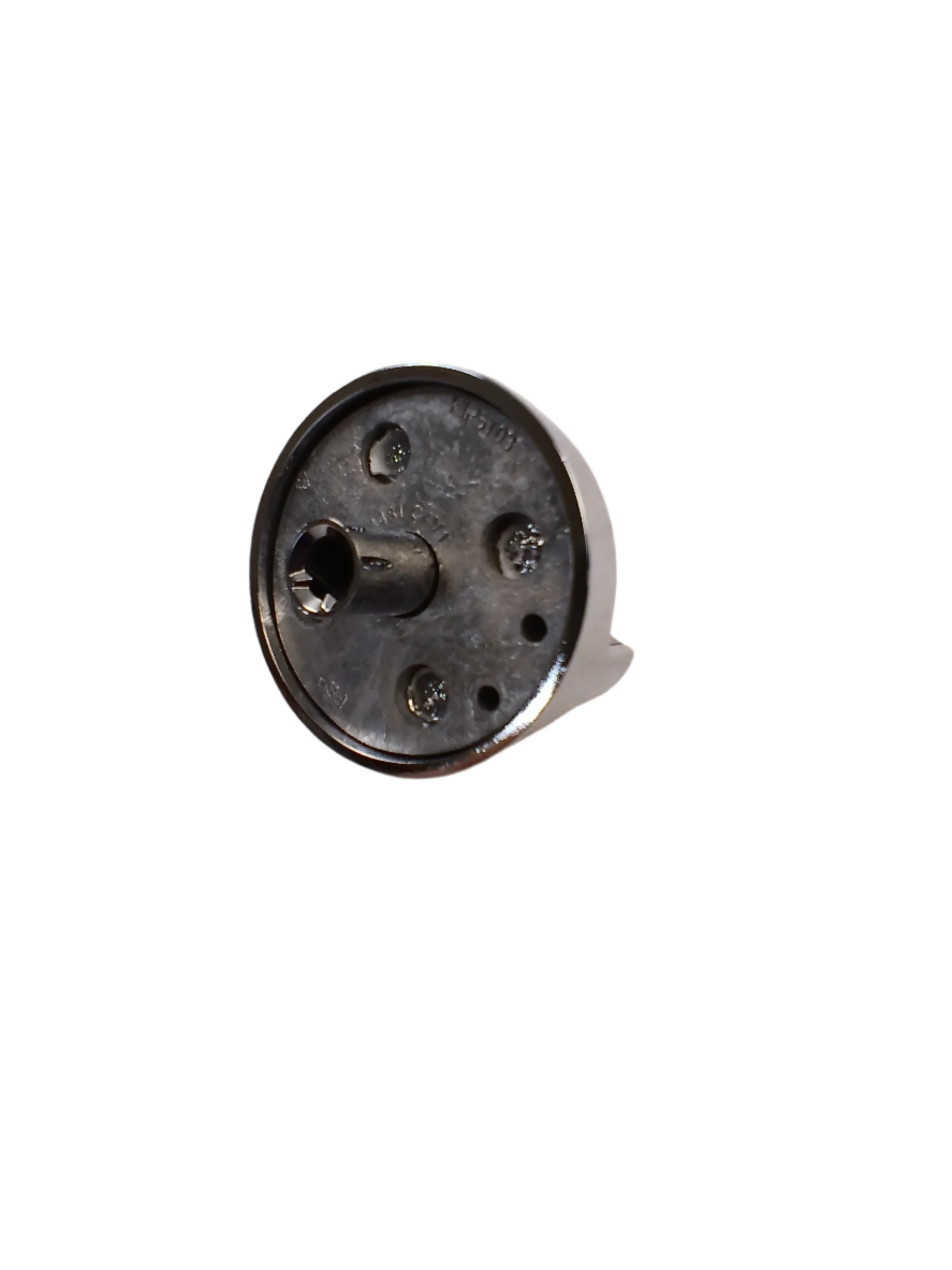

Whirlpool Range/Cooktop Range Surface Burner Control Knob, Stainless Steel WPW10594481, Replaces W10594481

Genuine Whirlpool stainless-steel surface burner control knob, approximately 2 inches in diameter, for adjusting a cooktop burner’s heat or flame.

Is This the Right Part?

Common Symptoms

• Knob is cracked or physically damaged
• Knob is missing
• Knob spins loosely or no longer engages the burner valve shaft
• Burner setting cannot be adjusted because the knob does not grip the shaft

Check Before Replacing

• Inspect the knob for cracks, separation, or missing internal engagement features.
• Check whether the knob fits securely on the burner-control shaft and turns the shaft without slipping.
• Compare the replacement knob’s shaft interface and approximately 2-inch diameter with the original before ordering.
• If the knob is intact and the burner still does not respond, the underlying valve or control may require separate diagnosis.

Pro Tip

Part Details

Key Features

• Whirlpool Genuine OEM part
• Stainless-steel finish
• Approximately 2 inches in diameter
• D-shaped shaft interface
• 1/2-inch spindle specification
• Sold individually

Installation Notes

• Disconnect power and shut off the gas supply before servicing a gas cooktop or range.
• The knob is designed to be removed and installed without appliance disassembly.
• Align the knob with the control shaft and press it into place securely.
• Do not force the knob if the shaft shape or size does not match.

Verified Compatible Models

WCG97US0DS00, WCG97US6DS00

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
