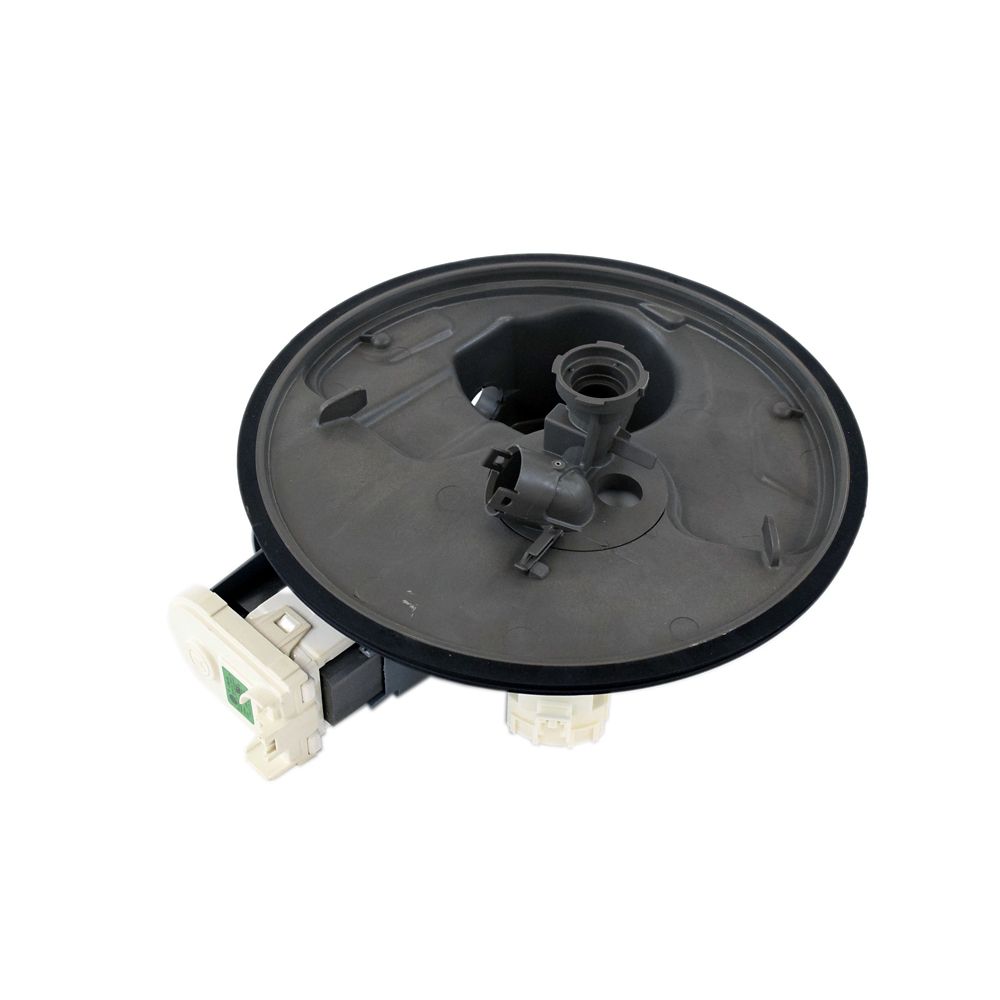

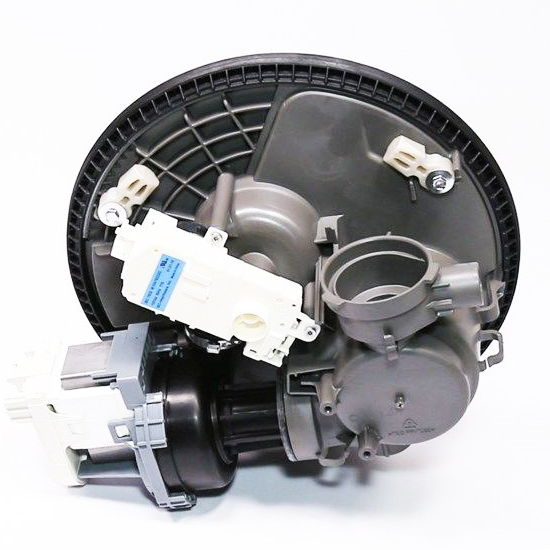

Whirlpool Dishwasher Pump and Motor Assembly WPW10671941, Replaces W10671941

Dishwasher pump and motor assembly including the circulation motor and diverter motor; the drain pump motor is not included. The assembly moves water from the dishwasher sump to the spray arms.

Is This the Right Part?

Common Symptoms

• Little or no water movement at the spray arms, resulting in poor cleaning.
• Spray arms fail to rotate during the wash portion of the cycle.
• Unusual humming, grinding, or other motor/pump noise during washing.
• Water leakage from the sump or diverter-area seal associated with the assembly.

Check Before Replacing

• After the dishwasher fills, pause the cycle and cautiously observe whether the spray arms have changed position; lack of movement can indicate a circulation problem but does not by itself confirm this part is defective.
• With electrical power disconnected, inspect the pump-and-motor assembly wiring connectors for looseness, corrosion, or visible heat damage.
• Before condemning the assembly, confirm that the dishwasher has filled to its normal level and that the spray arms, filters, and sump area are not visibly blocked.
• If a leak is present, inspect the sump and diverter-area sealing surfaces for damage or displacement; do not operate the dishwasher with an active electrical or water leak.

Pro Tip

Part Details

Key Features

• Whirlpool genuine OEM pump-and-motor assembly.
• Includes circulation motor and diverter motor.
• Moves water from the sump to the spray arms.
• Drain-pump motor is not included.
• Replaces manufacturer number W10671941.

Installation Notes

• Disconnect electrical power and water supply before accessing or replacing the assembly.
• Use the appliance’s model-specific service information or parts diagram; mounting and access details can vary by dishwasher model.
• Disconnect and reconnect wiring only with power removed, and return each connector to its original location.
• Inspect mating seal and sump surfaces during installation; scratched or scored sealing surfaces may require additional parts rather than reuse of the assembly.
• After installation, restore water and power, run a short cycle, and check carefully for leaks and proper spray-arm circulation before completing reassembly.

Verified Compatible Models

WDT720PADB0, WDT720PADB1, WDT720PADB2, WDT720PADE0, WDT720PADE1, WDT720PADE2, WDT720PADH0, WDT720PADH1, WDT720PADH2, WDT720PADM0, WDT720PADM1, WDT720PADM2, WDT720PADW0, WDT720PADW1, WDT720PADW2

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
