GE Refrigerator Ice Buildup, Excessive Frost, or Warm Fridge? Defrost Thermostat WR01F02867 – Fix Defrost Cycle Failure Fast

If your GE refrigerator has excessive frost or ice buildup in the freezer, food warming in the fresh food section, or the evaporator coils are completely iced over, a failed defrost thermostat is one of the most common and least expensive causes. In most GE refrigerators, this is caused by a failed defrost thermostat. When it fails — from a broken bimetal contact or open circuit — the thermostat never signals the defrost heater to activate, allowing frost to accumulate on the evaporator coils until airflow is completely blocked. When airflow stops, the freezer may still feel cold but the fresh food section warms up as no cold air can circulate. ⚡ Common failure point in GE side-by-side and French door refrigerators, particularly in units over 5 years old. Part WR01F02867 is the genuine OEM replacement that restores proper defrost cycle operation and clears the frost accumulation immediately.

❓ Is This the Right Part?

This is the correct fix if ALL of the following are true:

• ✔ Refrigerator compressor runs — you can hear it cycling normally
• ✔ Freezer section is cold but fresh food section is warming up
• ✔ Evaporator coils (behind the freezer back panel) are heavily frosted or completely iced over
• ✔ Defrost heater tests functional with a multimeter — heater is not the cause
• ✔ ONLY problem is defrost cycle not activating — not a compressor, fan, or sealed system issue

Not sure? Send us your model number — we’ll confirm before you order.

🔧 Common Symptoms

• Excessive frost or ice buildup on freezer walls and evaporator coils
• Fresh food section warming up while freezer remains cold
• Refrigerator running constantly — compressor never shuts off
• Unusual noise from freezer — fan struggling against ice buildup on coils
• Food in fresh food section spoiling faster than normal
• Temporary improvement after manually defrosting — frost returns within days

✔ If these symptoms match, the defrost thermostat is the most likely failed component in the system.

✔ In most cases, replacing this defrost thermostat restores normal defrost cycle operation immediately.

📦 Part Details

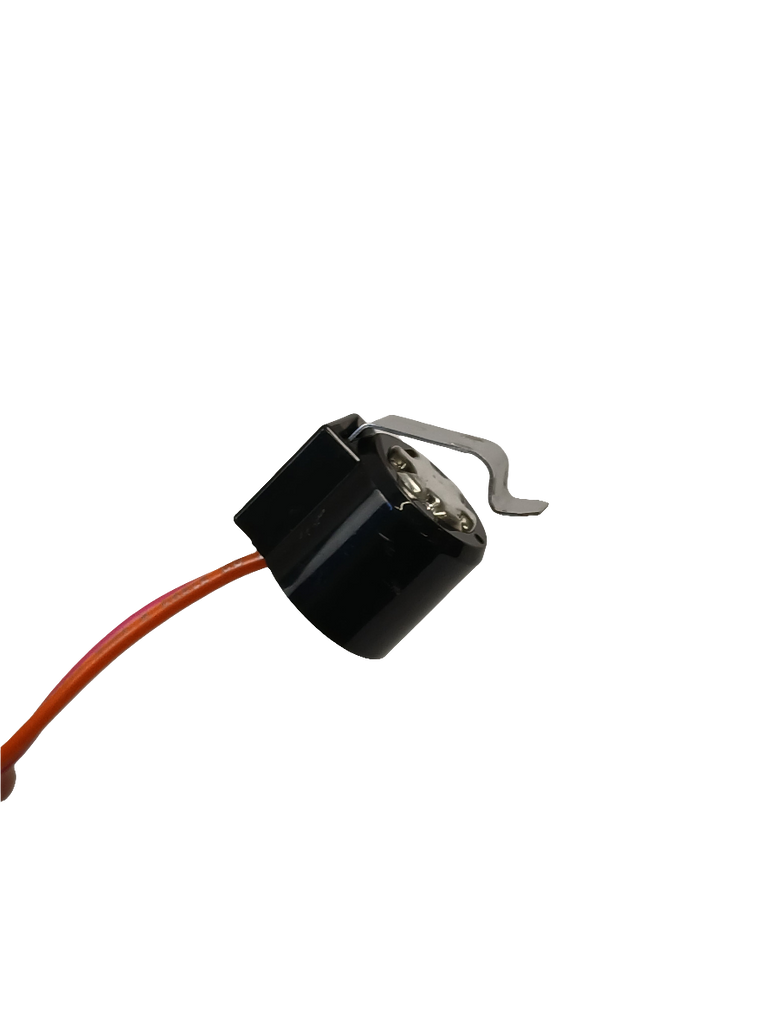

• Part Number: WR01F02867
• Type: Defrost Thermostat (Bimetal Thermostat) — temperature-sensing switch that signals the defrost heater to activate when evaporator coil temperature drops below the set point, preventing frost accumulation
• Replaces: WR50X10065, 238C2672P001 — no modification required
• Brands: GE (General Electric)

⚙️ Installation

Skill Level: MODERATE — 30–45 minutes. Disconnect power and remove all food from the freezer before servicing. Remove the freezer back panel to access the evaporator coil assembly — typically secured by 4–6 screws. Manually defrost any ice buildup with a hair dryer or allow it to melt before proceeding. Locate the defrost thermostat clipped to the evaporator coil, disconnect the two wire leads, and unclip the old thermostat. Clip the new WR01F02867 thermostat onto the coil in the same position, reconnect the leads, reinstall the back panel, restore power, and run a full defrost cycle to verify operation.

✓ Compatible Models

Confirmed compatible with CZS25TSEBFSS, GSE25GGHBCWW, GSE25GSHECSS, GSE25GSHHCSS, GSH25JFTCBB, GSH25JFTDBB, GSH25JFTEBB, GSH25JFTFBB, GSHF9NGYACWW, GSHS6NGBBHSS, GSS23HGHBCBB, GSS23HMHBCES, GSS23HMHECES, GSS23HSHBCSS, GSS23HSHECSS, GSS25CGHRCWW, GSS25GMHBCES, GSS25LSLRCSS, GZS22DMJBFES, GZS22DSJBFSS, GZS22DSJCFSS, XSS23GGKRCBB, XSS23GGKRCWW plus additional GE models. Contact us to verify your model number before ordering.
