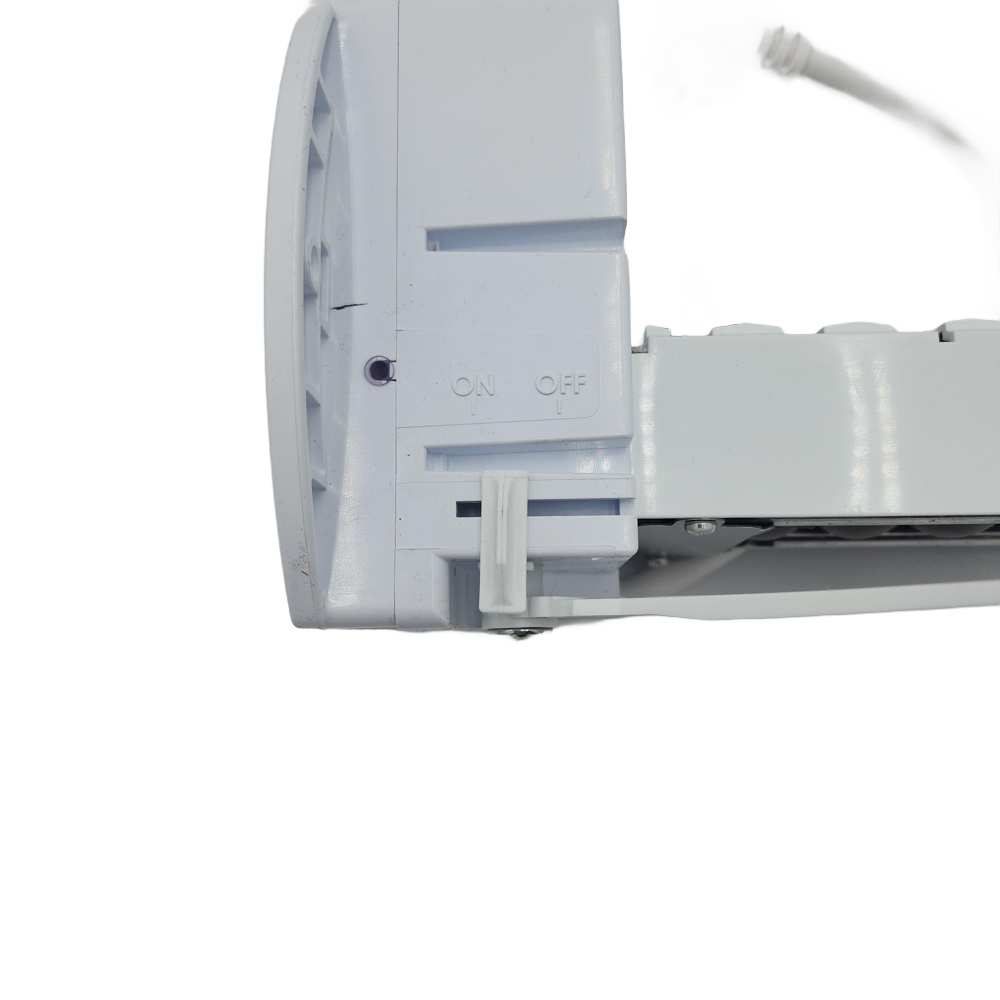

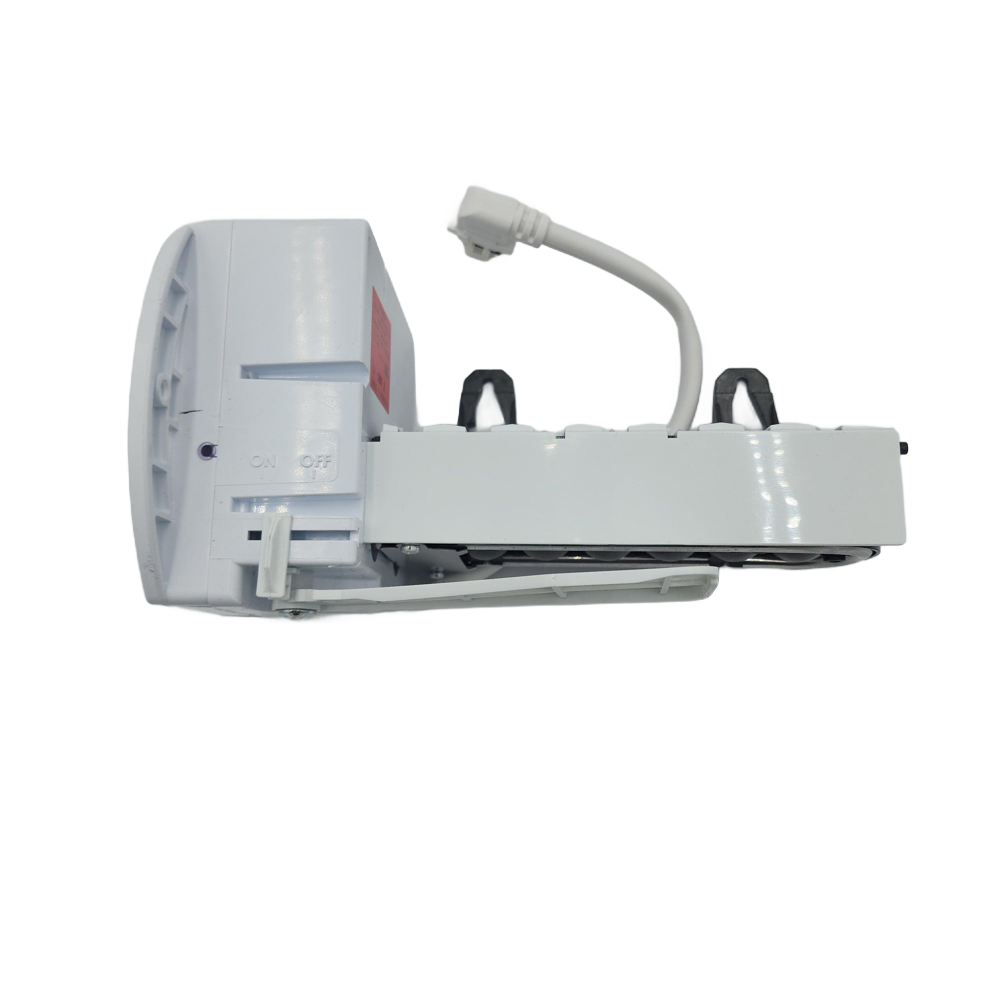

GE Appliances Refrigerator Ice Maker Assembly WR01F04991, Replaces 200D1181G118 – Superseded by WR30X39385

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• No ice production.
• Icemaker does not cycle or eject ice.

Check Before Replacing

• Confirm the refrigerator icemaker is turned on using the applicable model control.
• Verify freezer temperature is set to 0°F for ice production.
• Check that the refrigerator has a connected cold-water supply.
• If applicable, verify the water filter is correctly installed and flush air from the water system through the dispenser.
• Check for clumped ice that could obstruct the icemaker feeler arm.

Pro Tip

Part Details

Installation Notes

• Disconnect appliance power before servicing.
• Confirm the refrigerator model accepts this assembly or its documented replacement before installation.
• Use model-specific service literature or a qualified technician for removal and installation; GE's exact WR01F04991 part page lists no product manual.

Verified Compatible Models

CWE19SP2NTS1, CWE19SP2NWS1, CWE19SP2TNS1, CWE19SP3NTD1, CWE19SP3NWD1, CWE19SP4NTW2, CWE19SP4NWW2, GDE21EGKTRBB, GDE21EGKTRWW, GDE21EMKTRES, GDE21ESKTRSS, GDE21EYKERFS, GDE21EYKFRFS, GDE21EYKGRFS, GDE21EYKHRFS, GDE25ESKTRSS, GDE25EYKERFS, GDE25EYKFRFS, GDE25EYKGRFS, GDE25EYKHRFS, GNE21FMKTFES, GNE21FSKTFSS, GNE21FYKEFFS, GNE25JGKTFBB, GNE25JGKTFWW, GNE25JMKTFES, GNE25JSKTFSS, GNE25JYKEFFS, GNE27EYMTFFS, GNE27EYMWFFS, GNE27JGMTFBB, GNE27JGMTFWW, GNE27JGMWFBB, GNE27JGMWFWW, GNE27JGMXFBB, GNE27JGMXFWW, GNE27JMMTFES, GNE27JMMWFES, GNE27JSMTFSS, GNE27JYMTFFS, GNE27JYMWFFS, GWE19JGLTFBB, GWE19JGLTFWW, GWE19JGLWFBB, GWE19JGLWFWW, GWE19JGLXFBB, GWE19JGLXFWW, GWE19JMLTFES, GWE19JMLWFES, GWE19JMLXFES, CWE19SP2NBS9, CWE19SP3NBD9, CWE19SP4NBW9, GNE25JYKHFFS, GWE19JYLFFFS, GWE19JYLGFFS, INF25FYRACFS, INF25FYRBCFS, PNE25NGLRKBB, PNE25NGLSKBB, PNE25NGLTKBB

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
