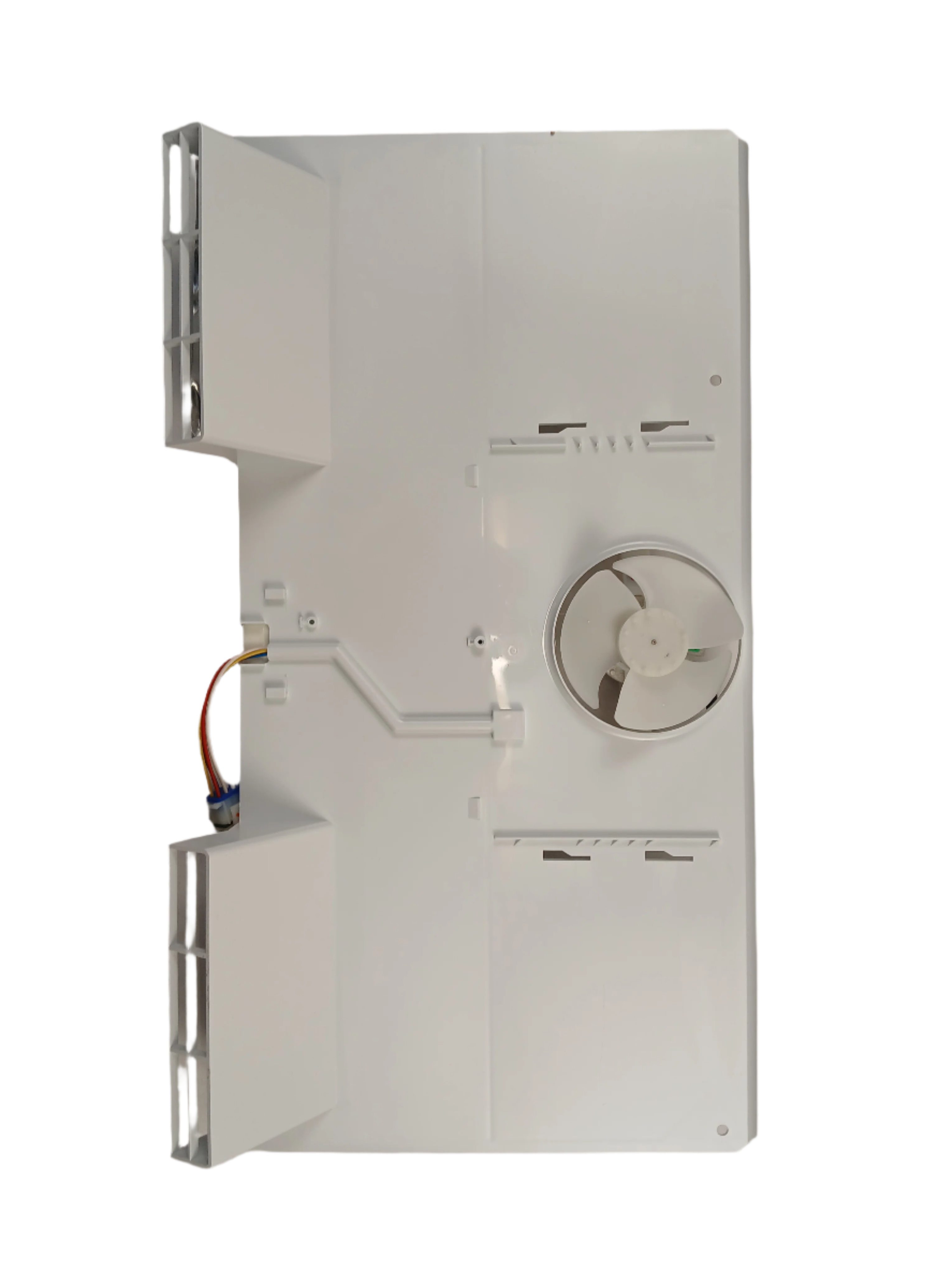

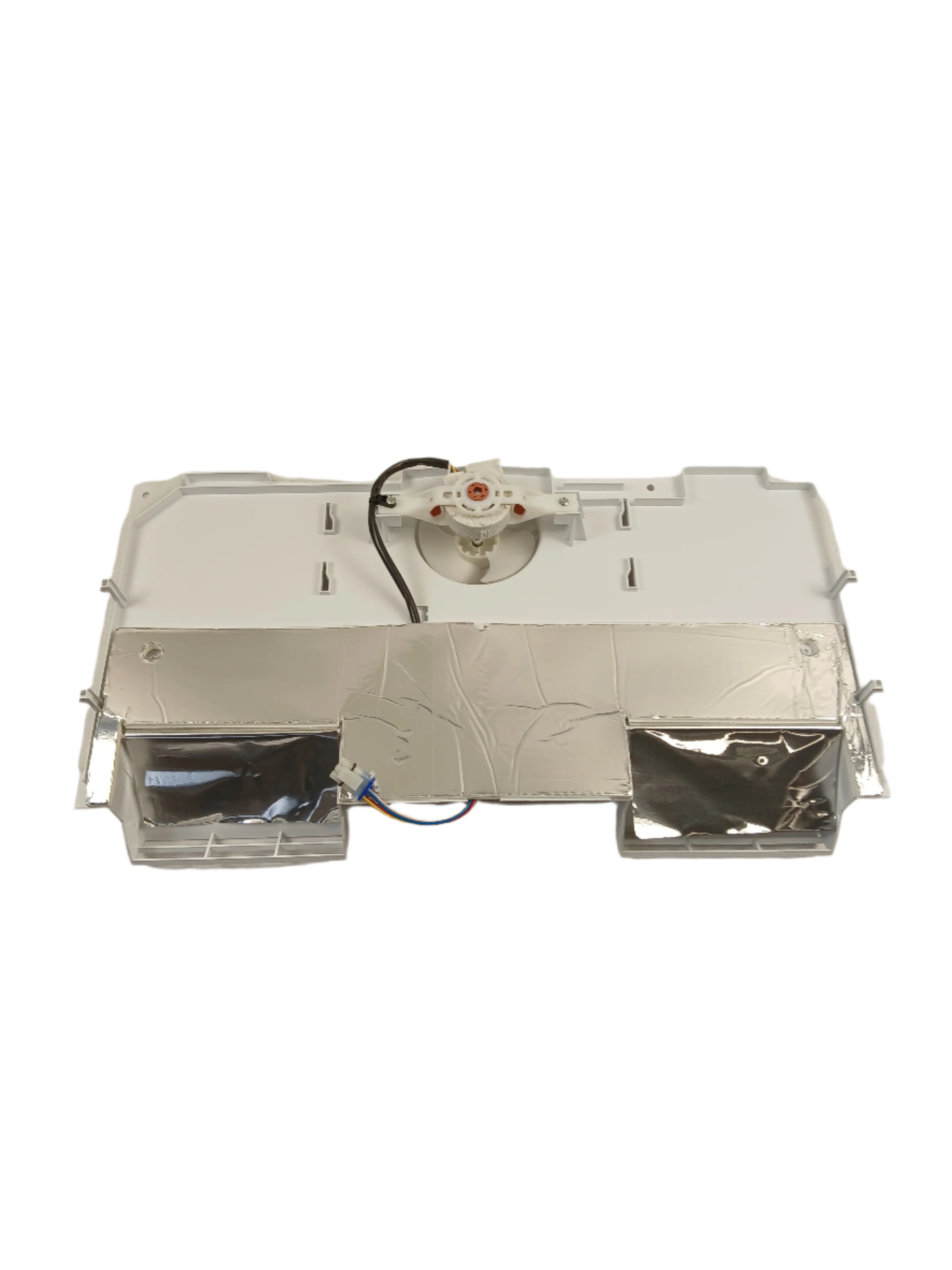

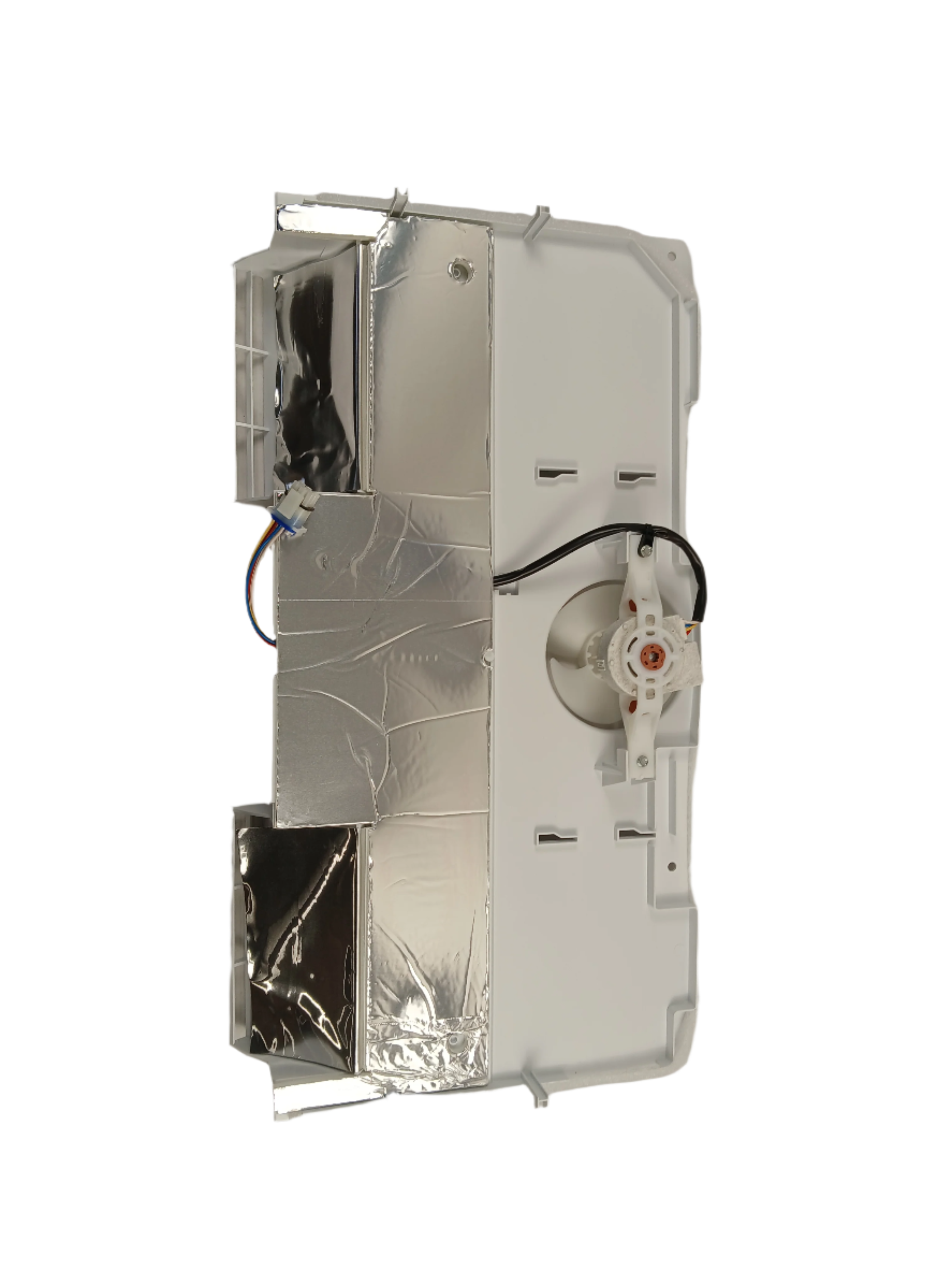

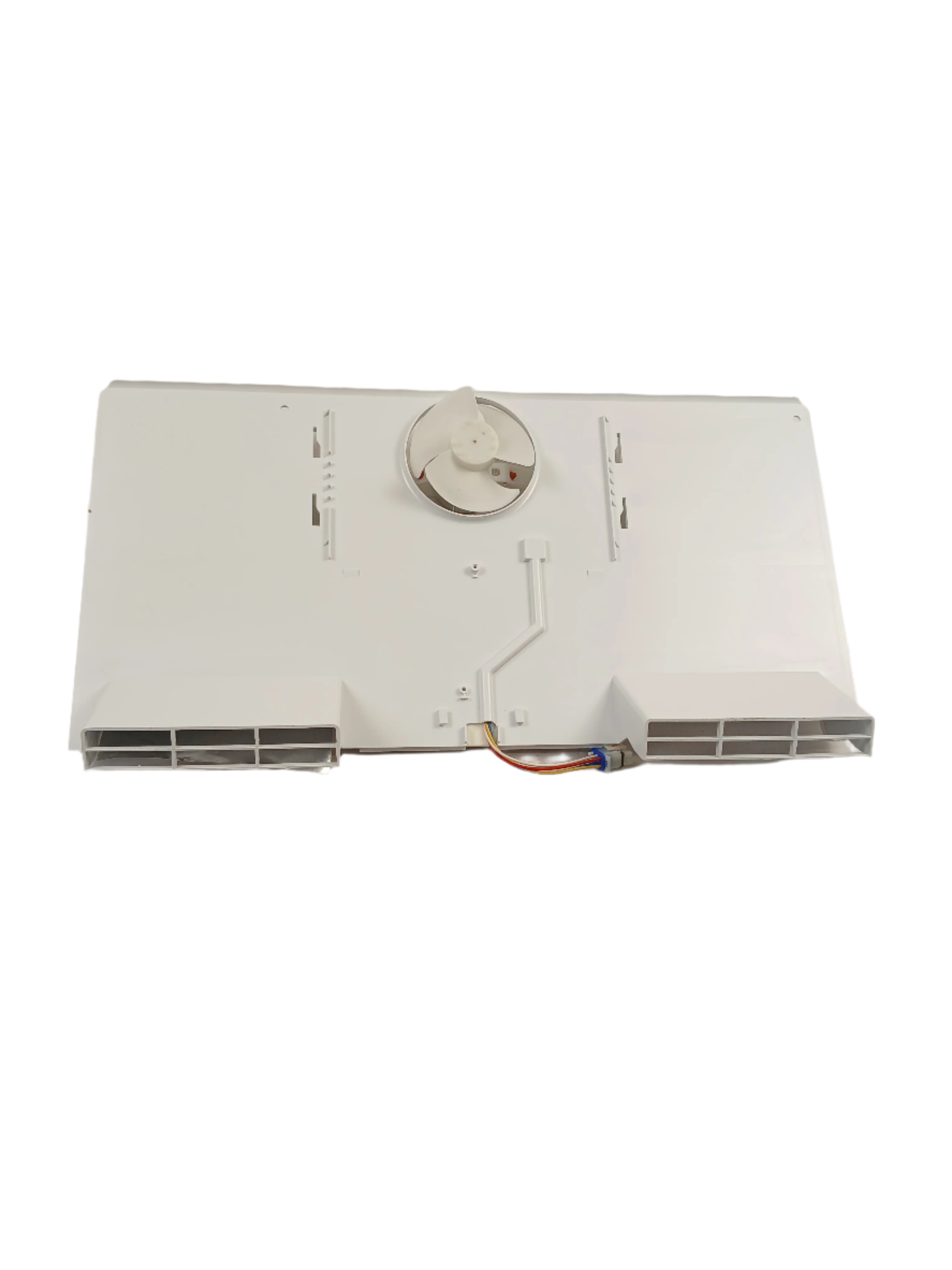

GE Appliances / General Electric Refrigerator Evaporator Cover WR01L11841, Replaces WR14X26747, 225D8750G004, WR01L11264

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Freezer temperature is too warm
• Freezer temperature is too cold or uneven
• Frost buildup around the evaporator-cover area
• Excess moisture associated with disrupted freezer airflow
• Reduced cooling performance when the cover is cracked, loose, or obstructed by ice

Check Before Replacing

• With power disconnected, visually inspect the evaporator cover for cracks, warping, looseness, or missing sections.
• Check that the cover’s air passages are not blocked by ice or stored items.
• Inspect for abnormal frost accumulation around the cover without removing sealed-system components.
• Confirm that the cover is seated securely and is not interfering with evaporator-fan airflow.

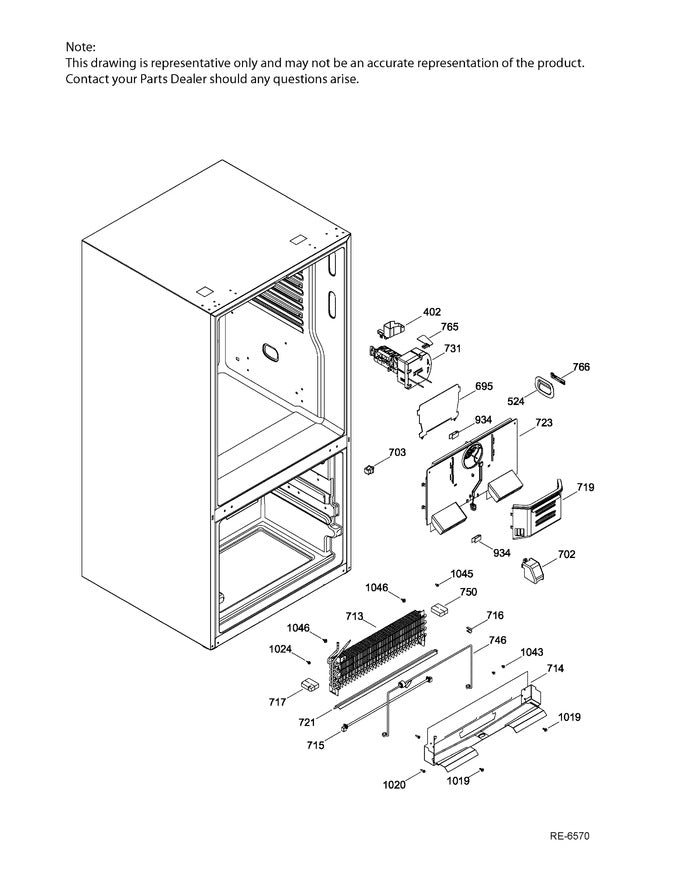

• Do not use the symptom alone to condemn the cover; verify the refrigerator’s model-specific parts diagram and inspect related airflow and defrost components.

Pro Tip

Part Details

Installation Notes

• Disconnect refrigerator power before accessing the freezer evaporator-cover area.
• Remove only the freezer components required by the model-specific service procedure, taking care not to damage wiring, tubing, the evaporator, or fan assembly.
• Avoid forcing or prying the cover if it is iced in place; clear obstructing ice using a model-appropriate safe method before removal.
• After installation, confirm that the cover is seated securely, its airflow openings are unobstructed, and no wiring or fan components are pinched.
• Use the appliance model’s service documentation to confirm the exact removal sequence and any components that must be transferred.

Verified Compatible Models

CFE24SSKBKSS, CFE24SSKFKSS, CFE24SSKGKSS, CNE25SSKBKSS, CNE25SSKFKSS, CNE25SSKGKSS, CWE19SP2NBS1, CWE19SP2NKS1, CWE19SP3NBD1, CWE19SP3NKD1, CWE19SP4NBW2, CWE19SP4NKW2, DFE24JSNAKSS, GDE25ESKBRSS, GDE25ESKFRSS, GDE25ESKGRSS, GFE24JGKFFBB, GFE24JGKFFWW, GFE24JMKFFES, GFE24JSKFFSS, GNE25DGKFKWW, GNE25DGKGKWW, GNE25DGKJKWW, GNE25DSKFKSS, GNE25DSKGKSS, GNE25JGKFFBB, GNE25JGKFFWW, GNE25JMKFFES, GNE25JSKFFSS, GWE19JGLAFBB, GWE19JGLAFWW, GWE19JGLGFBB, GWE19JGLGFWW, GWE19JGLKFBB, GWE19JGLKFWW, GWE19JMLAFES, GWE19JMLGFES, GWE19JMLKFES, GWE19JSLAFSS, GWE19JSLGFSS, GWE19JSLKFSS, GYE18JBLAFTS, GYE18JBLKFTS, GYE18JEMKFDS, GYE18JMLAFES, GYE18JMLKFES, GYE18JSLAFSS, GYE18JSLGFSS, GYE18JSLKFSS, IDM25ESKACSS, GDE25ESKLRSS, GNE25DGKBKWW, GNE25DSKBKSS, INM25FSKACSS, MDU25ESKJCSS, PFE24HBMAKTS, PFE24HBMLKTS, PFE24HGLAKWW, PFE24HGLGKWW, PFE24HGLJKWW, PFE24HGLLKWW, PFE24HMLAKES, PFE24HMLGKES, PFE24HMLLKES, PFE24HSLAKSS, PFE24HSLGKSS, PFE24HSLLKSS, PFE24JGKBKWW, PFE24JGKFKWW, PFE24JMKBKES, PFE24JMKFKES, PFE24JSKBKSS, PFE24JSKFKSS, PFM25LSKACSS, PNE25JGKCKBB, PNE25JGKCKWW, PNE25JGKFKBB, PNE25JGKFKWW, PNE25JMKCKES, PNE25JMKFKES, PNE25JSKCKSS, PNE25JSKFKSS, PNE25NGLAKBB, PNE25NGLAKWW, PNE25NGLGKBB, PNE25NGLGKWW, PNE25NGLJKBB, PNE25NMLAKES, PNE25NMLGKES, PNE25NMLJKES, PNE25NSLAKSS, PNE25NSLGKSS, PNE25NSLJKSS, PYE18HBLAKTS, PYE18HBLGKTS, PYE18HBLKKTS, PYE18HEMAKDS, PYE18HMLAKES, PYE18HMLGKES, PYE18HMLKKES, PYE18HSLAKSS, PYE18HSLGKSS, PYE18HSLKKSS

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
