GE Refrigerator Air Tower Duct Assembly WR03F04480, Replaces 225D8549G002, WR17X25413

Genuine GE refrigerator air tower duct assembly, also described as a duct air tower for the fresh-food compartment. The assembly controls the flow of cold air across the refrigerator compartments and is approximately 12 x 35 x 5 inches.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Refrigerator section too warm
• Refrigerator section too cold
• Freezer section too warm
• Freezer section too cool

Check Before Replacing

• With the refrigerator operating normally, check whether the air-tower outlet area is visibly blocked by food packages, ice, or loose material.
• Inspect the accessible air-tower duct for visible cracks, gaps, warping, or a displaced fit that could allow air to bypass the intended path.
• Use appliance thermometers to compare compartment temperatures after allowing settings sufficient time to stabilize; treat an imbalance as a symptom, not proof that this duct assembly is defective.

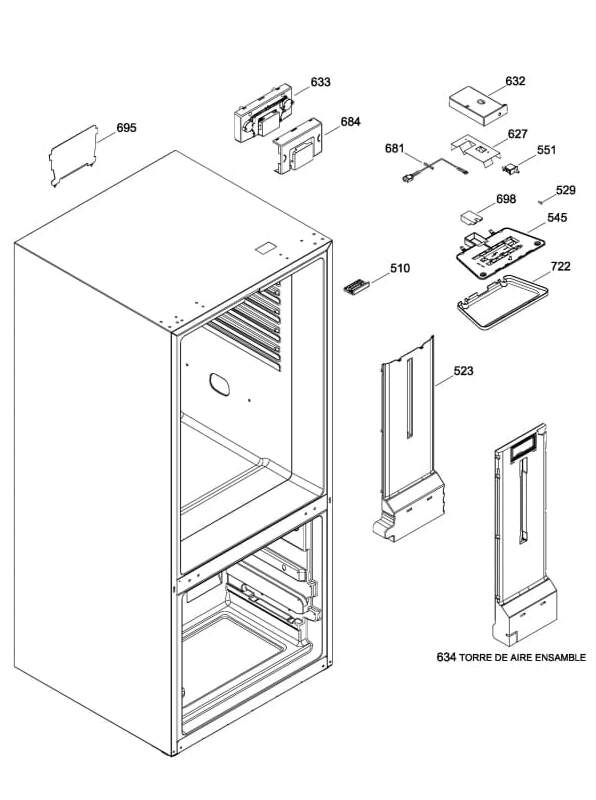

• Confirm the full refrigerator model number and consult its parts diagram before ordering, because similar-looking ducts can differ in shape and fit.

Pro Tip

Part Details

Key Features

• Genuine OEM GE refrigerator air tower duct assembly
• Controls cold-air flow across the refrigerator compartments
• Also described as a tower duct, air damper assembly, or damper control assembly
• Approximate dimensions: 12 x 35 x 5 inches

Installation Notes

• Disconnect power before servicing the refrigerator.
• Use the model-specific parts diagram to confirm the exact assembly before removal or installation.
• Do not force the plastic duct; inspect its seating and ensure its air openings are aligned and unobstructed after installation.
• Recheck compartment temperatures only after the refrigerator has had adequate time to stabilize; airflow or temperature symptoms can have causes other than this duct.

Verified Compatible Models

GBE21AGKAKBB, GBE21AGKAKWW, GBE21ASKAKSS, GBE21ASKBKSS, ABM21DGKACBS, ABM21DGKACWS, GBE21AGKBKBB, GBE21AGKBKWW, GBE21AGKFKBB, GBE21AGKFKWW, GBE21AGKGKBB, GBE21AGKGKWW, GBE21AGKJKBB, GBE21AGKJKWW, GBE21AGKNKBB, GBE21AGKNKWW, GBE21AGKRKBB, GBE21AGKRKWW, GBE21AGKSKBB, GBE21AGKSKWW, GBE21ASKFKSS, GBE21ASKGKSS, GBE21ASKJKSS, GBE21ASKNKSS, GBE21AYRBKFS, GBE21AYRCKFS, GBE21AYRLKFS, GBE21DGKARBB, GBE21DGKFRBB, GBE21DGKFRWW, GBE21DGKLRBB, GBE21DGKNRBB, GBE21DGKNRWW, GBE21DGKTRBB, GBE21DGKTRWW, GBE21DSKFRSS, GBE21DSKNRSS, GBE21DSKTRSS, GBE21DYKBRFS, GBE21DYKERFS

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
