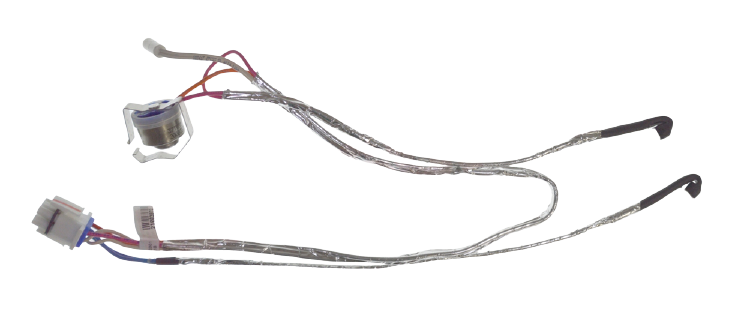

WR03F04651 Refrigerator Evaporator Harness & Thermostat – 225D8725G001 OEM Replacement for GE

WR03F04651 Refrigerator Evaporator Harness & Thermostat – 225D8725G001 OEM Replacement for GE

Price: $77.88

XPart Verified Replacement | SKU 9667981836577

Frequently Bought Together

GE Refrigerator Freezing Up or Not Cooling? Evaporator Harness & Thermostat WR03F04651 – Fix Defrost Failure Fast

If your GE refrigerator has excessive frost buildup on the evaporator coils, poor cooling in the fresh food section, or a freezer that ices over completely, the evaporator harness and thermostat assembly is a primary suspect. In most GE-built bottom-freezer and French door refrigerators, the evaporator thermostat monitors coil temperature and signals the defrost heater to activate — when the harness corrodes or the thermostat fails open, the defrost cycle never triggers, frost accumulates unchecked, and airflow through the evaporator is blocked entirely. ⚡ Common failure point in GE GNE, GWE, GDE, GBE, PNE, and QNE series refrigerators. Part WR03F04651 is the genuine OEM replacement assembly that restores proper defrost cycle triggering with a direct-fit installation requiring no modification.

❓ Is This the Right Part?

This is the correct fix if ALL of the following are true:

✔ Your refrigerator powers on and the compressor runs normally
✔ The evaporator fan motor runs — you can hear airflow in the freezer section
✔ The defrost heater has been confirmed functional (tests with continuity)
✔ Frost is visibly built up on the evaporator coil behind the freezer back panel
✔ ONLY problem is frost accumulation blocking airflow and reducing cooling performance

Not sure? Send us your model number — we’ll confirm before you order.

🔧 Common Symptoms

Refrigerator not cooling but freezer compressor runs — most common customer search
Heavy frost or ice buildup on the back wall of the freezer compartment
Warm fresh food section despite normal-running compressor and fan
Refrigerator cools normally after manual defrost, then ices up again within days
Evaporator fan running but little or no cold air reaching the refrigerator section

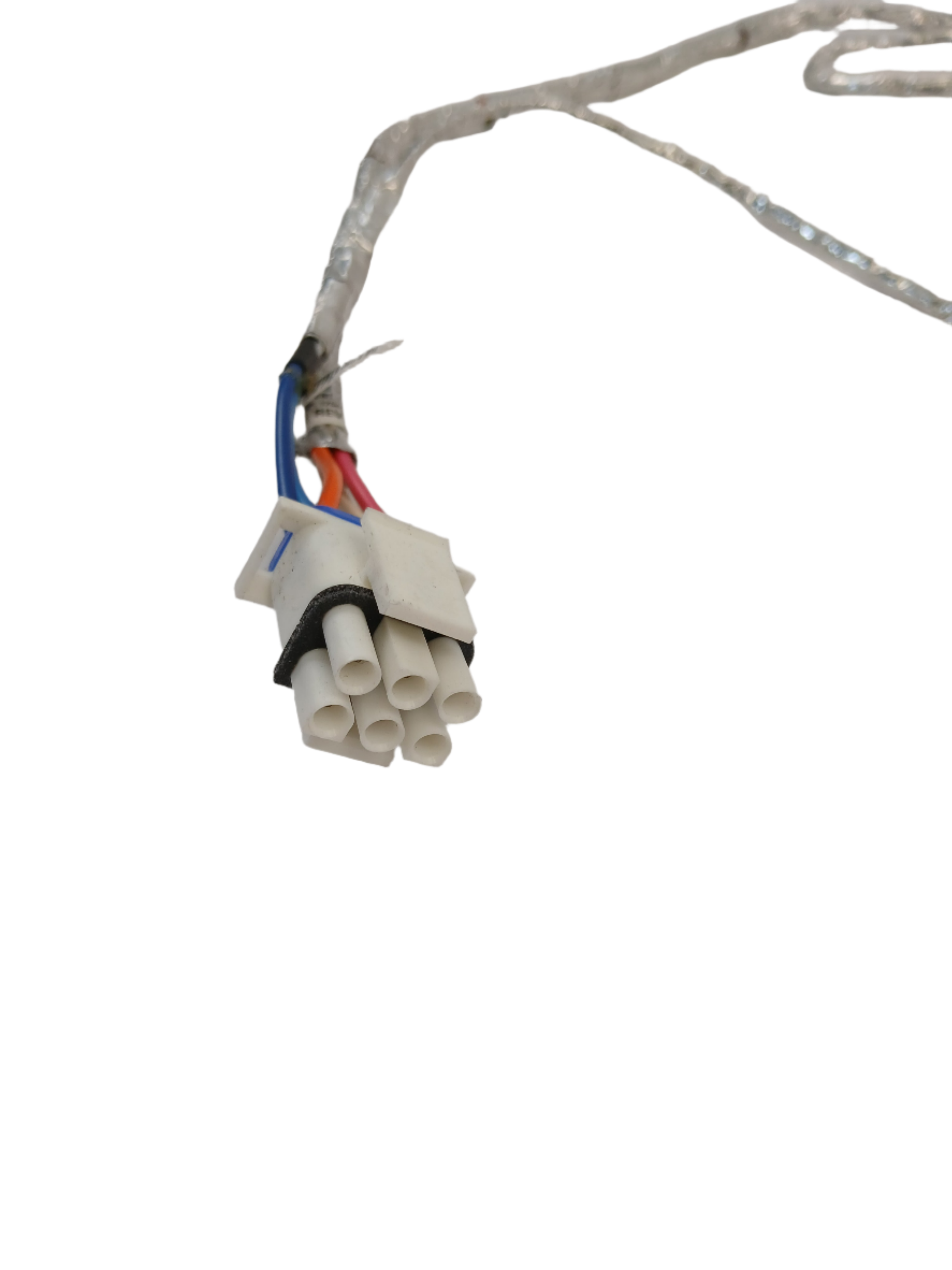

Visible corrosion or damage on the evaporator wiring harness connector

✔ If these symptoms match, this is the most likely failed component in the system.

✔ In most cases, replacing this evaporator harness and thermostat restores automatic defrost cycles and full cooling immediately.

📦 Part Details

Part Number: WR03F04651

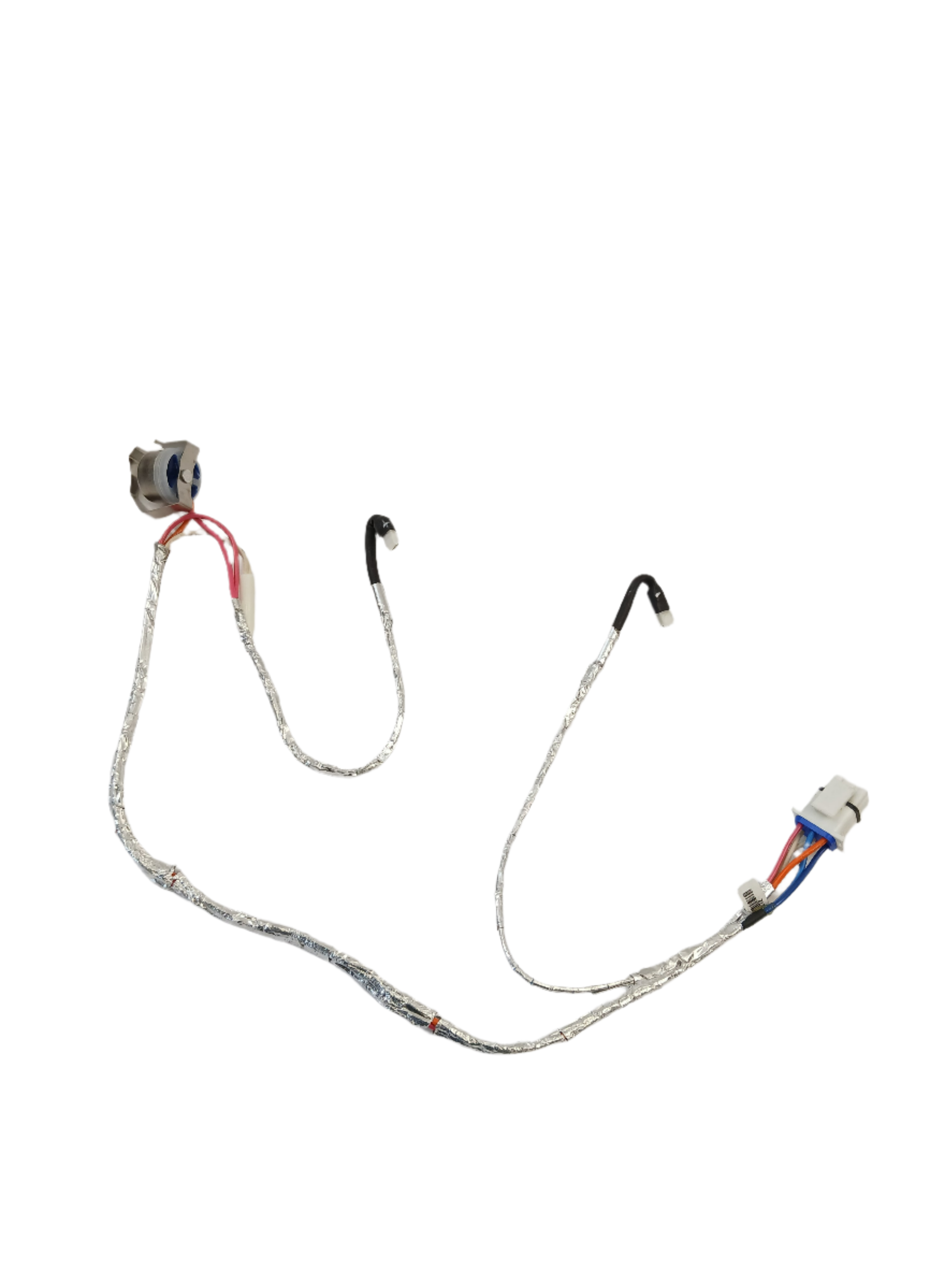

Type: Refrigerator evaporator harness and defrost thermostat assembly — wiring harness with integrated thermal cutout thermostat
Replaces: OEM direct-fit assembly — supersedes 225D8725G001 (no modification required)
Brands: GE, GE Profile, GE Café, Hotpoint, RCA

⚠️ Recommended While Repairing:
While the evaporator panel is open, inspect the defrost heater for continuity and the evaporator fan motor for smooth operation — all three defrost system components are exposed to the same conditions and often fail in sequence. Replacing the full defrost kit at once eliminates the most common cause of repeat callbacks.

⚙️ Installation

Skill Level: MODERATE — 30–45 minutes. Unplug the refrigerator before beginning. Remove all freezer contents and shelving, then unscrew and remove the rear evaporator panel to expose the coil and harness. Manually defrost any remaining ice with a hair dryer (do not use sharp tools), disconnect the old harness from the evaporator heater and control board connectors, and route the new harness in the same path before reconnecting. Ensure all connector clips are fully seated and the harness is routed clear of the evaporator fan blades before reinstalling the panel.

💡 Pro Tip

Run a Forced Defrost Cycle After Install:
After reassembly, initiate a forced defrost cycle using your GE model’s diagnostic mode (typically press and hold two buttons for 5–10 seconds — check your service sheet behind the kickplate) to verify the heater activates and the thermostat opens correctly at temperature. This confirms the entire defrost circuit is working before you reload the freezer and close everything up.

See model hub pages for full fitment and parts diagrams: GNE25JSKFFSS, GNE25JSKNFSS, GNE27JSMKFSS, GNE27JSMNFSS, GWE19JSLKFSS, GWE19JSLNFSS, GDE21DSKFKSS, GBE21ASKFKSS, CNE25SSKAKSS, QNE27JSMKFSS.

✓ Model-Specific Repair Pages

XNE25JSKNFSS GDE21DSKNKSS

✅ Cross Reference Information

Part number WR03F04651 replaces 225D8725G001

✅ Guaranteed to Fit Your Model

ABM21DGKACBS, ABM21DGKACWS, CNE25SSKAKSS, CNE25SSKBKSS, CNE25SSKFKSS, CNE25SSKGKSS, CWE19SP2NBS1, CWE19SP2NKS1, CWE19SP2NLS1, CWE19SP2NNS1, CWE19SP3NBD1, CWE19SP3NKD1, CWE19SP3NND1, CWE19SP4NBW2, CWE19SP4NKW2, CWE19SP4NNW2, GBE21AGKAKBB, GBE21AGKAKWW, GBE21AGKBKBB, GBE21AGKBKWW, GBE21AGKFKBB, GBE21AGKFKWW, GBE21AGKGKBB, GBE21AGKGKWW, GBE21AGKJKBB, GBE21AGKJKWW, GBE21AGKNKBB, GBE21AGKNKWW, GBE21ASKAKSS, GBE21ASKBKSS, GBE21ASKFKSS, GBE21ASKGKSS, GBE21ASKJKSS, GBE21ASKNKSS, GBE21AYRBKFS, GBE21DGKARBB, GBE21DGKFRBB, GBE21DGKFRWW, GBE21DGKLRBB, GBE21DGKNRBB, GBE21DGKNRWW, GBE21DSKFRSS, GBE21DSKNRSS, GBE21DYKBRFS, GDE21DGKAKBB, GDE21DGKAKWW, GDE21DGKBKBB, GDE21DGKBKWW, GDE21DGKFKBB, GDE21DGKFKWW, GDE21DGKGKBB, GDE21DGKGKWW, GDE21DGKJKBB, GDE21DGKJKWW, GDE21DGKLKWW, GDE21DGKNKWW, GDE21DMKAKES, GDE21DMKBKES, GDE21DMKFKES, GDE21DMKGKES, GDE21DMKJKES, GDE21DMKLKES, GDE21DMKNKES, GDE21DSKAKSS, GDE21DSKBKSS, GDE21DSKFKSS, GDE21DSKGKSS, GDE21DSKJKSS, GDE21DSKLKSS, GDE21DSKNKSS, GDE21DYRBKFS, GDE21EGKARBB, GDE21EGKBRBB, GDE21EGKBRWW, GDE21EGKFRBB, GDE21EGKFRWW, GDE21EGKPRBB, GDE21EGKPRWW, GDE21EMKBRES, GDE21EMKFRES, GDE21EMKNRES, GDE21EMKPRES, GDE21ESKARSS, GDE21ESKBRSS, GDE21ESKFRSS, GDE21ESKGRSS, GDE21ESKJRSS, GDE21ESKLRSS, GDE21ESKNRSS, GDE21ESKPRSS, GDE21ESKRRSS, GDE21EYKBRFS, GDE25ESKARSS, GDE25ESKBRSS, GDE25ESKFRSS, GDE25ESKGRSS, GDE25ESKJRSS, GDE25ESKLRSS, GDE25ESKNRSS, GDE25ESKPRSS, GDE25EYKBRFS, GNE21DGKAKWW, GNE21DGKBKWW, GNE21DGKFKWW, GNE21DGKGKWW, GNE21DGKJKWW, GNE21DSKAKSS, GNE21DSKBKSS, GNE21DSKFKSS, GNE21DSKGKSS, GNE21DSKJKSS, GNE21DSKLKSS, GNE21DSKNKSS, GNE21DYRBKFS, GNE21FGKAKBB, GNE21FGKAKWW, GNE21FMKAFES, GNE21FMKBFES, GNE21FMKFFES, GNE21FMKNFES, GNE21FSKBFSS, GNE21FSKFFSS, GNE21FSKNFSS, GNE21FYKBFFS, GNE25DGKAKWW, GNE25DGKBKWW, GNE25DGKFKWW, GNE25DGKGKWW, GNE25DGKJKWW, GNE25DSKAKSS, GNE25DSKBKSS, GNE25DSKFKSS, GNE25DSKGKSS, GNE25DSKJKSS, GNE25DSKLKSS, GNE25DSKNKSS, GNE25DYRBKFS, GNE25JGJAFBB, GNE25JGKFFBB, GNE25JGKFFWW, GNE25JGKNFBB, GNE25JGKNFWW, GNE25JMKFFES, GNE25JMKNFES, GNE25JSKFFSS, GNE25JSKNFSS, GNE25JYKBFFS, GNE27ESMAFSS, GNE27ESMKFSS, GNE27EYMKFFS, GNE27EYMNFFS, GNE27JGMAFBB, GNE27JGMAFWW, GNE27JGMKFBB, GNE27JGMKFWW, GNE27JGMNFBB, GNE27JGMNFWW, GNE27JMMAFES, GNE27JMMKFES, GNE27JMMNFES, GNE27JMMPFES, GNE27JSMAFSS, GNE27JSMDFSS, GNE27JSMKFSS, GNE27JSMNFSS, GNE27JYMNFFS, GWE19JGLAFBB, GWE19JGLAFWW, GWE19JGLGFBB, GWE19JGLGFWW, GWE19JGLKFBB, GWE19JGLKFWW, GWE19JGLNFBB, GWE19JGLNFWW, GWE19JMLAFES, GWE19JMLGFES, GWE19JMLKFES, GWE19JMLNFES, GWE19JMLPFES, GWE19JSDKFSS, GWE19JSLAFSS, GWE19JSLDFSS, GWE19JSLGFSS, GWE19JSLKFSS, GWE19JSLNFSS, GWE19JSLPFSS, GWE19JYLBFFS, IDM25ESKACSS, INM25FSKACSS, MDU25ESKJCSS, MDU25ESKLCSS, NNE21DSMAKSS, NNE21DSMJKSS, NNE21DSMLKSS, NNE21DSMNKSS, NS-RFD21SS9-C, PBM21DSKACSS, PDE21KGKAKWW, PDE21KGKBKWW, PDE21KGKFKWW, PDE21KGKGKWW, PDE21KGKJKWW, PDE21KMKAKES, PDE21KMKBKES, PDE21KMKFKES, PDE21KMKGKES, PDE21KMKJKES, PDE21KSKAKSS, PDE21KSKBKSS, PDE21KSKFKSS, PDE21KSKGKSS, PDE21KSKJKSS, PDM21ESKACSS, PDM25ESKACSS, PNE21KGKAKBB, PNE21KGKAKWW, PNE21KGKBKBB, PNE21KGKBKWW, PNE21KGKFKBB, PNE21KGKFKWW, PNE21KMKAKES, PNE21KMKBKES, PNE21KMKFKES, PNE21KSKAKSS, PNE21KSKBKSS, PNE21KSKFKSS, PNE21NGLAKWW, PNE21NGLGKWW, PNE21NGLJKWW, PNE21NGLLKWW, PNE21NGLNKWW, PNE21NMLAKES, PNE21NMLGKES, PNE21NMLJKES, PNE21NMLLKES, PNE21NMLNKES, PNE21NSLAKSS, PNE21NSLGKSS, PNE21NSLJKSS, PNE21NSLLKSS, PNE21NSLNKSS, PNE21NYRBKFS, PNE25JGKAKBB, PNE25JGKAKWW, PNE25JGKBKBB, PNE25JGKBKWW, PNE25JGKCKBB, PNE25JGKCKWW, PNE25JGKFKBB, PNE25JGKFKWW, PNE25JMKAKES, PNE25JMKBKES, PNE25JMKCKES, PNE25JMKFKES, PNE25JSKAKSS, PNE25JSKBKSS, PNE25JSKCKSS, PNE25JSKFKSS, PNE25NGLAKBB, PNE25NGLAKWW, PNE25NGLGKBB, PNE25NGLGKWW, PNE25NGLJKBB, PNE25NGLJKWW, PNE25NGLLKBB, PNE25NGLLKWW, PNE25NGLNKBB, PNE25NGLNKWW, PNE25NMLAKES, PNE25NMLGKES, PNE25NMLJKES, PNE25NMLLKES, PNE25NMLNKES, PNE25NSLAKSS, PNE25NSLGKSS, PNE25NSLJKSS, PNE25NSLLKSS, PNE25NSLNKSS, PNE25NYRBKFS, PNM25FMKACES, PNM25FSKACSS, QNE27JBMKFTS, QNE27JBMNFTS, QNE27JBMTS, QNE27JSMAFSS, QNE27JSMKFSS, QNE27JSMNFSS, QNE27JSMSS, QNE27JYMNFFS, XNE25JSKNFSS

✅ Frequently Asked Questions

Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
