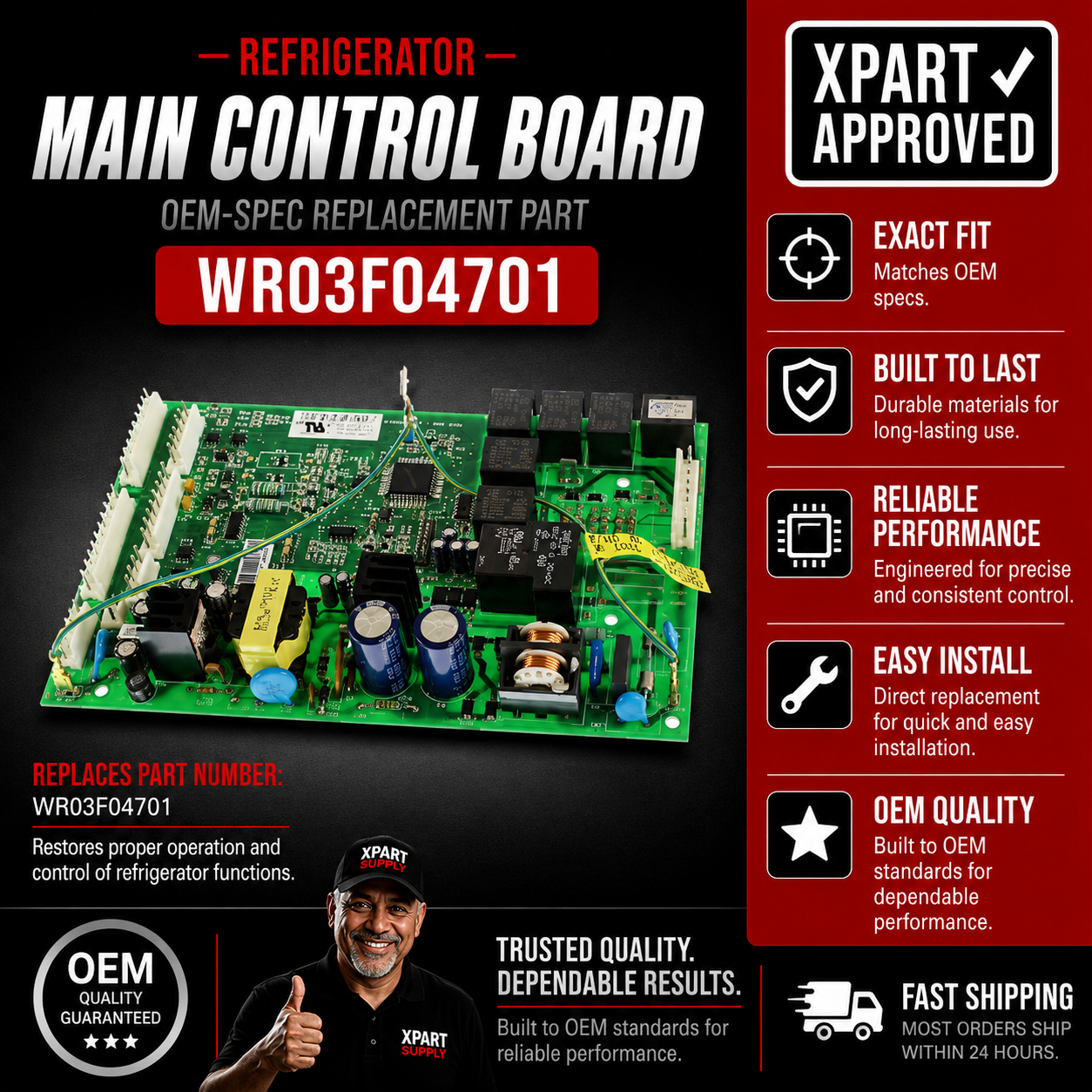

GE Appliances Refrigerator Main Control Board Assembly WR03F04701, Replaces WR03F04513, 225D4205G010, WR55X26586

Genuine GE refrigerator main control board assembly. It manages refrigerator functions including temperature regulation and cooling cycles; GE/Mabe identifies it as a main control board for bottom-mount refrigerator applications.

Is This the Right Part?

Common Symptoms

• Refrigerator runs too long.
• Refrigerator compartment is too cold.
• Freezer compartment is too warm.
• Freezer compartment is too cold.
• Refrigerator is not cooling correctly.

Check Before Replacing

• Confirm the refrigerator model is one approved for WR03F04701 before ordering or installing the board.
• Check that the refrigerator plug is fully seated, the outlet has power, and the circuit breaker or fuse has not tripped.
• Following a power interruption, a power reset may be attempted by unplugging the refrigerator or switching its circuit off briefly, then restoring power.
• With power disconnected, inspect accessible wire-harness connectors for loose, disconnected, or visibly damaged wiring before condemning the control board.
• Do not diagnose the board from a cooling symptom alone; other refrigerator components can produce the same symptoms.

Pro Tip

Part Details

Key Features

• Genuine GE Appliances main control board assembly.
• Controls temperature regulation and cooling cycles.
• GE lists a one-year limited warranty.
• Manufacturer-authorized service part for applicable refrigerator models, including models using R600a flammable refrigerant.

Installation Notes

• Disconnect power before accessing or replacing the control board.
• For applicable French-door refrigerator installations, GE directs access from the rear of the refrigerator.
• Use the model-specific service information and reconnect each harness only to its corresponding board connection.
• GE does not provide a part-specific installation manual on the WR03F04701 product page; confirm fit by model number before installation.

Verified Compatible Models

CFE24SSKAKSS, GNE21DGKAKWW, GNE21DGKBKWW, GNE25DSKAKSS, PFE24JMKAKES, PFE24JSKAKSS, PNE21KMKAKES, PNE25JGKAKBB, PNE25JGKAKWW, PNE25JMKBKES, CFE24SSKBKSS, CNE25SSKAKSS, CNE25SSKBKSS, GNE21DSKAKSS, GNE21DSKBKSS, GNE21FMKBFES, GNE21FSKBFSS, GNE25DGKAKWW, GNE25DGKBKWW, GNE25DSKBKSS, INM25FSKACSS, INM25FSKBCSS, INM25FSKJCSS, PFE24JGKAKBB, PFE24JGKAKWW, PFE24JGKBKWW, PFE24JMKBKES, PFE24JSKBKSS, PFM25HSLACSS, PFM25HSLJCSS, PFM25JSKACSS, PFM25JSKBCSS, PFM25JSLACSS, PFM25JSLJCSS, PFM25LBMACKB, PFM25LENACDS, PFM25LSKACPS, PFM25LSKACSS, PFM25LSKBCSS, PFM25LSKJCSS, PNE21KGKBKBB, PNE21KGKBKWW, PNE21KMKBKES, PNE21KSKBKSS, PNE25JGKBKBB, PNE25JGKBKWW, PNE25JGKCKBB, PNE25JSKBKSS, PNE25JSKCKSS, PNM22FMKACSS, PNM25FMKBCES, PNM25FSKBCSS, PNM25FSKJCSS

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
