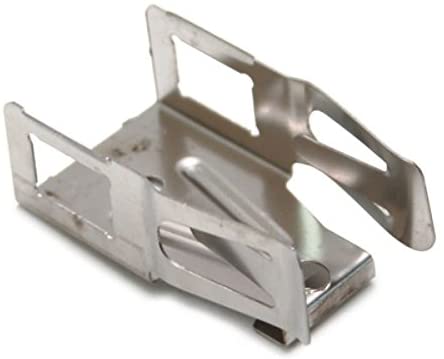

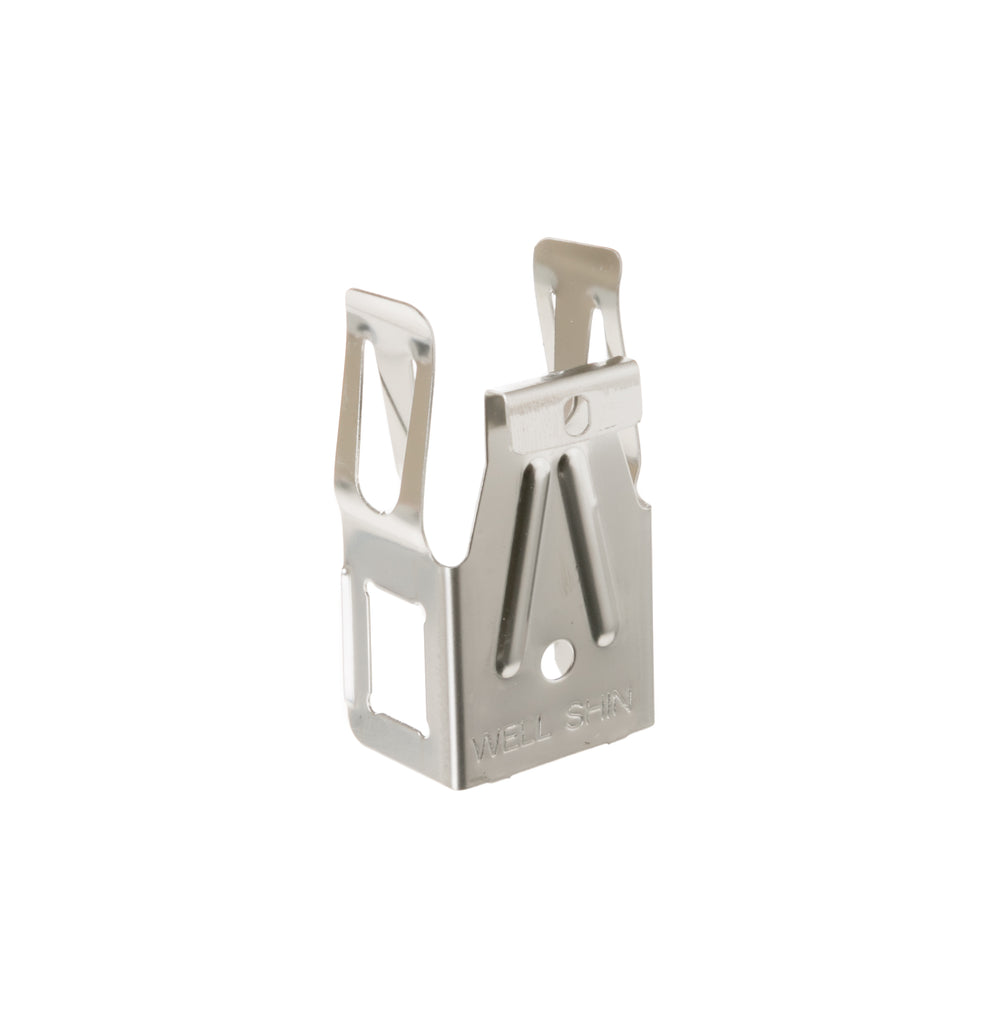

GE (General Electric) Range Surface Element Receptacle WS01A00907, Replaces 223C4296P001, WB02K10133

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• A surface element fails to heat when the control is turned on.
• The element operates intermittently or loses contact when seated.
• Visible melting, burning, discoloration, or arcing at the receptacle area.
• A loose-fitting surface element or burning-plastic odor near the socket.

Check Before Replacing

• Turn the surface-element control off and allow the element to cool completely before inspection.
• Visually inspect the receptacle and nearby wiring for melting, discoloration, looseness, or burn damage; do not touch exposed wiring while energized.
• If the appliance uses interchangeable plug-in elements, with power off and the elements cool, test the suspected element in a working receptacle of the same size. If the element works there, the original receptacle or its circuit requires further service.
• Confirm that the suspected element is fully seated and that its terminals are not visibly damaged.
• Do not assume the receptacle is defective until the surface element, control switch, wiring, and supply circuit have also been considered.

Pro Tip

Part Details

Installation Notes

• Disconnect electrical power to the range before accessing or replacing the receptacle, and verify that the surface element is cool.
• Use the appliance model-specific parts diagram or service documentation to confirm the receptacle location and wire connections before removal.
• Replace the receptacle only after inspecting the connected wiring and the mating surface-element terminals for heat or arc damage.
• After installation, reinstall the surface element fully into the receptacle and confirm operation only after all covers and connections are safely restored.
• If wiring is charred, insulation is damaged, or the connection configuration is unclear, use a qualified appliance technician.

Verified Compatible Models

JCB560DF1WW, JCB560DJ1WW, JCBS250ST3SS, JCBS250ST4SS, MCBS523R1WW, MCBS523R3WW, RCBS536DN4WW, JCBS280DT1WW, JCAS730M2WW, JCAP750WM2WW, JCAP750WM3WW, JCAP750WM4WW, JCAS300DM1WW, JCAS300RP1SS, JCAS724H1WW, JCAS724H3WW, JCAS724H4WW, JCAS730M1WW, JCAS730M3WW, JCAS730M5WW, JCAS730M6WW, JCB530DF1BB, JCB530DF1WW, JCB530DIF1BB, JCB530DIF1WW, JCB530DJ1BB, JCB530DJ1WW, JCB530DJ2WW, JCB530DJ3BB, JCB530DJ3WW, JCB530DM1BB, JCB530SF1SS, JCB530SIF1SS, JCB530SJ1SS, JCB530SJ2SS, JCB530SJ3SS, JCB530SM1SS, JCB530SM2SS, JCB560DJ2WW, JCB560DJ3WW, JCBP240DM1WW, JCBP240DM2WW, JCBP240DT2WW, JCBP240DT3WW, JCBP240DT4WW, JCBP240DT5WW, JCBP250DT1WW, JCBP250DT3WW, JCBP250DT4WW, JCBP250DT5WW, DER201WA, DER202W A, DER241WCA, DER244BSSC A, DER244WC A, EMBS525JWW0A, EMBS525JWW0B, EMBS526JSA0A, EMBS526JSA0B, EMBS526JSA1A, EMBS526JWW0A, EMBS526JWW0B, EML30401BB0A, EML530BBF0A, EML530NNF0A, EML530NXF0A, EML535BBF0A, JCBP240DM3WW, JCBP270DM1WW, JCBP270DT2BB, JCBP270DT2WW, JCBP270DT3WW, JCBP270DT4BB, JCBP270DT4WW, JCBP270DT5WW, JCBP350DT1BB, JCBP350DT1WW, JCBP350DT2BB, JCBP350DT2WW, JCBP350DT3BB, JCBP350DT3WW, JCBP350ST1SS, JCBP350ST2SS, JCBP350ST3SS, JCBP400DT1WW, JCBP400DT2WW, JCBP400DT3WW, JCBS250 T3BB, JCBS250DM1BB, JCBS250DM1WW, JCBS250SM1SS, JCBS250ST2SS, JCBS280DM1WW, JCBS280DM3WW, JCBS280DT2WW, JCBS280DT3WW, JCBS280DT4WW, JCBS280DT5WW, MCB757DM1WW, MCBS523DM1WW, MCBS525 R3WW, MCBS525 R4WW, MCBS525DM1WW, RCBS536DN1WW, RCBS536DN3WW, RCBS536WJ1WW, RCBS540SJ1SA, RE203W-1A, RE2411W-1A

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
