GE Glass-Top Range Burner Not Heating or Only One Ring Works? Triple Radiant Element WS01F01160 – Fix Surface Element Failure Fast
A GE glass-ceramic range with a burner that won’t heat, heats only on one ring, heats unevenly, or shows visible cracks or burn-through on the element almost always needs a new triple radiant surface element. In most GE PCB900 and PCS940 series ranges, the triple radiant surface element is a three-zone nichrome heating assembly with 6”, 9”, and 12” independently controlled rings — when one or more zones fail, the burner produces no heat or uneven heat regardless of the infinite switch setting. When it fails, the cooktop may display an error code or simply produce no response when the burner is selected. ⚡ Triple radiant element failure is the most common cause of a dead or partially working burner on GE PCB900 and PCS940 series glass-top ranges. Part WS01F01160 is the genuine OEM triple radiant surface element that restores full three-zone heating immediately.
❓ Is This the Right Part?
This is the correct fix if ALL of the following are true:
- ✔ Your range is a GE PCB900 or PCS940 series glass-ceramic electric model
- ✔ The burner position uses a triple radiant element with 6”, 9”, and 12” rings
- ✔ The infinite switch (burner control knob) tests good — continuity confirmed at multiple settings
- ✔ Power supply to the element terminals is confirmed at 240V
- ✔ ONLY problem is no heat, partial heat, or uneven heat on this burner — not a control board or wiring fault
Not sure? Send us your model number — we’ll confirm before you order.
🔧 Common Symptoms
- Burner not heating at all — no response when selected at any setting
- Only one ring heats — inner, middle, or outer zone dead while others work
- Uneven or slow heating — element glows partially or inconsistently across rings
- Visible cracks, blistering, or burn-through on the element surface
- Range error code displayed related to surface element
- Burner glows red in isolated spots — open circuit in element ribbon
✔ If these symptoms match, this is the most likely failed component in the system.
✔ In most cases, replacing the triple radiant surface element restores full three-zone heating immediately.
📦 Part Details

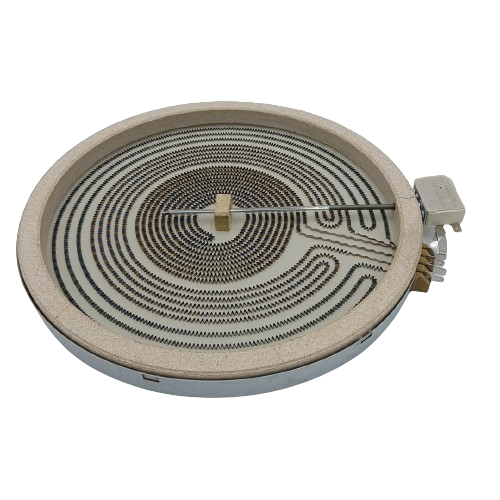

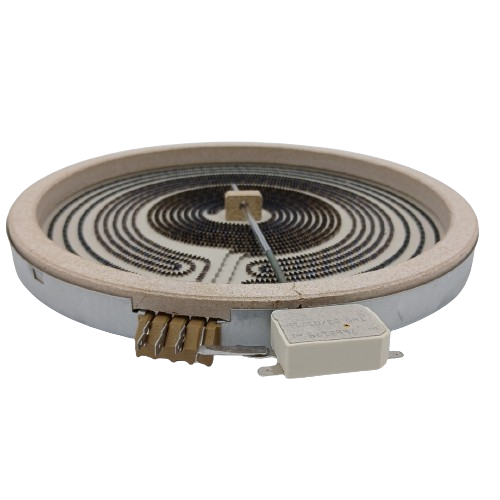

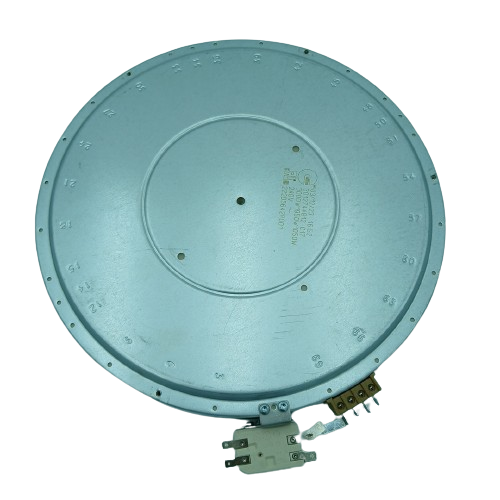

- Part Number: WS01F01160
- Type: Triple Radiant Surface Element — Three-Zone (6” / 9” / 12” rings)
- Replaces: OEM direct-fit element — supersedes WS01F06385, 222D8365P001, 222D5642P001, WB30M293 (no modification required)
- Brands: GE Appliances (PCB900 and PCS940 series)
Test the infinite switch for the affected burner while the cooktop is open — a faulty infinite switch that doesn’t send power to the element will cause the new element to appear dead immediately after installation. Replacing a confirmed-failed switch at the same time as the element eliminates the most common cause of repeat no-heat complaints on GE glass-top ranges.
⚙️ Installation
Skill Level: Moderate — 30–45 min DIY. Disconnect power at the breaker before beginning — this is a 240V component and must be fully de-energized before any service. Carefully lift the glass-ceramic cooktop to access the element from below — note all wiring terminal positions and photograph before disconnecting. Remove the mounting hardware, swap in the new WS01F01160 element, reconnect wires to matching terminals, and lower the cooktop. Restore power and test all three rings before reassembling. Do not overtighten mounting hardware — glass-ceramic cooktops crack under uneven pressure.
💡 Pro Tip
Each ring of the triple radiant element can be tested for continuity independently — a good zone reads a finite resistance (typically 20–80 ohms depending on ring size and wattage); an open reading (OL) confirms that zone has failed. If all zones test good but the burner still won’t heat, the infinite switch is the more likely culprit and costs significantly less than the full element assembly. Testing first saves a return and gets you to the correct repair faster.
Related repair guides and model hubs: GE Range Surface Element WS01F01160, PCB900SR4SS Range Parts, PCS940SF3SS Range Parts, GE Range Parts
✓ Model-Specific Repair Pages
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
