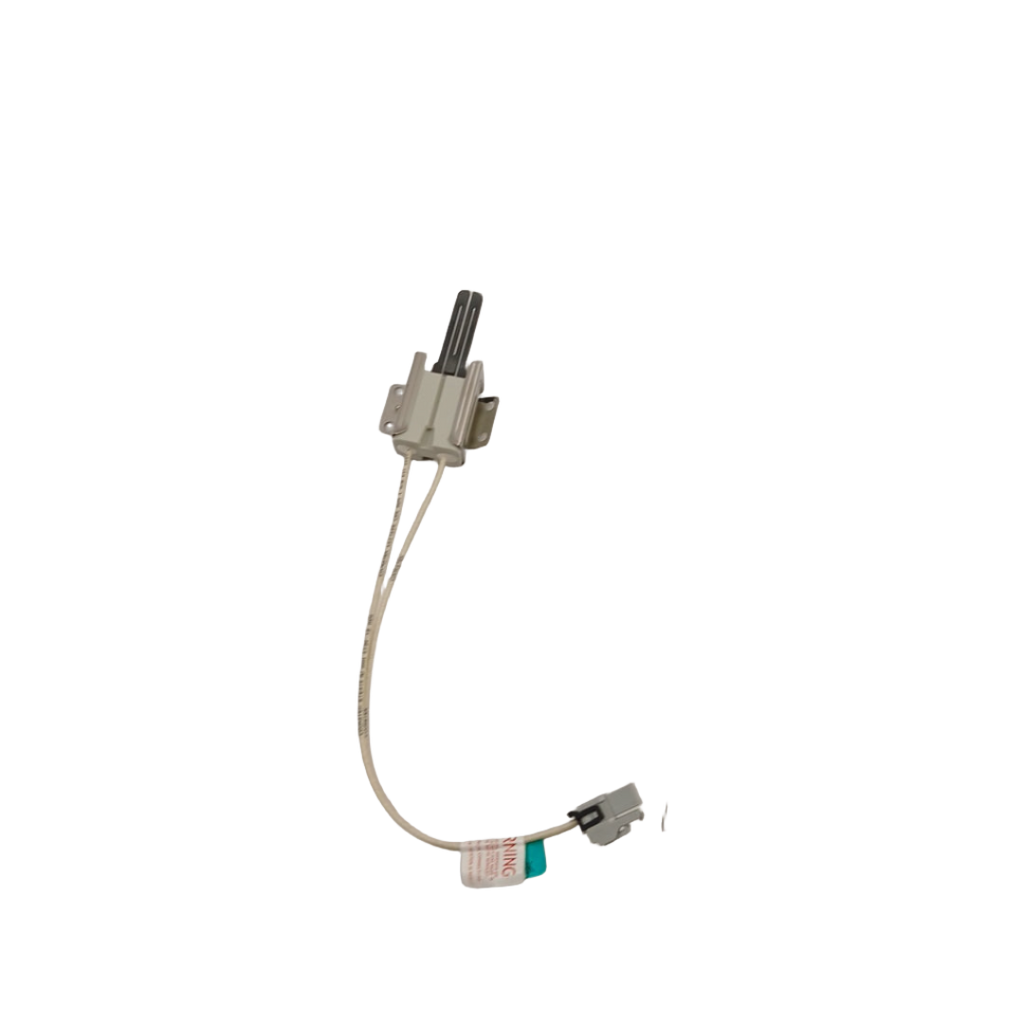

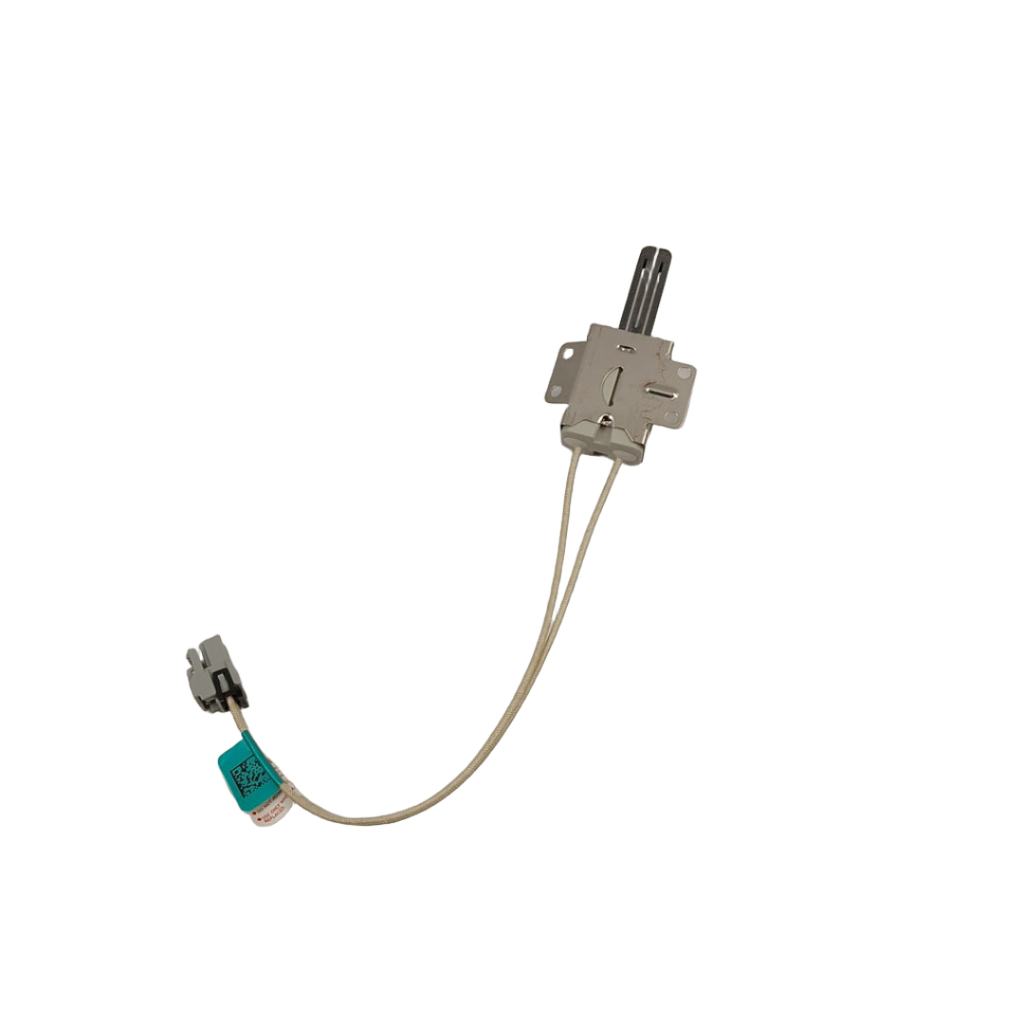

Oven Ignitor, Glow Bar Igniter, Flat Ignitor, Oven Burner Ignitor, Ignition Element

WS01F10365, WB13X25500, WS01F07435, 223C3381G029, AP2030966, PS1005968, AP3672476, PS3672476

GE, Hotpoint, Kenmore (GE-made)

CGB500P2M1S1, CGB500P3M1D1, CGB500P3M1D1, CGS700M2N1S5, CGS700M2N2S5, CGS700M2N2S5, CGS700M2N2S5, CGS700P2M1S1, CGS700P2M2S1, CGS700P2M3S1, CGS700P2M3S1, CGS700P3M1D1, CGS700P3M1D1, CGS700P3M2D1, CGS700P3M3D1, CGS700P3M3D1, CGS700P4M1W2, CGS700P4M2W2, CGS700P4M3W2, CGS700P4M3W2, CGS986EEL1DS, CGS986EEL2DS, CGS986SEL1SS, CGS986SEL2SS, JGB660DEJ1BB, JGB660DEJ1BB, JGB660DEJ1BB, JGB660DEJ1WW, JGB660DEJ1WW, JGB660DEJ1WW, JGB660DEJ2BB, JGB660DEJ2WW, JGB660DEJ3BB, JGB660DEJ3WW, JGB660DEJ4BB, JGB660DEJ4WW, JGB660DEJ5BB, JGB660DEJ5BB, JGB660DEJ5WW, JGB660DEJ5WW, JGB660DP1BB, JGB660DP1BB, JGB660DP1WW, JGB660DP1WW, JGB660EEJ1ES, JGB660EEJ1ES, JGB660EEJ1ES, JGB660EEJ2ES, JGB660EEJ3ES, JGB660EEJ4ES, JGB660EEJ5ES, JGB660EEJ5ES, JGB660EP1ES, JGB660EP1ES, JGB660FEJ1DS, JGB660FEJ2DS, JGB660FEJ2DS, JGB660FP1DS, JGB660SEJ1SS, JGB660SEJ1SS, JGB660SEJ2SS, JGB660SEJ3SS, JGB660SEJ4SS, JGB660SEJ5SS, JGB660SEJ5SS, JGB660SP1SS, JGB660SP1SS, JGB660YP1FS, JGB660YP1FS, JGB700BEJ1TS, JGB700BEJ2TS, JGB700BEJ2TS, JGB700DEJ1BB, JGB700DEJ1BB, JGB700DEJ1WW, JGB700DEJ1WW, JGB700DEJ2BB, JGB700DEJ2WW, JGB700DEJ3BB, JGB700DEJ3WW, JGB700DEJ4BB, JGB700DEJ4WW, JGB700DEJ5BB, JGB700DEJ5BB, JGB700DEJ5WW, JGB700DEJ5WW, JGB700EEJ1ES, JGB700EEJ1ES, JGB700EEJ1ES, JGB700EEJ2ES, JGB700EEJ3ES, JGB700EEJ4ES, JGB700EEJ5ES, JGB700EEJ5ES, JGB700FEJ1DS, JGB700FEJ2DS, JGB700FEJ2DS, JGB700SEJ1SS, JGB700SEJ1SS, JGB700SEJ2SS, JGB700SEJ3SS, JGB700SEJ4SS, JGB700SEJ5SS, JGB700SEJ5SS, JGB720BEJ1TS, JGB720BEJ2TS, JGB720BEJ2TS, JGB720DEJ1BB, JGB720DEJ1BB, JGB720DEJ1WW, JGB720DEJ1WW, JGB720DEJ2BB, JGB720DEJ2WW, JGB720EEJ1ES, JGB720EEJ1ES, JGB720EEJ1ES, JGB720EEJ2ES, JGB720EEJ3ES, JGB720EEJ4ES, JGB720EEJ5ES, JGB720EEJ5ES, JGB720FEJ1DS, JGB720FEJ2DS, JGB720FEJ2DS, JGB720SEJ1SS, JGB720SEJ1SS, JGB720SEJ2SS, JGB720SEJ3SS, JGB720SEJ4SS, JGB720SEJ5SS, JGB720SEJ5SS, JGB735DP1BB, JGB735DP1BB, JGB735DP1BB, JGB735DP1WW, JGB735DP1WW, JGB735DP1WW, JGB735EP1ES, JGB735EP1ES, JGB735EP1ES, JGB735FP1DS, JGB735FP1DS, JGB735FP1DS, JGB735SP1SS, JGB735SP1SS, JGS760BEL1TS, JGS760BEL1TS, JGS760BEL1TS, JGS760BEL2TS, JGS760BEL2TS, JGS760BEL3TS, JGS760BEL3TS, JGS760BEL4TS, JGS760BP1TS, JGS760DEL1BB, JGS760DEL1BB, JGS760DEL1BB, JGS760DEL1WW, JGS760DEL1WW, JGS760DEL1WW, JGS760DEL2BB, JGS760DEL2BB, JGS760DEL2WW, JGS760DEL2WW, JGS760DEL3BB, JGS760DEL3BB, JGS760DEL3WW, JGS760DEL3WW, JGS760DEL4BB, JGS760DEL4WW, JGS760DP1BB, JGS760DP1WW, JGS760DP2BB, JGS760DP2WW, JGS760DP3BB, JGS760DP3BB, JGS760DP3WW, JGS760DP3WW, JGS760DP4WW, JGS760DP4WW, JGS760EEL1ES, JGS760EEL1ES, JGS760EEL1ES, JGS760EEL2ES, JGS760EEL2ES, JGS760EEL3ES, JGS760EEL3ES, JGS760EEL4ES, JGS760EP1ES, JGS760EP2ES, JGS760EP3ES, JGS760EP4ES, JGS760EP4ES, JGS760FEL1DS, JGS760FEL1DS, JGS760FEL2DS, JGS760FEL2DS, JGS760FEL3DS, JGS760FEL3DS, JGS760FEL4DS, JGS760FP1DS, JGS760FP2DS, JGS760FP3DS, JGS760FP4DS, JGS760FP4DS, JGS760SEL1SS, JGS760SEL1SS, JGS760SEL1SS, JGS760SEL2SS, JGS760SEL2SS, JGS760SEL3SS, JGS760SEL4SS, JGS760SEL4SS, JGS760SP1SS, JGS760SP2SS, JGS760SP3SS, JGS760SP4SS, JGS760SP4SS, JGSS61SP1SS, JGSS61SP2SS, JGSS66EEL1ES, JGSS66EEL2ES, JGSS66EEL2ES, JGSS66EEL2ES, JGSS66EEL3ES, JGSS66EEL3ES, JGSS66EEL3ES, JGSS66EEL3ES, JGSS66EEL4ES, JGSS66EEL4ES, JGSS66EEL4ES, JGSS66EEL5ES, JGSS66FEL1DS, JGSS66FEL2DS, JGSS66FEL2DS, JGSS66FEL3DS, JGSS66FEL3DS, JGSS66SEL1SS, JGSS66SEL2SS, JGSS66SEL2SS, JGSS66SEL3SS, JGSS66SEL3SS, JGSS66SEL3SS, JGSS66SEL4SS, JGSS66SEL4SS, JGSS66SEL5SS, PGB911BEJ1TS, PGB911BEJ2TS, PGB911BEJ2TS, PGB911BEJ3TS, PGB911DEJ1BB, PGB911DEJ1BB, PGB911DEJ1WW, PGB911DEJ1WW, PGB911DEJ2BB, PGB911DEJ2WW, PGB911DEJ3BB, PGB911DEJ3WW, PGB911EEJ1ES, PGB911EEJ1ES, PGB911EEJ1ES, PGB911EEJ2ES, PGB911EEJ3ES, PGB911EEJ4ES, PGB911EEJ5ES, PGB911EEJ5ES, PGB911FEJ1DS, PGB911FEJ2DS, PGB911FEJ2DS, PGB911SEJ1SS, PGB911SEJ1SS, PGB911SEJ2SS, PGB911SEJ3SS, PGB911SEJ4SS, PGB911SEJ5SS, PGB911SEJ5SS, PGB911SEJ6SS, PGB911ZEJ1SS, PGB911ZEJ1SS, PGB911ZEJ2SS, PGB911ZEJ3SS, PGB911ZEJ4SS, PGB911ZEJ5SS, PGB911ZEJ5SS, PGB911ZEJ6SS, PGB930SEJ1SS, PGB930SEJ1SS, PGB930SEJ2SS, PGB930SEJ3SS, PGB930SEJ4SS, PGB930SEJ5SS, PGB930SEJ6SS, PGB930SEJ7SS, PGB935BP1TS, PGB935BP1TS, PGB935YP1FS, PGB935YP1FS, PGB935YP2FS, PGB940SEJ1SS, PGB940SEJ1SS, PGB940SEJ2SS, PGB940SEJ3SS, PGB940SEJ4SS, PGB940SEJ5SS, PGB940SEJ6SS, PGB940SEJ7SS, PGB940SEJ8SS, PGB940ZEJ1SS, PGB940ZEJ1SS, PGB940ZEJ2SS, PGB940ZEJ3SS, PGS930BEL1TS, PGS930BEL1TS, PGS930BEL2TS, PGS930BEL2TS, PGS930BEL3TS, PGS930BEL3TS, PGS930BEL4TS, PGS930BP1TS, PGS930BP2TS, PGS930BP2TS, PGS930EEL1ES, PGS930FEL1DS, PGS930FEL1DS, PGS930FEL2DS, PGS930FEL2DS, PGS930FEL3DS, PGS930FEL3DS, PGS930FEL4DS, PGS930SEL1SS, PGS930SEL1SS, PGS930SEL2SS, PGS930SEL2SS, PGS930SEL3SS, PGS930SEL4SS, PGS930YP1FS, PGS930YP2FS, PGS930YP3FS, PGS930YP3FS, PGS930YP4FS, PGS930YP5FS, PGS930YP6FS, QGSS740BN1TS, QGSS740RN1SS, QGSS740RN1SS

CRITICAL SAFETY WARNING: This repair involves working with high-voltage ignition circuits and accessing the oven burner area. Always unplug the range from the electrical outlet or turn off the circuit breaker before beginning work to prevent electrical shock. The oven ignitor operates at high voltage (typically 120V AC) and reaches extremely high temperatures (1700°F / 927°C)—never touch the ignitor while it's powered or immediately after the oven has been used. If uncomfortable with this repair or unfamiliar with range disassembly procedures, hire a qualified appliance technician. IMPORTANT: Never attempt to manually ignite the oven or use an external flame if the ignitor fails—unburned gas may accumulate in the oven, creating a fire or explosion hazard.TOOLS REQUIRED: Phillips screwdriver, flathead screwdriver, nut driver or socket set (typically 1/4-inch or 5/16-inch), needle-nose pliers, flashlight, work gloves, multimeter (for testing).IMPORTANT: Before replacing the oven ignitor, verify the ignitor is actually faulty by testing for power and checking for visible damage.

1. Unplug the range from the electrical outlet or turn off the circuit breaker to ensure complete power disconnection. CRITICAL: Never work on the range while it's plugged in.
2. Pull the range away from the wall to access the rear panel if needed. Caution: The range may be heavy—get assistance if needed.
3. Take multiple photos of the oven ignitor location, electrical connector, mounting position, and surrounding components before disassembly. CRITICAL: Proper reassembly requires exact wire positioning.
4. Take detailed close-up photos of: the ignitor electrical connector and wire colors, the ignitor mounting bracket and mounting screws, the ignitor orientation (which direction it faces), and any other components nearby.
5. Determine the access method for your range model. Most ranges require either: (A) removing the oven door and accessing from the front, or (B) removing the back panel and accessing from behind. Consult your owner's manual if unsure.
6. For front access (most common method):Open the oven door fullyRemove the oven racks to access the oven interiorLocate the oven ignitor mounted above or adjacent to the oven burner opening
7. For rear access (alternate method):Remove the screws securing the back panel (typically 6-10 screws around the perimeter)Carefully remove the back panel and set it asideLocate the oven ignitor behind the oven cavity
8. Locate the oven ignitor assembly. The ignitor is typically a flat component approximately 2-3 inches long mounted directly above or adjacent to the oven burner opening.
9. Inspect the old oven ignitor for damage indicators: no ignition when oven is turned on (ignitor failure, most common), oven takes multiple attempts to ignite (weak ignition), visible damage to ignitor or ceramic insulator (cracking or breaking), burned or melted wires (electrical failure), or corrosion on electrical connector (connection failure). This confirms the diagnosis.
10. Test the old oven ignitor with a multimeter by measuring voltage at the ignitor connector when the oven is turned on. The ignitor should receive approximately 120V AC. If voltage is present but the ignitor doesn't glow, the ignitor is faulty. If no voltage is present, the control circuit or wiring may be faulty.
11. Disconnect the ignitor electrical connector from the range wiring harness by carefully pulling the connector straight apart. Caution: Do not pull on the wires—grasp the connector and pull straight.
12. Remove the mounting screw(s) securing the oven ignitor to the mounting bracket using a Phillips screwdriver or nut driver (typically 1-2 screws). Caution: Support the ignitor while removing the last screw.
13. Carefully remove the oven ignitor assembly from the range. Important: The ignitor is fragile—handle carefully to avoid damaging the ceramic insulator or heating element.
14. Inspect the ignitor mounting area for damage, debris, or corrosion. Clean thoroughly if needed.
15. Unpack the new WS01F10365 oven ignitor from its packaging. CAUTION: The ignitor is a precision component—handle carefully to avoid damaging the ceramic insulator or heating element.
16. Compare the new oven ignitor to the old one to verify overall dimensions, flat design, mounting bracket configuration, electrical connector type, and overall design match.
17. Inspect the new oven ignitor for any shipping damage before installation. The ceramic insulator should be intact with no cracks or chips, the heating element should be visible and undamaged, the mounting bracket should be intact, and the electrical connector should be clean and undamaged.
18. Position the new oven ignitor in the mounting location, aligning the mounting hole(s) with the mounting screw hole(s). Important: Ensure the ignitor is oriented correctly per your detailed photos—the ignitor must face the correct direction for proper gas ignition.
19. Install the mounting screw(s) to secure the ignitor. Start the screw(s) by hand before tightening. Important: Do not over-tighten—this can crack the ceramic insulator.
20. Tighten the mounting screw(s) firmly using a Phillips screwdriver or nut driver. Caution: Tighten evenly to prevent ignitor misalignment.
21. Verify the ignitor is securely mounted with no excessive play or movement. Try to move the ignitor by hand—it should not move at the mounting point.
22. Connect the ignitor electrical connector to the range wiring harness by pushing the connectors together until they click into place. CRITICAL: Incorrect connections cause ignitor malfunction or safety hazards.
23. Verify the wire connector is fully seated by trying to pull it apart—it should not come apart without pressing the release tab.
24. Reinstall the oven racks if they were removed for front access.
25. Close the oven door if it was opened for access.
26. Reinstall the back panel if it was removed for rear access by aligning it with the mounting holes and installing the mounting screws.
27. Tighten the back panel screws firmly using a Phillips screwdriver or nut driver. Caution: Do not over-tighten—this can crack the panel.
28. Push the range back into position against the wall if it was moved.
29. Restore electrical power by plugging in the range or turning on the circuit breaker.
30. Run a test cycle to verify proper oven ignitor operation:Turn on the oven to any temperatureListen for the ignitor clicking sound (indicates ignitor is heating)Observe the ignitor glowing white hot (if visible through oven window)Verify the oven burner ignites within 5-10 secondsAllow the oven to heat for 10-15 minutesVerify the oven maintains temperature and the burner stays lit
31. Check for proper ignitor operation during the test cycle. The ignitor should glow white hot and ignite the gas quickly.
32. Verify the oven ignites reliably on the first attempt. The oven should ignite within 5-10 seconds of being turned on.
33. Monitor for any unusual sounds during the test cycle. There should be no clicking sounds after ignition or unusual noises.
34. Verify the oven maintains temperature during extended heating. The oven should heat to the set temperature and maintain it.
35. If the oven ignites reliably and maintains temperature, the repair is complete.

Safety Notes: Always unplug the range or turn off the circuit breaker before working on the oven ignitor. Never touch the ignitor while it's powered or immediately after the oven has been used—it reaches extremely high temperatures. Verify all wire connections are secure and properly installed before testing. Test the new ignitor before operation to verify it's functioning. Never attempt to manually ignite the oven if the ignitor fails. Verify proper ignition within 5-10 seconds of turning on the oven. Test operation through a complete heating cycle to verify reliable ignition and temperature maintenance. This repair typically takes 30-60 minutes depending on range model and access method. If uncomfortable working with range electrical systems or unfamiliar with oven ignitor replacement procedures, hire a professional appliance technician.

1. The WS01F10365 oven ignitor must reach approximately 1700°F (927°C) to reliably ignite natural gas or propane—if the ignitor glows but doesn't ignite the gas, it's not reaching sufficient temperature and should be replaced. A weak or failing ignitor may glow orange or dull red but not reach the white-hot temperature needed for reliable ignition. This is one of the most common ignitor failure modes. The ignitor should glow bright white within 5-10 seconds of the oven being turned on. If the ignitor glows orange or red but doesn't ignite the gas, the heating element is weak and the ignitor should be replaced immediately. Continuing to operate with a weak ignitor can cause gas accumulation in the oven, creating a fire or explosion hazard.
2. The oven ignitor must be oriented correctly for proper gas ignition—improper orientation causes ignition failure or delayed ignition even with a new ignitor installed. The flat ignitor design must face the oven burner opening so the glowing hot surface is positioned directly above or adjacent to the gas flow. If the ignitor is rotated or positioned incorrectly, the gas may not contact the hot surface, preventing ignition. Always take detailed photos of the ignitor orientation before removal and ensure the new ignitor is installed in the exact same orientation. Verify the ignitor faces the burner opening and is positioned to intercept the gas flow for reliable ignition.
3. The ignitor electrical connector must be fully seated and secure—loose or corroded connections cause intermittent operation or complete ignitor failure. The ignitor operates at high voltage (120V AC) and draws significant current to heat the element. If the electrical connector is loose, corroded, or not fully seated, electrical contact is poor, causing intermittent operation or complete failure. When replacing the ignitor, verify the electrical connector is clean and free of corrosion. If the connector is corroded, clean it thoroughly with a wire brush before connecting. Always verify the connector is fully seated by trying to pull it apart—it should not come apart without pressing the release tab.
4. The ceramic insulator protects the heating element and provides electrical insulation—cracks or damage to the insulator cause electrical shorts and ignitor failure. The ceramic insulator surrounds the heating element and prevents electrical contact with the metal mounting bracket or oven components. If the insulator is cracked or damaged, the heating element can contact metal components, causing electrical shorts and ignitor failure. When inspecting the old ignitor, check the ceramic insulator carefully for cracks, chips, or damage. If damage is visible, the ignitor should be replaced immediately. When installing the new ignitor, handle it carefully to avoid damaging the ceramic insulator—never drop or impact the ignitor.
5. The ignitor mounting screws must be tightened firmly but not over-tightened—over-tightening cracks the ceramic insulator and causes premature ignitor failure. The ceramic insulator is fragile and can crack if excessive force is applied during mounting. When installing the new ignitor, tighten the mounting screws firmly to secure the ignitor but do not over-tighten. Use a Phillips screwdriver or nut driver and tighten until the ignitor is secure with no movement. If you feel significant resistance, stop tightening—the screws are tight enough. Over-tightening is one of the most common installation mistakes that causes premature ignitor failure.
6. The oven burner must be clean and unobstructed for proper ignition—blocked burner ports cause ignition failure even with a new ignitor installed. The oven burner has small ports where gas flows out to be ignited by the ignitor. If these ports are blocked by food debris, grease, or corrosion, gas flow is restricted, preventing proper ignition. Before installing the new ignitor, inspect the oven burner and clean the burner ports if needed. Use a small wire brush or toothpick to clear any blockages. Proper burner maintenance ensures reliable ignition and prevents repeated ignitor problems.
7. The ignitor heating element should never be touched with bare hands—oils from skin can cause hot spots and premature element failure. The heating element operates at extremely high temperatures (1700°F / 927°C). If oils from skin contact the element, they create hot spots that cause uneven heating and premature failure. Always handle the new ignitor by the ceramic insulator or mounting bracket, never by the heating element. If you accidentally touch the heating element, clean it thoroughly with rubbing alcohol before installation. This simple precaution significantly extends ignitor lifespan.
8. The ignitor must ignite the oven within 5-10 seconds of being turned on—longer ignition times indicate a weak ignitor or other ignition system problems. A properly functioning ignitor should glow white hot and ignite the gas within 5-10 seconds of the oven being turned on. If ignition takes longer than 10 seconds, the ignitor may be weak, the gas pressure may be low, or the burner may be partially blocked. After installing the new ignitor, verify ignition occurs within 5-10 seconds. If ignition is delayed, investigate the cause—do not assume the new ignitor is faulty until other potential causes are ruled out.
9. The flame sensor detects the oven burner flame and signals the control circuit to maintain gas flow—if the flame goes out shortly after ignition, the flame sensor may be faulty. The flame sensor is a separate component (typically a thermocouple or flame rod) that detects the presence of the burner flame. If the sensor is faulty or contaminated, it may not detect the flame, causing the control circuit to shut off gas flow. If the oven ignites but the flame goes out after a few seconds, the flame sensor should be inspected and cleaned or replaced. Do not assume the ignitor is faulty if the flame goes out shortly after ignition—this symptom typically indicates a flame sensor problem, not an ignitor problem.
10. After replacing the oven ignitor, monitor ignition reliability for several days—intermittent ignition problems may indicate loose electrical connections or other ignition system issues. Even with a new ignitor installed, ignition problems can recur if electrical connections are loose or if there are other ignition system problems. After installation, use the oven several times over several days and monitor ignition reliability. If ignition is intermittent or unreliable, investigate the cause: verify the ignitor electrical connector is fully seated, verify the ignitor is securely mounted, verify the burner is clean and unobstructed, and verify the flame sensor is functioning properly. If you cannot identify the cause, contact a qualified technician for diagnosis.
11. The oven ignitor has a typical lifespan of 3-5 years with average use, but can be shortened by frequent oven use, high-temperature cooking, or electrical surges. Factors that shorten ignitor life include: frequent oven use causing repeated heating cycles (thermal stress), high-temperature cooking (broiling, self-cleaning) causing excessive heat exposure, electrical surges or voltage fluctuations (electrical stress), contamination of ignitor surface with food debris or grease (efficiency loss), manufacturing defects, or low-quality replacement ignitors (premature failure). To extend ignitor life and prevent premature failure, avoid excessive high-temperature cooking, keep the oven interior clean to prevent contamination, use a surge protector for the range, use genuine OEM ignitors, and replace the ignitor promptly if it shows signs of failure. Regular maintenance and prompt replacement of faulty ignitors ensure reliable oven operation and prevent safety hazards.
12. The oven control circuit must provide sufficient voltage to the ignitor for proper operation—if the ignitor receives low voltage, it won't reach ignition temperature even if the ignitor is new. The ignitor requires approximately 120V AC to heat to ignition temperature. If the control circuit provides low voltage due to a faulty control board, wiring problems, or electrical supply issues, the ignitor won't reach sufficient temperature for ignition. After installing a new ignitor, if ignition is still unreliable, test the voltage at the ignitor connector with a multimeter when the oven is turned on. If voltage is significantly below 120V AC, the control circuit or electrical supply should be investigated. Do not replace the ignitor multiple times without verifying proper voltage—this indicates a control circuit problem, not an ignitor problem.
