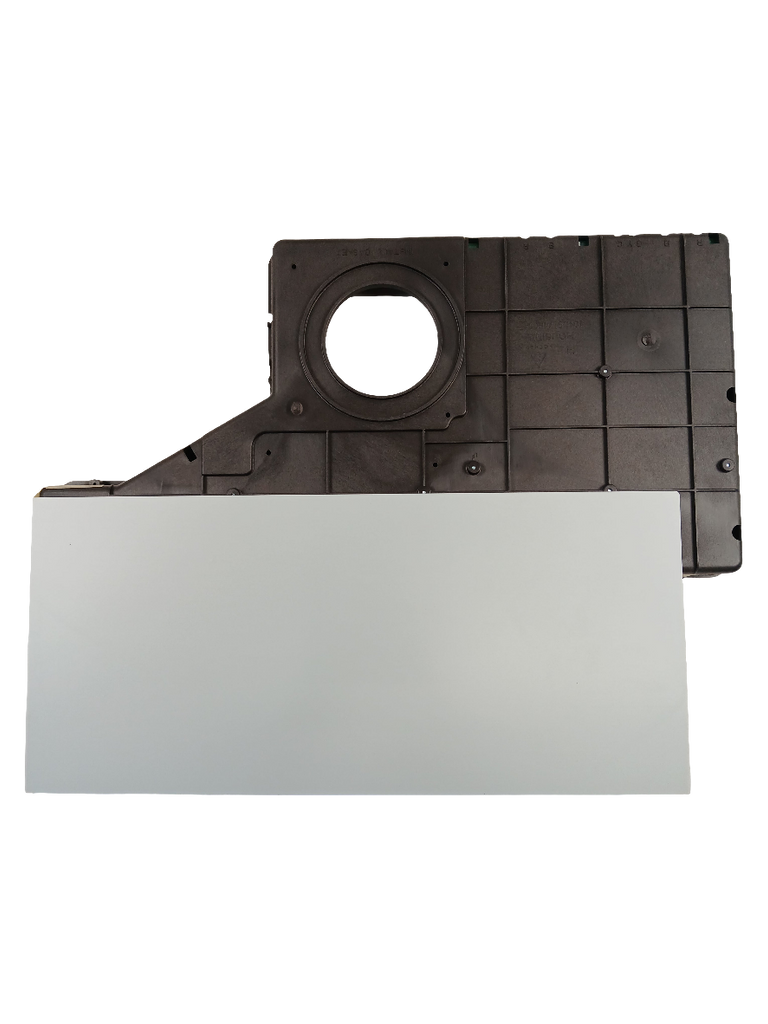

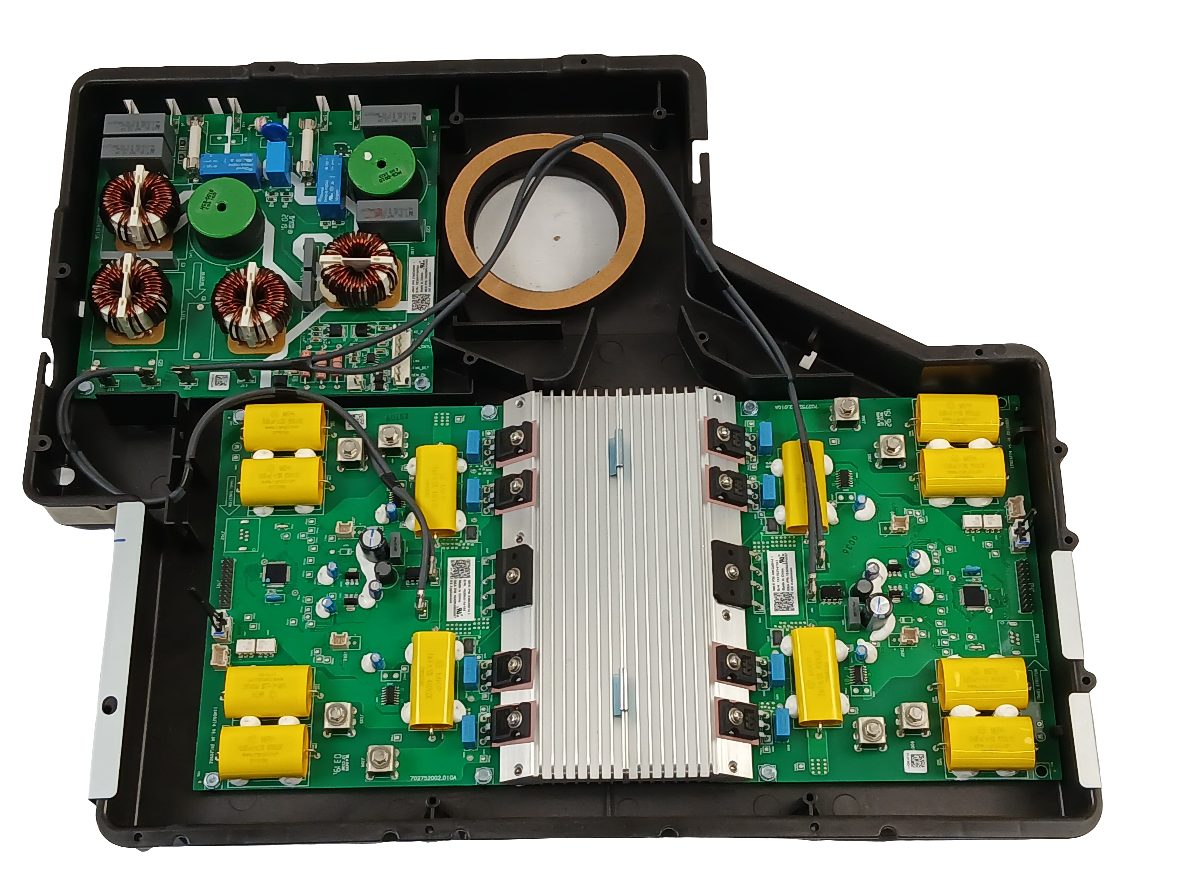

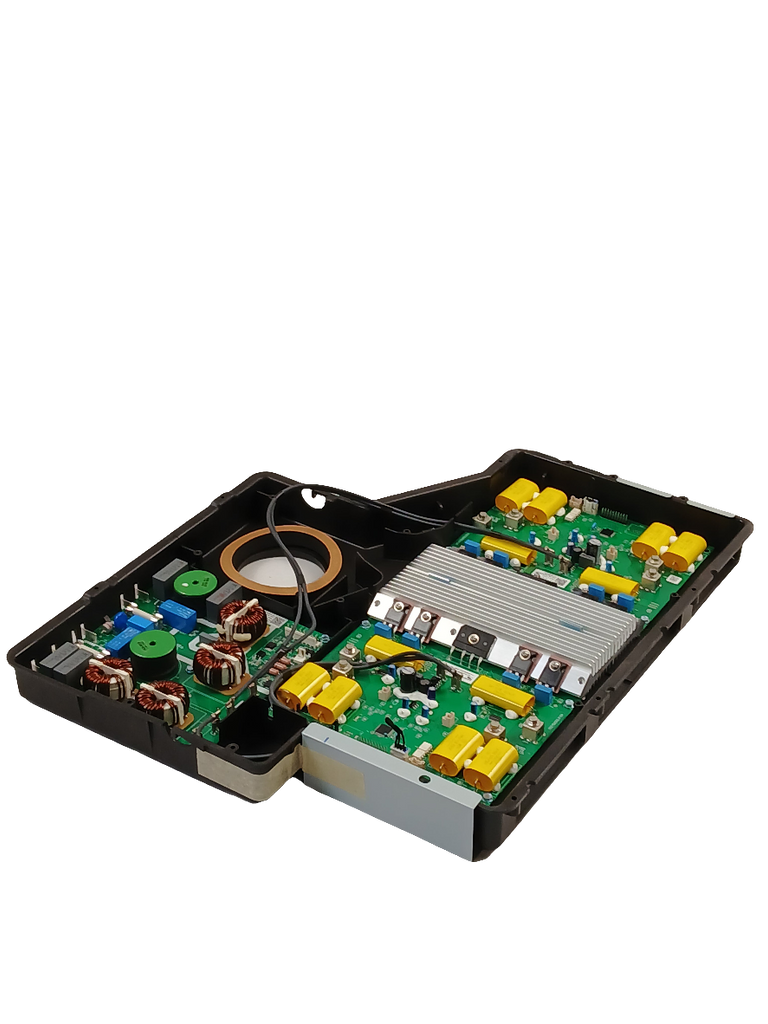

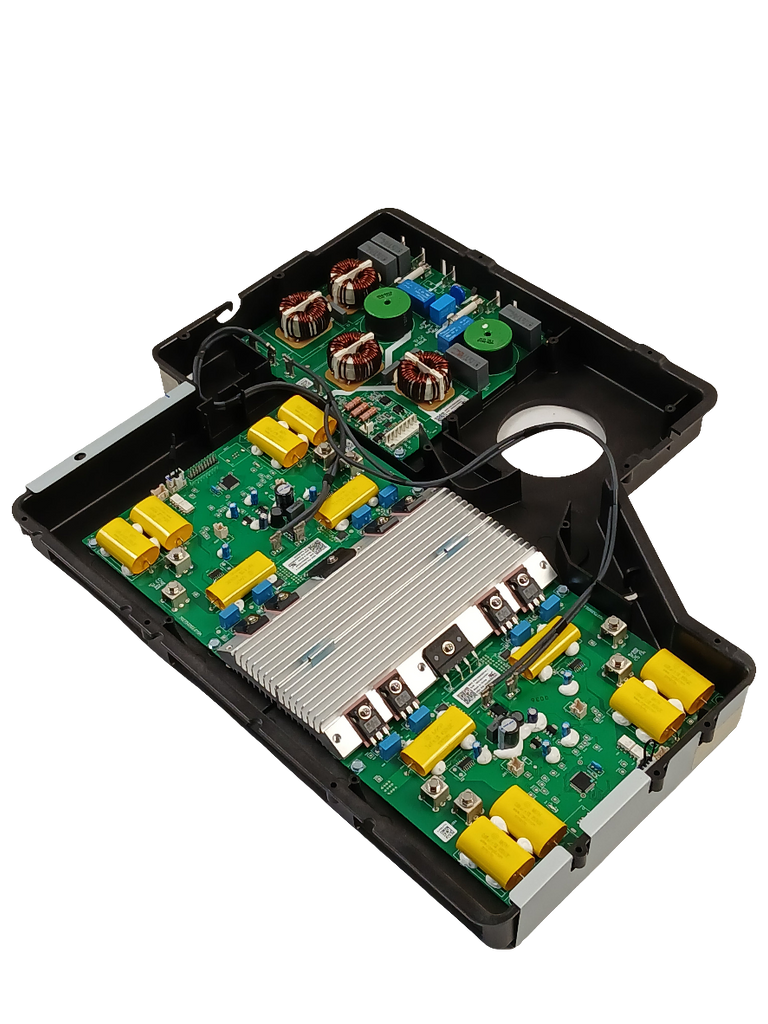

GE Range WS01F08526 Electronic Control Assembly
Genuine OEM GE range electronic control assembly. Retailer documentation identifies possible symptoms including failure to start, timer failure, and a non-displaying clock. The part is also listed as a range control assembly/control assembly in established parts catalogs.
GE Range WS01F08526
Is This the Right Part?
Confirm the complete model number before ordering. Similar parts may use different connectors, dimensions, hose positions, electrical ratings, or mounting points.
- ✔ Range powers on — display activates or partially activates
- ✔ Power supply and circuit breaker are confirmed good — not a wiring or breaker issue
- ✔ Wiring harness connections to the board show no visible damage or burn marks
- ✔ ONLY problem is no heat, error codes, unresponsive controls, or incorrect temperature
- Range won’t heat — oven and/or cooktop elements don’t activate
- Error or fault codes on the display that won’t clear after power cycling
- Control panel buttons unresponsive or intermittently responsive
- Display shows incorrect temperature or goes blank mid-cycle
- Oven shuts off unexpectedly during bake or broil cycles
- Self-clean cycle won’t initiate or complete
- Part Number: WS01F08526
- Part Type: Range Electronic Control Assembly
- Manufacturer: GE
- Appliance Type: Range
After replacing the control assembly, perform a hard reset by disconnecting power for 5 minutes before restoring. This clears any stored fault codes from the previous board and allows the new assembly to initialize cleanly. If error codes return within the first few cycles, the temperature sensor or a wiring harness connection is the next component to investigate — not the board.
Part Details
Use a qualified technician when diagnosis or installation is outside your experience. Gas parts should be installed by a licensed technician.
Verified Compatible Models
CCHS985SEL1SS, CCHS995SEL1SS, PCHS920BM1TS, PCHS920BM2TS, PCHS920EM1ES
Fitment reminder: Match the complete model number, including suffixes and revision digits, before ordering.
No exact compatible model numbers were included in the approved research.
This is the correct fix if ALL of the following are true:
Not sure? Send us your model number — we’ll confirm before you order.
✔ If these symptoms match, this is the most likely failed component in the system.
✔ In most cases, replacing the electronic control assembly restores full range operation immediately.
Skill Level: Moderate — 30–45 minutes. Disconnect power at the circuit breaker before servicing. Access the control assembly by removing the rear panel or control panel depending on your model. Photograph all wire harness connections before disconnecting. Remove the mounting screws, swap the old board for the new assembly, reconnect all harnesses using your photos as reference, and restore power. Run a full oven cycle to confirm all functions are operational.
GE CCHS985SEL1SS, GE CCHS995SEL1SS, GE PCHS920BM1TS, GE PCHS920BM2TS
✓ Model-Specific Repair Pages
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
