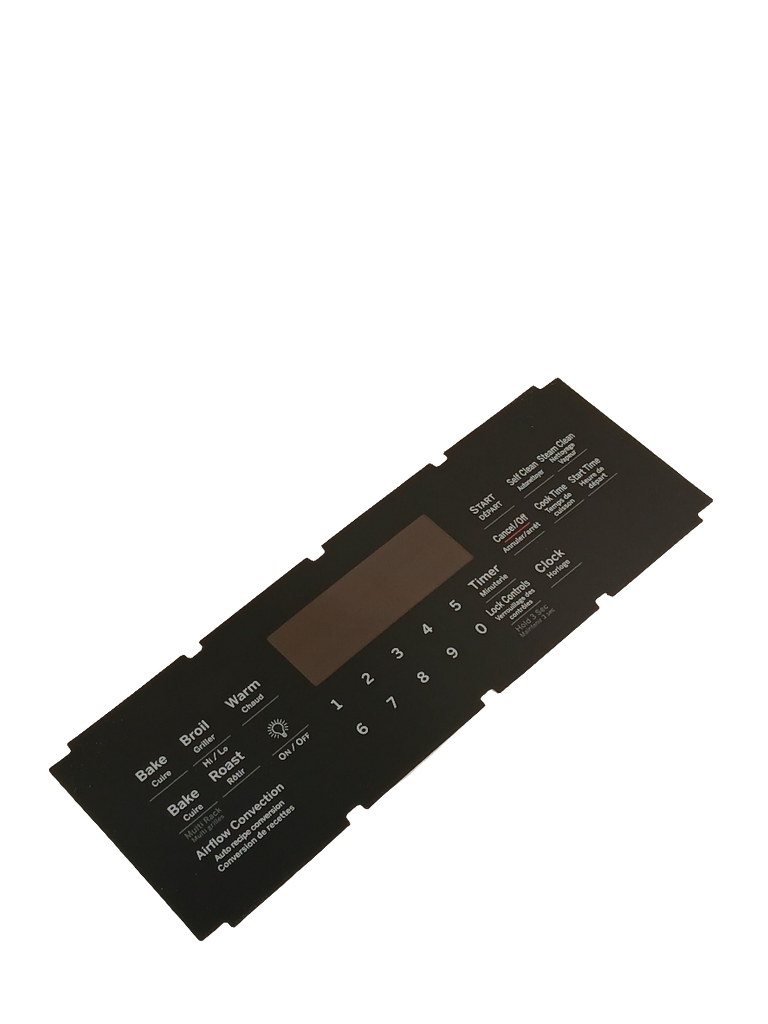

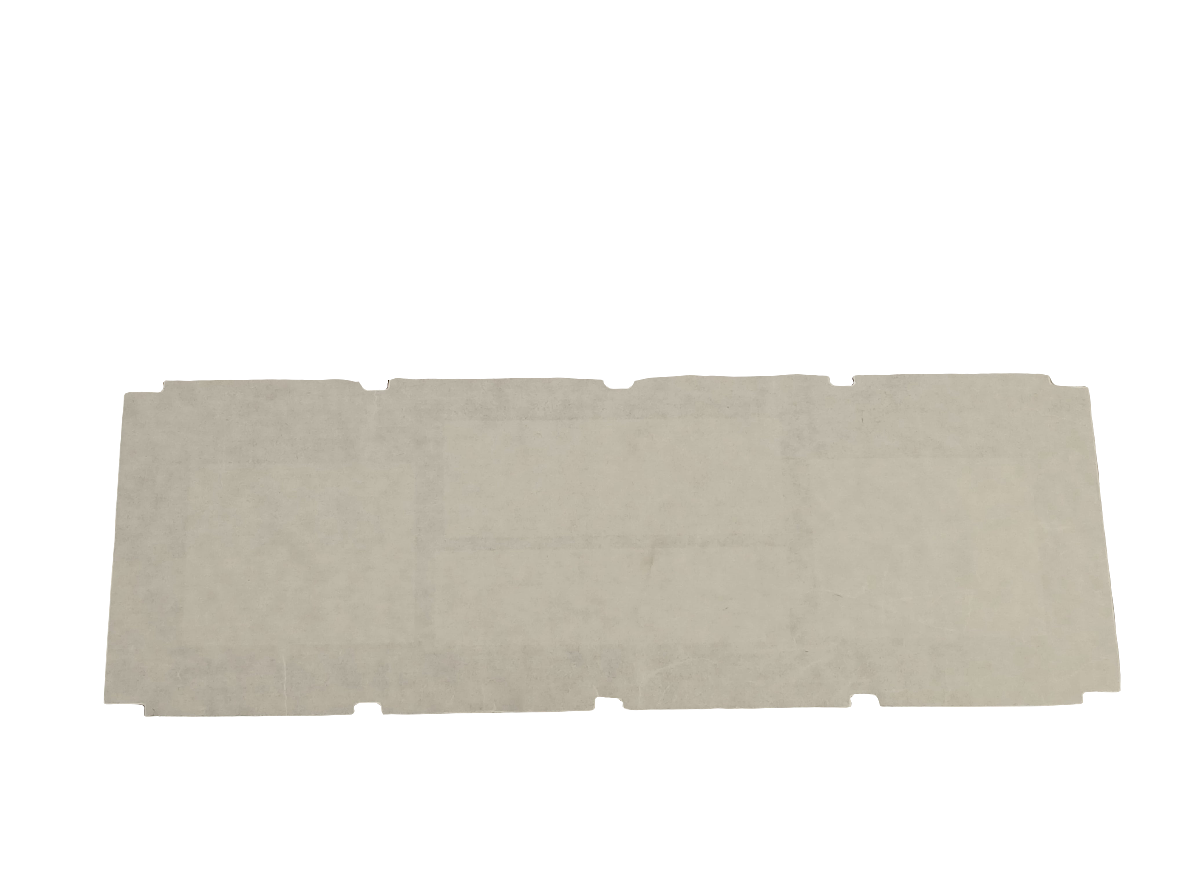

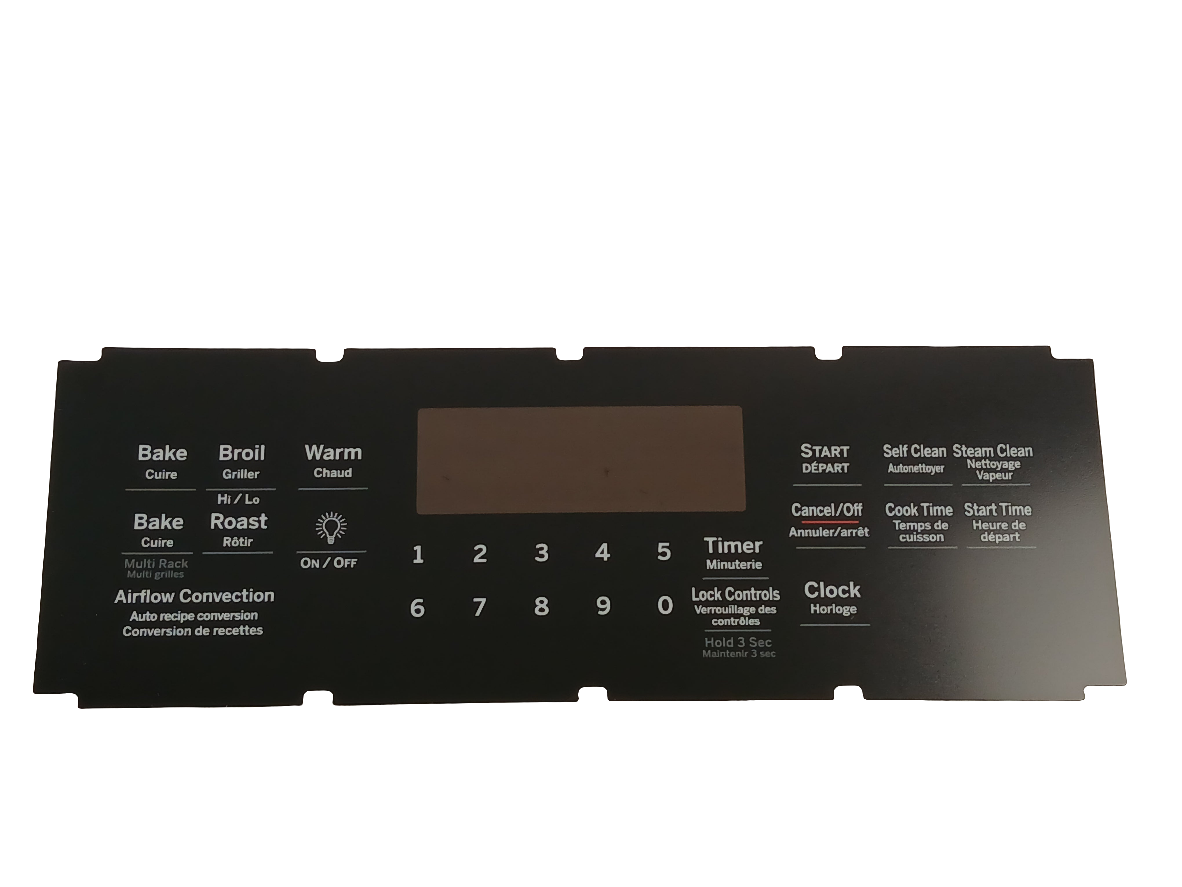

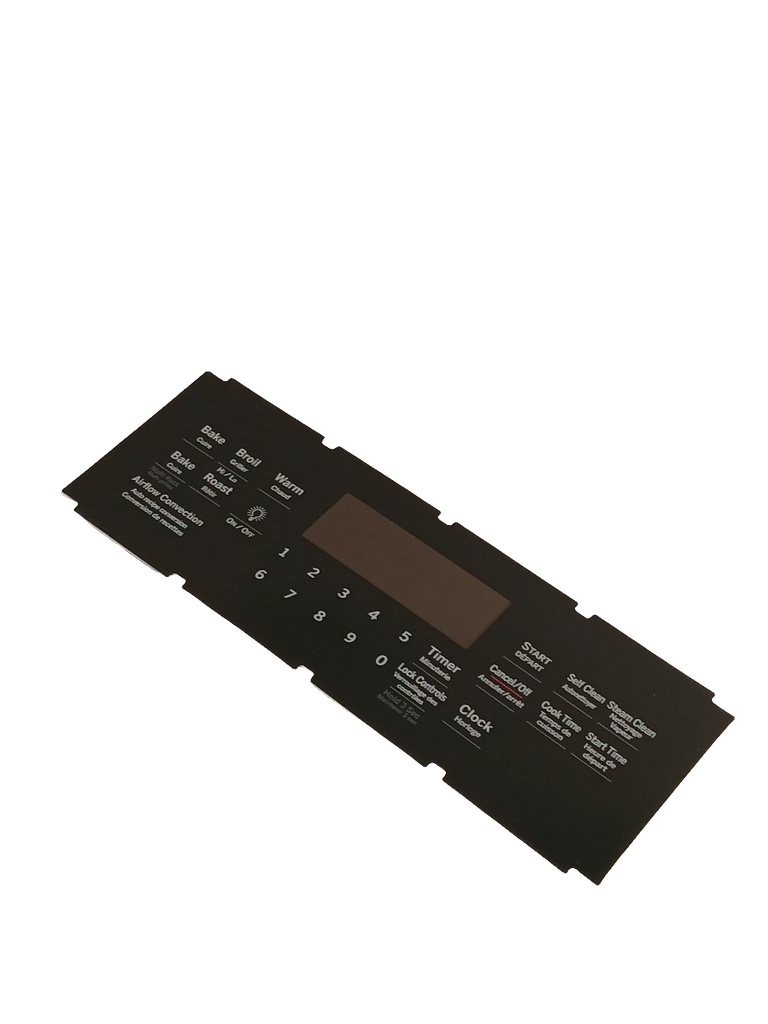

The control panel overlay is the printed face panel that sits over the range’s control board — it carries all the function labels, temperature markings, and button indicators that make the controls readable and usable. Over years of heat exposure, cleaning product contact, and normal wear, the overlay fades, cracks, peels, or becomes so worn that the labels are no longer legible. When the overlay is damaged, operating the range safely becomes difficult and the appliance looks neglected. The WS01F09030 GE OEM Control Panel Overlay is the factory-specified replacement that restores a clean, fully readable control surface — an exact match to the original in fit, finish, and label layout.
✓ Symptoms This Fixes
- Control panel labels faded, worn off, or no longer readable
- Overlay surface cracked, peeling, or bubbling from heat exposure
- Cleaning product damage — labels dissolved or discoloured
- Overlay scratched through to the base material
- Control panel looks worn or neglected despite the range functioning correctly
- Preparing range for resale and need a clean, presentable control panel
✓ Part Details
- OEM Part Number: WS01F09030
- Cross-References: WS01F09033, 295D1334P007, 295D1334P010
- Brand: GE OEM
- Component: Range oven control panel overlay (face panel / label sheet)
- Compatible Series: GE IO7680ESS, IO7690ESS, JCS830SM, JCS840SM
- Genuine OEM: Yes — factory-specified replacement, exact label layout and finish
Pro Tip — Clean the Control Panel Surface Thoroughly Before Applying the New Overlay:
The new overlay adheres to the control panel surface — any grease, residue, or old adhesive left on the panel will cause the new overlay to bubble, lift at the edges, or not lie flat. Before installing, clean the panel surface with isopropyl alcohol (70% or higher) and allow it to dry completely. Apply the overlay slowly from one edge, smoothing out air bubbles as you go with a credit card or squeegee. Do not use steam cleaners or abrasive cleaners on the new overlay — use only a damp cloth with mild soap to preserve the printed labels.
The new overlay adheres to the control panel surface — any grease, residue, or old adhesive left on the panel will cause the new overlay to bubble, lift at the edges, or not lie flat. Before installing, clean the panel surface with isopropyl alcohol (70% or higher) and allow it to dry completely. Apply the overlay slowly from one edge, smoothing out air bubbles as you go with a credit card or squeegee. Do not use steam cleaners or abrasive cleaners on the new overlay — use only a damp cloth with mild soap to preserve the printed labels.
✓ Installation Notes
- Skill Level: Beginner — no tools required in most cases
- Estimated Time: 5–15 minutes
- Key Steps: Disconnect power as a precaution → Clean the existing control panel surface with isopropyl alcohol and allow to dry fully → Peel backing from new overlay carefully → Align overlay to panel edges before committing — confirm alignment before pressing down → Apply from one edge, smoothing firmly as you go to eliminate air bubbles → Press all edges firmly to ensure full adhesion → Restore power and confirm all button positions align correctly with the underlying controls
- Safety: Disconnect power before working near the control panel. Do not apply the overlay to a warm or hot panel — allow the range to cool completely for best adhesion.
✓ Compatible Models
GE IO Series: IO7680ESS0A, IO7690ESS0A
GE JCS830SM Series: JCS830SM1SS, JCS830SM2SS, JCS830SM3SS, JCS830SM4SS, JCS830SM5SS
GE JCS840SM Series: JCS840SM1SS, JCS840SM2SS, JCS840SM3SS, JCS840SM4SS, JCS840SM5SS
Contact us with your full model number to confirm compatibility before ordering.
✓ Why XPart Supply
- Canadian Business Since 1996 — 30 Years of Appliance Parts Expertise
- Guaranteed Fit — OEM parts matched to your exact model
- Fast Canada-Wide Shipping
- Trusted by DIYers and Appliance Technicians Across Canada
- Expert support to confirm compatibility before you order
✓ Frequently Asked Questions
Is WS01F09030 the same as WS01F09033?
Yes — WS01F09033, 295D1334P007, and 295D1334P010 are superseded or cross-reference part numbers for the same GE range control panel overlay. WS01F09030 is the current active OEM part number and is a direct replacement for all of these.
Will the overlay fit perfectly over my existing buttons?
Yes — this is a factory OEM overlay designed specifically for the listed models. The button cutouts, label positions, and panel dimensions are an exact match to the original. Confirm your model number is in the compatible models list before ordering.
Does XPart Supply ship range parts across Canada?
Yes! XPart Supply ships OEM and aftermarket range parts Canada-wide with fast, reliable shipping. We've been serving Canadian appliance repair customers since 1996 and offer guaranteed fit on all parts. Contact us if you need help confirming compatibility with your model.
✓ Model-Specific Repair Pages
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
