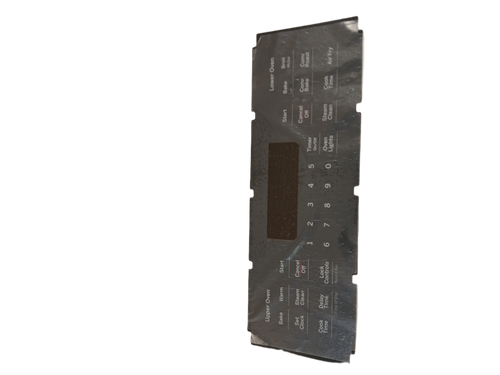

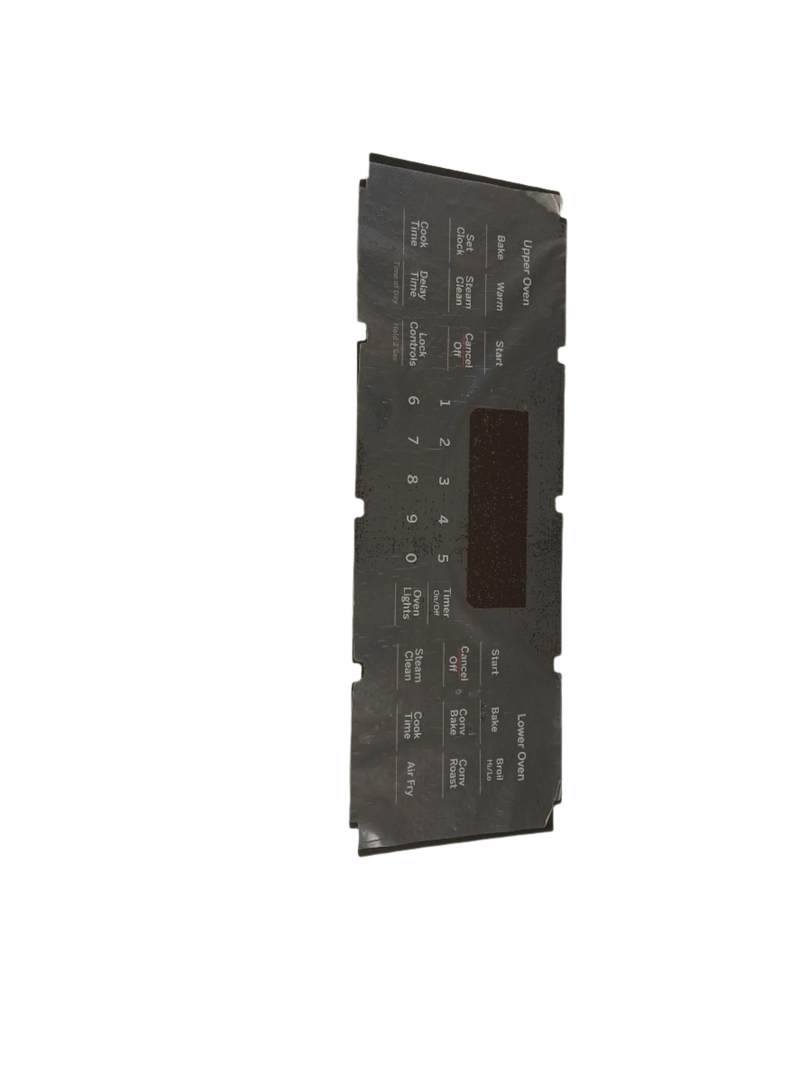

295D3069G015

JCGSS86SP2SS, JGSS86SP2SS (Note: This part may fit additional models - verify your specific model number before ordering)

Professional: 45-60 minutes | DIY: 90-120 minutes | Classification: Medium repair

Tools Required: Phillips head screwdriver, flathead screwdriver, needle-nose pliers, work gloves, multimeter (for testing)

1. Disconnect Power: Unplug the range or turn off the circuit breaker at your electrical panel. For gas ranges, also turn off the gas supply valve.
2. Remove Control Panel: Remove screws securing the back panel or control panel. Depending on your model, you may need to lift the cooktop or remove the front control panel.
3. Access Control Board: Carefully pull the control panel forward to access the back of the control board assembly.
4. Document Connections: Take a photo of all wire connections before disconnecting to ensure proper reconnection.
5. Disconnect Wiring: Carefully disconnect all wire harness connectors from the control board. Press release tabs and pull connectors straight out.
6. Remove Mounting Hardware: Remove screws or clips securing the control board to the mounting bracket.
7. Remove Old Board: Carefully remove the defective control board assembly.
8. Install New Board: Position the new WS01F10716 control board in the mounting bracket and secure with screws or clips.
9. Reconnect Wiring: Reconnect all wire harnesses to the new control board, referring to your photo. Ensure each connector clicks securely into place.
10. Reassemble Panel: Reattach the control panel or back panel and secure with screws.
11. Restore Power: Turn on the circuit breaker and gas supply (if applicable). Plug in the range.
12. Test Operation: Test all oven functions including bake, broil, timer, and display to verify proper operation.

Test Before Installing: Before installing the new control board, use a multimeter to verify proper voltage at the power supply connection (typically 120V or 240V depending on model). Low voltage can damage the new board. Board Calibration: After installation, some GE models require a temperature calibration procedure. Consult your owner's manual for the specific button sequence (typically involves pressing and holding specific buttons to enter calibration mode). This ensures accurate temperature control. Static Electricity Protection: Control boards are sensitive to static electricity. Touch a grounded metal surface before handling the board, and avoid touching the circuit components directly. Handle only by the edges. Connector Inspection: Examine all wire harness connectors for signs of heat damage, melting, or corrosion. A damaged connector can cause the new board to fail prematurely. Replace any damaged connectors before installing the new control board.

• Oven control panel is completely dead or unresponsive
• Display shows error codes (F1, F2, F3, F7, F9, F10, etc.)
• Oven won't heat or maintains incorrect temperature
• Oven temperature fluctuates wildly during cooking
• Timer or clock functions not working
• Oven turns on but won't reach set temperature
• Broiler not functioning properly
• Self-clean cycle won't start or complete
• Buttons or touch controls are unresponsive
• Oven shuts off randomly during use
