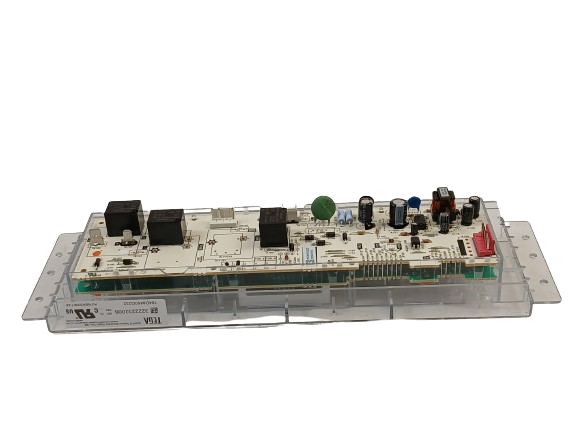

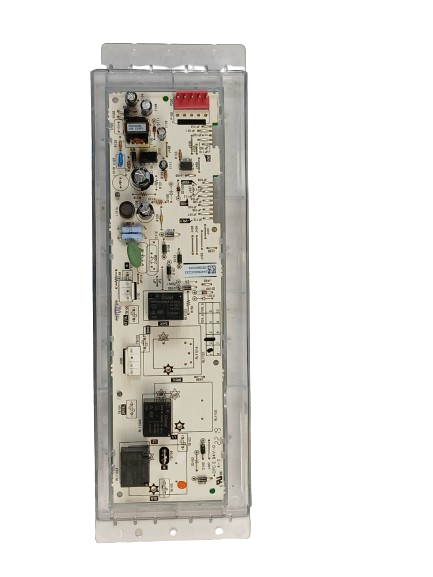

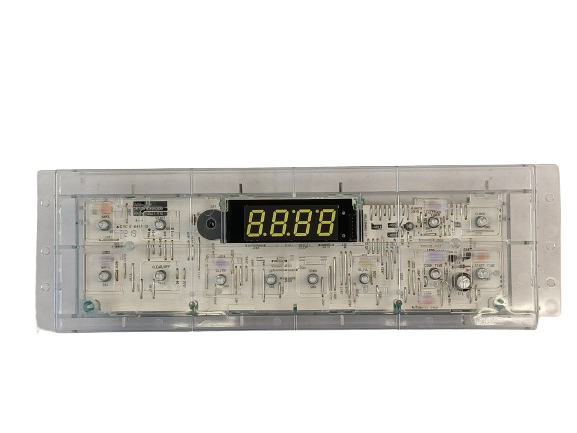

GE Range WS01F10954 Oven Control Board Restore Oven Temperature Control Fix Unresponsive Controls
If your GE range oven won’t heat, displays error codes, has unresponsive touchpad controls, or runs at the wrong temperature — the oven control board is the most common cause. In most GE-built ranges, the oven control board (also called the ERC or electronic range control) manages all oven functions including temperature regulation, bake and broil element cycling, self-clean operation, and the clock/timer display. When it fails, the oven may refuse to heat, display fault codes, lock up entirely, or behave erratically. ⚡ Common failure point in GE, Monogram, and Café ranges — often triggered by power surges or heat stress on the board. Part WS01F10954 is the genuine OEM replacement that restores full oven control with a direct plug-and-play fit and no modifications required.
GE Range WS01F10954
Is This the Right Part?
Confirm the complete model number before ordering. Similar parts may use different connectors, dimensions, hose positions, electrical ratings, or mounting points.
- ✔ Range powers on — surface burners or cooktop elements work normally
- ✔ Oven door latch and door switch are confirmed functioning
- ✔ Bake and broil elements or igniters test OK (not open/failed)
- ✔ ONLY problem is the oven not heating, unresponsive controls, error codes, or erratic oven behaviour
- Oven won’t heat — bake or broil function does not activate
- Error or fault codes displayed on the control panel (F1, F2, F3, F7, etc.)
- Touchpad controls unresponsive or intermittently working
- Oven heats but runs significantly hotter or cooler than the set temperature
- Clock or display blank, flickering, or showing incorrect information
- Self-clean cycle won’t start or won’t complete
- Part Number: WS01F10954
- Type: Oven control board (ERC — Electronic Range Control) — manages all oven functions including temperature, bake/broil cycling, self-clean, clock, and display
- Replaces: 164D8450G232
- Brands: GE, Monogram, Café
GE oven control boards are particularly vulnerable to power surges — a single spike can fry the board instantly. If your board failed after a storm, power outage, or appliance cycling on a shared circuit, install a whole-home surge protector or at minimum a dedicated appliance surge protector after the repair. Without it, the new board faces the same risk. Also confirm the range is on a dedicated 240V circuit — shared circuits cause voltage fluctuations that degrade control boards over time.
Part Details
Use a qualified technician when diagnosis or installation is outside your experience. Gas parts should be installed by a licensed technician.
Verified Compatible Models
EC7666DBFPX0A, EM7666DBFPX0B, IO7666DBFPX0D, JCGBS66SEK5SS
Fitment reminder: Match the complete model number, including suffixes and revision digits, before ordering.
This is the correct fix if ALL of the following are true:
Not sure? Send us your model number — we’ll confirm before you order.
✔ If these symptoms match, the oven control board is the most likely failed component in the system.
✔ In most cases, replacing this control board restores full oven operation immediately.
Skill Level: MODERATE — 20–40 minutes. Disconnect power at the breaker before beginning. Access the control board by removing the rear panel of the range or the back of the control console depending on your model. Photograph all wiring harness connections before disconnecting. Transfer connectors one at a time to the new board to avoid mis-wiring. Reinstall the panel, restore power, and run a test bake cycle to confirm temperature control and display function normally.
Confirmed compatible with EC7666DBFPX0A, EM7666DBFPX0B, IO7666DBFPX0D, JCGBS66SEK5SS and additional GE and Monogram range models. Contact us to verify your model number before ordering.
✓ Model-Specific Repair Pages
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
