GE Range large 8-inch chrome drip pan WS01L09258, Replaces WB31K10266, 164D3431P004

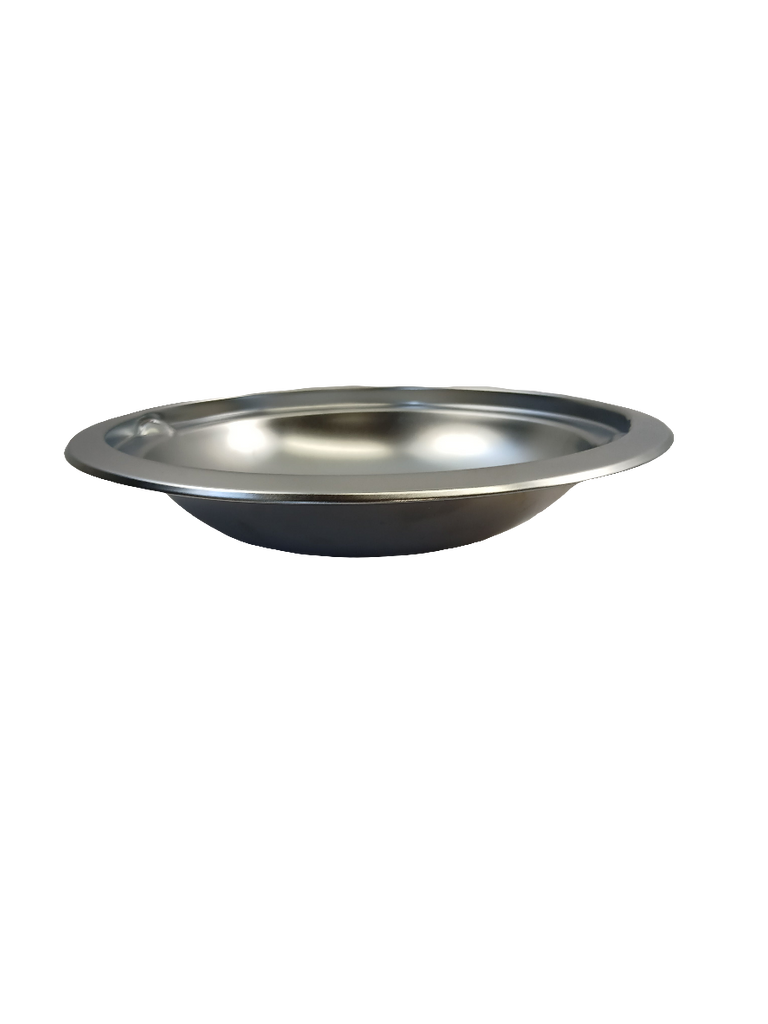

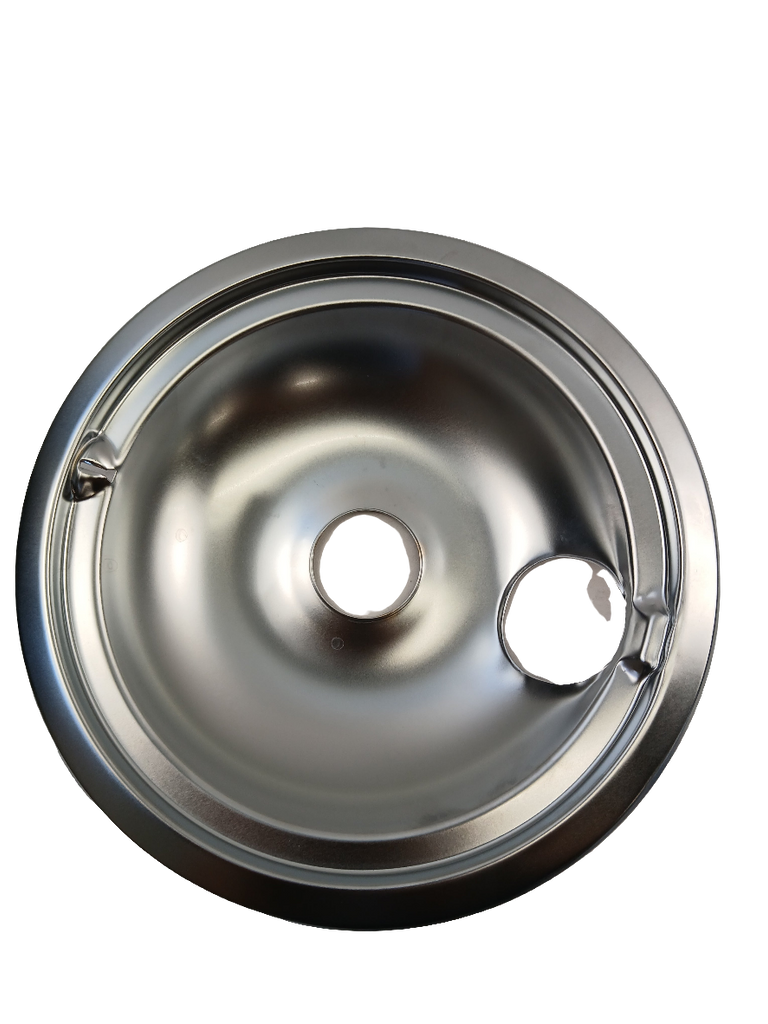

Genuine GE OEM large 8-inch chrome drip pan, also described as a stove burner drip pan or element drip pan. It sits beneath a surface burner to catch spills and protect components below.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Visible warping or poor fit beneath the surface burner
• Persistent grease or food buildup that is difficult to clean
• Smoke or odors caused by accumulated residue in or around the pan
• Reduced spill containment beneath the burner

Check Before Replacing

• Turn the surface-unit control to OFF and allow the surface unit and drip pan to cool completely before inspection.
• Remove the surface unit and inspect the pan for warping, corrosion, cracks, heavy baked-on residue, or a poor fit in the cooktop recess.
• Confirm that the pan is the large 8-inch size and that its opening aligns with the surface-unit receptacle.
• Inspect and clean the area beneath the pan; do not cover the pan with foil.
• If the surface unit is removed, check that it rests evenly after reinstallation; do not bend terminals or attempt to repair the receptacle.

Pro Tip

Part Details

Key Features

• Genuine GE OEM range drip pan/burner bowl
• Large 8-inch size
• Chrome finish
• Designed to collect spills and drips beneath an electric surface burner
• Smooth surface supports routine cleaning
• The documented U.S. GE replacement is WB31K10266

Installation Notes

• Ensure the surface-unit control is OFF and the surface unit is cool.
• Remove the surface unit before lifting out the drip pan.
• Place the replacement pan into the cooktop recess with its opening aligned to the receptacle.
• Insert the surface-unit terminals through the pan opening and into the receptacle, then guide the unit so it rests evenly.
• Verify the surface unit is seated flat before use.

Verified Compatible Models

DER202WA, DER244BSSCA, DER244WCA, JCB530DJ1BB, JCB530DJ1WW, JCB530SJ1SS, JCB530SJ2SS, JCB560DJ1WW, JCB560DJ2WW, JVM1540SMC01, JVM1850BMC01, MCB757DR1WW, MCB757DR4WW, MCBS523R3WW, MCBS525R3WW, EML27WWF0A, EML27WWF0B, EML27WWF0C, EML530BBF0A, EML530NNF0A, EML530NXF0A, EML530NXF0B, EML535BBF0A, EML535BBF0B, EML535BBF0C, EML535BBF0D, EML535NNF0A, EML535NNF0B, EML535NNF0C, EML535NNF0D, EML535NXF0A, EML535NXF0B, EML535NXF0C, EML535NXF0D, JBS27DF1WW, JBS27DF2WW, JBS27DF3WW, JBS27DIL1WW, JCAS300DM1WW, JCAS300RP1SS, JCB530DIF1BB, JCB530DIF1WW, JCB530DJ2WW, JCB530DJ3BB, JCB530DJ3WW, JCB530DM1BB, JCB530SIF1SS, JCB530SIF2SS, JCB530SJ3SS, JCB530SM1SS, JCB530SM2SS, JCB535DIL1BB, JCB535DIL1WW, JCB535SIL1SS, JCB560DJ3WW, MCB757DM1WW, MCBS523DM1WW, MCBS525 R4WW, MCBS525DM1WW, RE203W-1A, RE2411W-1A

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
