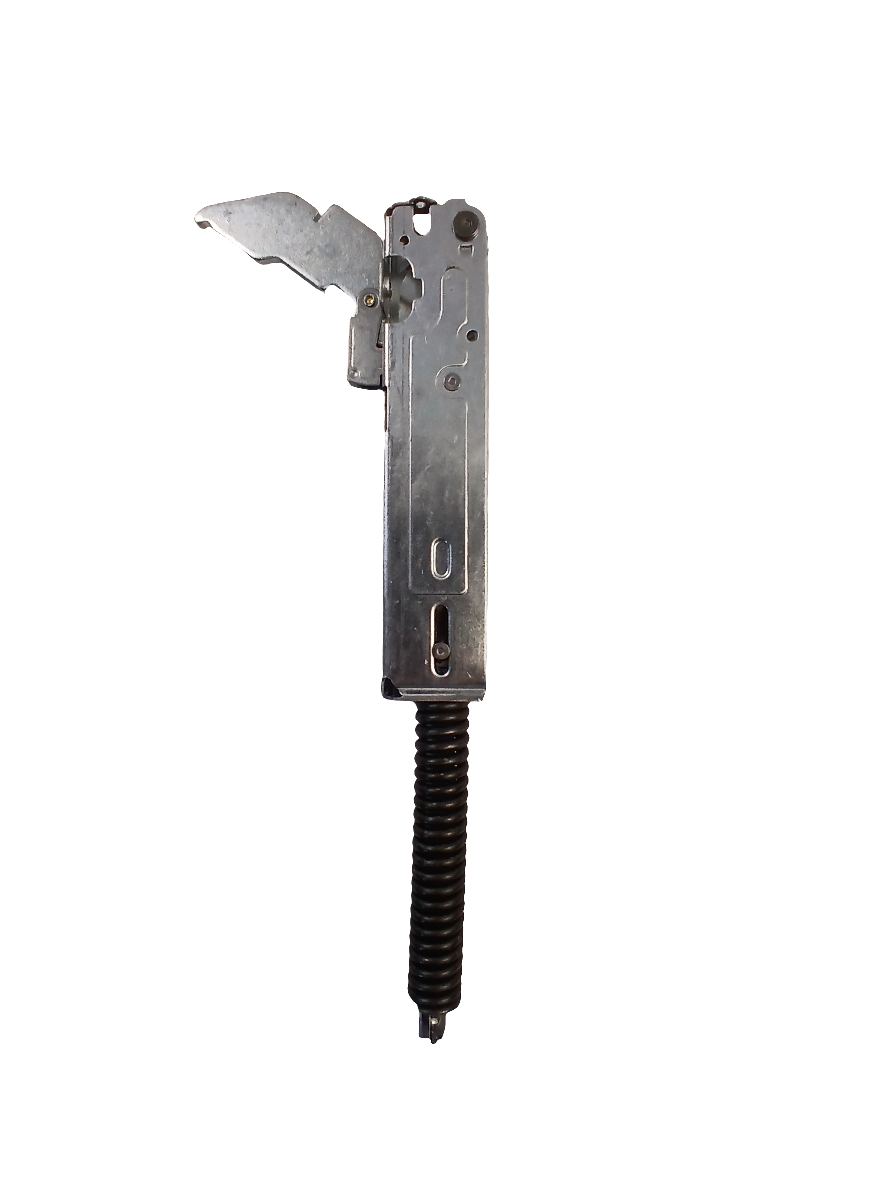

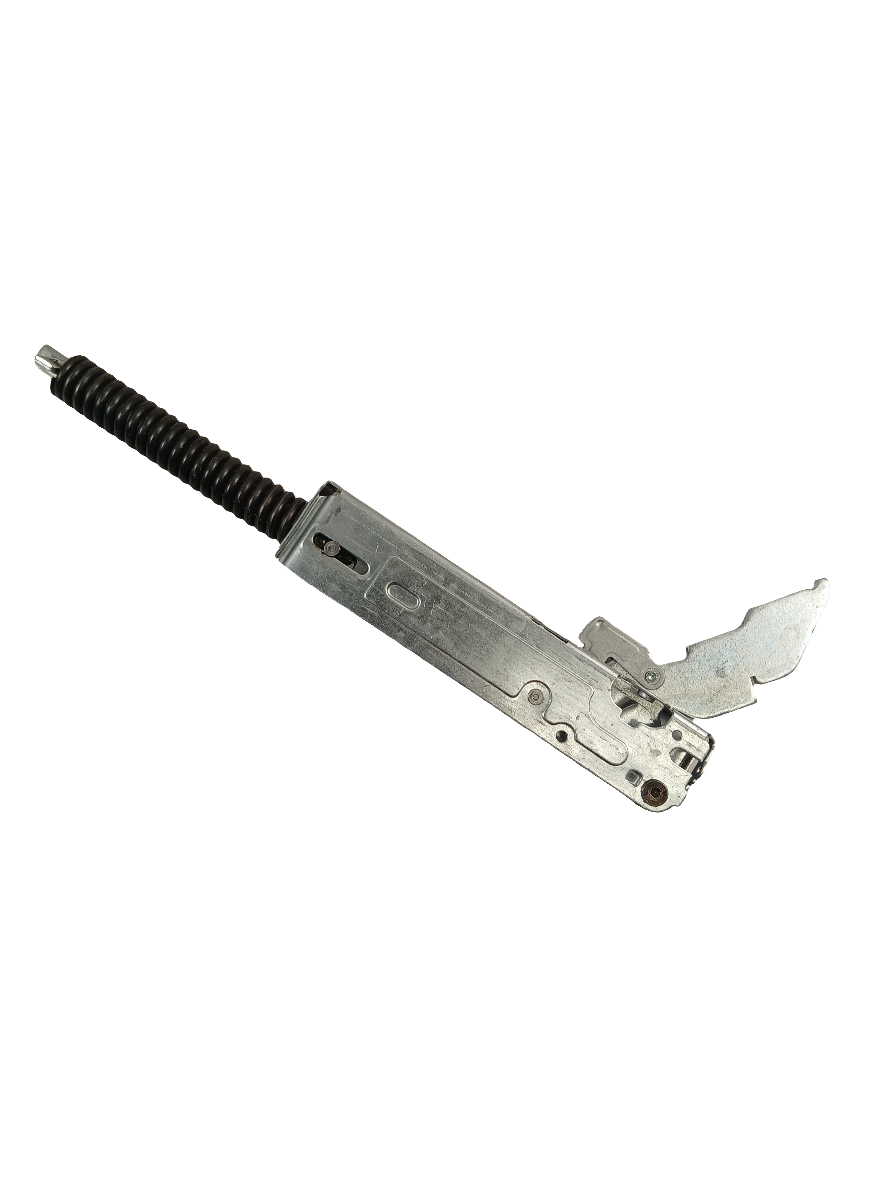

WS01L14673 GE Range Oven Left Door Hinge – OEM Replacement (Replaces 222d9737p005, WB10X24777)
If your GE range oven door sags, won’t stay open at the correct angle, closes on its own, or feels loose and uneven, the left door hinge is the cause. In GE, GE Profile, and Café freestanding and slide-in ranges, the oven door hinges support the full weight of the door and control its opening angle and spring tension — when a hinge arm bends, the spring breaks, or the locking tab fails, the door loses its support and alignment. ⚡ Common wear item on GE ranges after years of daily use. Part WS01L14673 is the genuine OEM left door hinge (replaces 222D9737P005 and WB10X24777) that restores correct door alignment, tension, and operation immediately.
GE Range WS01L14673
Is This the Right Part?
Confirm the complete model number before ordering. Similar parts may use different connectors, dimensions, hose positions, electrical ratings, or mounting points.
- ✔ This is the LEFT door hinge — confirm which side is failing before ordering (left = hinge on the left when facing the oven)
- ✔ Oven door gasket is intact and not the source of the alignment issue
- ✔ Door hinge slots on the oven frame are not bent or damaged
- ✔ ONLY problem is door sagging, not staying open, closing on its own, or uneven gap around the door
- Oven door sags or hangs lower on the left side
- Door won’t stay open at the broil position — falls closed or drops suddenly
- Door closes on its own when released at any angle
- Uneven gap between the door and oven frame when closed
- Door feels loose, wobbly, or has excessive play
- Visible damage to the hinge arm — bent, cracked, or spring detached
- Part Number: WS01L14673
- Type: Range Oven Left Door Hinge — supports door weight, controls opening angle, and provides spring tension to hold door at broil position
- Replaces: 222D9737P005, WB10X24777 (no modification required)
- Brands: GE, GE Profile, Café
- Side: LEFT hinge only — order two if replacing both sides
The most common installation mistake is removing the door without locking the hinge tabs first — an unlocked hinge will snap shut under spring tension when the door is lifted, potentially damaging the hinge slot or injuring your hand. Always flip both hinge locking tabs to the locked (closed) position before lifting the door off. The tabs are small plastic or metal levers at the base of each hinge arm.
Part Details
Use a qualified technician when diagnosis or installation is outside your experience. Gas parts should be installed by a licensed technician.
Verified Compatible Models
BC980ST6SS, BC980ST7SS, CCES700P2M3S1, CCES700P2M4S1, CCES700P3M2D1, CCES700P3M3D1, CCES700P4M3W2, CCES700P4M4W2, CCGB500P2M1S1, CCGB500P3M1D1, CCHS900P2M6S1, CCHS900P2M7S1, CCHS900P4M5W2, CCHS900P4M6W2, CCHS985SEL2SS, CCS975SD4SS, CRS70XAWC1S1, EGP750ES0A, EML735BBF0A, EML735BBF0B, EML735NNF0B, EML835BBF0B, IO7690ESS0A, JCB630DK8WW, JCB635DK8BB, JCB635DK8WW, JCB735DIL1BB, JCB735DIL1WW, JCB735DIL2BB, JCB735DIL2WW, JCB735DIL3BB, JCB735DIL3WW, JCB830DK1WW, JCB830DK2WW, JCB830DK3WW, JCB830DK4WW, JCB835DIL1WW, JCB835DIL2WW, JCB835DIL3WW, JCB840DK1WW, JCB840DK2WW, JCB840DK3WW, JCB840DK4WW, JCB860DK1WW, JCB860DK2WW, JCB860DK3WW, JCBP240DM4WW, JCGS650DEF4BB, JCGS650DEF4WW, JCGS650SEF4SS, JCGS750SEF3SS, JCGS750SEF4SS, JCGS750SEF5SS, JCGS750SEF6SS, JCS830EM2ES, JCS830SM2SS, JCS830SM3SS, JCS830SM4SS, JCS830SM5SS, JCS830SV1SS, JCS840BM2TS, JCS840EM2ES, JCS840EM3ES, JCS840EM4ES, JCS840EM5ES, JCS840SM2SS, JCS840SM3SS, JCS840SM4SS, JCS840SM5SS, JCSP41SV5SS, JGS750SEF1SS, PC2S920EEJ1ES, PC2S920EEJ2ES, PC2S920EEJ3ES, PC2S920SEF4SS, PC2S920SEF5SS, PC2S920SEJ1ES, PCGB911DEJ1WW, PCGB911DEJ2WW, PCGB911DEJ3WW, PCGS920EEJ1ES, PCGS920EEJ2ES, PCGS920EEJ3ES, PCGS920SEF2SS, PCGS920SEF4SS, PCGS920SEF5SS, PCGS920SEJ1ES, PCHS920BM2TS, PCHS920SM2SS, PCHS920YM1FS, PCHS920YM2FS, PCHS920YM3FS, PCS915SM2SS, PCS915SM3SS, PCS915SM4SS, PCS940BM2TS, PCS940BM3TS, PCS940BM4TS, PCS940BM5TS, PCS940DM2WW, PCS940DM3WW, PCS940EM2ES, PCS940EM3ES, PCS940EM4ES, PCS940EM5ES, PCS940EM6ES, PCS940EM7ES, PCS940FM1DS, PCS940FM2DS, PCS940FM3DS, PCS940SM2SS, PCS940SM3SS, PCS940SM4SS, PCS940SM5SS, PCS940YM1FS, PCS940YM2FS, PCS940YM3FS
Fitment reminder: Match the complete model number, including suffixes and revision digits, before ordering.
This is the correct fix if ALL of the following are true:
Not sure? Send us your model number — we'll confirm before you order.
✔ If these symptoms match, this is the most likely failed component in the door support system.
✔ In most cases, replacing this door hinge restores correct door alignment and tension immediately.
Skill Level: Moderate — 20 to 30 minutes. Disconnect power before servicing. Open the oven door fully and locate the hinge locking tabs at the base of each hinge — flip the tabs to the locked position, then lift the door straight up and off the hinge arms. Remove the old hinge by sliding it out of the hinge slot, insert the new hinge, and reinstall the door by aligning the hinge arms with the door slots and lowering it into place. Flip the locking tabs back to the open position and test the door operation.
Confirmed compatible with JCS830SM2SS, JCS840SM2SS, JCS840EM2ES, PCS940SM2SS, PCS940EM2ES, PCS940FM1DS, PCS940YM1FS, PCGS920SEF2SS, PCGS920EEJ1ES, PCHS920SM2SS, JCB830DK1WW, JCB840DK1WW, JCB860DK1WW, JCGS650SEF4SS, JCGS750SEF3SS, plus additional GE, GE Profile, and Café range models. Contact us to verify your model number before ordering.
✓ Model-Specific Repair Pages
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
