Is This the Part You Need?

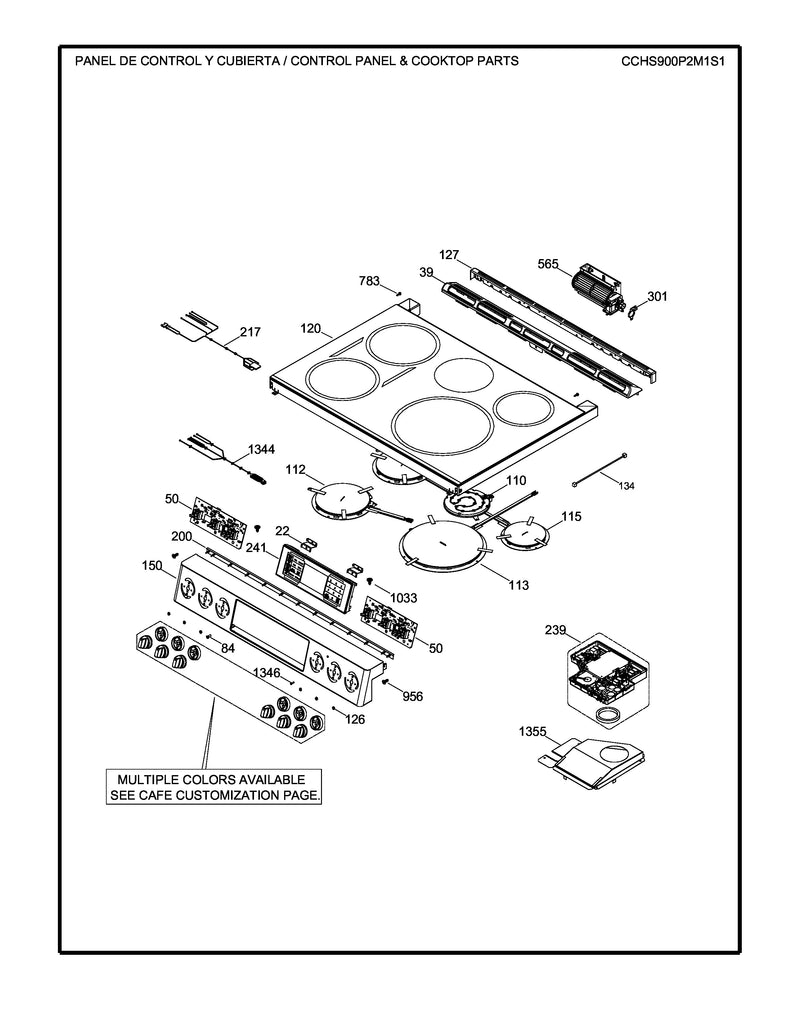

This is the WS01L17573 Range Glass and Touch Board Assembly — the complete glass cooktop surface and integrated touch control board for GE Café series electric ranges. If your range's touch controls have stopped responding, are registering phantom presses, or the display is blank while the oven still heats, this assembly is the most common fix. It replaces OEM part number 295D2563G014 and is listed as Item #241 on the parts diagram below.
Symptoms This Part Fixes
- Touch controls unresponsive or require multiple presses to register
- Burner elements won't turn on or off via the touch panel
- Display shows error codes or goes completely blank
- Phantom burner activation — elements turn on without input
- Cracked, chipped, or shattered glass cooktop surface
- Touch zones work intermittently or only in certain areas
- Range passes self-test but controls remain non-functional
Part Details
- OEM Part Number: WS01L17573
- Replaces: 295D2563G014
- Diagram Reference: Item #241

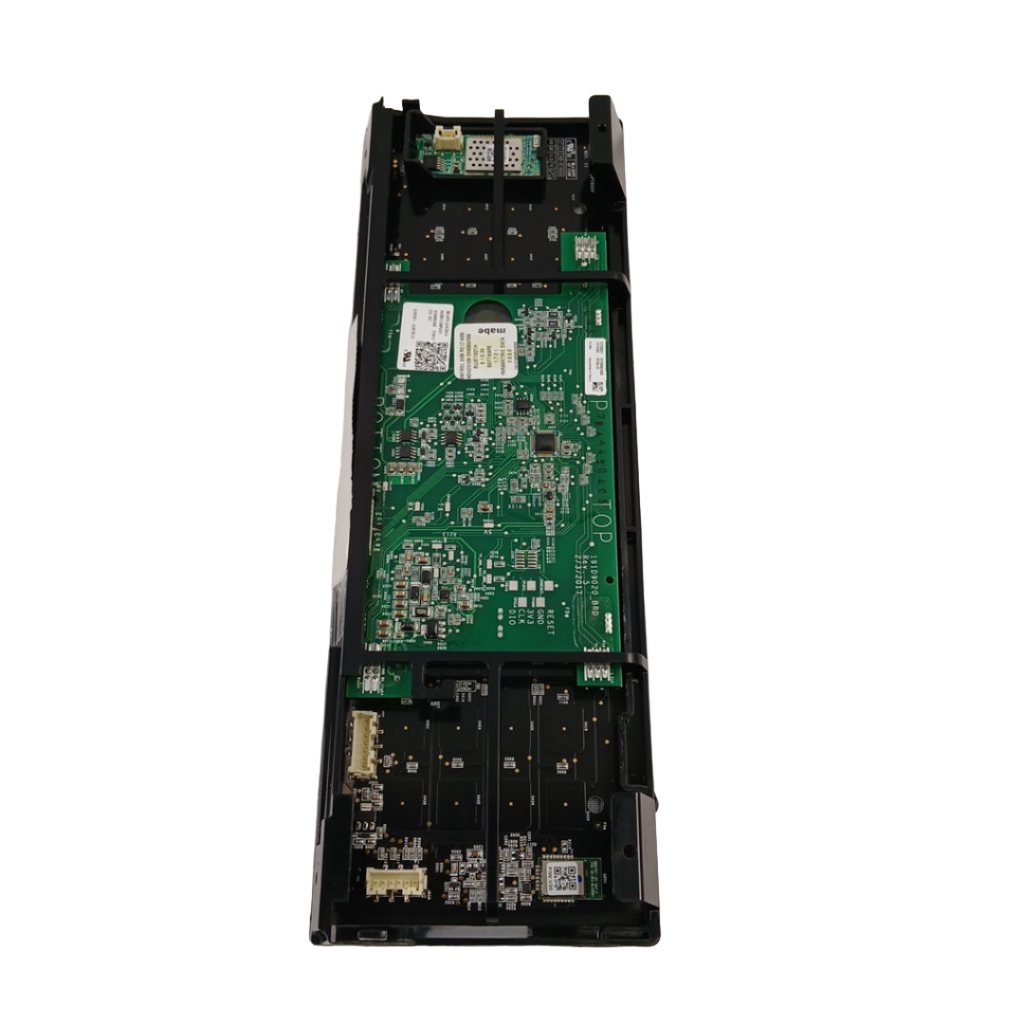

- Assembly Includes: Glass cooktop surface + integrated touch control board
- Brand Fit: GE Café Series electric ranges
- Condition: New OEM-quality replacement
- Shipping Weight: ~10 lbs — ships protected in reinforced packaging
Installation Notes
- Skill Level: Intermediate — basic appliance disassembly experience recommended
- Disconnect power at the breaker before beginning any work — this assembly carries line voltage
- The glass surface is fragile during installation; use suction cups or a second person to handle safely
- Ribbon cable connectors are ZIF (zero insertion force) — do not force; lift the locking tab before inserting
- Refer to the diagram below (Item #241) to confirm connector routing before reassembly
- Test all touch zones and burner elements before closing up the range
Compatible Models
CCHS900P2M1S1, CCHS900P2M2S1, CCHS900P2M3S1, CCHS900P2M6S1, CCHS900P3M1D1, CCHS900P3M2D1, CCHS900P4M1W2, CCHS900P4M2W2
💡 Pro Tip — While You Have It Apart:
If your touch board failed due to heat stress or moisture intrusion, inspect the ribbon cable routing and any nearby connectors for corrosion or burn marks before installing the new assembly. A damaged harness will take out a new board just as fast. While the cooktop is off, it's also a good time to verify the surface element connections (Items #110, #112, #113, #115 in the diagram) are seated firmly — loose element contacts are a common secondary cause of intermittent touch response issues.
If your touch board failed due to heat stress or moisture intrusion, inspect the ribbon cable routing and any nearby connectors for corrosion or burn marks before installing the new assembly. A damaged harness will take out a new board just as fast. While the cooktop is off, it's also a good time to verify the surface element connections (Items #110, #112, #113, #115 in the diagram) are seated firmly — loose element contacts are a common secondary cause of intermittent touch response issues.
✓ Model-Specific Repair Pages
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
