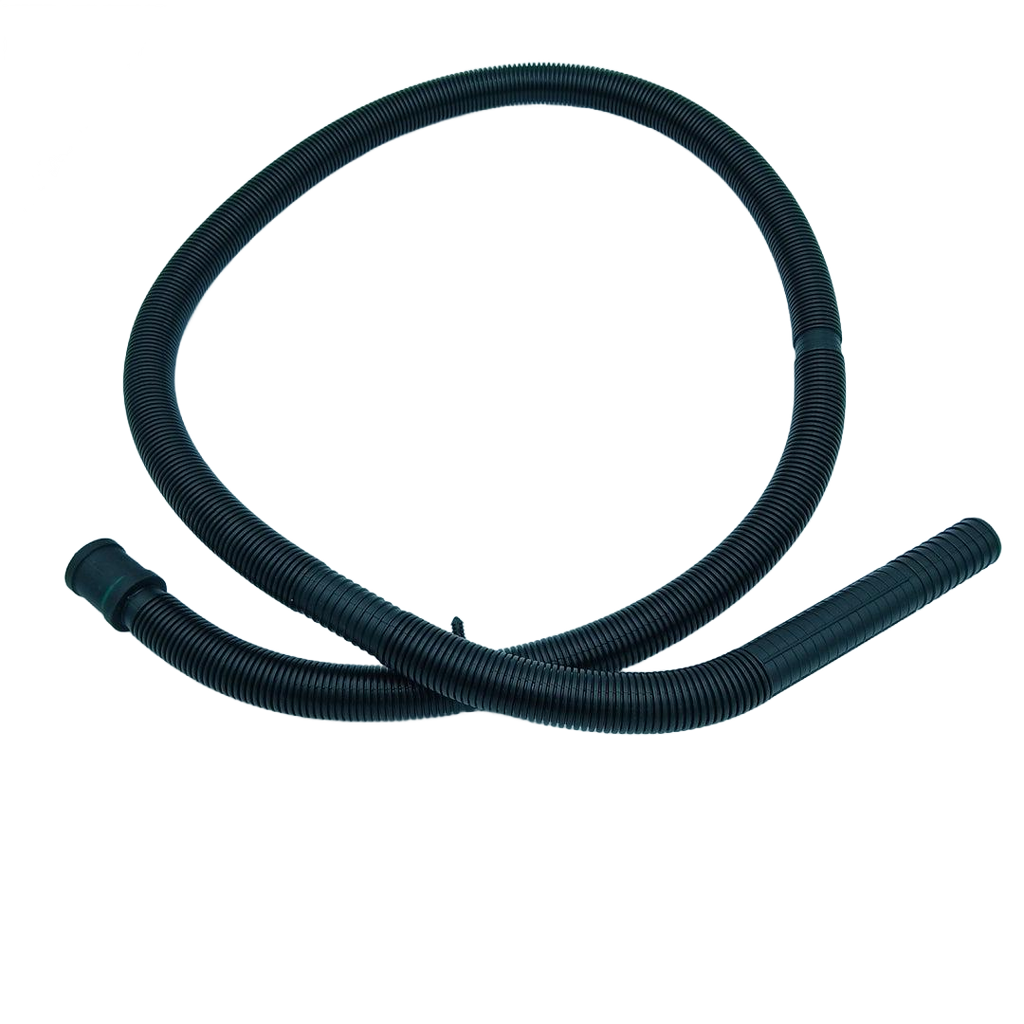

WW01F02060 washing machine hose by XPart Supply with flexible black tubing and connector
XPart Supply black WW01F02060 washing machine hose with corrugated flexible design
Flexible black WW01F02060 washing machine hose by XPart Supply with corrugated design

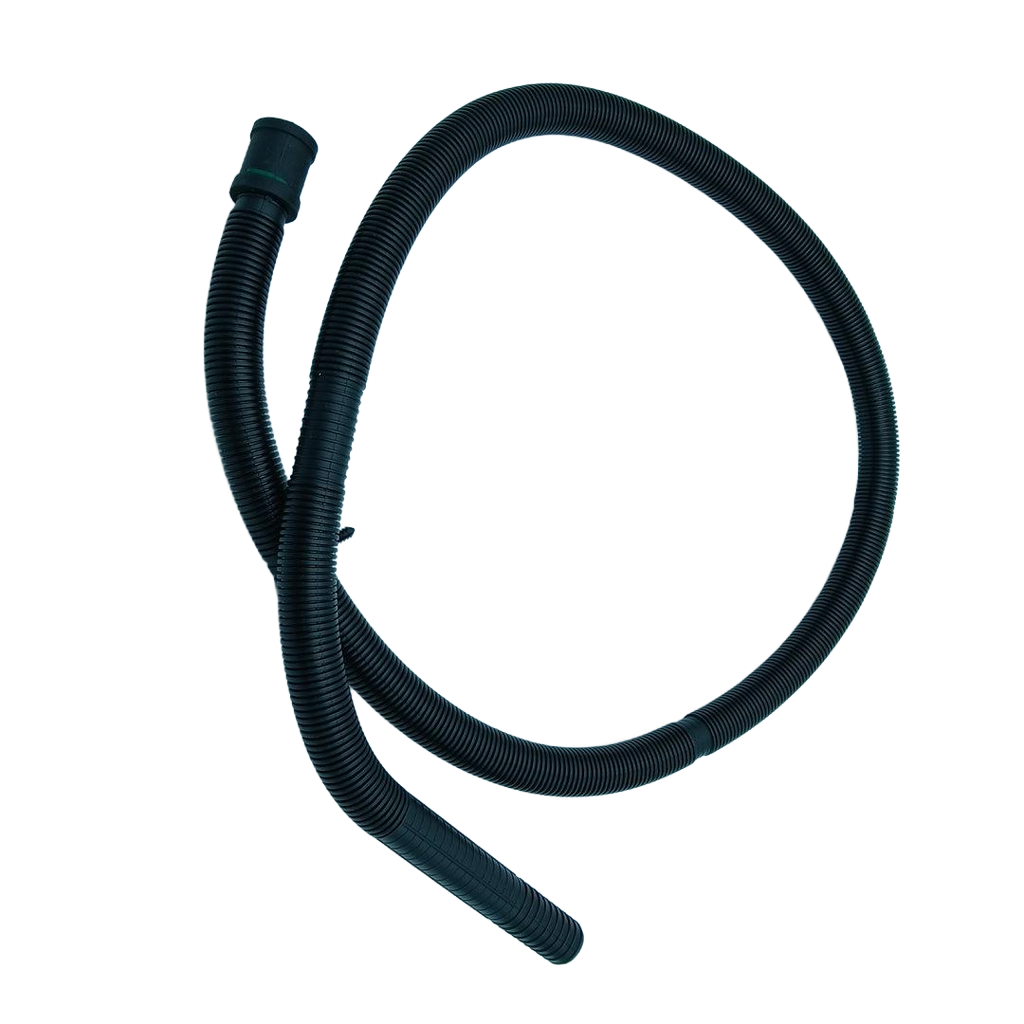

Black flexible WW01F02060 washing machine hose with ribbed design for water drainage

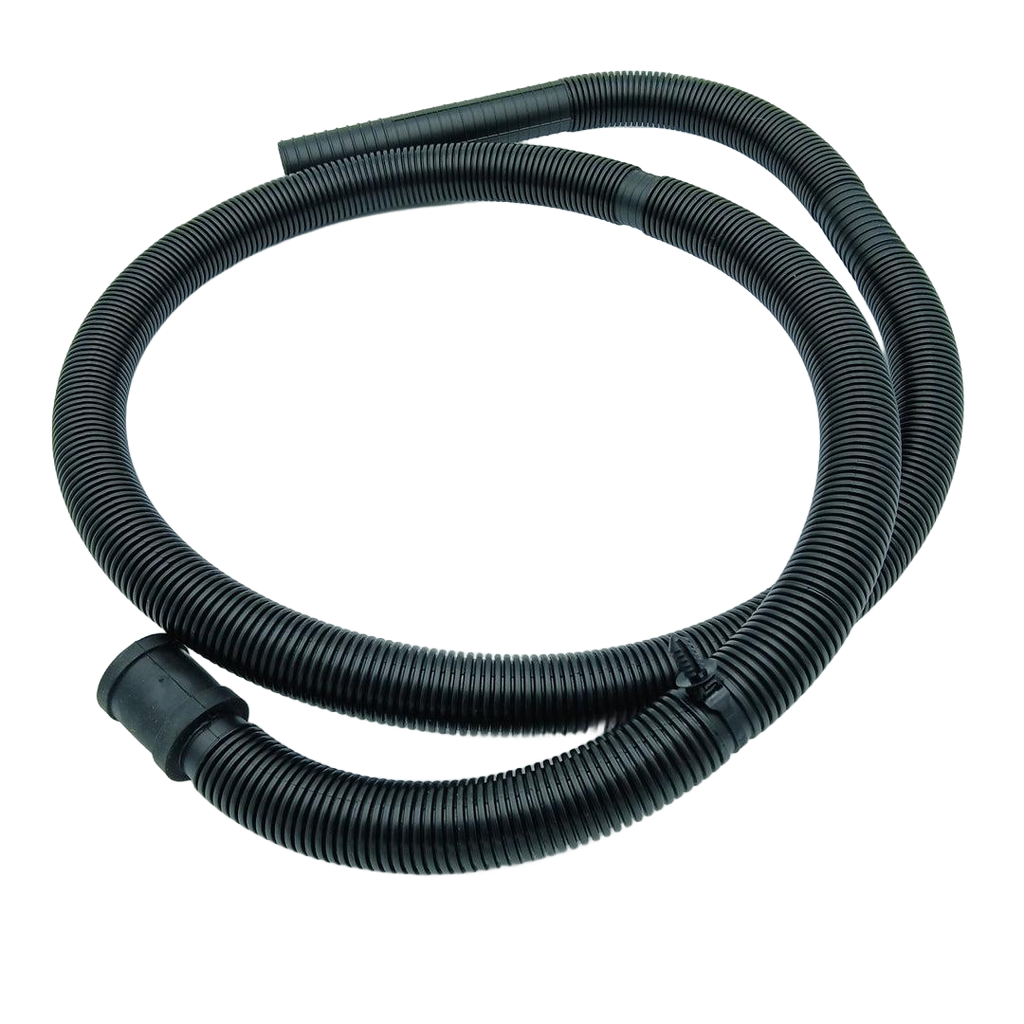

WW01F02060 washing machine hose by XPart Supply in black flexible corrugated design

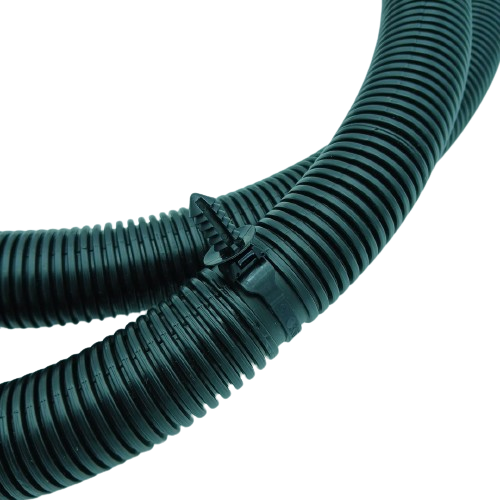

Close-up of black flexible WW01F02060 washing machine hose with ribbed texture and securing clip

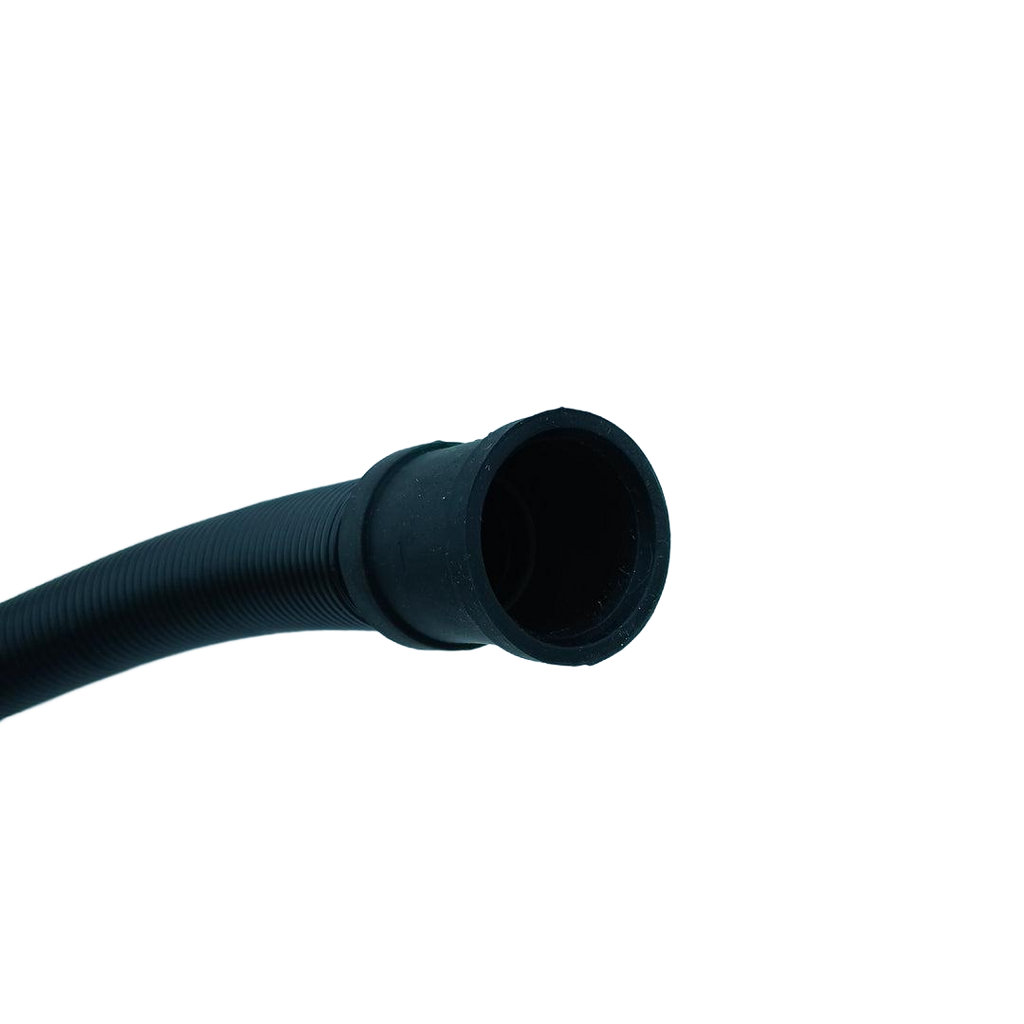

Flexible black WW01F02060 washing machine hose with ribbed texture and wide connector end
XPart Supply WW01F02060 washing machine hose in black flexible rubber for appliance water connection

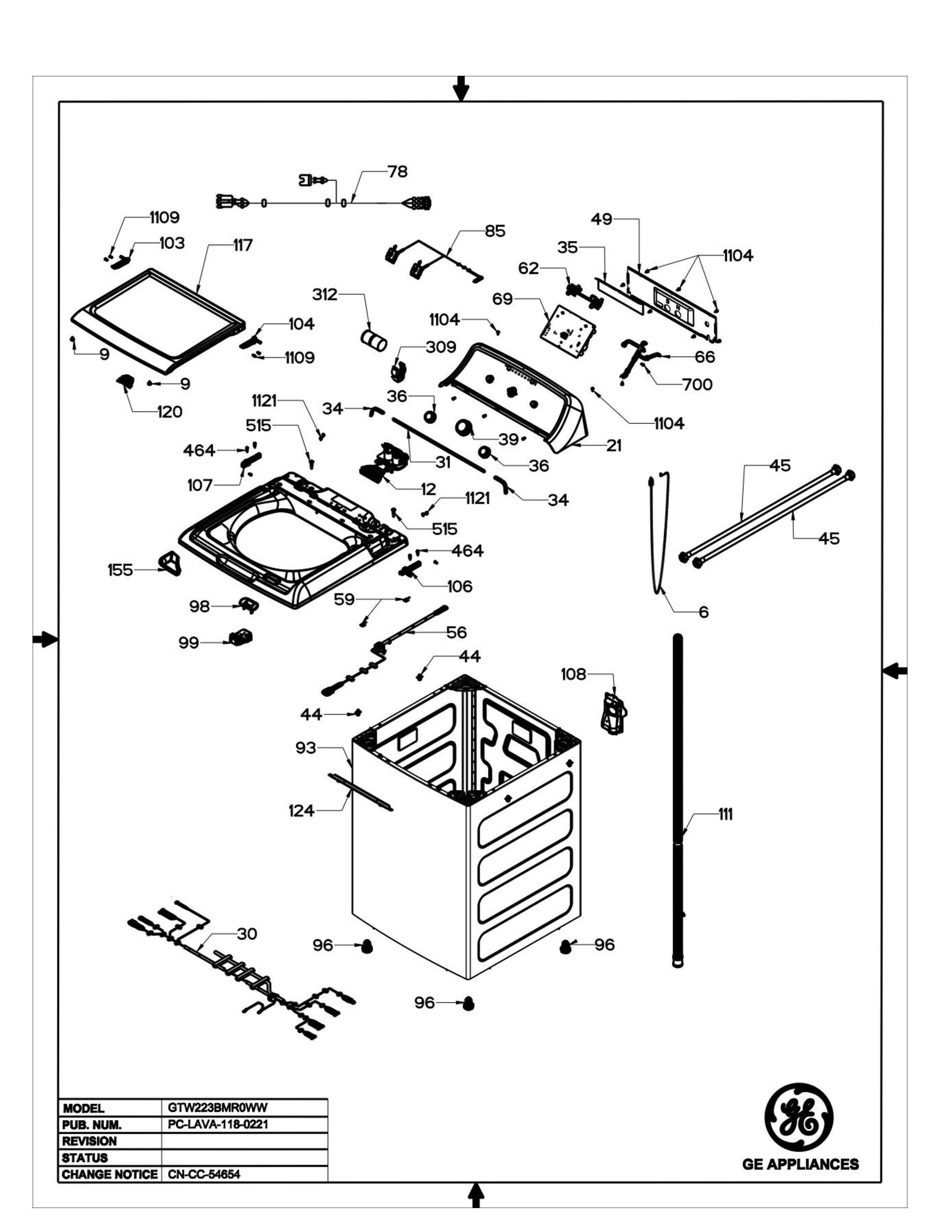

Exploded parts diagram for GE Appliances washing machine including WW01F02060 washing machine hose
WW01F02060 washing machine hose by XPart Supply with flexible black tubing and connector
XPart Supply black WW01F02060 washing machine hose with corrugated flexible design
Flexible black WW01F02060 washing machine hose by XPart Supply with corrugated design
Black flexible WW01F02060 washing machine hose with ribbed design for water drainage
WW01F02060 washing machine hose by XPart Supply in black flexible corrugated design
Close-up of black flexible WW01F02060 washing machine hose with ribbed texture and securing clip
Flexible black WW01F02060 washing machine hose with ribbed texture and wide connector end
XPart Supply WW01F02060 washing machine hose in black flexible rubber for appliance water connection
Exploded parts diagram for GE Appliances washing machine including WW01F02060 washing machine hose

WW01F02060 Washer Drain Hose Assembly (Drain Hose, Water Discharge Hose, Outlet Hose)

Price
$53.57

XPart Number: 9772916605217   |   GTIN: 100094965537

Condition : New

Product variant with selected options does not exist!

Frequently Bought Together

Shipper / Seller: XPart Supply Ltd.

Professional Repair Time: 15–25 minutes
DIY Repair Time: 20–30 minutes
Difficulty Rating: Easy (2/5) — Requires only basic tools and proper routing

  • Water leaking during drain
  • Water leaking under unit
  • Standing water in tub after cycle
  • Slow or incomplete drainage
  • Visible cracks, splits, or bulges in hose
  • Hose disconnected or loose
  • Takes too long to drain
  • Drain error codes

Item #111 in diagram.

Drain Hose Assembly, Water Discharge Hose, Outlet Hose, Drain Tube

WW01F01743, WW01F01873, 253C1194G005, 253C1194G003

GE, Hotpoint, Mabe, select Kenmore (verify by model)

Fits Models: (Ctrl+F and Enter Your Model Number)

GTW220BMM0WW, GTW302BMP0WW, GTW330BMM0WW, GTW460BMM0WW, GTW465BMM0WS, GTW470BMM0DG, GTW485BMM0WS, GTW495DMN0WS, GTW560BMM0WW, GTW575BMM0WS, GTW680BMM0DG, GTW680BMM0WS, HTW200BMM0WW, MTW200BMM0WW, GTW220BMM1WW, GTW223BMR0WW, GTW302BMP1WW, GTW330BMM1WW, GTW331BMR0WS, GTW451BMR0WS, GTW460BMM1WW, GTW465BMM1WS, GTW470BMM1DG, GTW485BMM1WS, GTW490BMR0WS, GTW495DMN1WS, GTW550BMR0WS, GTW560BMM1WW, GTW575BMM1WS, GTW580BMR0WS, GTW580BMR1WS, GTW680BMM1DG, GTW680BMM1WS, GTW680BMR0DG, GTW680BMR0WS, GTW680BMR1DG, GTW680BMR1WS, GTW680BMR2DG, GTW680BMR2WS, GTW685BMR0WS, GTW685BMR1WS, GTW690BMT0DG, LGA77115CBAB02, MTW200BMM1WW, GTW220BMK0WW, GTW220BMK1WW, GTW330BMK0WW, GTW460BMK0WW, GTW465BMK0WS, GTW485BMK0WS, GTW680BMK0DG, GTW680BMK0WS, MTW200BMK0WW, GTW330BMK1WW, GTW460BMK1WW, GTW465BMK1WS, GTW485BMK1WS

CRITICAL SAFETY WARNING: Unplug washer and turn off water supply before servicing.

  1. Unplug washer and shut off water supply.
  2. Move washer away from wall for access to rear panel.
  3. Loosen clamp securing old drain hose to washer pump outlet.
  4. Remove old hose from pump and drain standpipe/sink.
  5. Inspect pump outlet and drain area for debris or damage.
  6. Attach new hose to pump outlet and secure with clamp.
  7. Route hose to standpipe or sink, using built-in hanger for support.
  8. Ensure hose is not kinked or pinched.
  9. Secure hose end in standpipe/sink at recommended height (usually 36–48” above floor).
  10. Move washer back into place.
  11. Plug in washer, restore water, and run a drain cycle to check for leaks and proper flow.

Safety Notes: Do not extend hose beyond manufacturer length without approved extension kit. Avoid sharp bends.

  1. Inspect old hose for internal clogging—flush or replace as needed.
  2. Check pump outlet and hose clamps for rust or damage—replace if needed.
  3. Secure hose to standpipe/sink to prevent siphoning or leaks.
  4. Maintain recommended drain height to avoid backflow.
  5. If hose is repeatedly leaking, check for excessive vibration or movement.
  6. Document installation for warranty and troubleshooting.
  7. Never substitute with non-OEM hose—diameter and fit are critical.
  8. If drainage issues persist, inspect pump and filter for obstructions.
  9. Keep spare hoses in stock for high-turnover or multi-unit properties.
  10. Test with full drain cycle before returning washer to service.
  11. Replace hose clamps if corroded or loose for leak-free operation.


Whirlpool refrigerator replacement parts, Frigidaire refrigerator replacement parts, GE refrigerator replacement parts, Kenmore refrigerator replacement parts, KitchenAid refrigerator replacement parts, LG refrigerator replacement parts, Maytag refrigerator replacement parts, Whirlpool refrigerator drawers and glides replacement, Whirlpool dishwasher replacement parts, GE dishwasher replacement parts, KitchenAid dishwasher replacement parts, Maytag dishwasher replacement parts, Frigidaire dishwasher replacement parts, Kenmore dishwasher replacement parts, Whirlpool washer replacement parts, GE washer replacement parts, Maytag washer replacement parts, Kenmore washer replacement parts, LG washer replacement parts, Whirlpool dryer replacement parts, GE dryer replacement parts, Maytag dryer replacement parts, Kenmore dryer replacement parts, LG dryer replacement parts, Whirlpool range replacement parts, GE range replacement parts, Whirlpool stove replacement parts, GE stove replacement parts, GE oven replacement parts, GE microwave replacement parts, buy Whirlpool refrigerator parts online, buy GE dishwasher parts online, replacement Kenmore washer parts for sale, buy Maytag dryer parts, LG washer replacement parts online, KitchenAid refrigerator parts for sale, Whirlpool stove and range replacement parts

WW01F02060 Washer Drain Hose Assembly

The WW01F02060 is a genuine OEM drain hose assembly for GE and compatible top-load and front-load washers. This flexible, reinforced hose channels wastewater from the washer tub to the household drain standpipe or utility sink. It features molded end fittings for leak-free connections, ribbed construction for kink resistance, and a built-in hanger for secure installation. Typical lifespan is 7–15 years; failures are most often due to cracking, splitting, leaking, or clogging from debris buildup. Symptoms: water leaking during drain, standing water in tub, slow drainage, or visible hose damage. IMPORTANT: Only use OEM hoses for correct fit and flow. CRITICAL: Always disconnect power and water before servicing.
Exploded parts diagram for GE Appliances washing machine including WW01F02060 washing machine hose

Past Part Numbers (Superseded)

Item #111 in diagram.

Drain Hose Assembly, Water Discharge Hose, Outlet Hose, Drain Tube

WW01F01743, WW01F01873, 253C1194G005, 253C1194G003

Compatible with the following models

GE, Hotpoint, Mabe, select Kenmore (verify by model)

GTW220BMM0WW, GTW302BMP0WW, GTW330BMM0WW, GTW460BMM0WW, GTW465BMM0WS, GTW470BMM0DG, GTW485BMM0WS, GTW495DMN0WS, GTW560BMM0WW, GTW575BMM0WS, GTW680BMM0DG, GTW680BMM0WS, HTW200BMM0WW, MTW200BMM0WW, GTW220BMM1WW, GTW223BMR0WW, GTW302BMP1WW, GTW330BMM1WW, GTW331BMR0WS, GTW451BMR0WS, GTW460BMM1WW, GTW465BMM1WS, GTW470BMM1DG, GTW485BMM1WS, GTW490BMR0WS, GTW495DMN1WS, GTW550BMR0WS, GTW560BMM1WW, GTW575BMM1WS, GTW580BMR0WS, GTW580BMR1WS, GTW680BMM1DG, GTW680BMM1WS, GTW680BMR0DG, GTW680BMR0WS, GTW680BMR1DG, GTW680BMR1WS, GTW680BMR2DG, GTW680BMR2WS, GTW685BMR0WS, GTW685BMR1WS, GTW690BMT0DG, LGA77115CBAB02, MTW200BMM1WW, GTW220BMK0WW, GTW220BMK1WW, GTW330BMK0WW, GTW460BMK0WW, GTW465BMK0WS, GTW485BMK0WS, GTW680BMK0DG, GTW680BMK0WS, MTW200BMK0WW, GTW330BMK1WW, GTW460BMK1WW, GTW465BMK1WS, GTW485BMK1WS
