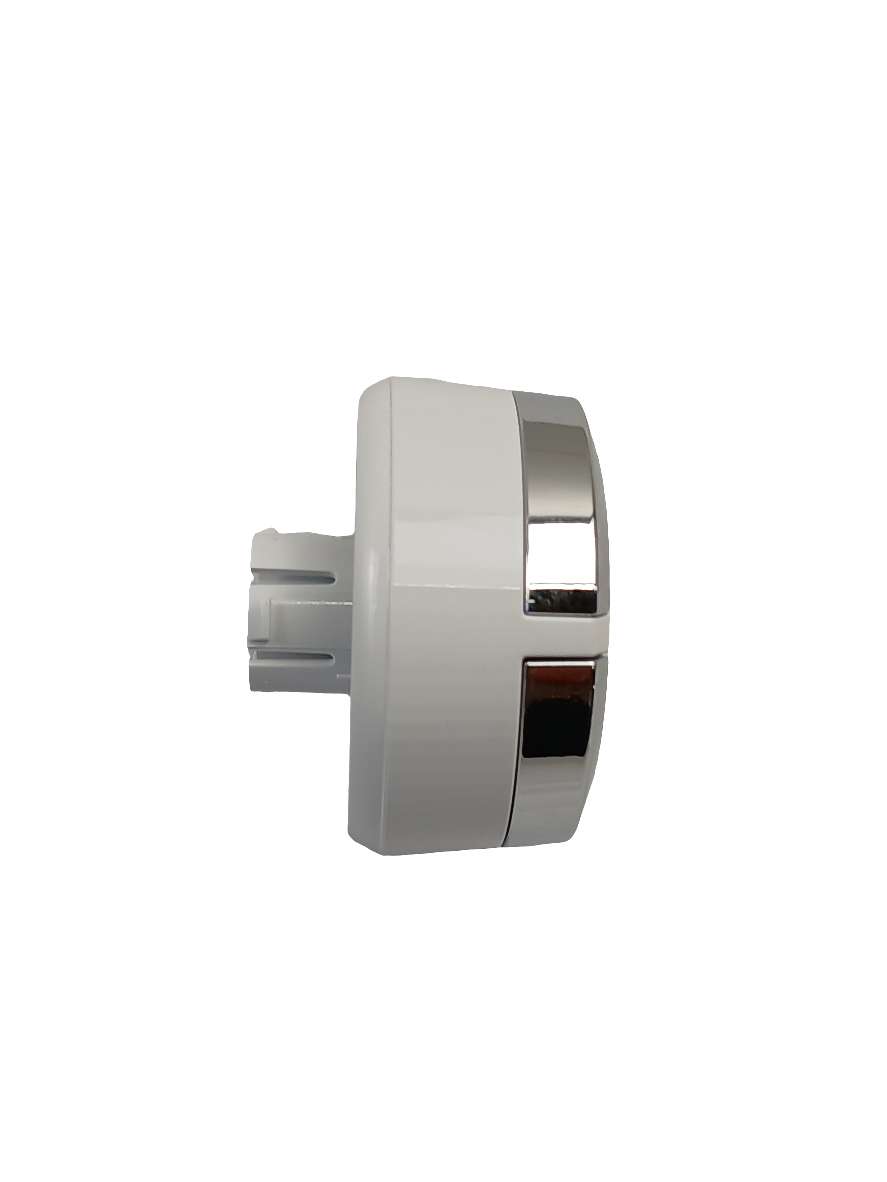

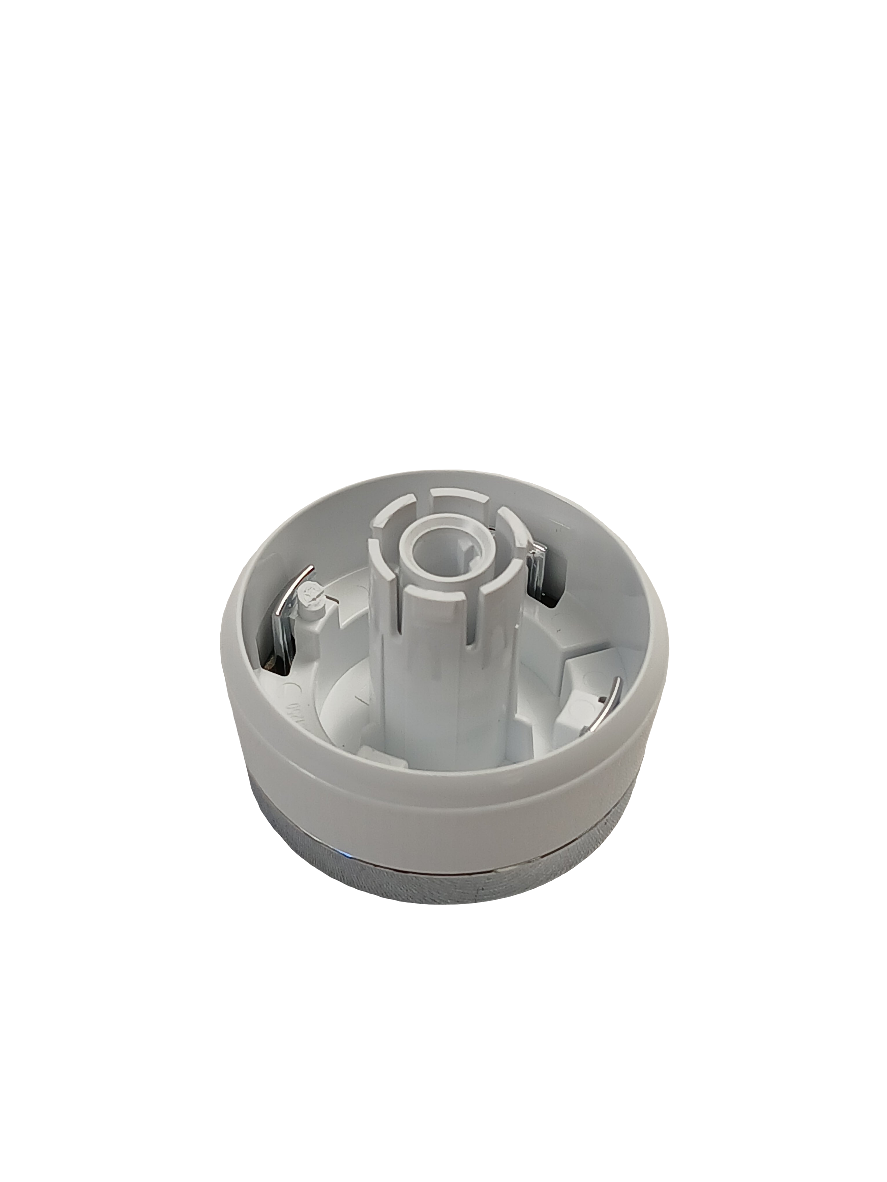

GE Washer/Dryer Rotary Knob WW01L01635, Replaces 253C1247G002

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Knob is cracked, broken, loose, or missing.
• Knob does not grip the control-panel rotary shaft.
• Cycle selection does not set correctly.
• On affected dryer applications, the appliance may not start when the knob cannot properly select or engage a setting.

Check Before Replacing

• Disconnect power before inspecting the control area.
• Inspect the knob's shaft opening for cracks, wear, or stripping that could prevent it from gripping the rotary shaft.
• Check that the knob is fully seated and its pointer aligns with the selected setting.
• If the knob is removed for inspection, examine the exposed selector/timer shaft for visible bending, wear, or damage; a damaged shaft indicates the underlying control may need service.

Pro Tip

Part Details

Installation Notes

• Disconnect electrical power before inspecting or replacing the knob.
• Confirm the appliance model and compare the replacement knob with the original before installation, since similar knobs can differ in fit and orientation.
• Align the knob's internal shaft opening with the control shaft and seat it fully without forcing it.
• After restoring power, verify that the knob engages the control and selects settings normally.

Verified Compatible Models

GTW330BMM1WW, GTW560BMM1WW, LGA79113CBAB01, LGA79113CBDB01, GTD40EBMK0WW, GTD40GBMK0WW, GTD42GBMK0WW, GTD45EBMK0WS, GTD45GBMK0WS, GTD46EDMN0WS, GTMP280GD5WW, GTW220BMK0WW, GTW220BMK1WW, GTW330BMK0WW, GTW330BMK1WW, GTW460BMK0WW, GTW460BMK1WW, GTW465BMK0WS, GTW465BMK1WS, GTW485BMK0WS, GTW485BMK1WS, GTW485BMM1WS, GTW575BMM1WS, GTX22EBMK0WW, LGA71215CBAB00, LGA71215CBAB01, LGA77115CBAB00, LGA77115CBAB01, LGA79113CBAB00, LGA79113CBDB00, SGE47N5XNSBH00, SGE47N8XSDCT00, GTD42EBAK0WS, GTD42EBMK0WW, GTW220BMM0WW, GTW220BMM1WW, GTW330BMM0WW, GTW460BMM0WW, GTW460BMM1WW, GTW465BMM0WS, GTW465BMM1WS, GTW485BMM0WS, GTW495DMN0WS, GTW495DMN1WS, GTW560BMM0WW, GTW575BMM0WS, LGA77115CBAB02, SGG47N5XNBAB00, SGN27N5XSBAB00, SGN47N5XNBAB00, SME27N5MSBBP00, SMG27N5MSBAB00, WMA77113CBDB00, WMA77113CBDB01

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
