Dryer Not Heating Evenly? Thermostat Harness WW02F00742 – Fix Temperature Control Fast

Inconsistent heat or a dryer that runs but won't dry clothes properly is almost always a thermostat circuit failure. In GE electric dryers, the thermostat harness connects the cycling thermostat, high-limit thermostat, and thermal fuse into a single wiring assembly — when it fails, the dryer loses the ability to regulate heat, causing clothes to come out damp, the drum to overheat, or the unit to shut off mid-cycle. ⚡ Common failure point in GE-built dryers across the GTD and GTX model lines. Part WW02F00742 is the genuine OEM replacement harness that restores precise temperature control and supersedes WW02F00560, WW02F00653, and WW02F00820 — no modification required.

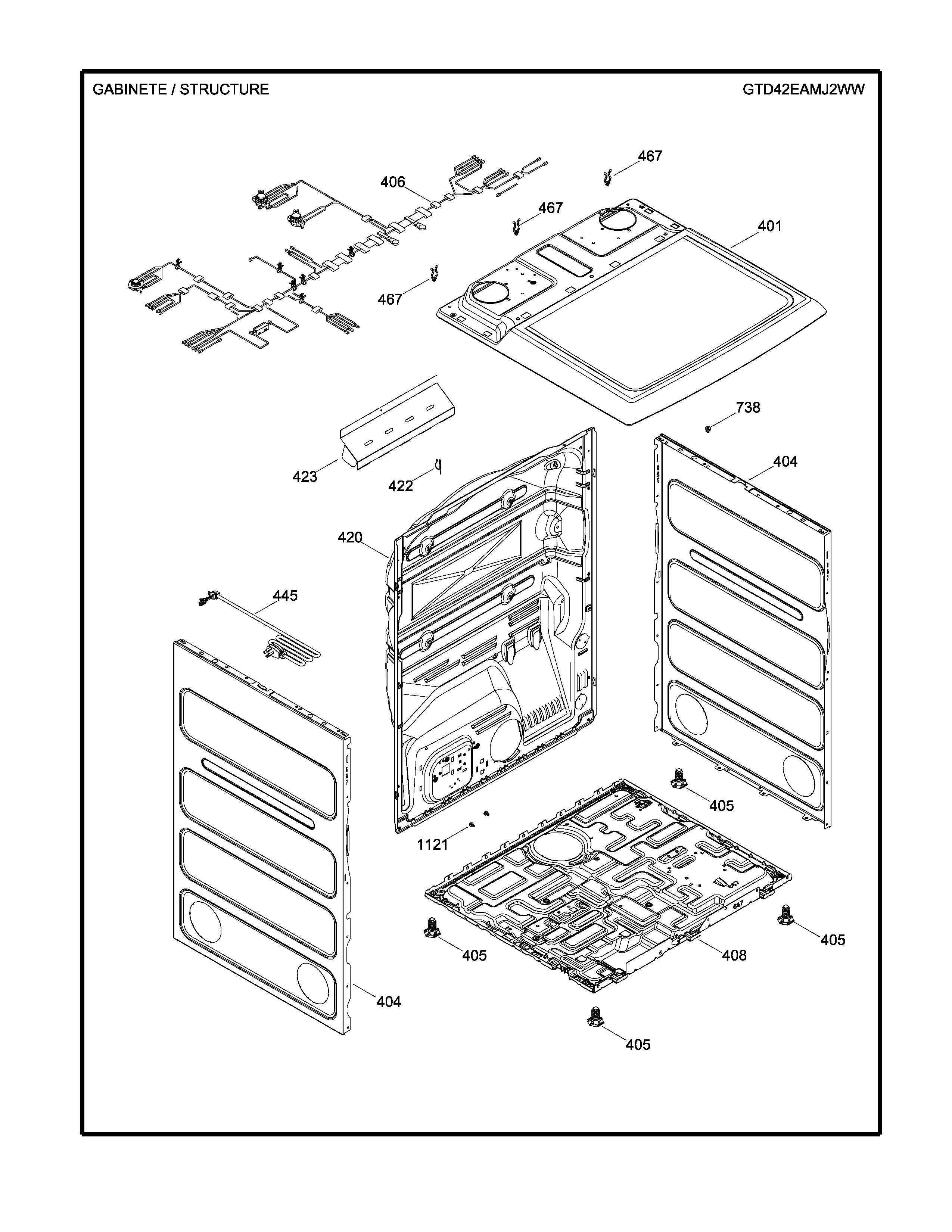

Model-specific repair guides: GTX22EBMK0WW, GTD45EBMK0WS, GTD45EAMJ2WS, GTD42EBAK0WS, GTD42EAMJ2WW, GTD42EAAJ2WW, GTD40EBMK0WW

❓ Is This the Right Part?

This is the correct fix if ALL of the following are true:

• ✔ Your dryer powers on and the drum turns normally
• ✔ The motor and belt are confirmed working
• ✔ Power supply and circuit breaker confirmed OK (240V for electric dryers)
• ✔ Heating element has been tested and is not open/failed
• ✔ ONLY problem is no heat, insufficient heat, or dryer shutting off mid-cycle due to temperature fault

Not sure? Send us your model number — we'll confirm before you order.

🔧 Common Symptoms

• Dryer runs but produces no heat — most common customer complaint
• Clothes still damp after a full cycle
• Dryer overheating or shutting off before cycle completes
• Dryer takes multiple cycles to dry a single load
• Burning smell from dryer during operation
• Dryer trips breaker or thermal fuse repeatedly

✔ If these symptoms match, the thermostat harness is the most likely failed component in the heat circuit.

✔ In most cases, replacing the thermostat harness with WW02F00742 restores normal drying performance immediately.

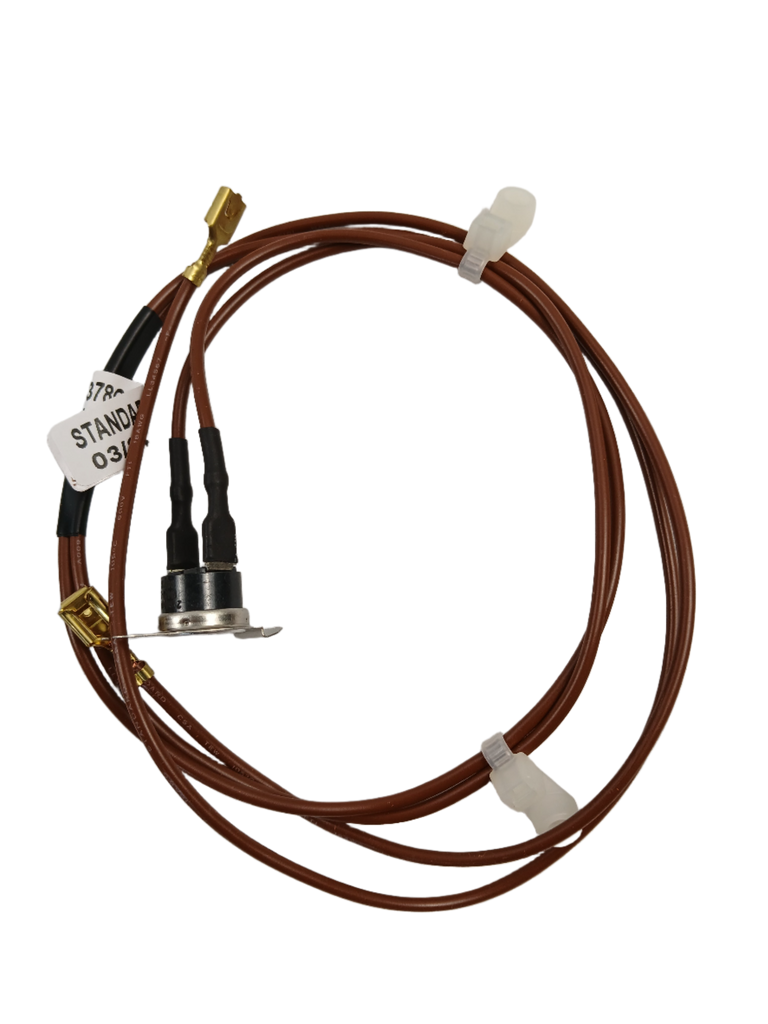

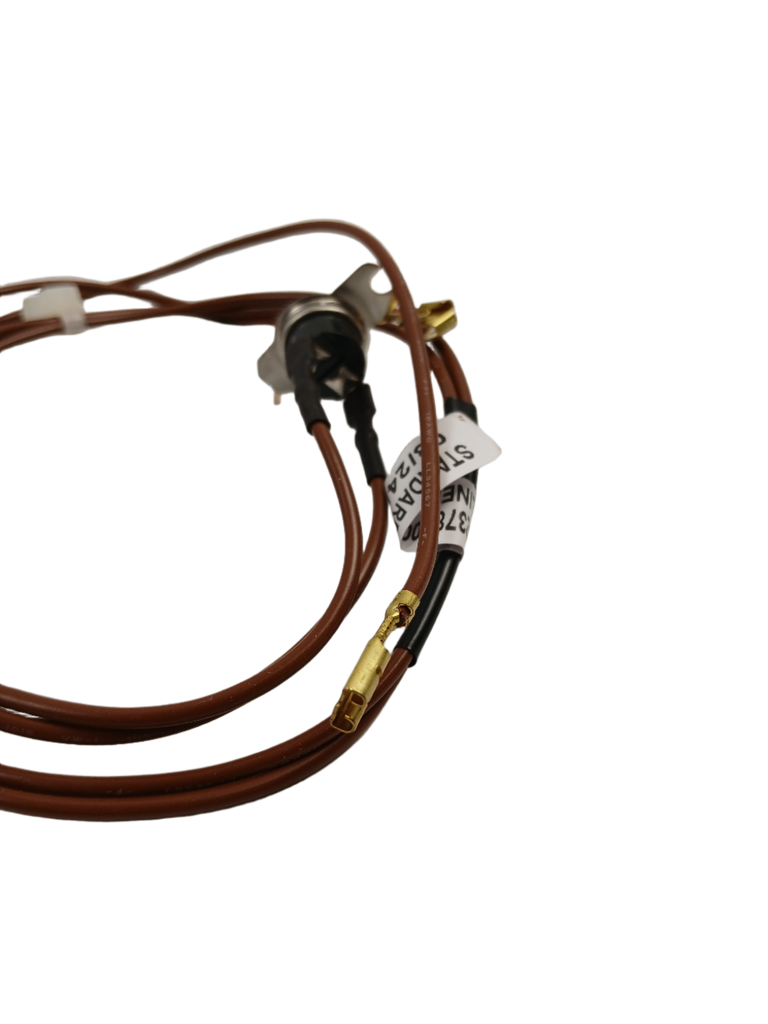

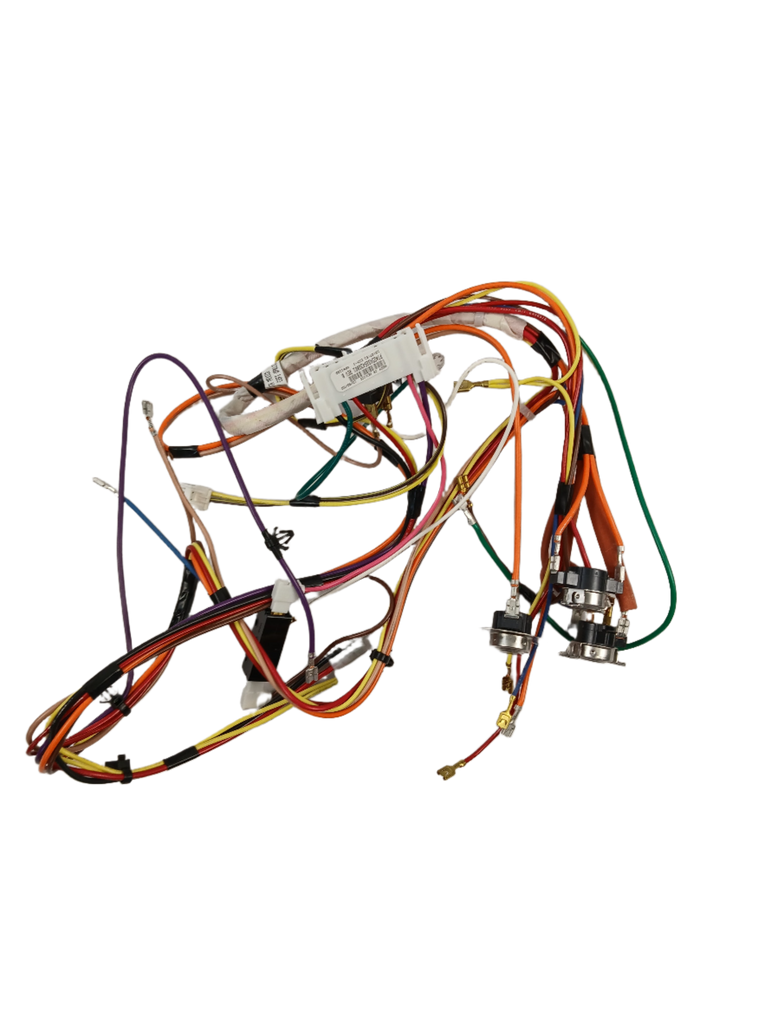

📦 Part Details

• Part Number: WW02F00742
• Type: Genuine OEM GE Dryer Thermostat Wiring Harness Assembly
• Replaces: OEM direct-fit harness — supersedes WW02F00560, WW02F00653, WW02F00820, WE15X26140, 234D2378G005 (no modification required)
• Brands: GE

⚙️ Installation

Skill Level: MODERATE — Allow 30–60 minutes. Unplug the dryer from the wall before beginning any work. Remove the back panel to access the thermostat and harness assembly, disconnect the old harness from the cycling thermostat, high-limit thermostat, and thermal fuse, then route and connect the new WW02F00742 harness to the same terminals. Ensure all connectors are fully seated and no wires are pinched before reassembling the panel and restoring power.

💡 Pro Tip
