Dryer Not Starting or Stopping Mid-Cycle? GE Chassis & Board Assembly WW02F01016 – Fix Control & Cycle Failures Fast

If your GE dryer won't start, stops mid-cycle, displays error codes, or behaves erratically, a failed chassis and board assembly is the most likely cause. In most GE GTD65-series dryers, the chassis and board assembly integrates the main control electronics that manage cycle selection, heat regulation, motor control, and safety monitoring — when it fails, the dryer loses the ability to execute or complete any drying cycle reliably. ⚡ High-value control failure in GE GTD65-series dryers. Part WW02F01016 is the genuine OEM replacement chassis and board assembly that restores full electronic control and cycle function with a direct-fit installation.

❓ Is This the Right Part?

This is the correct fix if ALL of the following are true:

• ✔ Dryer powers on — door switch and power supply confirmed functional
• ✔ Thermal fuse and heating element have been tested and confirmed OK
• ✔ Motor runs or has been confirmed functional
• ✔ ONLY problem is control failure — won't start, stops mid-cycle, error codes, or erratic behavior

Not sure? Send us your model number — we'll confirm before you order.

🔧 Common Symptoms

• Dryer won't start — no response when start button pressed despite power being on
• Dryer stops mid-cycle randomly with no error code displayed
• Error codes displayed on control panel that persist after reset
• Cycle selection buttons unresponsive or behaving erratically
• Dryer runs but heat or timing is completely wrong
• Control panel lights up but dryer will not initiate any cycle

✔ If these symptoms match, the chassis and board assembly is the most likely failed component in the system.

✔ In most cases, replacing this assembly restores full control and cycle function immediately.

📦 Part Details

• Part Number: WW02F01016

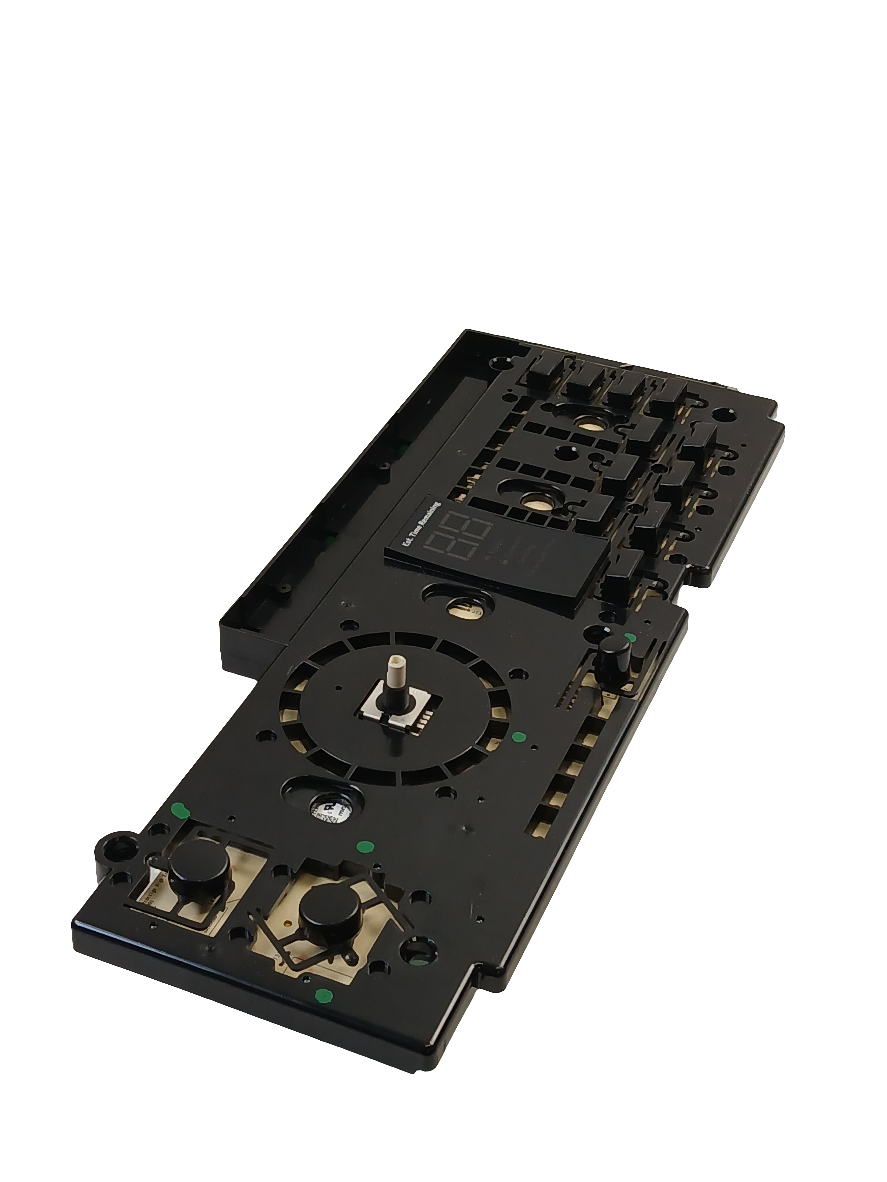

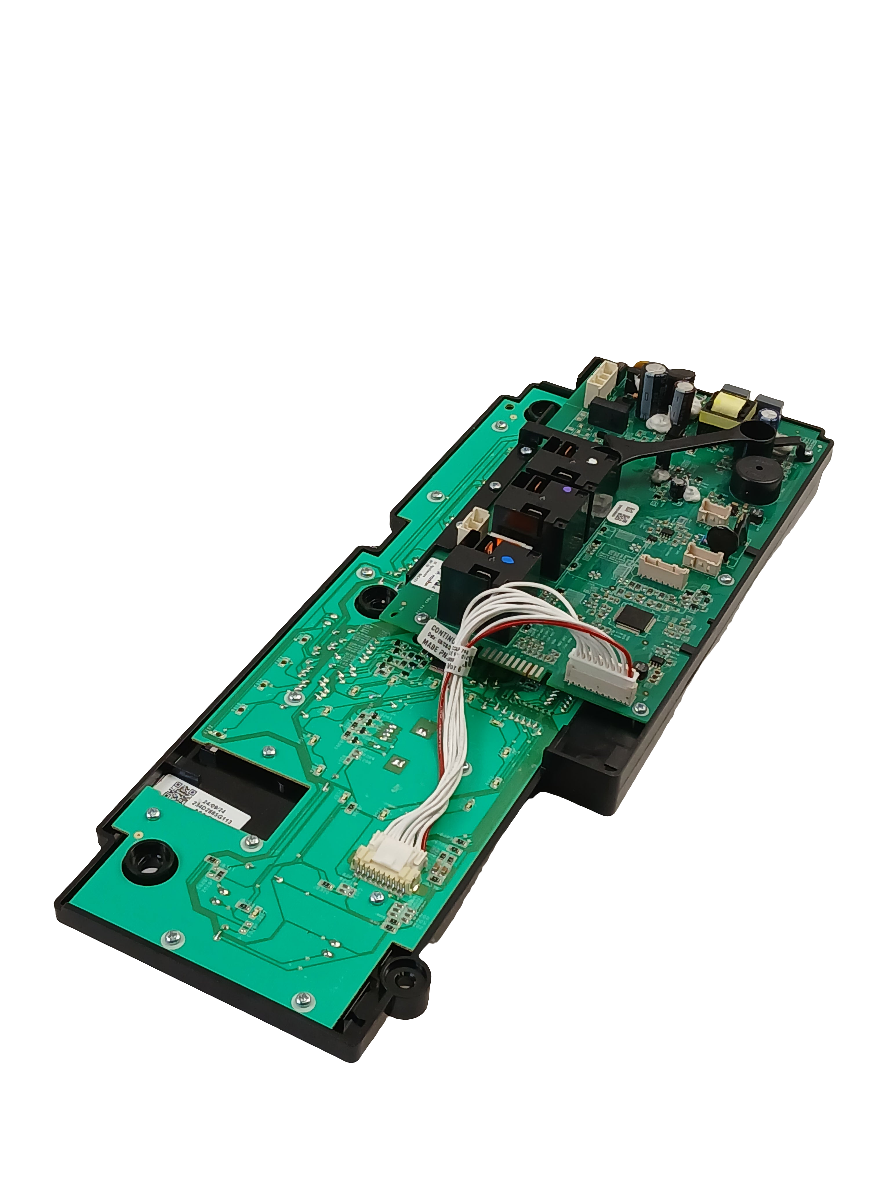

• Type: Dryer Chassis & Board Assembly — integrated OEM control board and chassis housing with pre-installed electronic components
• Replaces: WW02F01016 (OEM direct replacement — no superseded part numbers on file)
• Brands: GE

⚙️ Installation

Skill Level: ADVANCED — 45–60 minutes. Disconnect power before beginning. Access the control board by removing the dryer top panel and control console. Photograph all wiring harness connections before disconnecting. Transfer each connector to the new assembly in the same position, secure the chassis mounting screws, and reassemble in reverse order. Run a full test cycle to confirm all functions are restored.

✓ Compatible Models

Confirmed compatible with GTD65GBMR0WS, GTD65EBMR0WS, GTD65EBMR0DG plus additional GE GTD65-series dryer models. Contact us to verify your model number before ordering.
