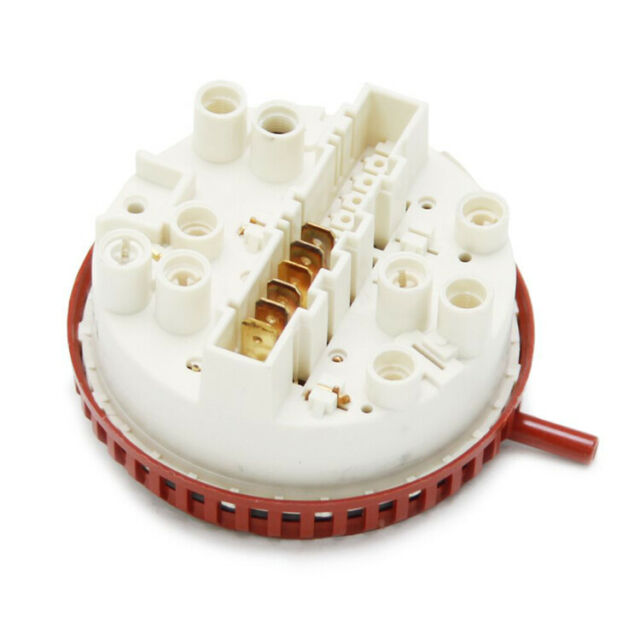

Whirlpool Washer Water-level pressure switch WPW10514214, Replaces W10514214, 8181695

OEM washer water-level pressure switch that senses and controls the water level in the washer tub.

Is This the Right Part?

Common Symptoms

• Washer overfills or continues filling
• Washer does not fill to the expected level
• Washer may stop during a cycle or display a water-level/fill-related fault

Check Before Replacing

• Unplug the washer and shut off its water supply before inspection.
• Confirm that the hot- and cold-water supplies have adequate flow and that inlet screens are not obstructed.
• Visually inspect the pressure hose for kinks, disconnection, leaks, or blockage; also inspect the hose connections and wiring connector.
• Use the washer-specific technical sheet or diagnostic mode to check pressure-switch operation and wiring continuity; do not rely on a generic resistance value.

Pro Tip

Part Details

Key Features

• Whirlpool genuine OEM water-level pressure switch
• Pressure-operated sensing component for washer fill-level control
• Manufacturer part WPW10514214
• Replaces W10514214 and 8181695

Installation Notes

• Disconnect electrical power and shut off the water supply before installation.
• Follow the washer model's service instructions because access and mounting details vary by model.
• Transfer or reconnect the pressure hose and wiring connector exactly as shown in the model-specific service documentation, ensuring the hose is not kinked or leaking.
• Run the washer's applicable diagnostic or test cycle after installation to verify operation.

Verified Compatible Models

GHW9100LQ0, GHW9100LQ1, GHW9100LQ2, GHW9100LW0, GHW9100LW1, GHW9100LW2, GHW9150PW0, GHW9160PW0, GHW9200LQ0, GHW9200LW0, GHW9250ML0, GHW9250ML1, GHW9250ML2, GHW9250MQ0, GHW9250MQ1

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
