Whirlpool Dryer Laundry appliance door switch kit W10820036, Replaces 83333, 8224, 388322, 359230, 347207

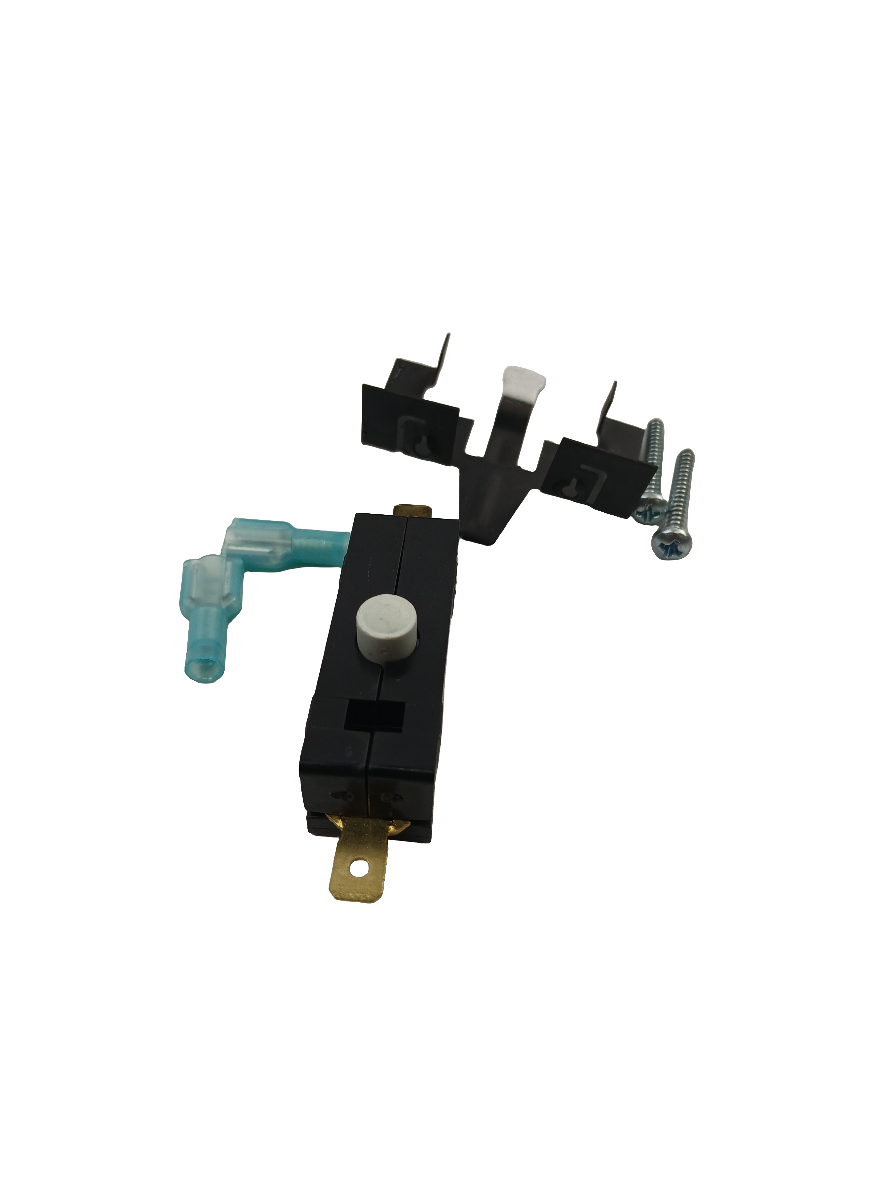

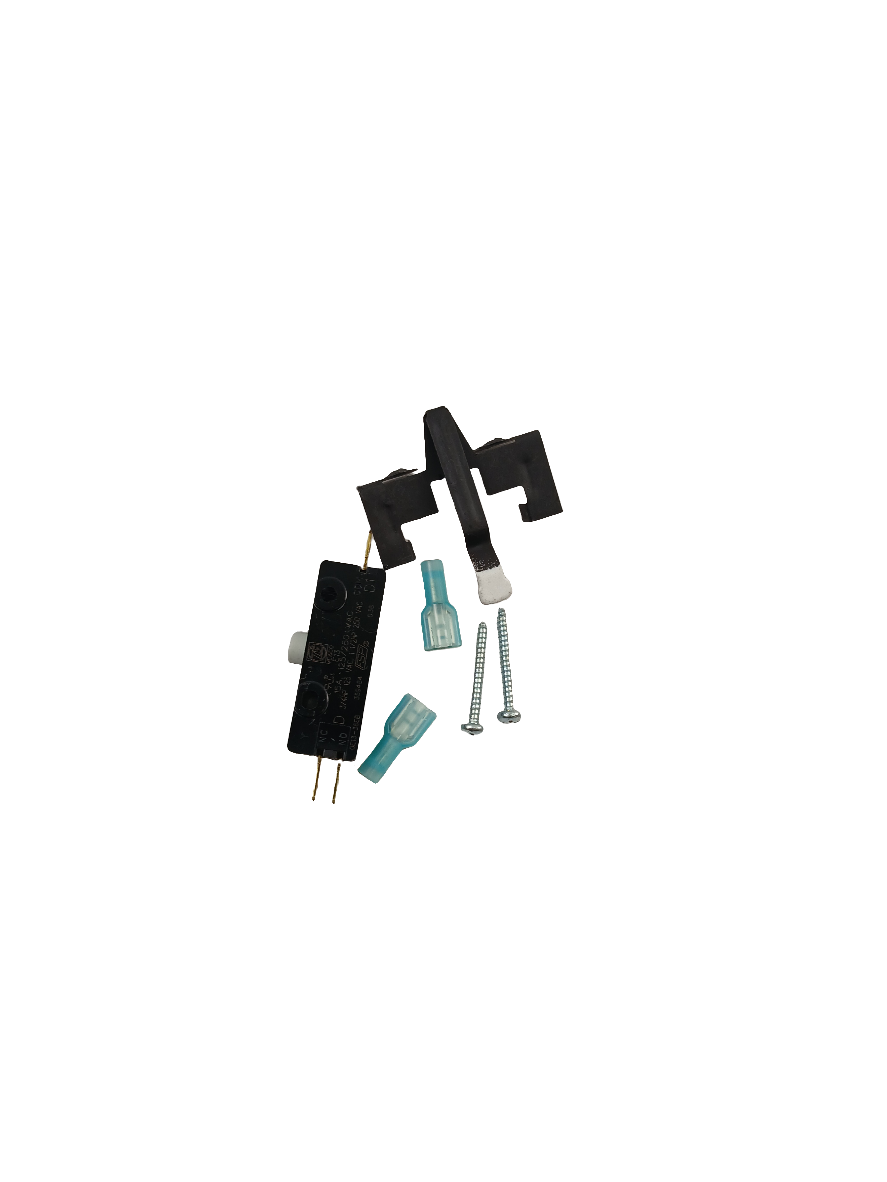

Genuine Whirlpool door-switch kit for laundry appliances. The kit includes a switch, dryer mounting bracket, two wire terminals, and two mounting screws. It prevents the dryer or washer from operating when the door or lid is open.

Is This the Right Part?

Common Symptoms

• Dryer or washer will not start when the door or lid is closed
• Appliance stops when the door or lid is moved or opened
• Dryer may not run after the door is closed
• Washer may not agitate or drain when the lid is closed

Check Before Replacing

• Disconnect power before inspecting the switch, terminals, bracket, or wiring.
• Confirm the door or lid physically presses the switch actuator fully when closed; check for misalignment, damage, or an obstruction.
• Inspect the two switch terminals and nearby wiring for looseness, corrosion, or visible damage without bypassing the safety switch.
• With power disconnected, compare the switch’s mechanical action with the door/lid movement; it should actuate consistently rather than sticking or remaining depressed.
• Verify the appliance model’s parts diagram before replacement because the kit is used across different laundry-appliance designs.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM laundry-appliance door/lid switch kit
• Includes a dryer mounting bracket
• Includes two wire terminals
• Includes two mounting screws
• Designed to prevent operation with the dryer door or washer lid open

Installation Notes

• Disconnect electrical power before installation.
• Use the appliance’s model-specific parts diagram or service literature to identify the switch location and wiring arrangement.
• Transfer or reconnect terminals only after matching them to the original arrangement; do not bypass the safety interlock.
• Use the included bracket, terminals, and screws only where specified by the appliance’s model-specific installation procedure.
• After installation, confirm that the closed door or lid actuates the switch and that the appliance does not operate with the door or lid open.

Verified Compatible Models

1106914754, 11072482210, 11072482600, 11072482800, 11072483110, 11072483120, 11072483210, 11072483400, 11076483430, 11081475300, 11081475400, 11086171200, 11088724890, 11089416830, 11089419820

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
