Whirlpool Range Oven Temperature Sensor Kit 12001656, Replaces 12001357, 12001554, 12001656VP, 12500029, 71003083, 74003390, 74004471, 74004943, 74005193, 7430P003-60, 7430P005-60, 7430P008-60, 7430P008-60K, 7430P010-60,

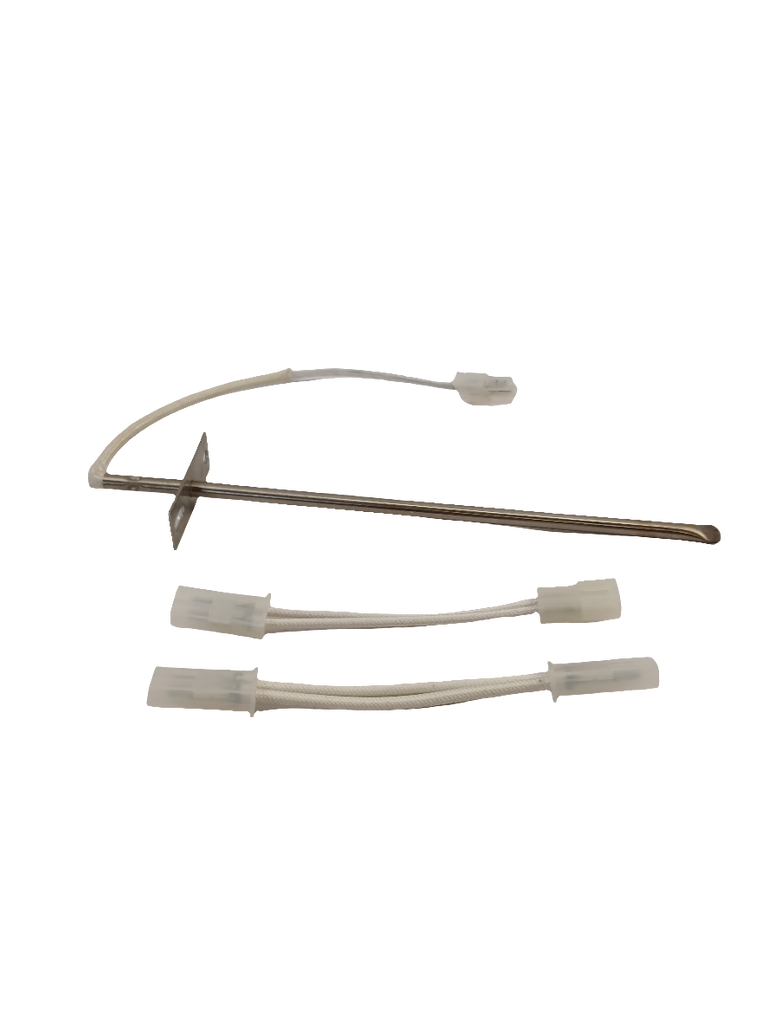

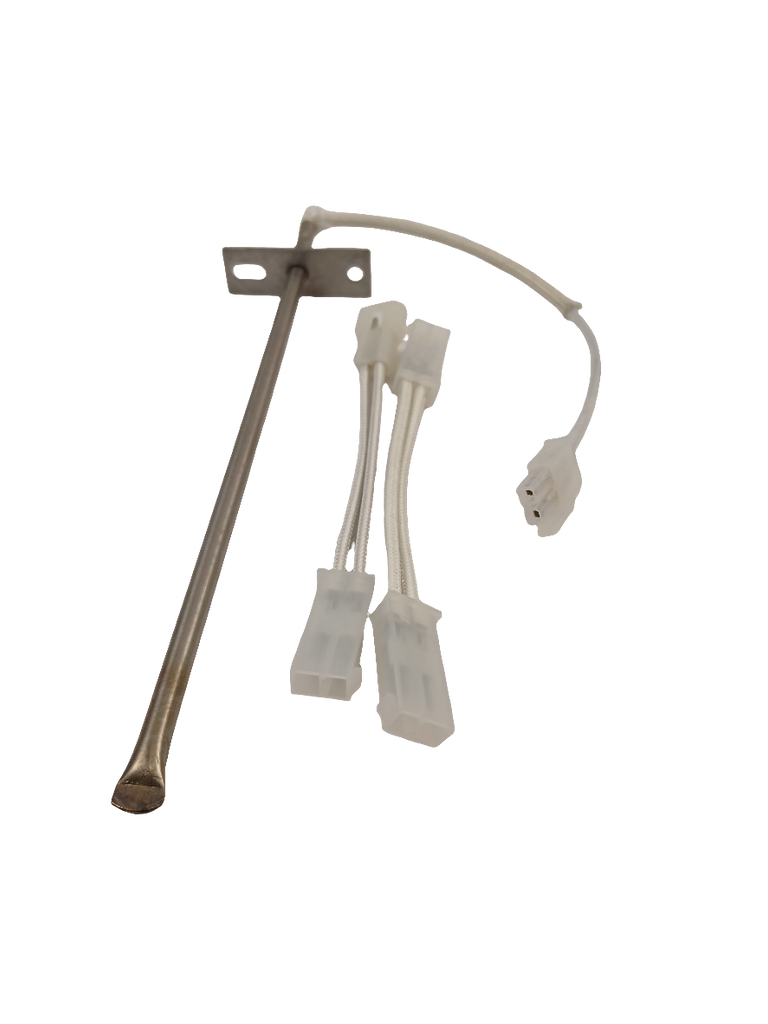

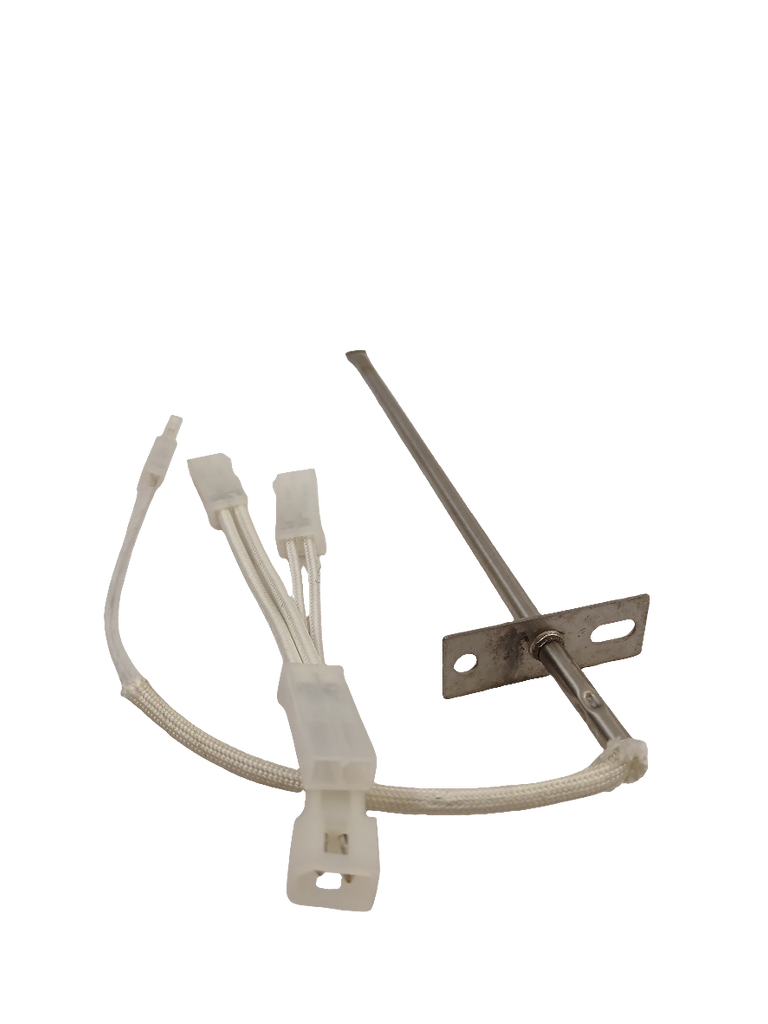

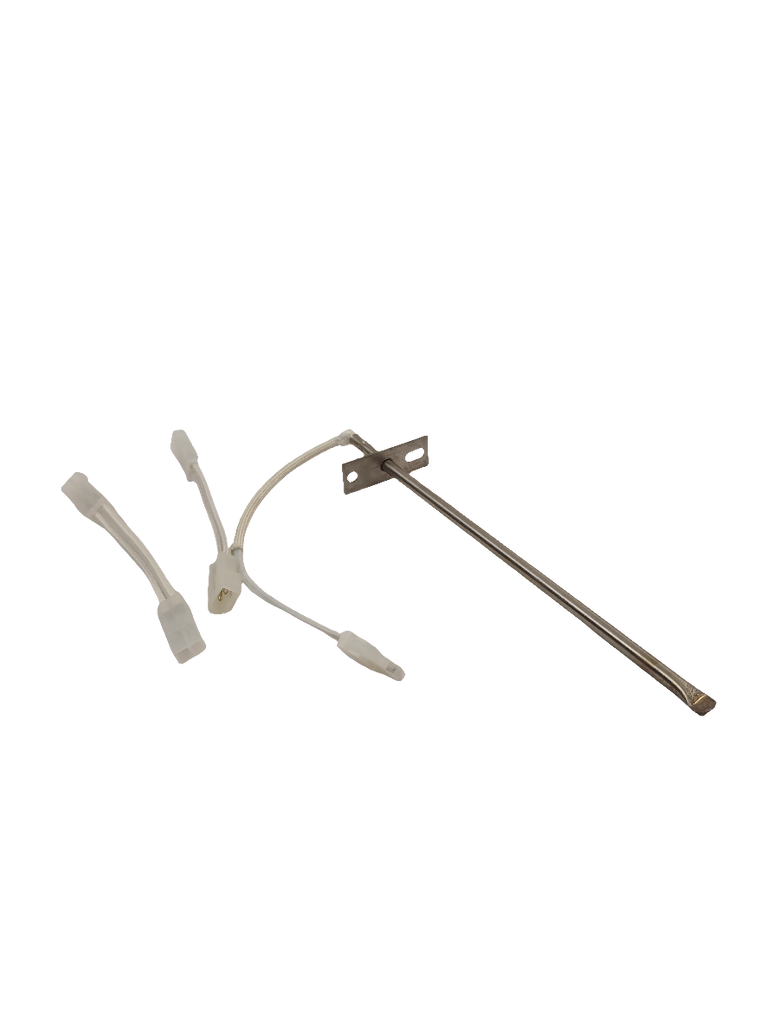

Genuine Whirlpool OEM long oven temperature sensor kit, approximately 6 to 6.25 inches long. Includes the oven sensor, two wire-harness adapters for various applications, and installation instructions. The sensor measures oven temperature and sends readings to the control board for temperature regulation.

Is This the Right Part?

Common Symptoms

• Oven temperature is inaccurate or fluctuates excessively.
• Oven does not reach the selected temperature.
• Temperature-sensor fault code may appear.
• Oven may overheat or underheat if the sensor signal is incorrect.

Check Before Replacing

• Disconnect electrical power before accessing the sensor or wiring.
• Visually inspect the sensor probe, connector, and harness for looseness, damage, or burned wiring.
• With power disconnected, measure sensor resistance using a multimeter and compare the result with the appliance’s model-specific service information; approximately 1050–1100 ohms at room temperature is a commonly cited reference for this sensor family, but the model documentation should control.
• If the sensor tests normally, inspect the harness and control-side connections before concluding that the sensor is defective.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM long oven temperature sensor kit.
• Approximately 6 to 6.25 inches long, depending on measurement reference.
• Includes the sensor, two wire-harness adapters for varied applications, and installation instructions.
• Designed to provide the control board with oven-temperature feedback.

Installation Notes

• Disconnect electrical power before installation.
• Use the included wire-harness adapter that matches the appliance connection; do not force an incompatible connector.
• Route and secure the replacement wiring so it does not contact heating elements or other hot surfaces.
• Follow the included instructions and the appliance-specific service information for access, fastener removal, and testing.

Verified Compatible Models

38HA-3TXW-ON, 665.98003701, JDR8880RDB1, JDR8880RDS1, JDR8880RDW1, JDS9860CDB00, MER5770AAA, MER5775QAS

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
