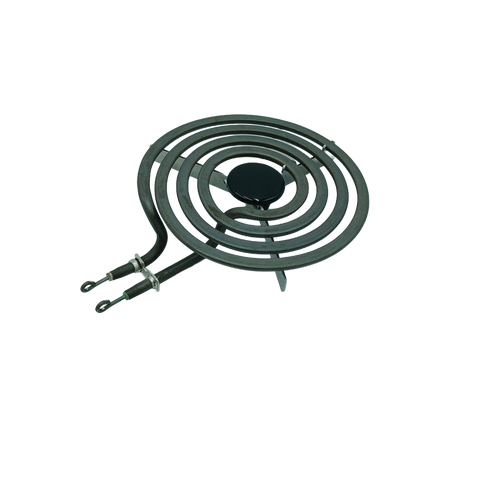

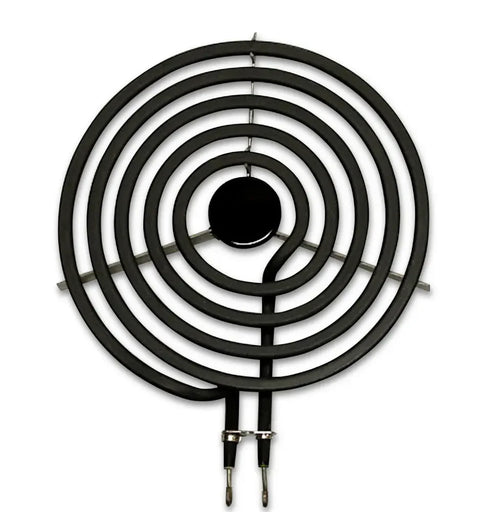

Surface Heating Element, Cooktop Burner Element, Range Coil Element

318372216, 5304437242, 318372206, 318112300, AP4357819, PS2339243, 22200040005

Frigidaire, Electrolux, Kenmore, Gibson, White-Westinghouse, Tappan, Kelvinator

FrigidaireCFEF358EB1, CFEF358EB2, CFEF358EB3, CFEF358EB4, CFEF358EB5, CFEF358EB6, CFEF358ES1, CFEF358ES2, CFEF358ES3, CFEF358ES4, CFEF358ES5, CFEF358ES6, CFEF372AS1, CFEF372AS2, CFEF372AS3, CFEF372AS4, CFEF372AS5, CFEF372AS6, CFEF372AW1, CFEF372AW2, CFEF372AW3, CFEF372AW4, CFEF372AW5, CFEF372AW6, CMEF212EB1, CMEF212EB2, CMEF212EB3, CMEF212EB4, CMEF212EB5, CMEF212EB6, CMEF212ES1, CMEF212ES2, CMEF212ES3, CMEF212ES4, CMEF212ES5, CMEF212ES6

ElectroluxEI30EF35JS1, EI30EF35JS2, EI30EF35JS3, EI30EF35JS4, EI30EF35JS5, EI30EF35JS6, EW30EF65GS1, EW30EF65GS2, EW30EF65GS3, EW30EF65GS4, EW30EF65GS5, EW30EF65GS6

Kenmore79090413900, 79090413901, 79090413902, 79090413903, 79090413904, 79090413905, 79090414900, 79090414901, 79090414902, 79090414903, 79090414904, 79090414905, 79091413900, 79091413901, 79091413902, 79091413903, 79091413904, 79091413905

GibsonGEF358EB1, GEF358EB2, GEF358EB3, GEF358EB4, GEF358EB5, GEF358EB6, GEF358ES1, GEF358ES2, GEF358ES3, GEF358ES4, GEF358ES5, GEF358ES6

White-WestinghouseWEF358EB1, WEF358EB2, WEF358EB3, WEF358EB4, WEF358EB5, WEF358EB6, WEF358ES1, WEF358ES2, WEF358ES3, WEF358ES4, WEF358ES5, WEF358ES6

TappanTEF358EB1, TEF358EB2, TEF358EB3, TEF358EB4, TEF358EB5, TEF358EB6, TEF358ES1, TEF358ES2, TEF358ES3, TEF358ES4, TEF358ES5, TEF358ES6

KelvinatorKEF358EB1, KEF358EB2, KEF358EB3, KEF358EB4, KEF358EB5, KEF358EB6, KEF358ES1, KEF358ES2, KEF358ES3, KEF358ES4, KEF358ES5, KEF358ES6

Professional Repair Time: 5-10 minutes
DIY Repair Time: 10-15 minutes
Difficulty Rating: Easy (1/5) — Requires only element removal and installation; no tools required; minimal mechanical skill required

1. Turn off power to the range at the circuit breaker to ensure complete power disconnection.
2. Verify power is off by attempting to turn on one of the surface elements. None of the elements should heat.
3. Allow all surface elements to cool completely if the range has been used recently. Surface elements can reach temperatures exceeding 700°F and cause severe burns.
4. Remove any cookware from the cooktop surface.
5. Take multiple photos of the old element position, orientation, and terminal connection before removal. Document the element from multiple angles. This is critical for proper reassembly.
6. Locate the faulty 8-inch surface element on the cooktop. It's typically the large burner position (left front or right front depending on the model).
7. Grasp the element firmly at the front edge where the coil meets the terminal block.
8. Lift the element straight up approximately 1 inch to disengage it from the drip pan.
9. Pull the element straight out toward you to disconnect the pigtail terminals from the terminal block receptacle. The element should slide out easily—do not force it.
10. Place the old element on a clean work surface with adequate space for inspection.
11. Inspect the old element for visible damage such as breaks, blisters, gaps, or burn marks in the wire. This confirms the diagnosis.
12. Inspect the terminal block receptacle on the range for corrosion, melted plastic, burn marks, or damage. Clean corroded terminals with a wire brush or replace the terminal block if damaged.
13. Inspect the drip pan for damage, warping, or excessive corrosion. Clean or replace the drip pan if necessary.
14. Verify the terminal block receptacle is securely mounted to the range and does not wobble or shift.
15. Unpack the new 316442303 surface element from its packaging. Handle carefully to avoid damaging the element or pigtail terminals.
16. Verify the element specifications match the old element: 8 inches diameter, 2,400 watts at 240 volts, pigtail terminal ends.
17. Compare the new element to the old one to verify the coil diameter, number of coil turns, pigtail terminal length and configuration, and overall appearance match. Ensure you have the correct replacement part.
18. Inspect the new element for any damage or defects before installation. The element should be tightly coiled with no visible breaks, gaps, or damage.
19. Verify the pigtail terminals are straight and undamaged. Bent or damaged terminals will not connect properly to the terminal block receptacle.
20. Position the new element in front of the terminal block receptacle, aligning the pigtail terminals with the receptacle openings.
21. Insert the pigtail terminals straight into the terminal block receptacle openings. Push firmly until the terminals are fully seated in the receptacle.
22. Verify the terminals are fully inserted by gently tugging on the element. The element should not pull out of the receptacle.
23. Lower the element into position on the drip pan, ensuring the element support tabs rest properly on the drip pan rim.
24. Verify the element is properly seated and level on the drip pan. The element should not wobble or tilt.
25. Verify the element coil does not contact the drip pan at any point. There should be clearance between the coil and the drip pan to allow proper heat circulation.
26. Restore power at the circuit breaker.
27. Turn on the new element to the medium-high setting to verify proper operation.
28. Verify the element begins to glow red within 30-60 seconds of turning it on. The element should gradually increase in brightness as it heats.
29. Verify the element heats evenly across the entire coil. All portions of the coil should glow red at approximately the same brightness.
30. Listen for unusual noises during the test. The element should operate quietly with no buzzing, arcing, or electrical sounds.
31. Monitor for burning smells during the first few minutes of operation. A slight burning smell from manufacturing oils burning off the new element is normal and should dissipate within 5-10 minutes. A strong or persistent burning smell indicates a problem—stop immediately.
32. If the element does not heat, verify the pigtail terminals are fully seated in the terminal block receptacle and power is present at the range.
33. If the element heats unevenly, the element may be defective. Stop immediately and replace the element.
34. If the element sparks or arcs, stop immediately and verify the terminals are properly connected. If sparking continues, the element or terminal block may be defective.
35. Turn off the element and allow it to cool for 5-10 minutes.
36. Test the element at different heat settings (low, medium, high) to verify proper operation across all settings.
37. Verify the element responds properly to heat setting changes. The element should glow brighter at higher settings and dimmer at lower settings.
38. Test cooking with actual cookware (a pot of water) to confirm proper heating performance and even heat distribution.
39. Monitor the element for 24-48 hours of normal use to ensure it operates properly without unusual noises, smells, or performance issues.

Safety Notes: Always turn off power at the circuit breaker before working on the range. The surface element operates at 240 volts and 2,400 watts and can cause severe electrical shock or death if power is not disconnected. Allow all elements to cool completely before handling—surface elements can reach temperatures exceeding 700°F and cause severe burns. Never operate the range with a damaged or broken surface element. Ensure the pigtail terminals are fully seated in the terminal block receptacle before operating the element. This repair requires electrical knowledge—if you're uncomfortable with the process, consult a professional technician.

Always verify the terminal block receptacle is in good condition before installing the new element. A damaged, corroded, or loose terminal block receptacle can prevent proper electrical connection and cause the new element to fail prematurely. Inspect the receptacle carefully for burn marks, melted plastic, corrosion, or loose mounting. Clean corroded terminals with a wire brush or replace the terminal block if damaged.

Verify proper element wattage for your range. The 316442303 is rated at 2,400 watts at 240 volts. Ensure your range's electrical system and circuit breaker are rated for this wattage. Using an element with incorrect wattage can cause poor cooking performance or circuit breaker trips.

This surface element is model-specific. The 316442303 is designed for specific Frigidaire and affiliated brand ranges with 8-inch large burner positions. Always verify your range model number matches one of the compatible models before ordering. Using an incorrect element can result in non-fit or improper operation.

This is a complete replacement surface element. The 316442303 includes the heating coil and pigtail terminal ends pre-assembled and ready for installation. You cannot replace individual components—the entire element must be replaced if any part fails.

Surface element replacement is a simple repair. This repair requires no tools and minimal mechanical skill. The element simply unplugs from the terminal block receptacle and the new element plugs back in. Installation typically takes less than 5 minutes.

Monitor the first few uses after installation. After installing the new surface element, use the burner several times and monitor for proper heating, even heat distribution, and proper performance. A slight burning smell from manufacturing oils burning off the new element is normal and should dissipate within 5-10 minutes. Address any issues immediately before they affect cooking performance.

Surface element failure can have multiple causes. If the new element doesn't solve the problem, the issue may be with the terminal block receptacle, infinite switch (burner control), wiring, or control board. Further diagnosis may be required to identify the root cause.

Keep the element and drip pan clean. Food spills and grease buildup on the element or drip pan can cause smoking, unpleasant odors, and premature element failure. Clean spills promptly and wash the drip pan regularly to extend element life.

This repair restores full cooking functionality. A properly functioning surface element is essential for reliable stovetop cooking. Replacing a faulty element restores normal heating performance and prevents burnt or undercooked food.

Check all surface elements for wear. If one element failed, other elements of similar age may also be wearing out. Inspect all elements and replace any that show signs of wear or damage.

Verify the pigtail terminals are fully seated before operating the element. Loose or partially connected terminals can cause arcing, poor heating, or element failure. Ensure the terminals are pushed fully into the receptacle and the element does not pull out when gently tugged.

The new element may smell slightly during first use. Manufacturing oils on the new element will burn off during the first few uses, causing a slight burning smell. This is normal and should dissipate within 5-10 minutes. Ventilate the kitchen during first use.

Never immerse a hot element in water. Rapid temperature changes can cause the element to crack or break. Always allow the element to cool completely before cleaning or removing.

This element features pigtail (looped) terminal ends. The pigtail design allows for easy plug-in installation without tools. Some older ranges may use screw-terminal elements—verify your range uses pigtail-style elements before ordering.

Monitor for circuit breaker trips after installation. If the range trips the circuit breaker when the element is turned on, the element may be shorted or the terminal connection may be incorrect. Stop immediately and verify all connections are correct.

This repair is cost-effective compared to range replacement. The cost of surface element replacement ($80-150) is far less than the cost of a new range ($800-2,000+). Replace the element promptly when failure is detected to prevent the need for expensive range replacement.

Verify the element does not contact the drip pan. The element must have clearance from the

• Element does not heat when turned on (burner stays cold)
• Element heats intermittently (cycles between hot and cold)
• Visible breaks, blisters, or gaps in element wire
• Element glows red-hot in spots but doesn't heat evenly
• Element sparks or arcs during operation
• Range trips circuit breaker when element is turned on
• Element takes much longer to heat up than normal
• Element doesn't reach full temperature
• Cooking takes longer than normal
• Food cooks unevenly on the burner
• Element glows dim or doesn't glow at all
• Burning smell from element during operation
