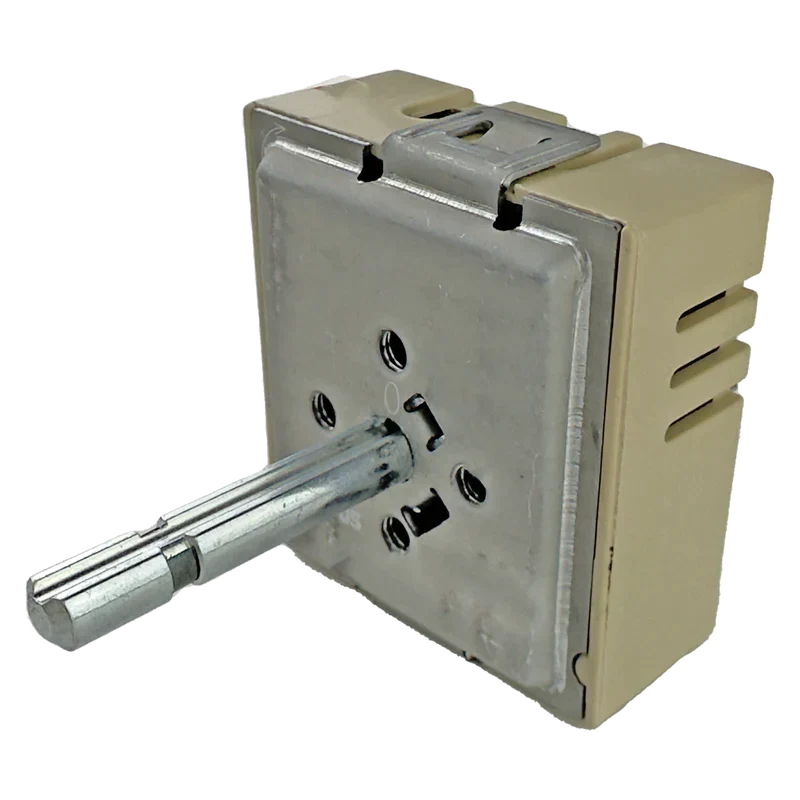

XP4456027 Range Oven Infinite Switch, Replaces 4456027
XP4456027 Range Oven Infinite Switch, Replaces 4456027

Whirlpool Range/cooktop Dual Surface Element Switch 4456027 – Superseded by WP4456027

XPart Number XP10007599
$109.98
$113.85
In stock and ready for shipping
Buying Options: OEM Genuine

Choose an available buying option.
Equivalent Parts Cross-reference listings may have additional stock Check Stock →
Check Fit & Find Parts
Bubba checks verified models, product descriptions, cross-references and store data. Find your model number →

Frequently Bought Together
✅ Superseded by WP4456027 — See Current OEM Replacement

Whirlpool Range/cooktop Dual Surface Element Switch 4456027, Fixes Dual burner does not heat correctly or will not turn off

Whirlpool dual surface-element control switch, also called an infinite switch, for controlling a dual electric cooktop burner. Current manufacturer replacement: WP4456027.

Part 4456027Whirlpool Superseded by WP4456027

✅ This part (4456027) has been superseded. Current manufacturer replacement: WP4456027.

Shop WP4456027 — Current Replacement →

Whirlpool dual surface-element control switch, also called an infinite switch, for controlling a dual electric cooktop burner.

Is This the Right Part?

Part Number4456027
ManufacturerWhirlpool
Appliance TypeRange/Cooktop
Part TypeDual surface element switch
Superseded ByWP4456027

Common Symptoms

  • Dual burner does not operate
  • Outer or inner burner section does not operate
  • Burner remains on high heat
  • Burner temperature is erratic
  • Burner cycles incorrectly

Check Before Replacing

  • Disconnect electrical power before inspection or testing.
  • Inspect the switch wiring and terminals for visible damage or loose connections.
  • If the burner does not operate, test the element and wiring before condemning the switch.
  • A qualified technician can check switch continuity with a multimeter after removing power and isolating the component.

Pro Tip

Photograph the original wire connections before removing the switch, and verify the appliance model before ordering.

Part Details

Part Number4456027
Part TypeDual surface element switch
ManufacturerWhirlpool
Appliance TypeRange/Cooktop
Primary FunctionControls power cycling and heat regulation for a dual surface element.
Cross ReferencesWP4456027
Superseded ByWP4456027

Key Features

  • Dual surface-element control switch
  • Infinite-switch style control
  • Genuine Whirlpool OEM successor WP4456027
  • Used in Whirlpool and KitchenAid electric cooktops and ranges
✅ Supersession Note: WP4456027 supersedes 4456027 and is the current documented manufacturer replacement.

Installation Notes

  • Disconnect electrical power at the appliance or circuit breaker before installation.
  • Record wire locations before transfer and reconnect wires to the same terminals.
  • Confirm the exact appliance model and switch configuration before installation.

Verified Compatible Models

GJC3034HB5, GJC3034HP5, GJC3034HQ5, GJC3034HT5, GJC3634HB5, GLC3034HP5, GLC3034HQ5, GLC3034HT5, GLC3634HP5, GLC3634HQ5, GLC3634HT5, KECC502GBL4, KECC502GBL05, KECC502GBL06, KECC502GBT4, KECC502GWH4, KECC506RBL00, KECC506RSS00, KECC506RWH00, KECC507KBL1, KECC507KBL02, KECC507KBL03, KECC507KBT1, KECC507KBT02, KECC507KBT03, KECC507KSS1, KECC507KSS02, KECC507KSS03, KECC507KWW1, KECC507KWW02, KECC507KWW03, KECC566RBL05, KECC566RSS05, KECC567KBL1, KECC567KBL03, KECC567KBT1, KECC567KBT03, KECC567KWW1, KECD865HBL4, KECD865HBL05, KECD865HBT05, KESK901SBL01, KESK901SBL02, KESK901SBL05, KESK901SBL06, KESK901SSS00, KESK901SSS02, KESK901SSS04, KESK901SSS06, KESK901SSS08, KESK901SWH00, KESK901SWH01, KESK901SWH04, KESK901SWH05, KESK901SWH06, KECC502GWH05, KECC502GWH06, KECC505KSS02, KECC506RBL01, KECC506RBL02, KECC506RBL03, KECC506RBL04, KECC506RSS01, KECC506RSS02, KECC506RSS03, KECC506RSS04, KECD806RBL02, WCE55US0HB, KECC506RBL05, KECC562GBL05, KECC562GBL4, KECC562GBT4, KECC562GWH05, KECC562GWH06, KECC566RWH01, KECD806RBL00, KECD806RBL01, KESK901SBL00

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
