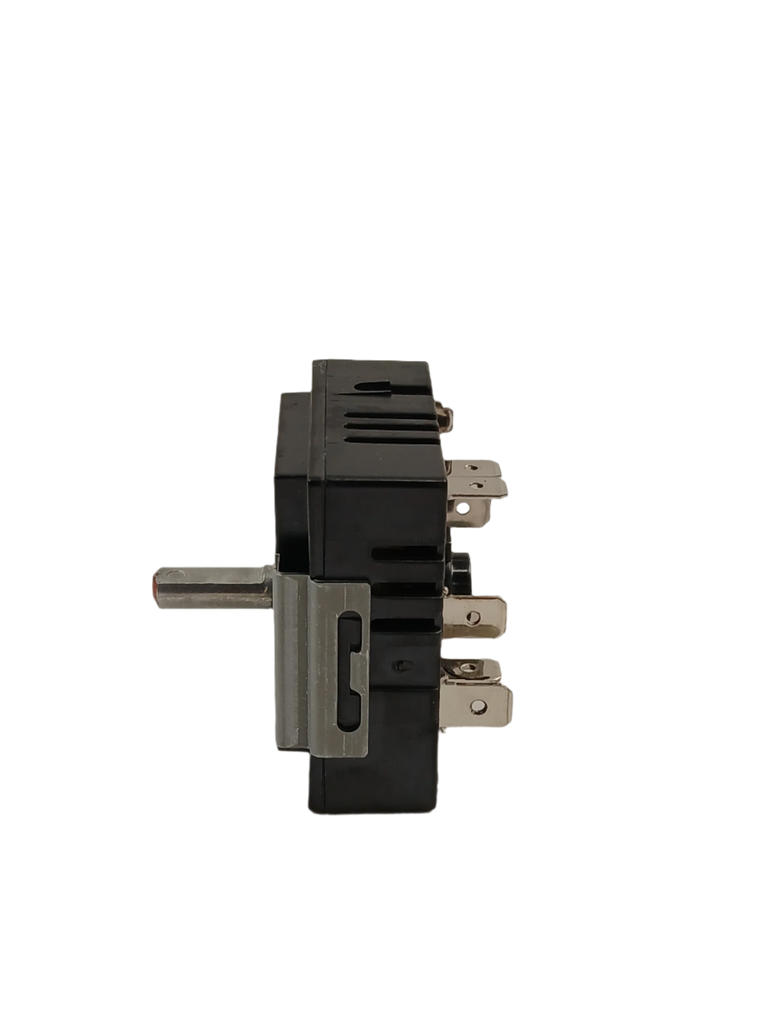

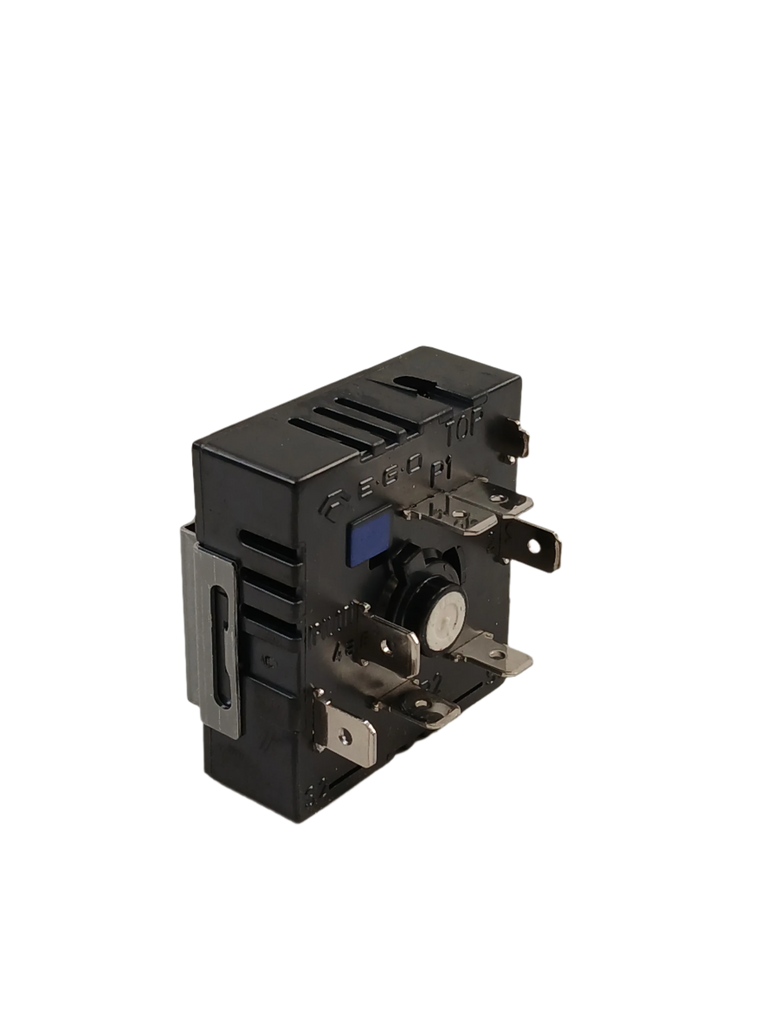

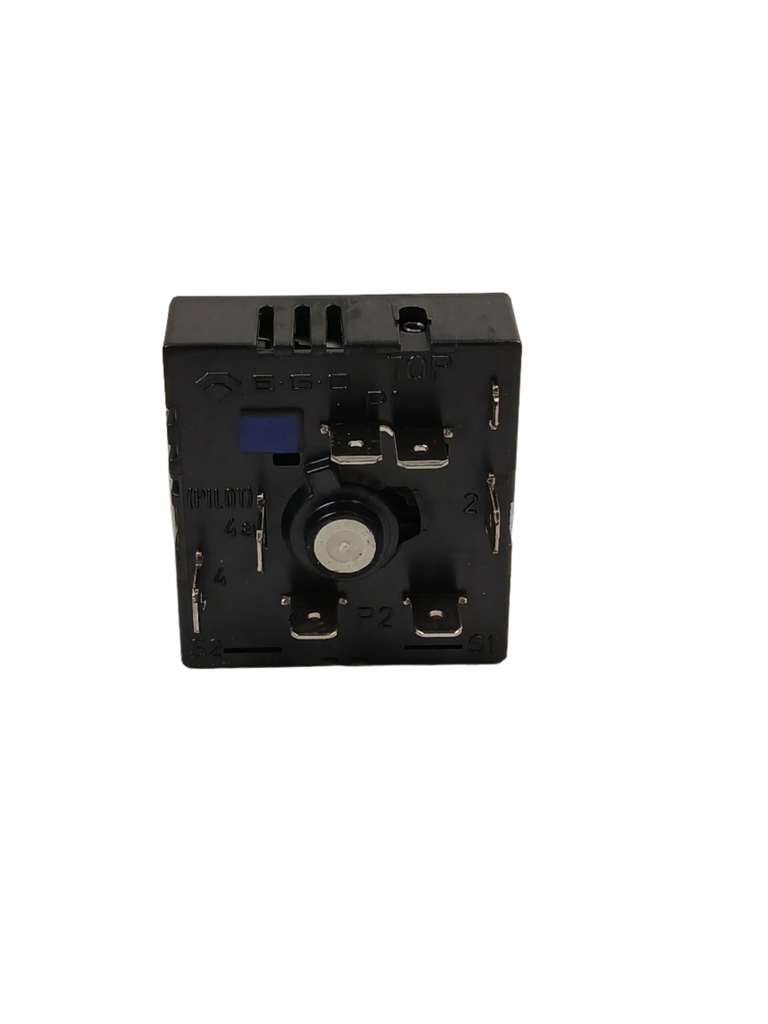

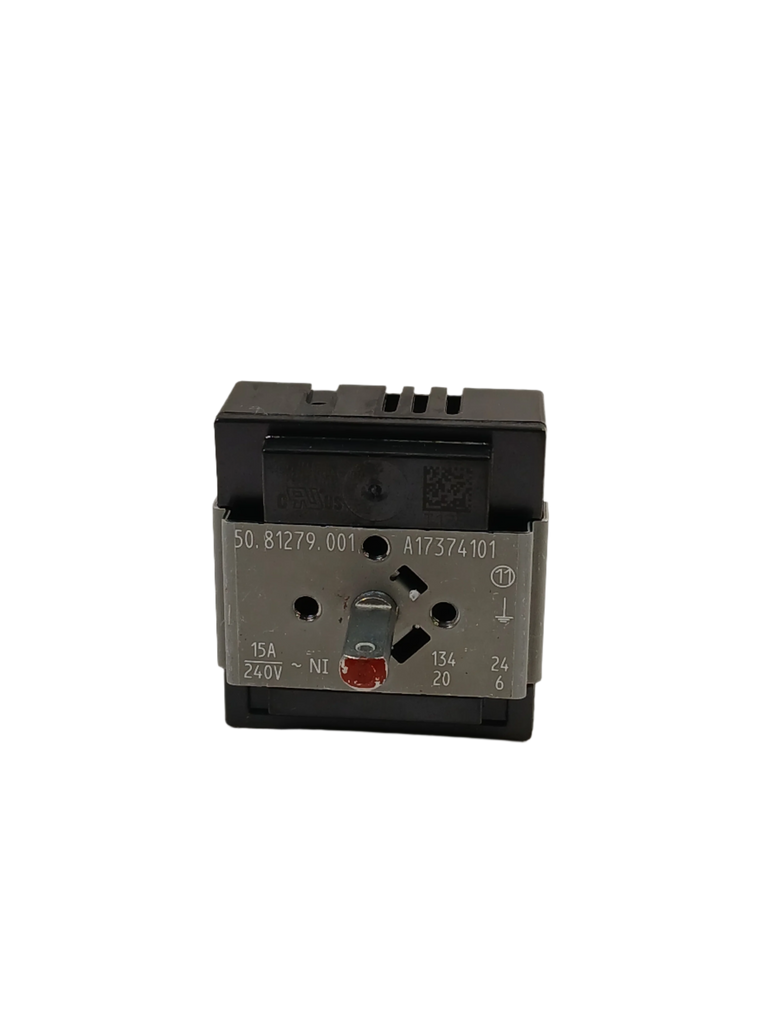

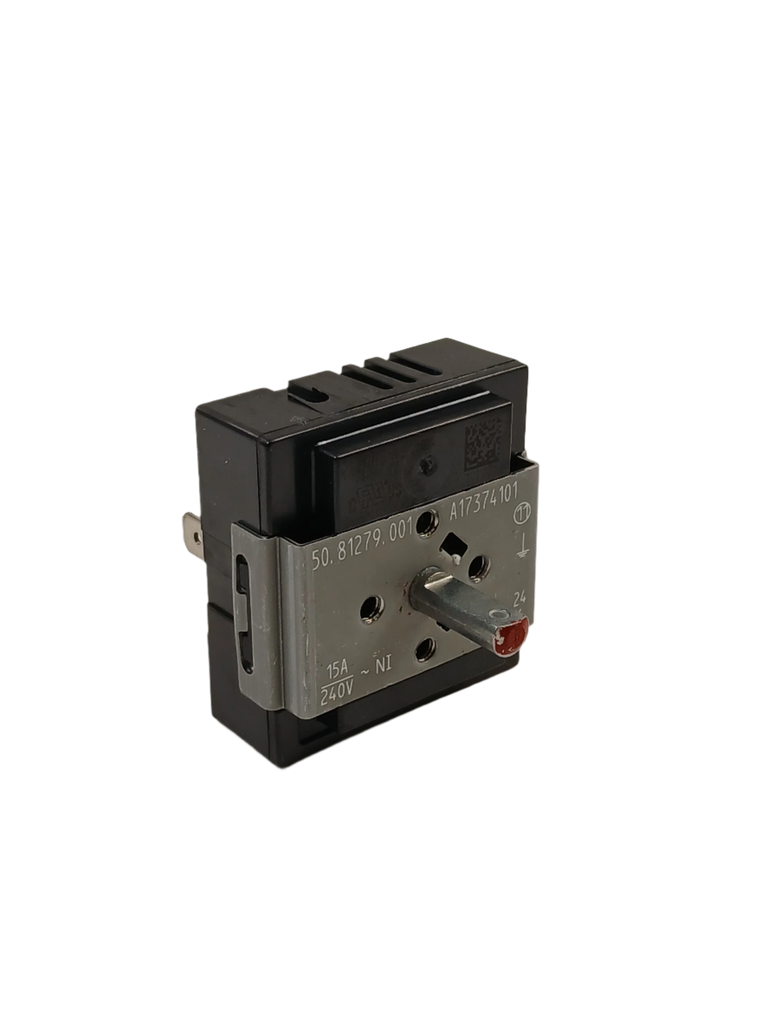

Frigidaire Electric range Infinite Switch, Small Element 316436000

Genuine Frigidaire OEM infinite surface-element control switch for a small surface element, documented for a 6-inch element.

Is This the Right Part?

Common Symptoms

• Small surface burner does not heat.
• Small surface burner will not turn off.
• Small surface burner temperature is erratic.

Check Before Replacing

• With the surface element cool, observe whether the affected small burner responds to OFF and to changes in its heat-setting control.
• If the range has another same-size removable surface element, the element can be exchanged for comparison; if the fault remains at the same burner location, the control switch is a possible cause.
• Disconnect electrical power before accessing or replacing the switch.

Pro Tip

Part Details

Key Features

• Infinite control switch for a small/6-inch surface element.
• 240 V.
• 5.2–6.25 A.
• 1250–1500 W.

Installation Notes

• Disconnect the range from electrical power before servicing the control switch.

Verified Compatible Models

31-2232-00-01, 31-2232-00-02, 31-2232-00-03, 31-2232-23-01, 31-2232-23-02, 31-2232-23-03, 31-2442-00-01, 31-2442-00-02, 31-2442-23-01, 31-2442-23-02, 31-2452-00-01, 31-2752-00-01, 31-2752-00-02, 31-2752-00-03, 31-2752-23-01, 31-2752-23-02, 31-2752-23-03, 31-2852-00-01, 31-2852-00-02, 31-2852-00-03, 00462048A, 00462048B, 00462048C, 00462048D, 00462048E, 20462052A, 20462052B, 20462052C, 20462052D, 20462052E, 40462051B, 40462051C, 40462051D, 40462051E, 40462051G, 60462050A, 60462050B, 60462050C, 60462050D, 60462050E, 80462049B, 80462049C, 80462049D, 80462049E, 80462049F, 80462049G, 80462054D, BGEF3032KBA, BGEF3032KBB, BGEF3032KBC, BKEF3048LSM, CGEF3039RFA, CWEF3007TWB, CFEF312CS1, FFEH3051VSA, FEF354GBA, FEF354GSA, FEF366EBA, FEF366EQA, FEF366ESA, FGEH3047VDB, FGEH3047VFB, FCRC3005AWA, FFEF3016VSA, FFEF3016UBB, FFEF3016UWB, GCRE3060AFB, FEF326ABK, FEF326AQK, FEF326ASK, FGEF3035RFA, CCRE312GWWC, CRE3580GWWA, CRE3580GWWB, CRE3580GWWC, CRE3580GWWD, FEF336ECB, FEF336ECC, FEF336ECD, FEF336ECE, FEF336ECF, FEF336ECG, FFEF3019MWA, FEF336ECH, FFEF3019MWB, FFEF3019MWC, FEF336ECJ, FFEF3019MWD, FEF336ECK, FEF336ECM, CRE3880GWWA, CFEF312FQA, CRE3880GWWB, CFEF312FQB, CRE3880GWWC, CRE3880GWWD, CRE3880GWWE, CRE3880GWWF, CCRE360GSSA, CCRE360GSSB, CGEF3032MFA, BGEF3032KWA, CGEF3032MFC

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
