Viking Range Burners Won't Light — Fix DSI Ignition Failure Fast

When a Viking range burner won't ignite, the most common cause is a failed DSI (Direct Spark Ignition) module. When the DSI module fails, the ignition sequence breaks down entirely — burners won't spark, click continuously without lighting, or require repeated attempts. ⚡ Confirm your full model and serial number before ordering — fitment varies by production configuration. Part 033143-000 is Viking's current OEM DSI service kit, containing components 023651-000, 027331-000, and 027713-000, and is the verified application-specific replacement for PA020056 on select Viking configurations.

❓ Is This the Right Part?

This is the correct fix if ALL of the following are true:

• ✔ You have a Viking professional range (VGSC, VGCC, VGIC, DCCG, or VGRT series — confirm exact model)
• ✔ Your range has no power or wiring faults — breaker is on, wiring is intact
• ✔ The igniter electrodes and spark wires have been inspected and are not the root cause
• ✔ Your model and serial number have been cross-referenced against Viking bulletin TC-0063D-SP
• ✔ ONLY problem is DSI ignition failure — burners won't spark or light

🔧 Common Symptoms

• Range burners won't ignite at all
• Continuous clicking without the burner lighting
• Ignition failure on one or more burners simultaneously
• Weak or inconsistent spark at the burner head
• Burners require multiple attempts to light
• Spark module not responding after power cycle

✔ If these symptoms match, the DSI module is the most likely failed component in the ignition system.

✔ In most cases, replacing the DSI kit restores normal ignition immediately — confirm fitment first.

📦 Part Details

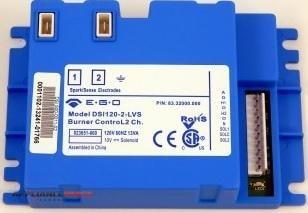

• Part Number: 033143-000
• Type: Complete DSI Ignition Service Kit
• Kit Contains: 023651-000 (DSI module), 027331-000, 027713-000

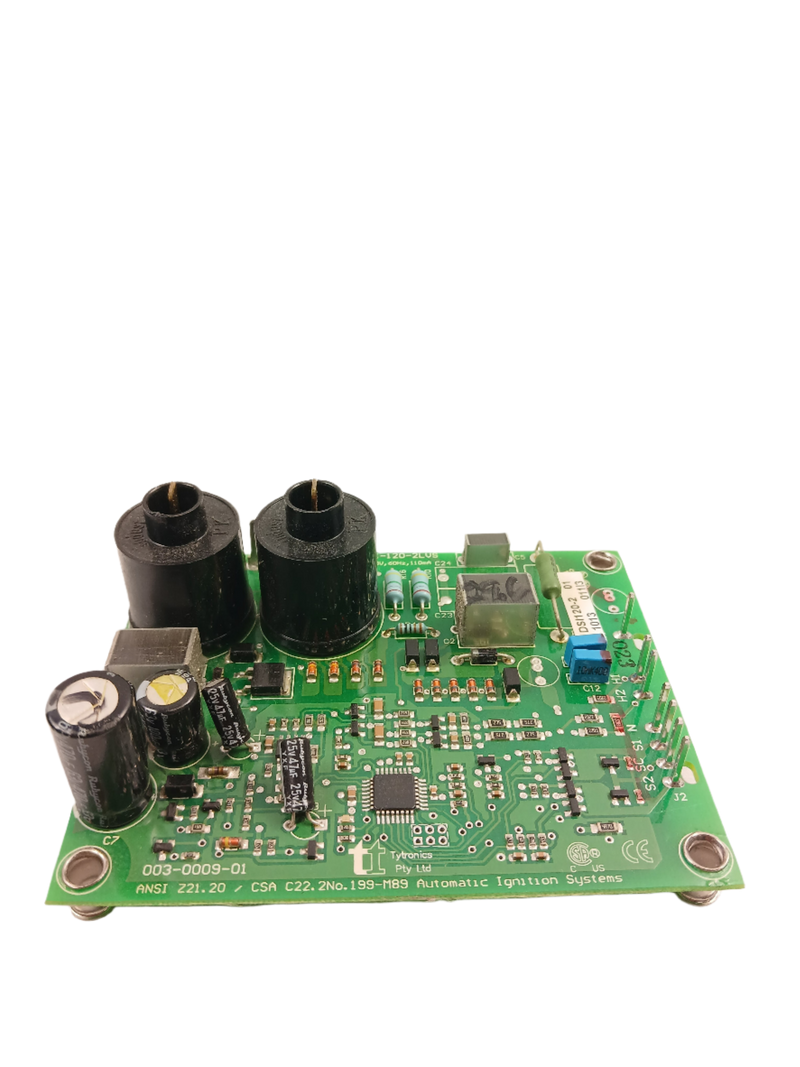

• Replaces (application-specific): PA020056 — verify via Viking bulletin TC-0063D-SP before ordering
• Note: 025956-000 → 033143-000 universal supersession not independently verified; confirm application
• Brand: Viking Range (OEM)
• Ships From: Canada

⚙️ Installation Notes

Skill Level: Intermediate — 45–90 minutes. Disconnect power at the breaker before beginning any work. Photograph all wiring connections before removing the old module. The DSI module is typically located in the control panel area — consult your model's service manual for exact position. Match wire positions exactly when installing the replacement. Restore power and test all burners before reassembling panels. Mounting and wiring configuration may vary by model — do not assume universal drop-in fit without confirming your model against TC-0063D-SP.

💡 Pro Tip

DCCG130-4B, VGCC548-4GQ, VGIC366-6B, VGIC486-4GQ, VGSC548-6G, DCCG1301-4B, VGCC548-6G, VGIC536-6B, VGIC486-6G, VGSC5304B, VGCC530, VGIC306, VGIC488-4GQ, VGSC536-4Q, VGCC536-4Q, VGIC308, VGIC368-6B, VGIC488-6G, VGSC536-6B, VGCC536-6B, VGIC366-4Q, VGIC530-4B, VGSC548-4GQ
