⚠ This part has been superseded by a newer OEM part number.
PA020056 has been replaced by 033143-000. We recommend ordering the current part for guaranteed fit and full lifespan.

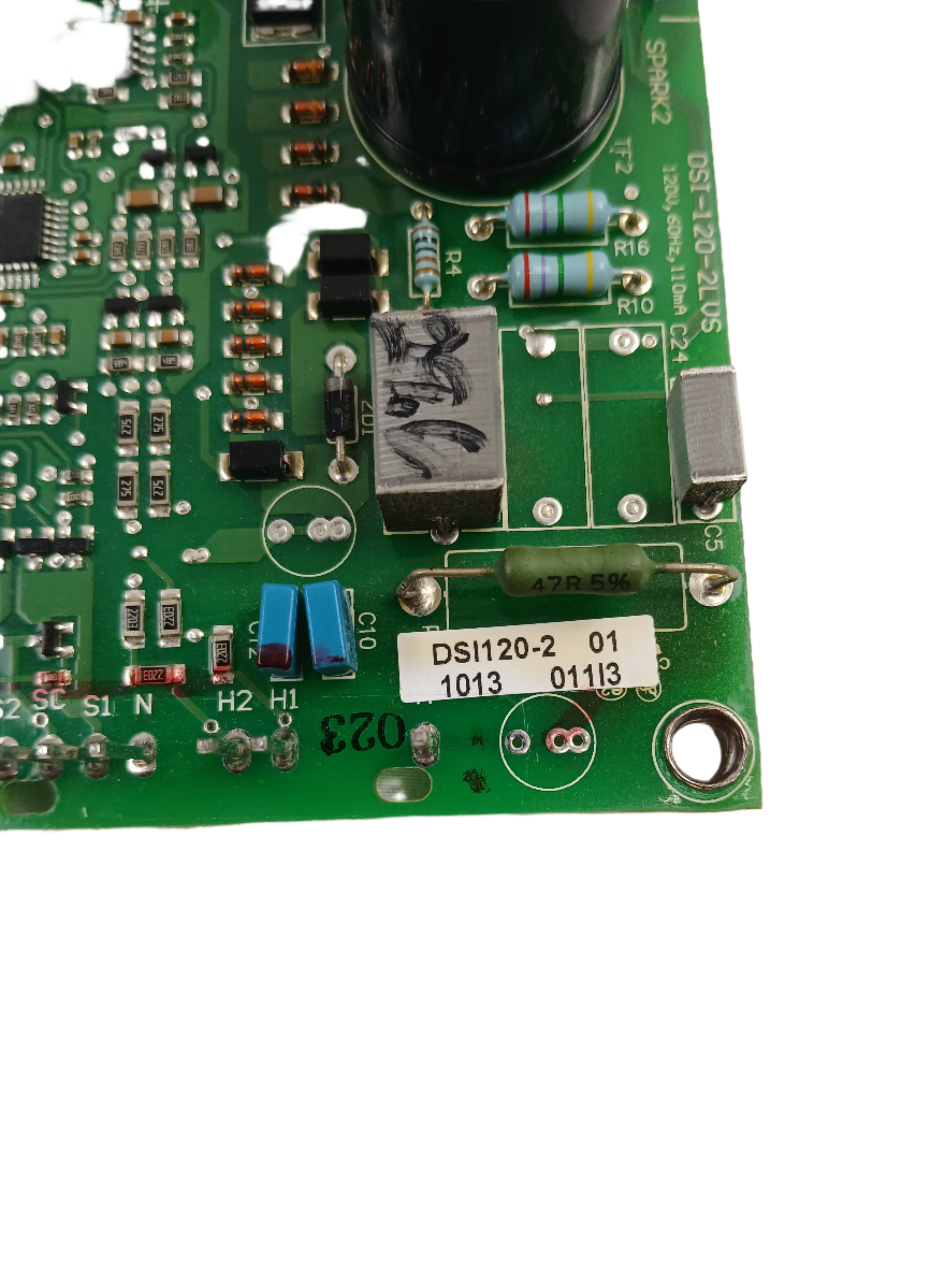

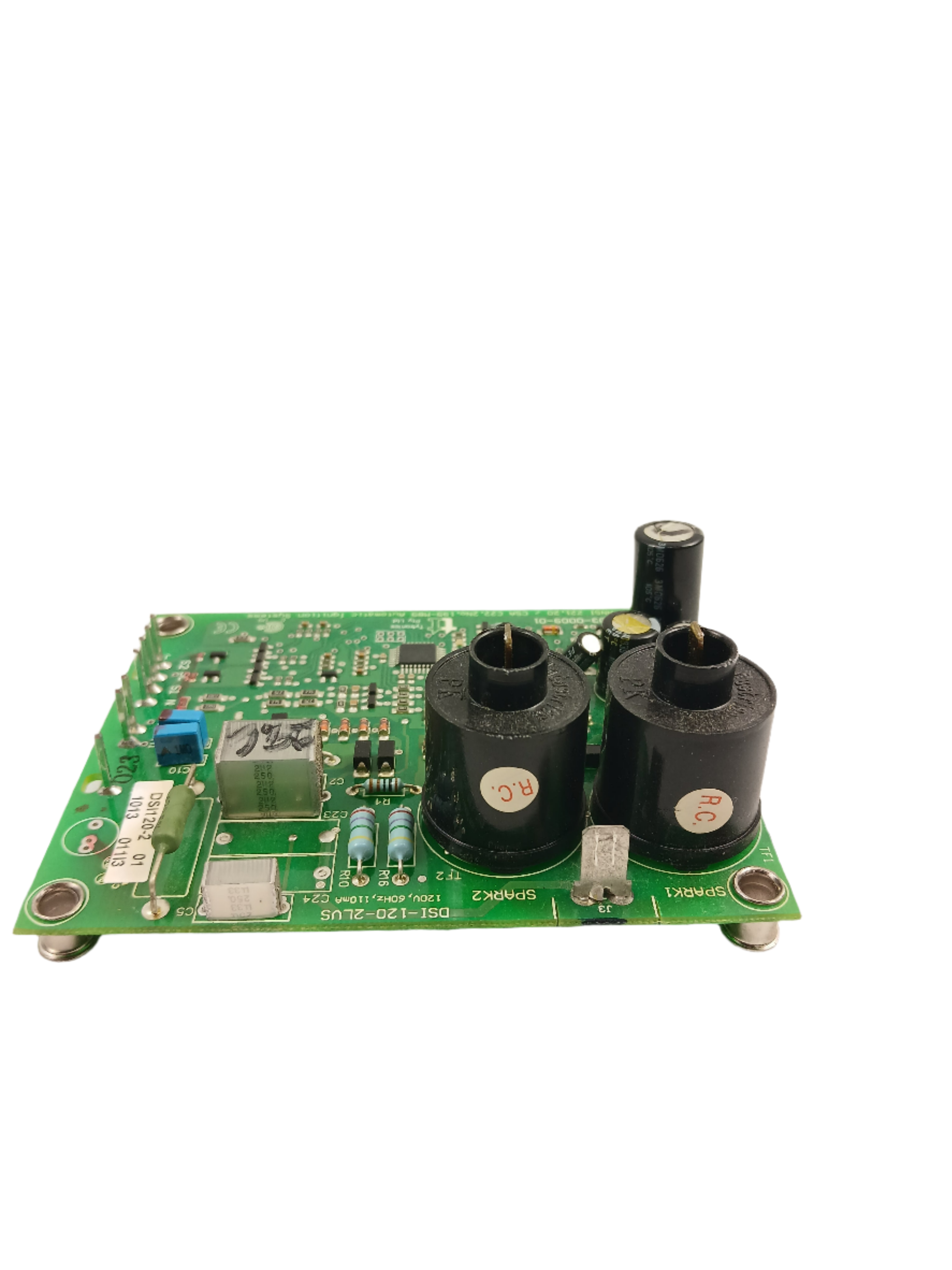

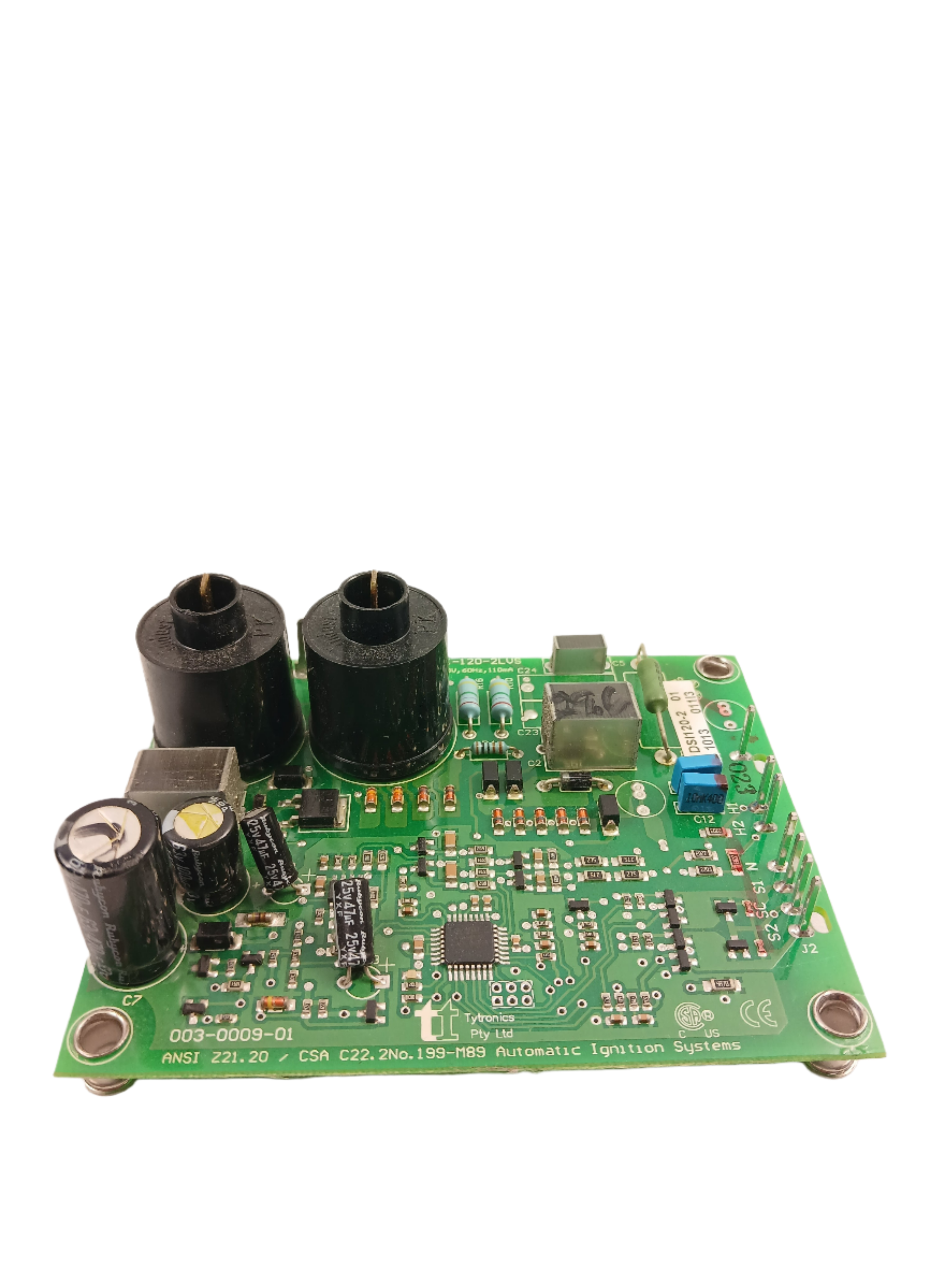

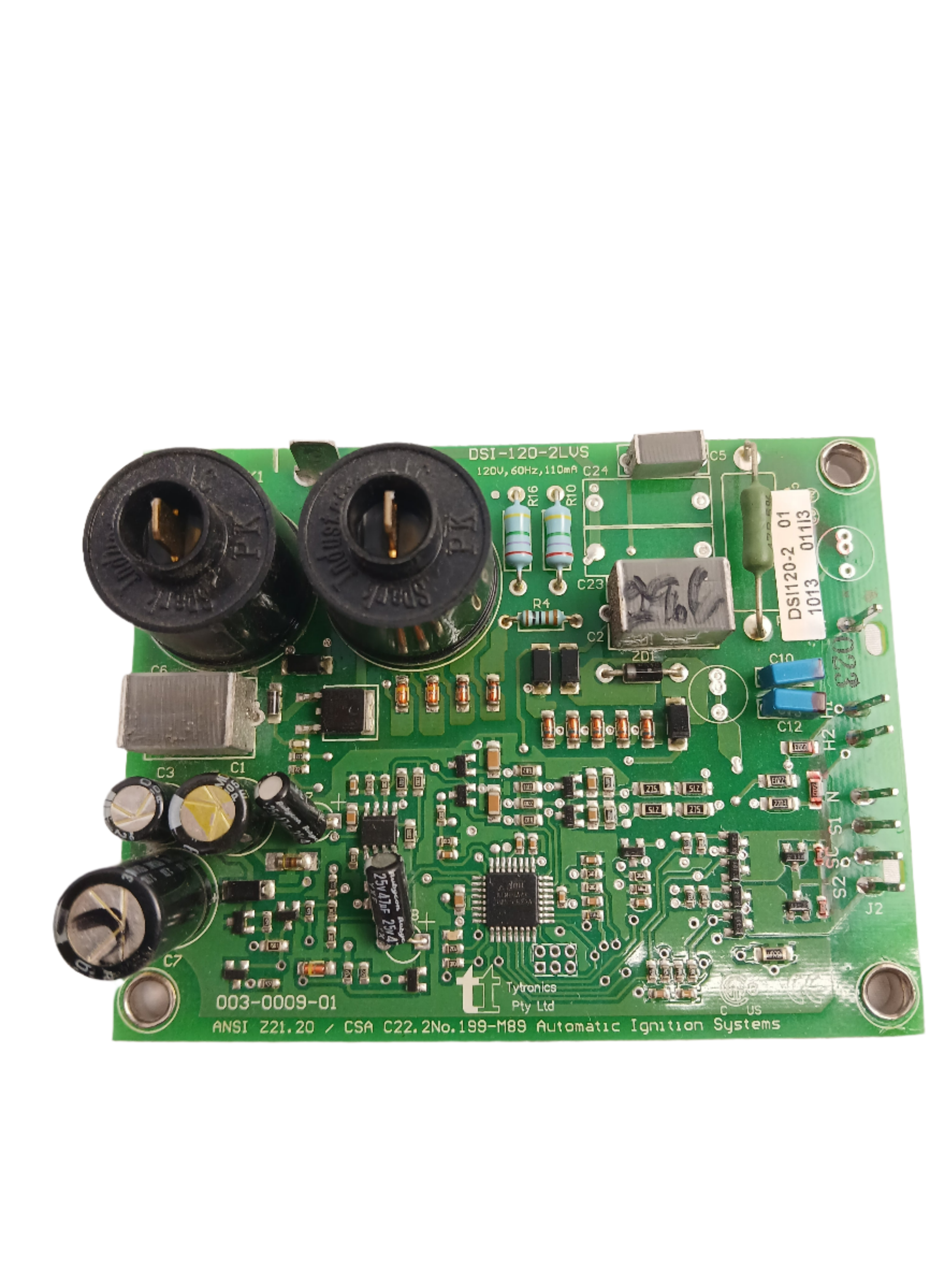

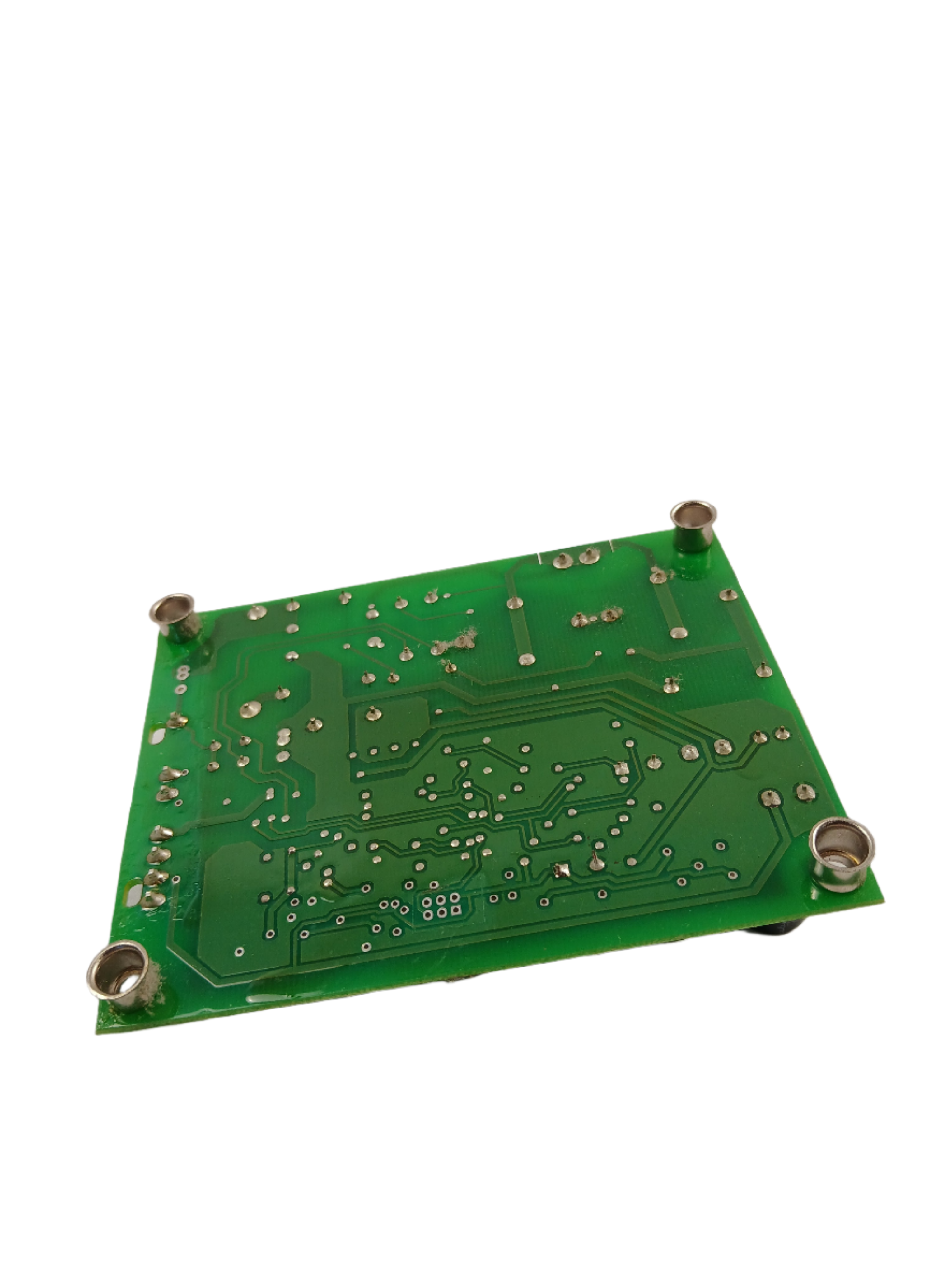

Order 033143-000 Instead →A failed spark module board is the root cause when your Viking range burners won't ignite, click endlessly without lighting, or produce a weak and inconsistent spark. PA020056 is the original Tytronics 0+6 Spark Module Board used in Viking professional ranges — however, this part number has been superseded by OEM service kit 033143-000, which is the current factory-recommended replacement. Order 033143-000 for guaranteed fit, full component set, and complete service life.
⚠️ Symptoms of a Failed Spark Module Board
- Viking range burners won't ignite at all
- Continuous clicking without the burner lighting
- Ignition failure on one or more burners
- Weak or inconsistent spark at the burner electrode
- Burners require multiple attempts to light
- Spark module clicks even when no burner knob is turned
✓ Part Details
- OEM Part Number: PA020056
- Module Designation: Tytronics 0+6 Spark Module Board
- Cross-Reference: 023651-000, DSI120-2-LVS
- Superseded By: 033143-000 (current OEM DSI Service Kit)
- Compatible Brands: Viking
- Compatible Series: VGSC, VGCC, VGRT, VDSC, DCCG
- Status: Superseded — 033143-000 is the current factory replacement
The 033143-000 DSI Service Kit includes the updated spark module plus all associated components for a complete DSI system restoration — not just the board alone. If you order only the PA020056 board (when available), you may still face ignition issues from degraded secondary components. The 033143-000 kit eliminates that risk in a single service call and is the factory-recommended path forward.
⚙️ Installation Notes
- Skill Level: Intermediate — control panel disassembly required
- Disconnect power at the breaker before servicing
- The DSI module is located in the control panel area — consult your model's service manual for exact location and wiring diagram
- Photograph all wiring connections before disconnecting the old module
- Match wire positions exactly when installing the replacement
- Restore power and test all burners after installation
- Note: Viking recommends replacing with the full 033143-000 kit rather than the standalone board
✓ Compatible Models
VGSC536-4G, VGSC536-4Q, VGSC548-4G, VGCC560-6G, VGCC560-6GQ, VGRT560-6G, VDSC536T-4G, VDSC560-6G, DCCG1301-4B. For full model compatibility, refer to 033143-000 — the current superseding part.
✓ Model-Specific Repair Pages
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
