Heating Element Assembly, Dryer Element, Heat Element, Heater Coil Assembly, Thermal Element, Dryer Heater

3387747, 80003, W11045584, W11344457, WP3387747VP, WP3387747, 3387747, 3387748, 3387749, 3387750, 279838, 279839, 279840, 3392519, AP6019197, PS11741416

Whirlpool, KitchenAid, Maytag, Jenn-Air, Amana, Kenmore, Estate, Roper, Inglis, Crosley

11060052990, 11060052991, 11060056990, 11060056991, 1106007299, 11060072990, 11060072991, 11060092990, 11060092991, 11060094990, 11060094991, 11060096990, 11060096991, 11060097990, 11060372710, 1106090199, 11060901990, 1106090299, 11060902990, 11060904990, 1106090799, 11060907990, 11060912990, 1106092299, 11060922990, 11060924990, 1106092799, 11060927990, 1106093299, 11060932990, 1106093699, 11060936990, 1106094299, 11060942990, 1106095299, 11060952990, 11060954990, 1106095699, 11060956990, 1106095799, 11060957990, 11060972990, 1106098299, 11060982990, 1106099299, 11060992990, 11060994990, 1106099699, 11060996990, 1106099799, 11060997990, 11061062000, 11061064000, 11061066000, 11061082000, 11061084000, 11061086000, 11061092000, 11062032100, 11062036100, 11062042100, 11062052100, 11062054100, 11062056100, 11062062100, 11062062101, 11062062102, 11062062103, 11062064100, 11062064101, 11062064102, 11062064103, 11062066100, 11062066101, 11062066102, 11062066103, 11062082100, 11062082101, 11062082102, 11062084100, 11062084101, 11062084102, 11062086100, 11062086101, 11062086102, 11062902100, 11062904100, 11062912100, 11062922100, 11062924100, 11062932100, 11062936100, 11062942100, 11062952100, 11062954100, 11062956100, 11062972100, 11062972101, 11062972102, 11062974100, 11062974101, 11062974102, 11062982100, 11062982101, 11062982102, 11062992100, 11062992101, 11062992102, 11062994100, 11062994101, 11062994102, 11062996100, 11062996101, 11062996102, 11063012100, 11063012101, 11063012102, 11063014100, 11063014101, 11063014102, 11063022100, 11063022101, 11063022102, 11063024100, 11063024101, 11063024102, 11063032100, 11063032101, 11063032102, 11063034100, 11063034101, 11063034102, 11063036100, 11063036101, 11063036102, 11063042100, 11063042101, 11063042102, 11063046100, 11063046101, 11063046102, 11063052100, 11063052101, 11063052102, 11063062100, 11063062101, 11063062102, 11063064100, 11063064101, 11063064102, 11063066100, 11063066101, 11063066102, 11063912100, 11063932100, 11063932101, 11063932102, 11063942100, 11063942101, 11063942102, 11063952100, 11063952101, 11063952102, 11063954100, 11063954101, 11063954102, 11063956100, 11063956101, 11063956102, 11064082200, 11064082201, 11064082202, 11064084200, 11064084201, 11064084202, 11064086200, 11064086201, 11064086202, 11064872400, 11064872401, 11064882400, 11064882401, 11064892400, 11064892401, 11064894400, 11064894401, 11064942300, 11064944300, 11064946300, 11064952300, 11064954300, 11064956300, 11064962300, 11064964300, 11064966300, 11064972300, 11064972301, 11064976300, 11064976301, 11064982300, 11064982301, 11064992300, 11064992301, 11064994300, 11064994301, 11064996300, 11064996301, 11065062500, 11065064500, 11065066500, 11065822400, 11065922400, 11065922401, 11065924400, 11065924401, 11065926400, 11065926401, 11065942400, 11065942401, 11065944400, 11065944401, 11065946401, 11065956400, 11065962400, 11065962401, 11065964400, 11065964401, 11065966400, 11065966401, 11066002010, 11066901690, 11066901691, 11066901692, 11066902690, 11066902691, 11066902692, 11066904690, 11066904691, 11066904692, 11066912690, 11066912691, 11066912692, 11066914690, 11066914691, 11066914692, 11066922500, 11066922501, 11066924500, 11066924501, 11066926500, 11066926501, 11066932690, 11066932691, 11066934690, 11066934691, 11066942500, 11066942501, 11066944500, 11066944501, 11066952690, 11066952691, 11066954690, 11066954691, 11066955690, 11066955691, 11066962500, 11066962501, 11066964500, 11066964501, 11066966500, 11066966501, 11066972500, 11066972501, 11066982500, 11066982501, 11066992500, 11066992501, 11066994500, 11066994501, 11066996500, 11066996501, 11067102310, 11067741600, 11067751600, 11067761600, 11067841600, 11067851600, 11067861600, 11067862600, 11067864600, 11067902790, 11067902791, 11067904790, 11067904791, 11068002010, 11068002011, 11068132414, 11068133414, 11068722700, 11068732700, 11068822700, 11068832700, 11068837700, 11068842700, 11068847700, 11068932790, 11068932791, 11068932792, 11068934790, 11068934791, 11068934792, 11068942890, 11068942891, 11068942892, 11068944890, 11068944891, 11068944892, 11068972890, 11068972891, 11068972892, 11068974890, 11068974891, 11068974892, 11069133414, 11069722800, 11069727800, 11069732800, 11069737800, 11069822800, 11069822801, 11069832800, 11069832801, 11069902890, 11069912990, 11082822100, 11082822101, 11082822102, 11082822103, 11082824100, 11082824101, 11082824102, 11082824103, 11082826100, 11082826101, 11082826102, 11082826103, 11082832100, 11082834100, 11082836100, 11084821300, 11084821301, 11084831300, 11084831301, 11084832200, 11084832201, 11084832202, 11084834200, 11084834201, 11084834202, 11084836200, 11084836201, 11084836202, 11085081400, 11085081401, 11085087400, 11085087401, 11085088400, 11085088401, 11085089400, 11085089401, 11085091400, 11085091401, 11085861400, 11085861401, 11085862400, 11085862401, 11085866400, 11085866401, 11085871400, 11085872400, 11085872401, 11085874400, 11085874401, 11085876400, 11085876401, 11086781100, 11086781300, 11086781600, 11086781700, 11086781800, 11086884100, 11086884300, 11086884600, 11086884700, 11086884800, 11086894100, 11086894300, 11086894500, 11086894700, 11086894800, 11086982100, 11086982110, 11086982300, 11086982310, 11086982700, 11086982710, 11086982800, 11086982810, 11086983100, 11086983110, 11086983130, 11086983300, 11086983310, 11086983700, 11086983710, 11086983800, 11086983810, 11086983830, 11086984100, 11086984110, 11086984120, 11086984300, 11086984310, 11086984700, 11086984710, 11086984800, 11086984810, 11086984820, 11086992100, 11086992300, 11086992700, 11086992800, 11086993100, 11086993110, 11086993300, 11086993310, 11086993500, 11086993510, 11086993700, 11086993710, 11086993800, 11086993810, 11086994100, 11086994300, 11086994500, 11086994700, 11086994800, 11087511700, 11087511702, 11087531700, 11087531702, 11087561603, 11087562603, 11087566603, 11087567701, 11087571603, 11087572603, 11087576603, 11096091100, 11096091300, 11096091700, 11096091800, 11096093100, 11096093300, 11096093500, 11096093700, 11096093800, 11096094100, 11096094300, 11096094500, 11096094700, 11096094800, 11096195100, 11096195110, 11096195120, 11096195500, 11096195510, 11096195520, 11096195800, 11096195810, 11096195820, 11096283100, 11096283110, 11096283800, 11096283810, 11096284100, 11096284110, 11096284800, 11096284810, 11096291100, 11096291110, 11096291800, 11096291810, 11096292100, 11096292110, 11096292800, 11096292810, 11096293100, 11096293110, 11096293500, 11096293510, 11096293800, 11096293810, 11096583100, 11096583110, 11096583120, 11096583140, 11096583210, 11096583220, 11096583240, 11096583800, 11096583810, 11096583820, 11096583840, 11096584100, 11096584110, 11096584120, 11096584140, 11096584800, 11096584810, 11096584820, 11096584840, 11096588200, 11096588210, 11096588400, 11096588410, 11096589200, 11096589210, 11096589400, 11096589410, 11096590100, 11096590110, 11096590120, 11096590130, 11096590140, 11096590800, 11096590810, 11096590820, 11096590830, 11096590840, 11096591200, 11096591210, 11096591220, 11096591230, 11096591240, 11096591400, 11096591410, 11096591420, 11096591430, 11096591440, 11096592200, 11096592210, 11096592220, 11096592230, 11096592240, 11096592400, 11096592410, 11096592420, 11096592430, 11096592440, 11096593210, 11096593230, 11096593410, 11096593430, 11096595200, 11096595220, 11096595400, 11096595420, 11096595500, 11096595520, 110C66012011, 110C66112310, 110C68012011, 110C85081400, 110C85087400, 110C85088400, 110C85089400, 4GMEDX500YW0, 4GMEDX500YW2, 4GWED5500YW0, 4GWED5500YW1, 4GWED5500YW2, 4GWED5500YW3, 4KAED4900BW0, 4KAED4900BW1, 4KMEDC100BQ0, 4KMEDC100BQ1, 4KMEDC300BW0, 4KMEDC300BW1, 4KMEDX505BW0, 4KMEDX505BW1, 4KNED4400BQ0, 4KNED4400BQ1, 4KNED4600BQ0, 4KNED4600BQ1, 4KWED4750BQ0, 4KWED4750BQ1, 4KWED4900BQ0, 4KWED4900BQ1, 4KWED4900BW0, 4KWED4900BW1, 7EWED5550YW0, 7EWED5550YW1, 7MMEDX550XW0, 7MMEDX550XW1, 7MWED5600BW0, 7MWED5620HW0, 7MWED5620HW1, 7MWED6613HC0, 7MWED6613HC1, 7MWED6613HW0, 7MWED6613HW1, 7MWED90HEFW1, 7MWED90HEFW2, 8TWED5620HW0, 8TWED5620HW1, CED7464GW1, GEC9858EQ0, GEC9858EQ1, GEC9858EZ0, GEC9858EZ1, GEC9858HQ0, GEC9858HQ1, GEC9858HZ0, GEC9858HZ1, GEQ8811KQ0, GEQ8811KT0, GEQ8811LG0, GEQ8811LG1, GEQ8811LL0, GEQ8811LL1, GEQ8811LW0, GEQ8811LW1, GEQ8811PG0, GEQ8811PG1, GEQ8811PL0, GEQ8811PL1, GEQ8811PW0, GEQ8811PW1, GEQ8821KQ0, GEQ8821KT0, GEQ8821LL0, GEQ8821LL1, GEQ8821LW0, GEQ8821LW1, GEQ8831LL0, GEQ8831LW0, GEQ8858JQ0, GEQ8858JQ1, GEQ8858JT0, GEQ8858JT1, GEQ8858KQ0, GEQ8858KT0, GEQ9800LG0, GEQ9800LG1, GEQ9800LW0, GEQ9800LW1, GEQ9800PB0, GEQ9800PB1, GEQ9800PB2, GEQ9800PG0, GEQ9800PG1, GEQ9800PG2, GEQ9800PW0, GEQ9800PW1, GEQ9800PW2, GEW9200LL1, GEW9200LL2, GEW9200LQ0, GEW9200LQ1, GEW9200LQ2, GEW9200LT1, GEW9200LT2, GEW9200LW0, GEW9200LW1, GEW9200LW2, GEW9250PL0, GEW9250PL1, GEW9250PT0, GEW9250PT1, GEW9250PW0, GEW9250PW1, GEW9250SU0, GEW9260PL0, GEW9260PL1, GEW9260PW0, GEW9260PW1, GEW9868KL0, GEW9868KL1, GEW9868KL2, GEW9868KL3, GEW9868KL4, GEW9868KQ0, GEW9868KQ1, GEW9868KQ2, GEW9868KQ3, GEW9868KQ4, GEW9868KT0, GEW9868KT1, GEW9868KT2, GEW9868KT3, GEW9868KT4, KEHS01PMT0, KEHS01PMT1, KEHS01PMT2, KEHS01PWH1, KEHS01PWH2, KEHS02RMT0, KEHS02RMT1, KEHS02RWH0, KEHS02RWH1, KHEV01RSS0, LEQ8611LG0, LEQ8611LG1, LEQ8611LW0, LEQ8611LW1, LEQ8611PG0, LEQ8611PG1, LEQ8611PG2, LEQ8611PW0, LEQ8611PW1, LEQ8611PW2, LEQ8621PG0, LEQ8621PG1, LEQ8621PG2, LEQ8621PW0, LEQ8621PW1, LEQ8621PW2, MED3500FW1, MED5500FC1, MED5500FC2, MED5500FW1, MED5500FW2, MED5630HC0, MED5630HC1, MED5630HC2, MED5630HW0, MED5630HW1, MED5630HW2, MED5801TW0, MED6230HC0, MED6230HC1, MED6230HC2, MED6230HW0, MED6230HW1, MED6230HW2, MED6230RHW0, MED6230RHW1, MED6230RHW2, MED6630HC0, MED6630HC1, MED6630HC2, MED6630HW0, MED6630HW1, MED7230HC0, MED7230HC2, MED7230HW1, MED7230HW2, MED8200FC1, MED8200FC2, MED8200FW1, MED8200FW2, MED8230HC0, MED8630HC0, MED8630HC1, MED8630HC2, MED8630HW0, MED8630HW1, MED8630HW2, MED9600SQ0, MED9700SB0, MED9700SQ0, MED9800TK0, MED9800TQ0, MEDB765FC0, MEDB765FW0, MEDB835DC4, MEDB835DW4, MEDB855DC4, MEDB855DW4, MEDC700VJ0, MEDC700VW0, MEDE200XW0, MEDE250XL0, MEDP475EW0, MEDP575GW0, MEDP576KW0, MEDX500XL0, MEDX500XW0, MEDX500XW1, MEDX550XW0, MEDX5SPAW0, MEDX5SPAW1, MEDX600XW0, MEDX600XW1, MEDX700AG0, MEDX700AG1, MEDX700XL0, MEDX700XL1, MEDX700XW0, MEDX700XW1, MEDZ400TQ2, MEDZ600TB2, MEDZ600TE2, MEDZ600TK2, MEDZ600TW2, MEDZ600WR0, NED5800HW0, NED5800HW1, NED7300WW0, OEM2-GEQ8858JQ1, OEM2-GEQ8858JT1, OEM3-GEQ8858JQ1, OEM3-GEQ8858JT1, WED5100HC0, WED5100HC1, WED5100HC2, WED5100HW0, WED5100HW1, WED5100HW2, WED5500BW0, WED5500XL0, WED5500XW0, WED5500XW1, WED5550XW0, WED5600XW0, WED5600XW1, WED560LHW0, WED560LHW1, WED560LHW2, WED5610XW0, WED5610XW1, WED5620HW0, WED5620HW1, WED5620HW2, WED5700AC0, WED5700AC1, WED5700XL0, WED5700XW0, WED5800BC0, WED5800BW0, WED5810BW0, WED6120HC0, WED6120HC1, WED6120HC2, WED6120HW0, WED6120HW1, WED6120HW2, WED6620HC0, WED6620HC1, WED6620HC2, WED6620HW0, WED6620HW1, WED6620HW2, WED7120HC0, WED7120HC1, WED7120HW0, WED7120HW1, WED7500GC0, WED7500GW0, WED7540FW1, WED7590FW1, WED75HEFW1, WED8000DW4, WED8120HC0, WED8120HW0, WED8127LC0, WED8127LC1, WED8127LW0, WED8127LW1, WED8300SB2, WED8300SE2, WED8300SW2, WED8410SW2, WED8500DC4, WED8500DR4, WED8500DW4, WED8540FW1, WED8540FW2, WED85HEFC1, WED85HEFC2, WED85HEFW1, WED85HEFW2, WED8620HC0, WED8620HC1, WED8620HC2, WED8620HW0, WED8620HW1, WED8620HW2, WED9050XW0, WED90HEFC1, WED90HEFC2, WED90HEFW1, WED90HEFW2, WED9150WW0, WED9250WL0, WED9250WR0, WED9250WW0, WED9270XL0, WED9270XR0, WED9270XW0, WED92HEFBD1, WED92HEFBD2, WED92HEFC1, WED92HEFC2, WED92HEFU1, WED92HEFU2, WED92HEFW1, WED92HEFW2, WED9620HBK0, WED9620HBK1, WED9620HBK2, WED9620HC0, WED9620HC1, WED9620HC2, WED9620HW0, WED9620HW1, WED9620HW2, YCEE2760KQ0, YCEE2760KQ1, YCEE2760KQ2, YCEE2790KQ1, YCEM2760KQ0, YCEM2760KQ1, YCEM2760KQ2, YCEM2760KQ3, YCEM2760TQ0, YCEM2760TQ1, YCEM2765FQ0, YCEP2760KQ0, YCEP2760KQ1, YCEP2760KQ2, YGEQ9800LW0, YGEQ9800LW1, YGEQ9800PW0, YGEQ9800PW1, YGEQ9800PW2, YGEW9200LL1, YGEW9200LL2, YGEW9200LQ0, YGEW9200LQ1, YGEW9200LQ2, YGEW9200LW0, YGEW9200LW1, YGEW9200LW2, YGEW9250PL0, YGEW9250PL1, YGEW9250PQ0, YGEW9250PW0, YGEW9250PW1, YGEW9250SU0, YGEW9868KL0, YGEW9868KL1, YGEW9868KL2, YGEW9868KL3, YGEW9868KQ0, YGEW9868KQ1, YGEW9868KQ2, YGEW9868KQ3, YIED5900HW0, YIED5900HW1, YIED5900HW2, INGLIS, YIED7300WW0, YKEHS01PMT0, YKEHS01PMT1, YKEHS01PMT2, YKEHS01PWH1, YKEHS01PWH2, YKEHSO2RMT0, YKEHSO2RMT1, YKEHSO2RWH1, YKEHSO2RWHO, YLEQ8850KQ0, YLEQ8850KQ1, YMED3500FW1, YMED5500FC1, YMED5500FC2, YMED5500FW1, YMED5500FW2, YMED5630HW0, YMED5630HW1, YMED5630HW2, YMED6230HC0, YMED6230HC1, YMED6230HC2, YMED6230HW0, YMED6230HW2, YMED6630HC0, YMED6630HC1, YMED6630HC2, YMED6630HW0, YMED6630HW1, YMED6630HW2, YMED7230HC2, YMED8200FC1, YMED8200FW1, YMED8630HC0, YMED8630HC1, YMED8630HC2, YMED8630HW0, YMED8630HW1, YMED8630HW2, YMED9600SQ0, YMED9700SB0, YMED9700SQ0, YMED9800TB0, YMED9800TK0, YMEDB765FC0, YMEDB765FW0, YMEDB835DW4, YMEDB855DC4, YMEDB855DW4, YMEDC700VJ0, YMEDC700VW0, YMEDE200XW0, YMEDE250XL0, YMEDP475EW0, YMEDP575GW0, YMEDX500XW1, YMEDX600XW1, YMEDX700AG0, YMEDX700AG1, YMEDX700XL0, YMEDX700XW0, YMEDX700XW1, YMEDZ400TQ2, YMEDZ600TB2, YMEDZ600TE2, YMEDZ600TK2, YMEDZ600TW2, YNED5800DW2, YNED5800HW0, YNED5800HW1, YNED5800HW2, YNED7300WW0, YQCEM2730YQ0, YQCEM2733BQ0, YWED5100HC1, YWED5100HC2, YWED5100HW1, YWED5100HW2, YWED5500BW0, YWED5500XL0, YWED5500XW0, YWED5500XW1, YWED5600XW0, YWED5600XW1, YWED560LHW0, YWED560LHW1, YWED560LHW2, YWED5620HW0, YWED5620HW1, YWED5620HW2, YWED5700AC0, YWED5700AC1, YWED5700XL0, YWED5700XW0, YWED5700XW1, YWED5800BC0, YWED5800BW0, YWED6120HC0, YWED6120HC1, YWED6120HC2, YWED6120HW0, YWED6120HW1, YWED6120HW2, YWED6620HC0, YWED6620HC1, YWED6620HC2, YWED6620HW0, YWED6620HW1, YWED6620HW2, YWED7120HC0, YWED7120HC1, YWED7500GC0, YWED7500GW0, YWED75HEFW1, YWED8000DW4, YWED8300SB2, YWED8300SE2, YWED8300SW2, YWED8410SW2, YWED8500DC4, YWED8500DW4, YWED85HEFC1, YWED85HEFC2, YWED85HEFW1, YWED85HEFW2, YWED8620HC0, YWED8620HC1, YWED8620HC2, YWED9050XW0, YWED90HEFC1, YWED90HEFC2, YWED90HEFW1, YWED90HEFW2, YWED9150WW0, YWED9250WL0, YWED9250WR0, YWED9250WW0, YWED9270XL0, YWED9270XR0, YWED9270XW0, YWED92HEFBD1, YWED92HEFBD2, YWED92HEFC1, YWED92HEFC2, YWED92HEFU1, YWED92HEFU2, YWED92HEFW1, YWED92HEFW2, YWED9620HC0, YWED9620HC1, YWED9620HC2, YWED9620HW0, YWED9620HW1, YWED9620HW2

Professional Repair Time: 30-45 minutes
DIY Repair Time: 45-75 minutes
Difficulty Rating: Moderate-High (3/5) — Requires electrical knowledge, turning off circuit breaker, verifying power is off with voltage tester, removing front panel or access cover, disconnecting and labeling wires, removing old element assembly, inspecting and cleaning heating chamber, installing new element, reconnecting wires to correct terminals, reassembling dryer, testing operation with 240-volt connections

CRITICAL SAFETY WARNING: This repair involves working with 240-volt electrical connections inside the dryer and high-temperature components. Always turn off the circuit breaker and unplug the dryer before beginning work to prevent electrical shock, severe burns, and accidental element activation. If uncomfortable with this repair, hire a qualified electrician or appliance technician.TOOLS REQUIRED: Phillips screwdriver, flathead screwdriver, nut driver or socket set (typically 1/4-inch or 5/16-inch), needle-nose pliers, flashlight, work gloves, voltage tester or multimeter, putty knife (for removing old element).IMPORTANT: This element assembly is 5400 watts at 240 volts. Verify your dryer model uses this wattage rating before ordering.

1. Turn off the circuit breaker that supplies power to the dryer. CRITICAL: Never work on the dryer while it's powered.
2. Unplug the dryer from the electrical outlet (if accessible) to ensure complete power disconnection.
3. Verify power is off using a voltage tester or multimeter at the dryer's electrical connection. Should read 0 volts.
4. Allow the dryer to cool completely if it has been used recently. The heating element and dryer chamber reach extremely high temperatures (up to 500°F) and require at least 2-3 hours to cool to safe handling temperatures.
5. Remove the dryer front panel or access cover to reach the heating element assembly. Most Whirlpool dryers require removing screws securing the front panel, then carefully lifting or tilting the panel forward.

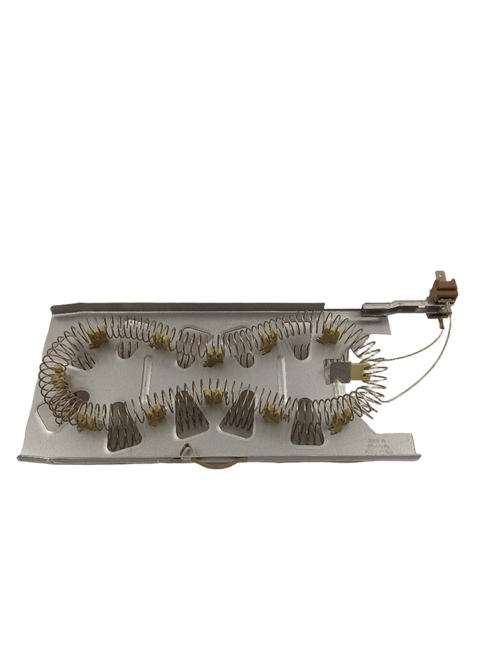

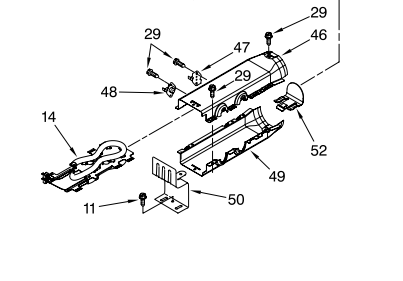

6. Locate the heating element assembly in the heating chamber at the rear of the dryer. The element is typically mounted to the rear wall with screws or clips and has wire terminals protruding from the housing.
7. Take multiple photos of the element location, wire connections, mounting configuration, and terminal positions before disassembly. CRITICAL: Element positioning and wire connections must be exact for proper reassembly and safe operation.
8. Disconnect the wire terminals from the element assembly by pulling them straight off the terminal block. Caution: Do not pull on the wires—grip the connector and pull. If connectors are tight, use needle-nose pliers to gently wiggle and pull.
9. Label each wire with tape or markers indicating its terminal position before disconnection. CRITICAL: Incorrect wiring causes element malfunction, overheating, or electrical hazards.
10. Remove the element mounting screws or clips securing the element assembly to the heating chamber wall. Typically 2-4 screws hold the element.
11. Carefully remove the old element assembly from the heating chamber. Caution: The element may be heavy and awkward—support it to prevent dropping.

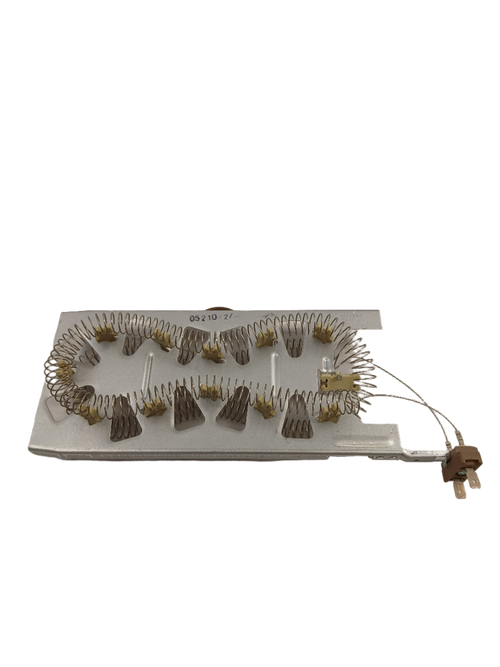

12. Inspect the old element assembly for damage indicators: visible cracks, breaks, or blistering in the stainless steel housing (most common failure), burned or discolored areas on the element (overheating), separated coil from housing (internal failure), damaged or corroded terminal block (poor connections), or lint accumulation around the element (restricting heat transfer). This confirms the diagnosis.
13. Test the old element continuity (optional, requires multimeter): Set multimeter to measure resistance (ohms). Touch the probes to the two terminal connections. Resistance should be approximately 10-20 ohms for a 5400W element at 240V (calculated as 240² ÷ 5400 = 10.67 ohms). If resistance is infinite (open circuit, element broken) or very low (short circuit), the element has failed.
14. Inspect the heating chamber for lint accumulation, damage, or corrosion. Clean out any lint using a flashlight and putty knife. Lint buildup restricts heat transfer and causes premature element failure.
    15. Clean the element mounting area on the heating chamber wall, removing lint, debris, and corrosion.
    16. Inspect the dryer exhaust vent and ductwork for clogs or restrictions. CRITICAL: Restricted airflow is the leading cause of premature heating element failure. Clean the lint filter, exhaust vent, and ductwork thoroughly before installing the new element to prevent repeat failure.

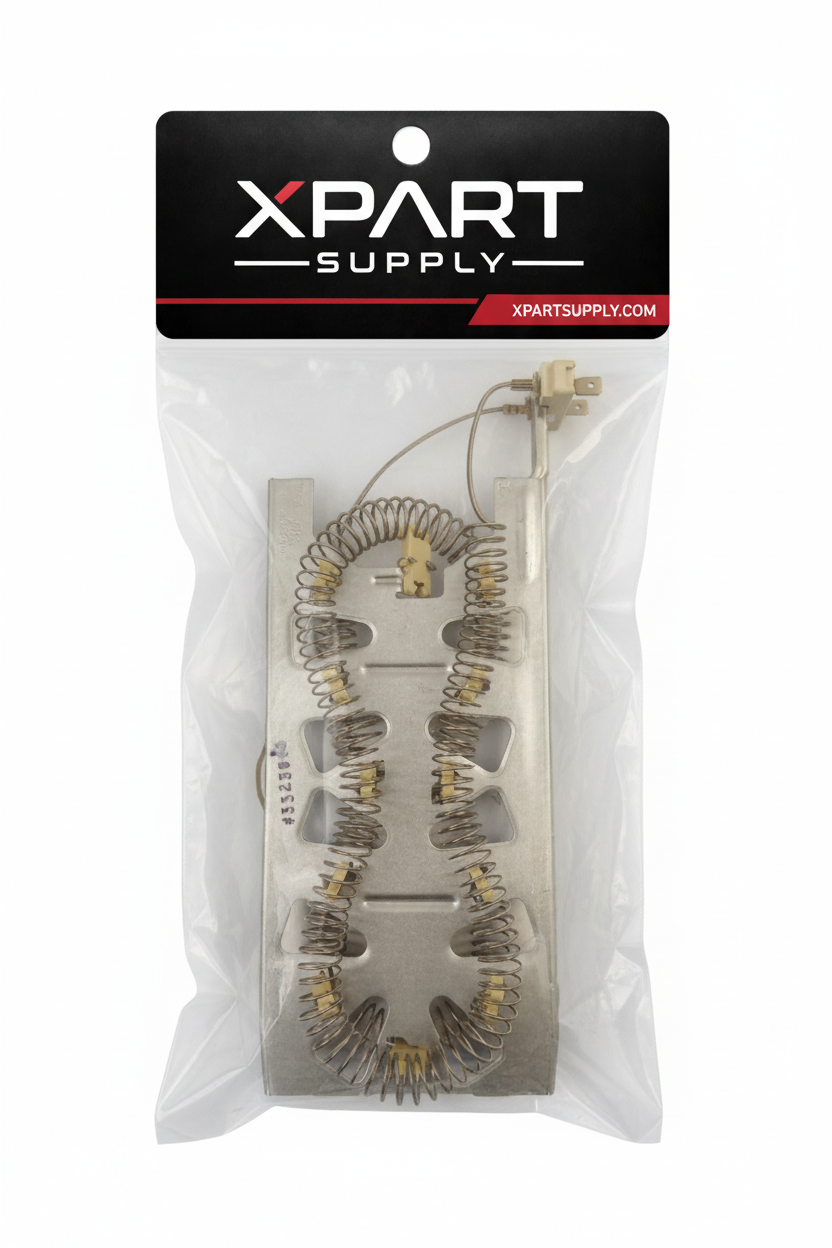

    17. Unpack the new WP3387747 heating element assembly from its packaging.
    18. Compare the new element to the old one to verify dimensions, terminal configuration, mounting hole spacing, and overall design match.
    19. Inspect the new element for any shipping damage before installation. The housing should be intact with no cracks, and the coil should be properly positioned inside the housing.
    20. Position the new heating element assembly in the mounting location on the heating chamber wall, aligning the mounting holes and ensuring the terminal block is accessible for wire connections. Important: The element orientation must match the old element per your detailed photos.
    21. Install the element mounting screws or clips to secure the assembly to the heating chamber wall. Tighten firmly but not excessively—over-tightening can crack the housing.
    22. Verify the element is securely mounted with no excessive play or movement.
    23. Connect the wire terminals to the new element assembly according to your detailed photos and labels. Push each wire connector firmly onto the terminal block until it seats completely. CRITICAL: Loose connections cause overheating, arcing, and fire hazard.
    24. Verify all connections are secure by gently tugging on each wire—should not pull off.
    25. Inspect all wire connections for proper seating and no exposed terminals.
    26. Reinstall the dryer front panel or access cover by positioning it and securing with screws.
    27. Restore electrical power by turning on the circuit breaker.
    28. Verify power is restored using a voltage tester at the dryer's electrical connection. Should read 240 volts.
    29. Run a test cycle to verify proper element operation:
    - Set the dryer to air dry or low heat for 5-10 minutes with no load
    - Listen for smooth, quiet operation—should not hear buzzing, crackling, or popping
    - After 2-3 minutes, carefully feel the dryer exhaust vent for warm air (should feel warm but not hot)
    - After 5 minutes, stop the dryer and carefully open the door—should feel warm air inside the drum
    30. Check for any burning smell during the test cycle. A slight "new element" smell is normal for the first few minutes, but any strong burning smell indicates problems—immediately turn off the dryer and circuit breaker and diagnose the issue.
    31. Run a full drying cycle with a small load of damp towels to verify proper operation over an extended period.
    32. Monitor for proper performance during the full cycle: consistent heat output, no unusual sounds, no burning smell, and proper drying results.
    33. If the dryer heats properly with consistent temperature, quiet operation, and efficient drying performance, the repair is complete.Safety Notes: Always turn off the circuit breaker before working on electrical components. Verify power is off using a voltage tester. Allow adequate cooling time before beginning work. Label all wires before disconnection to ensure correct reassembly. Connect wires firmly to terminals—loose connections cause fire hazard. Clean the exhaust vent and ductwork thoroughly before installing the new element—restricted airflow causes premature element failure. Test operation thoroughly before considering the repair complete. This repair requires electrical knowledge and typically takes 45-75 minutes for a qualified technician. If uncomfortable working with 240-volt electrical connections, hire a professional electrician.



1. The WP3387747 is rated at 5400 watts at 240 volts—do not confuse it with lower-wattage elements (3000W, 4000W) used in other dryer models. Installing the wrong wattage element causes improper heating, overheating, or premature failure. Always verify your dryer model's element wattage rating before ordering. The 5400W rating is specific to certain Whirlpool dryer models—verify compatibility with your model number.

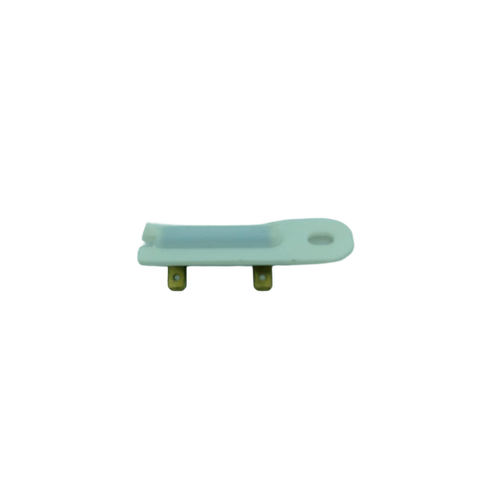

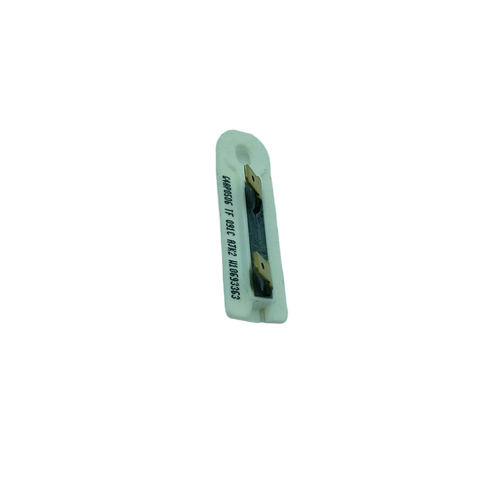

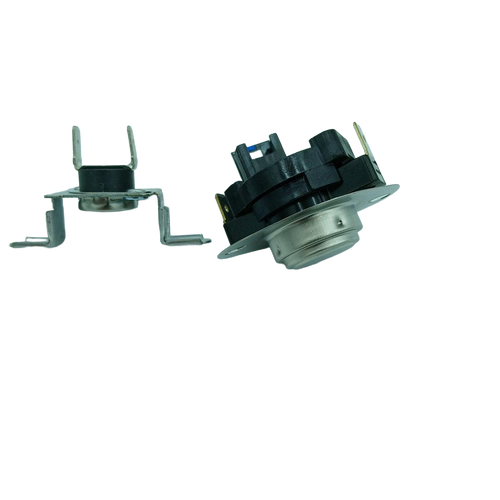

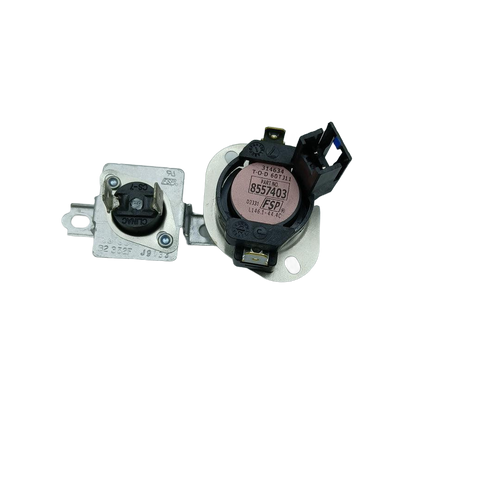

2. Before replacing the heating element, always check the thermal fuse and thermostats first—a blown thermal fuse is the most common cause of no heat and is often misdiagnosed as a failed heating element. The thermal fuse is a one-time safety device that cuts power to the heating element if the dryer overheats. If the thermal fuse has blown (no continuity when tested with a multimeter), the element will not heat even if it's functioning properly. Replace the thermal fuse before replacing the element. If the thermal fuse blows repeatedly, the root cause (restricted airflow, faulty thermostat, or defective element) must be addressed.
3. Restricted airflow from a clogged lint filter, exhaust vent, or ductwork is the leading cause of premature heating element failure. When airflow is restricted, the heating element cannot dissipate heat properly and overheats, causing the coil to fail prematurely. Before installing the new element, thoroughly clean the lint filter, exhaust vent, and all ductwork. Remove any lint buildup, kinks, or obstructions. If the exhaust vent is longer than 25 feet or has multiple bends, consider shortening it or installing a booster fan to improve airflow. Proper airflow extends element life by 3-5 years.
4. The heating element assembly should be tested for continuity before replacement to confirm it has failed. Set a multimeter to measure resistance (ohms) and touch the probes to the two terminal connections. For a 5400W element at 240V, resistance should be approximately 10-11 ohms (calculated as 240² ÷ 5400 = 10.67 ohms). If resistance is infinite (open circuit), the element coil is broken and must be replaced. If resistance is very low (near zero), the element is shorted to ground and must be replaced. If resistance is correct but the dryer still doesn't heat, the problem is elsewhere (thermal fuse, thermostat, or control board).
5. Loose wire connections at the element terminal block cause overheating, arcing, and fire hazard. If a wire connection is loose, the electrical resistance at the connection increases, causing heat buildup. This heat can melt the wire insulation, damage the terminal block, or ignite nearby materials. Always connect wires firmly to the terminal block, ensuring each connector seats completely. After connection, gently tug each wire to verify it's secure. If the old terminal block shows signs of burning or melting, replace the entire element assembly.
6. The heating element coil operates at extremely high temperatures (up to 1800°F) and glows red-orange during operation. This is normal and expected. However, if the coil glows but produces no heat to the drying air, the coil may have separated from the housing, preventing heat transfer. This indicates element failure—the entire assembly must be replaced. Do not attempt to repair the coil or housing—always replace as a complete assembly.
7. If the new element fails prematurely (within days or weeks), the cause is typically: restricted airflow, faulty thermostat, or defective replacement element. Verify the exhaust vent and ductwork are clean and unobstructed. Test the thermostats (cycling thermostat and high-limit thermostat) for proper operation using a multimeter. If thermostats are functioning and airflow is unrestricted, the replacement element may be defective—contact the supplier for a replacement or refund.
8. Lint accumulation around the heating element restricts heat transfer and causes overheating. If your dryer has been used for years without thorough internal cleaning, lint may have accumulated around the element and in the heating chamber. This lint acts as insulation, preventing heat from transferring to the drying air and causing the element to overheat. When replacing the element, thoroughly clean the heating chamber, removing all lint and debris. This extends the new element's lifespan and improves dryer efficiency.
9. The heating element assembly includes the coil, housing, terminal block, and mounting bracket as a complete unit—do not attempt to replace individual components. Some technicians try to save money by replacing only the coil or only the housing, but this is unsafe and unreliable. Always replace the entire assembly as a unit. Partial repairs may seem cost-effective but result in premature failure and potential safety hazards (electrical shorts, fires).
10. Proper wire connection polarity is not critical for heating elements (they operate on AC power), but wire connections must be tight and secure. Unlike some electrical components that require specific polarity, heating elements operate on alternating current (AC) and work regardless of which wire connects to which terminal. However, wire connections must be tight and secure to prevent overheating and arcing. Always verify connections are firm before restoring power.
11. After replacing the heating element, monitor the first few drying cycles carefully to verify proper operation and safety. Listen for smooth, quiet operation without buzzing, crackling, or popping. The dryer should heat consistently and dry clothes efficiently. If any problems occur (no heat, overheating, burning smell, unusual sounds), immediately turn off the dryer and circuit breaker and diagnose the issue. Do not leave the dryer unattended during the first few cycles after element replacement.
12. The heating element lifespan is typically 8-15 years with average use, but can be shortened by restricted airflow, overloading, or excessive use. Factors that shorten element life include: clogged exhaust vent (most common), overloading the dryer (restricts airflow), running the dryer on high heat constantly (thermal stress), and frequent use (more heating cycles). To extend element life, clean the lint filter after every load, clean the exhaust vent annually, avoid overloading, use lower heat settings when possible, and ensure proper airflow.

• Dryer not heating (drum rotates but no heat output)
• Clothes stay damp after full cycle (insufficient heat)
• Dryer takes multiple cycles to dry clothes (weak heating)
• Visible damage to heating element (cracks or breaks)
• Burning smell from dryer (element shorting or insulation failure)
• Sparking or arcing from element area (electrical short)
• Intermittent heating (element cycles on/off erratically)
• Dryer heats slowly or unevenly (weak or partially failed element)
• Complete dryer failure (broken element prevents all drying)
• Dryer trips circuit breaker (electrical short in element)
• Element glows but produces no heat (coil separation)
• Dryer overheats (thermostat failure, not element—check thermostats first)
