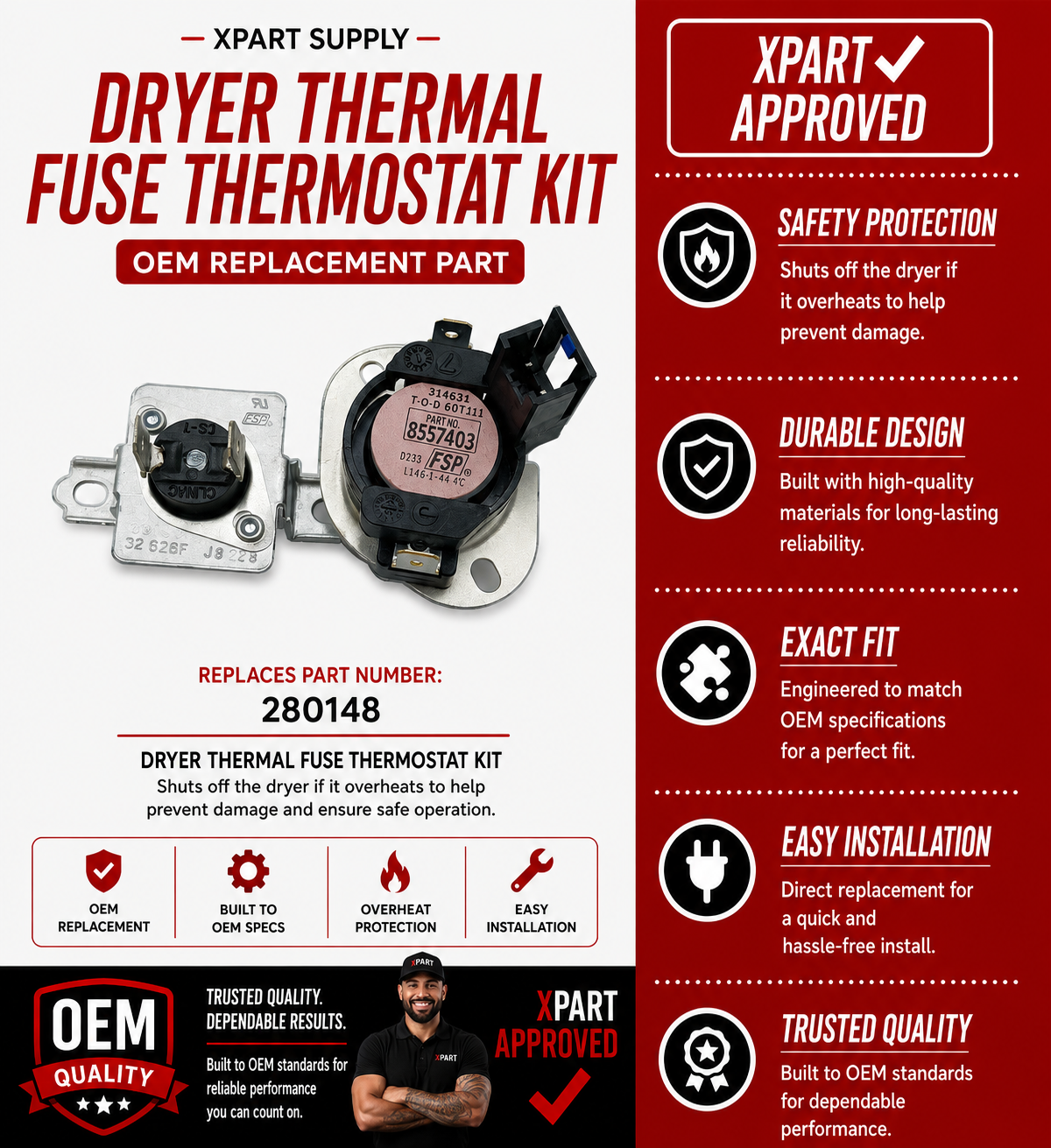

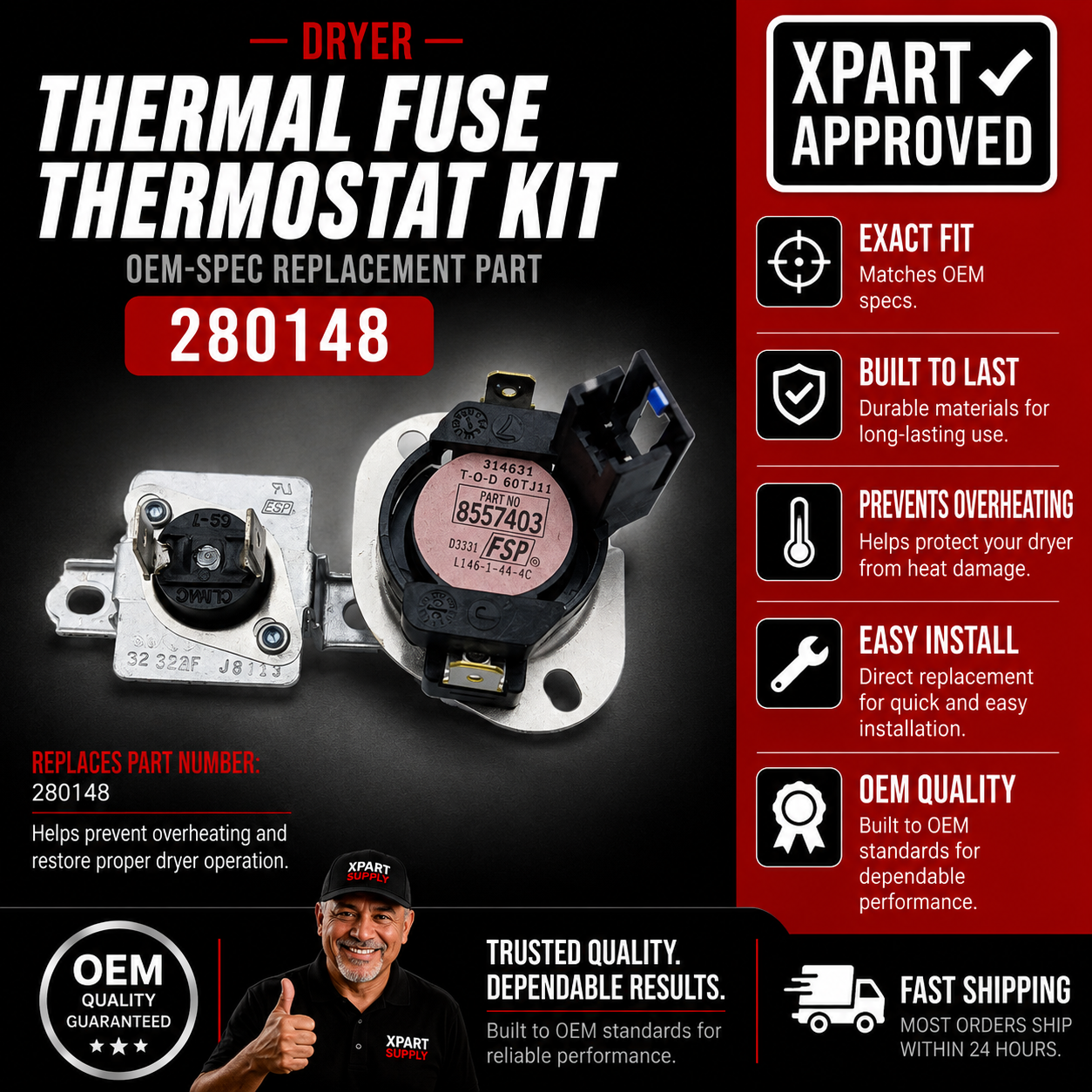

Whirlpool Dryer Thermal Cut-Off Fuse and High-Limit Thermostat Kit 280148

Genuine Whirlpool OEM kit containing a thermal cut-off fuse and high-limit thermostat; the thermostat includes an inlet thermistor. The components protect the dryer from overheating by interrupting heater operation when unsafe temperatures are detected.

Is This the Right Part?

Common Symptoms

• Drum tumbles while the exhaust air remains cold.
• Dryer stops mid-cycle after heating begins.
• Loads require substantially longer than normal to dry.
• A thermal cut-off tests open for continuity when checked with power disconnected.

Check Before Replacing

• Disconnect electrical power before inspecting or testing the components.
• Confirm the dryer has the correct power supply and that the circuit breaker or fuses are not the cause of the no-heat condition.
• Inspect the exhaust hose and vent outlet for lint blockage or restricted airflow, since overheating can cause the thermal cut-off to open.
• With power disconnected, test the thermal cut-off for continuity; an open result indicates the fuse has opened, but does not by itself establish the root cause.
• Inspect wiring connectors around the heater box and thermostat for loose, damaged, or heat-discolored connections.
• Do not bypass, short, or reset the thermal cut-off; it is a safety device.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM thermal cut-off fuse and high-limit thermostat kit.
• Includes thermal cut-off fuse 8318314 and high-limit thermostat 8557403, according to the archived part documentation.
• The thermostat includes an integrated thermistor temperature sensor.
• Designed for Whirlpool-platform dryers, including applicable Whirlpool, Maytag, Amana, and Kenmore models.
• The thermal cut-off is a one-time safety device and is not resettable.

Installation Notes

• Disconnect electrical power before servicing the dryer.
• Install the replacement components in the same locations and with the same wire connections as the original components for the exact dryer model.
• Replace the thermal cut-off and high-limit thermostat as the supplied kit rather than bypassing either safety device.
• After installation, verify that the exhaust path is clear before operating the dryer.
• Use the model-specific service documentation for panel-removal and access instructions; access and fastening details can vary by dryer model.

Verified Compatible Models

7MWED6613HW0, 110.61652021, 110.87731700, 110.87751800, 110.87892601, MEDB950YG1, WED6605MW0, WED6620HC2, WED8127LW2, WED8700EC2, WED9400SU1, WED9500TW2, YMED7000XW0, YNED5800HW0, YWED9600TW1

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
