WP8544771 Dryer Heating Element – Fix a Dryer That Runs But Won’t Heat, Leaves Clothes Damp, or Takes Hours to Dry

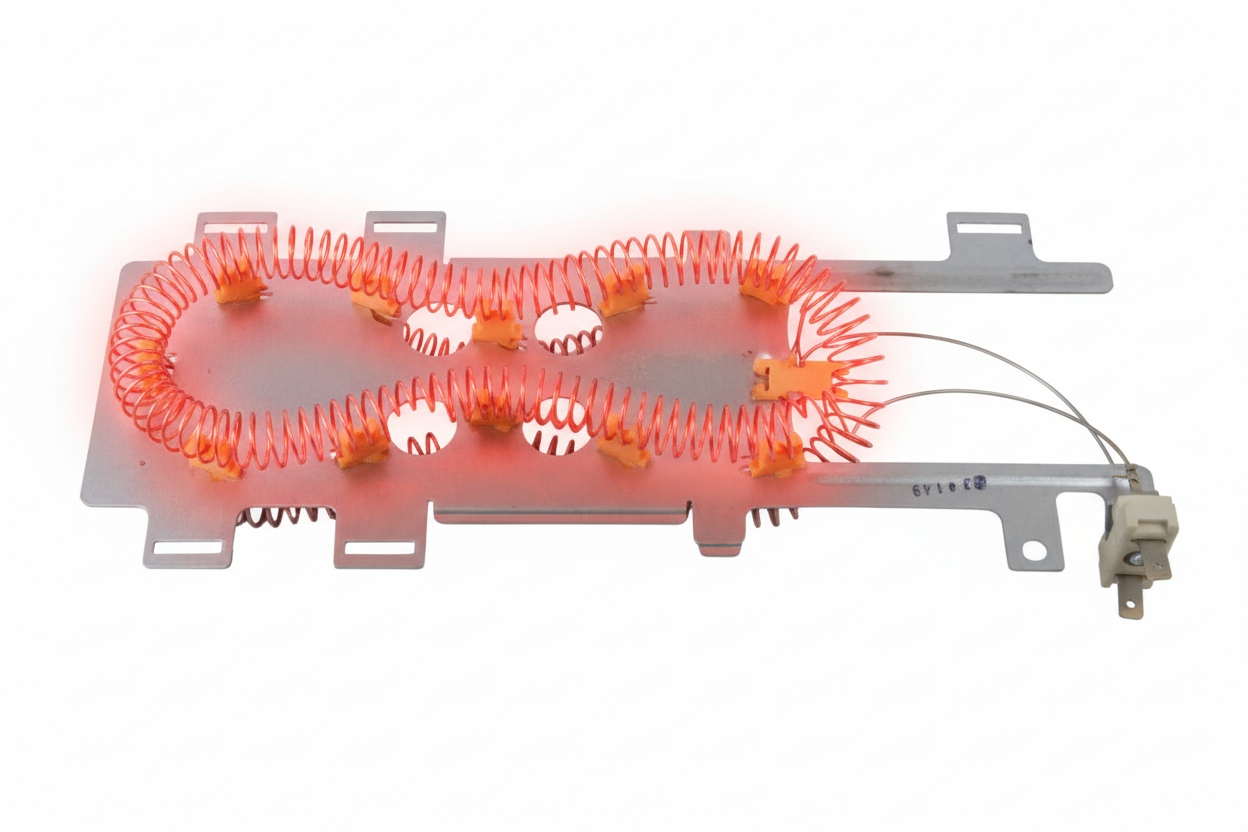

When your Whirlpool, Maytag, or Kenmore dryer tumbles but produces no heat, the heating element assembly WP8544771 is the most common cause. This 5400W/240V element is the core heat source in your dryer — when the coil burns out or breaks, the drum spins but clothes come out cold and wet. Genuine OEM and premium XPart DE4771XP options available. Replaces 8544771, W10836011, and 7154072.
Is This the Part You Need?
This element is located inside the heater box at the rear of the dryer cabinet. If your dryer runs a full cycle but clothes are still damp or cold, and the thermal fuse tests good, this element is the next component to check. Confirm your model number on the label inside the door frame or on the back panel before ordering.
Symptoms of a Failed Dryer Heating Element
- Dryer runs but produces no heat at all
- Clothes still damp or wet after a full cycle
- Dryer takes 2–3 cycles to dry a normal load
- Weak or intermittent heat — sometimes warm, sometimes cold
- Dryer blows only room-temperature air
- Heat cuts out partway through the cycle
- Burning smell when dryer runs (broken coil touching housing)
- Visible break or sag in the element coil
- Dryer overheats then shuts off (element shorting to housing)
- Suddenly no heat after a power surge or outage
Part Details
- OEM Part Number: WP8544771
- Replaces: 8544771, W10836011, 7154072
- XPart Option: DE4771XP (premium aftermarket, same fit and function)
- Rating: 5400W / 240V
- Compatible Brands: Whirlpool, Maytag, Kenmore, Amana, Crosley, Estate, Roper
- Options: OEM New, OEM Used, XPart New, XPart Used
Installation Notes
Skill level: Intermediate (2.5/5). Disconnect power before beginning — this element operates at 240V. Pull the dryer away from the wall and remove the back panel to access the heater box. Photograph all wire connections before disconnecting. Transfer thermal fuse and high-limit thermostat from the old element housing to the new one — do not discard them. Estimated time: 20–30 min (professional) / 30–45 min (DIY). Reconnect all wires securely and test before pushing the dryer back.
Compatible Models
Fits 160+ Whirlpool, Maytag, Kenmore, Amana, and related brand dryer models including WED7300XW0, WED8300SW0, WED9400SW0, WED9500TW0, WED9600TW0, MED6000XW0, MED7000XW0, MED8000AW0, MED9000YW0, NED7500VW0, and many more. Not sure if this fits your model? Contact us with your model number before ordering.
💡 Pro Tip — Replace the Thermal Fuse & High-Limit Thermostat at the Same Time:
A burned-out heating element almost always means the thermal fuse has also blown — it’s a safety device that trips when the element overheats. If you replace only the element without checking the thermal fuse and high-limit thermostat, the new element may fail again quickly. While the back panel is off, test both components for continuity and replace the full kit (part 279973) if either reads open. It’s a 5-minute add-on that prevents a second service call.
A burned-out heating element almost always means the thermal fuse has also blown — it’s a safety device that trips when the element overheats. If you replace only the element without checking the thermal fuse and high-limit thermostat, the new element may fail again quickly. While the back panel is off, test both components for continuity and replace the full kit (part 279973) if either reads open. It’s a 5-minute add-on that prevents a second service call.
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
