W11612326 Pump & Motor Assembly | Replaces W11414076

W11612326 Pump & Motor Assembly | Replaces W11414076

Price: $129.20

Buying Options: OEM

OEM

$129.20

Used

$59.99

Product variant with selected options does not exist!

Frequently Bought Together

Whirlpool Dishwasher Not Cleaning? W11612326 Pump & Motor Assembly — Fix No-Wash Fast

When your Whirlpool dishwasher fills with water but dishes come out dirty, the spray arms aren’t spinning, or you hear humming with no water movement, the circulation pump and motor assembly has failed. In WDF, WDT, MDB, KDFE, and KDTE series dishwashers, the pump and motor assembly pressurizes water through the spray arms for the entire wash cycle. When the motor seizes or the pump impeller fails, water sits in the tub with no circulation and dishes come out unclean. ⚡ One of the most common dishwasher failures across all Whirlpool-built platforms. Part W11612326 is the genuine OEM replacement — superseding W11414076, W11085683, W10902589, W10782773, and W10510667 — and restores full wash performance in a 45–60 minute repair.

❓ Is This the Right Part?

This is the correct fix if ALL of the following are true:

✔ Dishwasher powers on and fills with water normally
✔ Drain function works — water empties after the cycle
✔ Door latch and door switches are functioning correctly
✔ Filter and sump area have been cleaned and are not blocked
✔ ONLY problem is dishes not being cleaned — no spray, weak spray, or humming with no water movement

Not sure? Send us your model number — we'll confirm before you order.

🔧 Common Symptoms

Dishwasher fills but dishes come out dirty — most common complaint
Spray arms not spinning or spraying weakly
Humming sound with no water movement during wash cycle
Grinding or squealing noise from the pump area
Dishwasher runs through full cycle but delivers no cleaning power
Standing water in the bottom of the tub after cycle completes

✔ If these symptoms match, this is the most likely failed component in the system.

✔ In most cases, replacing the pump and motor assembly restores full wash performance immediately.

📦 Part Details

Part Number: W11612326
Type: Circulation pump and motor assembly — dishwasher wash system, Whirlpool OEM
Replaces: OEM direct-fit assembly — supersedes W11414076, W11085683, W10902589, W10782773, W10510667 (no modification required)
Brands: Whirlpool, Maytag, KitchenAid, Amana, Jenn-Air, Kenmore

⚠️ Check Before You Order:
Before replacing the full pump assembly, inspect the wash motor hall sensor (W10913953) — if the motor hums but won’t spin, a failed hall sensor is often the cause and costs significantly less than the full assembly. Also clean the sump filter thoroughly; a clogged filter can mimic pump failure symptoms entirely.

⚙️ Installation Notes

Skill Level: MODERATE — 45–60 minutes. Disconnect power and shut off the water supply before beginning. The pump assembly is accessed from inside the tub — remove the lower spray arm, filter assembly, and pump cover, then disconnect the wiring harness and mounting hardware. Swap in the new assembly and reassemble in reverse order. Do not overtighten mounting screws on the plastic pump housing. Run a short test cycle and inspect for leaks before pushing the dishwasher back into place.

💡 Pro Tip

Inspect the Sump and Spray Arm Bearings While You’re In There:
With the pump out, take 5 minutes to check the spray arm bearing rings and lower spray arm hub for wear — worn bearings cause the spray arm to wobble and reduce wash coverage even with a new pump. Replacing them at the same visit costs under $20 and prevents a repeat poor-wash complaint after the pump repair.

Model hub pages: WDT730PAHB, KDTE254ESS0, KDTE254ESS1, KDTE254ESS2, KUDE40FXBL6, KUDE40FXBT6, KUDE40FXPA6, KUDE40FXSS6, KUDE40FXWH6, KUDE48FXBL5, KUDE48FXBL6, KUDE48FXPA5, KUDE48FXPA6, KUDE20IXSSA, KUDE20IXWH9

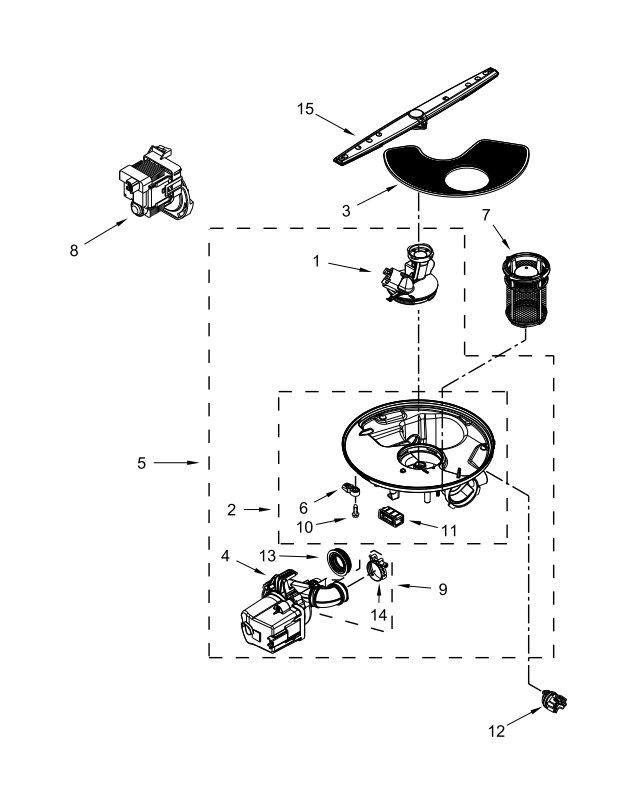

W11612326 – Whirlpool Dishwasher Pump & Motor Assembly Parts Diagram

✅Compatibility & Cross Reference

Item #4 in diagram.

Part number W11612326 replaces W10805386, W10879262, W11521435, AP6014093, PS11750057, 8268645, WPW10805386, 8534853, 8268713, 8268703

66513002N511, 66513003N511, 66513004N511, 66513009N511, 66513802N710, 66513803N710, 66513804N710, 66513809N710, 66514312N413, 66514313N413, 66514319N413, 66514422N511, 66514423N511, 66514429N511, 66514502N020, 66514509N020, 66515112K218, 66515113K218, 66515114K218, 66515119K218, 66517152K217, 66517159K217, 66517382N710, 66517383N710, 66517389N710, 66517482N710, 66517489N710, ADB1300AFB1, ADB1300AFS1, ADB1300AFW1, ADB1400AGB0, ADB1400AGB1, ADB1400AGB3, ADB1400AGS0, ADB1400AGS1, ADB1400AGS3, ADB1400AGW0, ADB1400AGW1, ADB1400AGW3, IDF320PAFW1, IDF330PAGW0, IUD7070DS3, WDF110PABB5, WDF110PABS5, WDF110PABT5, WDF110PABW5, WDF120PAFB0, WDF120PAFS0, WDF120PAFT0, WDF120PAFW0, WDF121PAFB0, WDF121PAFW0, WDF130PAHB0, WDF130PAHB1, WDF130PAHB2, WDF130PAHS1, WDF130PAHS2, WDF130PAHT0, WDF130PAHW0, WDF130PAHW1, WDF130PAHW2, WDF320PADB3, WDF320PADD3, WDF320PADS3, WDF320PADT3, WDF320PADW3, WDF330PAHB0, WDF330PAHB1, WDF330PAHB2, WDF330PAHB3, WDF330PAHB4, WDF330PAHD0, WDF330PAHD1, WDF330PAHD2, WDF330PAHS0, WDF330PAHS1, WDF330PAHS2, WDF330PAHS3, WDF330PAHS4, WDF330PAHT0, WDF330PAHT1, WDF330PAHT2, WDF330PAHT3, WDF330PAHT4, WDF330PAHW0, WDF330PAHW1, WDF330PAHW2, WDF330PAHW3, WDF330PAHW4, WDF331PAHB0, WDF331PAHS0, WDF331PAHW0, WDF520PADB6, WDF520PADB7, WDF520PADB8, WDF520PADB9, WDF520PADM6, WDF520PADM7, WDF520PADM8, WDF520PADM9, WDF520PADW6, WDF520PADW7, WDF520PADW8, WDF520PADW9, WDF540PADB3, WDF540PADM3, WDF540PADT3, WDF540PADW3, WDP340PAFB0, WDP340PAFW0, WDP370PAHB0, WDP370PAHB1, WDP370PAHW0, WDP370PAHW1, WDT710PAYM0, WDT710PAYW0, WDT720PADM2, WDT720PADW2, WDT730PAHZ0, WDT750SAHZ0, WDT780SAEM0, WDT780SAEW0, WDT920SADM0, WDT920SADW0, WDT970SAHZ0, WDP370PAHB0, WDP370PAHW0, WDP540HAMZ0, WDP580PAL0, WDP580PAW0, WDP780BAE0, WDP780BAW0, WDTA50SAHZ0, WDTA80SAHZ0, WDTA90SAHZ0, WDF520PADM7, WDF520PADW7, WDF530PAYM0, WDF530PAYW0, WDF540PADM7, WDF540PADW7, WDF560SAFM0, WDF560SAFW0, WDF750SAYM0, WDF750SAYW0, KDFE104HBL0, KDFE104HPS0, KDFE104HWH0, KDFE204EPA0, KDFE204ESS0, KDFE204EWH0, KDFE304GPS0, KDFE304GWH0, KDFE454CSS0, KDFE454CWH0, KDFM404KPS0, KDFM404KWH0, KDPM354GPS0, KDPM354GWH0, KDPM604KPS0, KDPM604KWH0, KDPM804KPS0, KDPM804KWH0, KDTE104EPA0, KDTE104ESS0, KDTE104EWH0, KDTE204EPA0, KDTE204ESS0, KDTE204EWH0, KDTE254ESS0, KDTE254EWH0, KDTE304EPA0, KDTE304ESS0, KDTE304EWH0, KDTE334GPS0, KDTE334GWH0, KDTM354ESS0, KDTM354EWH0, KDTM384ESS0, KDTM384EWH0, KDTM404EPA0, KDTM404ESS0, KDTM404EWH0, KDTM504EPA0, KDTM504ESS0, KDTM504EWH0, KDTM604KPS0, KDTM604KWH0, KDTM704ESS0, KDTM704EWH0, KDTM804ESS0, KDTM804EWH0, KUDE20IXBL4, KUDE20IXSS4, KUDE20IXWH4, KUDE40FXBL0, KUDE40FXPA0, KUDE40FXSS0, KUDE40FXWH0, KUDE48FXBL0, KUDE48FXPA0, KUDE48FXSS0, KUDE48FXWH0, KUDE60HXBL0, KUDE60HXPA0, KUDE60HXSS0, KUDE60HXWH0, KUDE70FXSS0, KUDE70FXWH0, MDB4949SDM0, MDB4949SDW0, MDB4949SHZ0, MDB7949SDM0, MDB7949SDW0, MDB7949SHZ0, MDB8959SFZ0, MDB8959SKZ0, MDB8959SWZ0, MDB9959SKZ0, MDB9959SWZ0, MDB9959SFZ0, MDB7759SAW0, MDB7759SAQ0, MDB7759SAS0, MDB8959AWS0, MDB8959AWB0, MDB8959AWQ0, MDB8959AWW0, MDB8959SBS0, MDB8959SBW0, MDB8959SBZ0, MDB8959SKB0, MDB8959SKW0, MDB8959SWB0, MDB8959SWW0, MDB9959SKB0, MDB9959SKW0, MDB9959SWB0, MDB9959SWW0, JDB8000AWB0, JDB8000AWP0, JDB8000AWS0, JDB8000AWW0, JDB9000CWP0, JDB9000CWS0, JDB9000CWW0, JDB9600CWB0, JDB9600CWP0, JDB9600CWS0, JDB9600CWW0, JDTSS244GP0, JDTSS244GS0, JDTSS244GW0, JDTSS246GP0, JDTSS246GS0, JDTSS246GW0, ADB1400AGS0, ADB1400AGW0, ADB1400AWB0, ADB1400AWW0, ADB1500ADB0, ADB1500ADS0, ADB1500ADW0, ADB1700ADB0, ADB1700ADS0, ADB1700ADW0, 665.12773K310, 665.12774K310, 665.12775K310, 665.12776K310, 665.12777K310, 665.12778K310, 665.12779K310, 665.12783K310, 665.12784K310, 665.12787K310, 665.12788K310, 665.12789K310, 665.13242K310, 665.13243K310, 665.13244K310, 665.13249K310, 665.13252K310, 665.13253K310, 665.13254K310, 665.13259K310, 665.13262K310, 665.13263K310, 665.13264K310, 665.13269K310

Why does my dishwasher fill with water but not wash the dishes?

If your dishwasher fills with water but the dishes come out dirty and you don't hear the normal whooshing sound of water spraying, the circulation pump has likely failed. The circulation pump draws water from the bottom of the tub and forces it through the spray arms at high pressure to clean the dishes. When the pump motor burns out, the impeller breaks, or the pump becomes clogged, water can't reach the spray arms. You may hear humming (motor trying to run but can't), grinding (damaged impeller), or nothing at all (motor completely dead). First, check that the spray arms aren't clogged and the filter screen is clean. If those are fine and there's still no water circulation, the pump and motor assembly needs replacement.

W11612326, Whirlpool dishwasher pump, dishwasher circulation pump, dishwasher won't wash, W11414076, dishwasher pump motor, dishwasher not cleaning, dishwasher spray arm not working, Maytag dishwasher pump, KitchenAid dishwasher pump, dishwasher sump assembly, dishwasher motor replacement, dishwasher no water pressure, Kenmore dishwasher pump, dishwasher pump humming, dishwasher not spraying, wash pump motor, dishwasher main pump, dishwasher motor noise, dishwasher fills but won't wash

Whirlpool, KitchenAid, Maytag, Jenn-Air, Amana, Kenmore

Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
