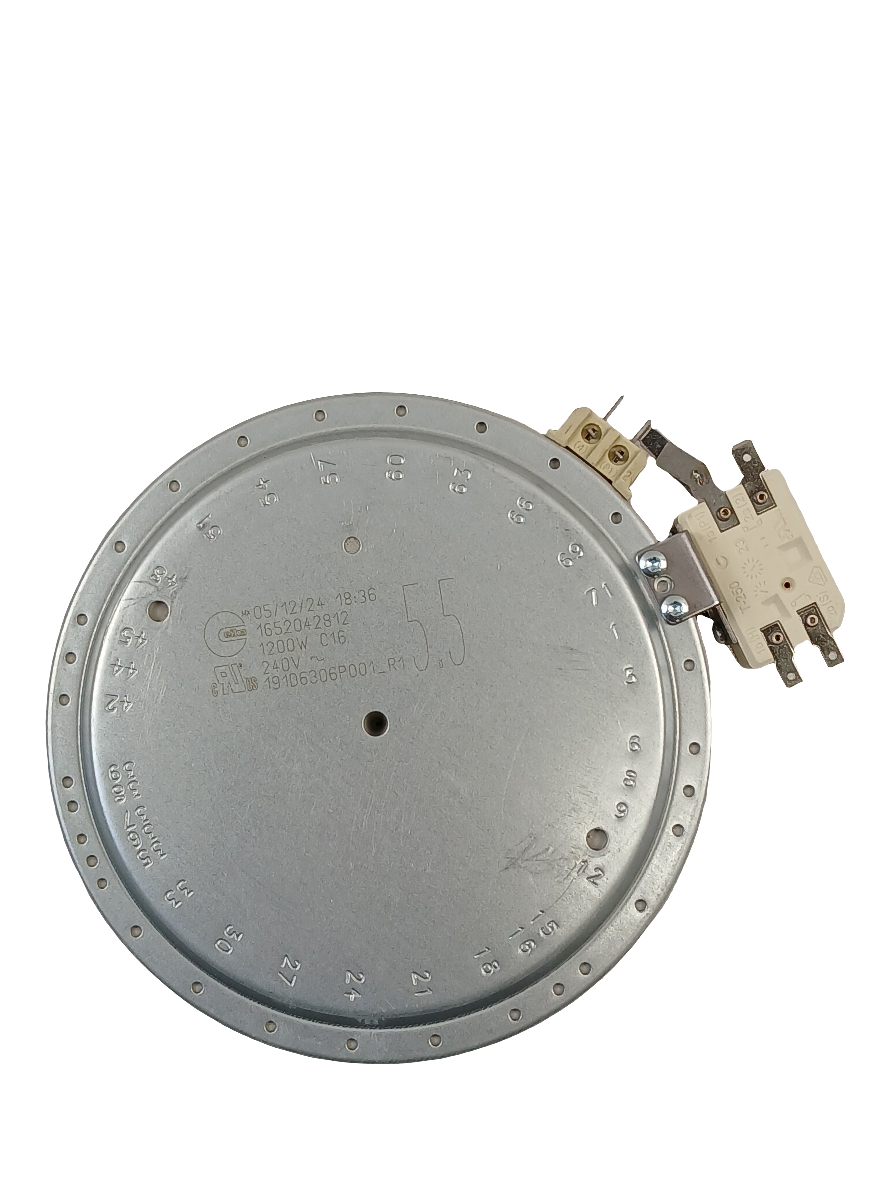

The WS01L15700 is a genuine OEM 5.5-inch radiant surface element for GE-family smooth-top (glass-ceramic) electric ranges. This coiled resistance heater mounts in an insulated metal carrier beneath the glass cooktop and transfers heat to cookware on 240V power. The 5.5” size is used for small single burners or warming/low-output positions. Common failures include an open heating coil, hot spots from coil fatigue, a warped carrier causing poor contact with the cooktop, or heat-damaged terminals from loose connections.

✓ Common Symptoms Fixed

• Small surface burner won’t heat
• Burner heats intermittently or cuts in and out
• Uneven heating or weak output on the small burner
• Visible scorching or warping of the element carrier
• Breaker trips when the burner is turned on (element short or open-to-ground)
• Burnt smell or arcing at element terminals

✓ Key Features & Specifications

• Genuine OEM GE part — exact factory replacement
• 5.5-inch diameter — small/single burner position
• Coiled resistance heater in insulated metal carrier
• 240V radiant heating element for glass-ceramic smooth-top ranges
• Spade terminal connections — direct plug-in replacement
• Part Number: WS01L15700 | Replaces: 191D6306P001
• Fits GE, Hotpoint, Mabe, and select Kenmore ranges (verify by model)

✓ Installation Tips

CRITICAL SAFETY WARNING: Switch OFF the 240V double-pole breaker and verify power is OFF before servicing.

1. Turn OFF the range breaker and confirm no power at the terminal block.
2. Pull the range forward for access and protect the floor.
3. Access the element from the top (lift cooktop) or from the rear/bottom depending on model.
4. Label and photograph all element wiring connections before disconnecting.
5. Disconnect the element wires at the spade terminals.
6. Release the element from its mounting bracket/retainers and remove it.
7. Inspect the terminal ends for heat damage — replace terminals if discolored or loose.
8. Install the new WS01L15700 in the same bracket position; ensure it sits flat and centered under the glass.
9. Reconnect wires firmly — a tight spade fit is critical to prevent arcing.
10. Reassemble cooktop/panels and restore power.
11. Test the burner on Low/Med/High and confirm normal cycling and even heat.

✓ Replacement Part Numbers

WS01L15700 | 191D6306P001

✓ Frequently Asked Questions

Q: What does WS01L15700 replace?
A: WS01L15700 directly replaces 191D6306P001. Both are functionally identical.

Q: Will this fit my Hotpoint or Kenmore range?
A: This element fits select GE-platform ranges including Hotpoint, Mabe, and some Kenmore models. Always verify by your full model number before ordering.

Q: Can I install this myself?
A: Yes — medium difficulty (3/5). Always switch off the 240V double-pole breaker before servicing.

✓ Compatible Models

CCES700P2M1S1, CCES700P2M2S1, CCES700P2M3S1, CCES700P3M1D1, CCES700P4M1W2, CCES700P4M2W2, CCES700P4M3W2, CCES750P3M1D1, CCES750P4M1W2, CCES750P4M2W2, CCES750P4M3W2, CCES750P4M4W2, CES700P2M1S1, CES700P3M2D1, CES700P4M1W2, IO7680ESS0A, IO7690ESS0A, JBS86SP1SS, JBS86SP3SS, JBS86SP4SS, JCAS640RM2SS, JCAS640RM3SS, JCAS640RM4SS, JCB865SJ3SS, JCB865SJ8SS, JCB865SJ9SS, JCS830EM2ES, JCS830SM2SS, JCS830SM3SS, JCS830SM4SS, JCS830SM5SS, JCS830SV1SS, JCS840BM2TS, JCS840EM2ES, JCS840EM3ES, JCS840EM4ES, JCS840EM5ES, JCS840SM2SS, JCS840SM3SS, JCS840SM4SS, JCS840SM5SS, JCSS630SM2SS, JCSS630SM3SS, JCSS630SM4SS, JCSS630SM5SS, JP3030DJ4BB, JP3030SJ4SS, PB935YP1FS, PB935YP2FS, PB935YP5FS, PB960EJ8ES, PB960SJ5SS, PB960SJ7SS, PB960SJ8SS, PB960SJ9SS, PCS915SM2SS, PCS915SM3SS, PCS915SM4SS, PCS940BM2TS, PCS940BM3TS, PCS940BM4TS, PCS940BM5TS, PCS940DM2WW, PCS940DM3WW, PCS940DM4WW, PCS940DM5WW, PCS940DM6WW, PCS940DM7WW, PCS940EM2ES, PCS940EM3ES, PCS940EM4ES, PCS940EM5ES, PCS940EM6ES, PCS940EM7ES, PCS940FM2DS, PCS940FM3DS, PCS940SM2SS, PCS940SM3SS, PCS940SM4SS, PCS940SM5SS, PCS940YM1FS, PCS940YM2FS, PCS940YM3FS, PCS980SM2SS, PCS980SM3SS, PCS980SM4SS, PCS980SM5SS, PCS980YM1FS, PCS980YM2FS, PCS980YM3FS, PP7030SJ2SS, QCAS740RM3SS, QCSS740BN1TS, QCSS740RN1SS, QCSS740RN2SS, REX2051BRT-1A, REX2051BRT-1B, REX2051WRT-1A, REX2051WRT-1B, REX205W-0A, REX205W-0B, REX206B-0A, REX206B-0B, REX2071SSRT-1A, REX2071SSRT-1B, REX207SS-0A, REX207SS-0B, SS740BN1TS, SS740RN1SS
