Samsung Washer Not Draining? Drain Pump DC31-00187A – Fix Drainage Failures Fast
A failed drain pump is the most common reason a Samsung front-load or top-load washer won't drain, leaves standing water, or stops mid-cycle. In most Samsung washers, the drain pump is responsible for expelling water at the end of every wash and spin cycle. When it fails, water sits in the drum, cycles abort, and error codes appear. ⚡ Common failure point in Samsung front-load and top-load washers. Part DC31-00187A is the genuine OEM drain pump that restores full drainage immediately — no modification required. Premium XPart aftermarket option also available.
❓ Is This the Right Part?
This is the correct fix if ALL of the following are true:
- ✔ Washer powers on and the cycle starts normally
- ✔ Wash and rinse functions appear to run correctly
- ✔ Water supply and inlet valve confirmed OK
- ✔ Door latch and lid switch function correctly
- ✔ ONLY problem is water not draining, standing water in drum, or drain-related error codes (5E, 5C, E2)
Not sure? Send us your model number — we'll confirm before you order.
🔧 Common Symptoms
- Washer won't drain — standing water remains in drum after cycle
- Error codes 5E, 5C, or E2 displayed on control panel
- Cycle stops mid-wash and won't advance to spin
- Loud humming or grinding noise during drain phase
- Washer door won't unlock (safety lock engaged due to water in drum)
- Clothes soaking wet after spin cycle completes
✔ If these symptoms match, this is the most likely failed component in the system.
✔ In most cases, replacing this drain pump restores normal operation immediately.
📦 Part Details

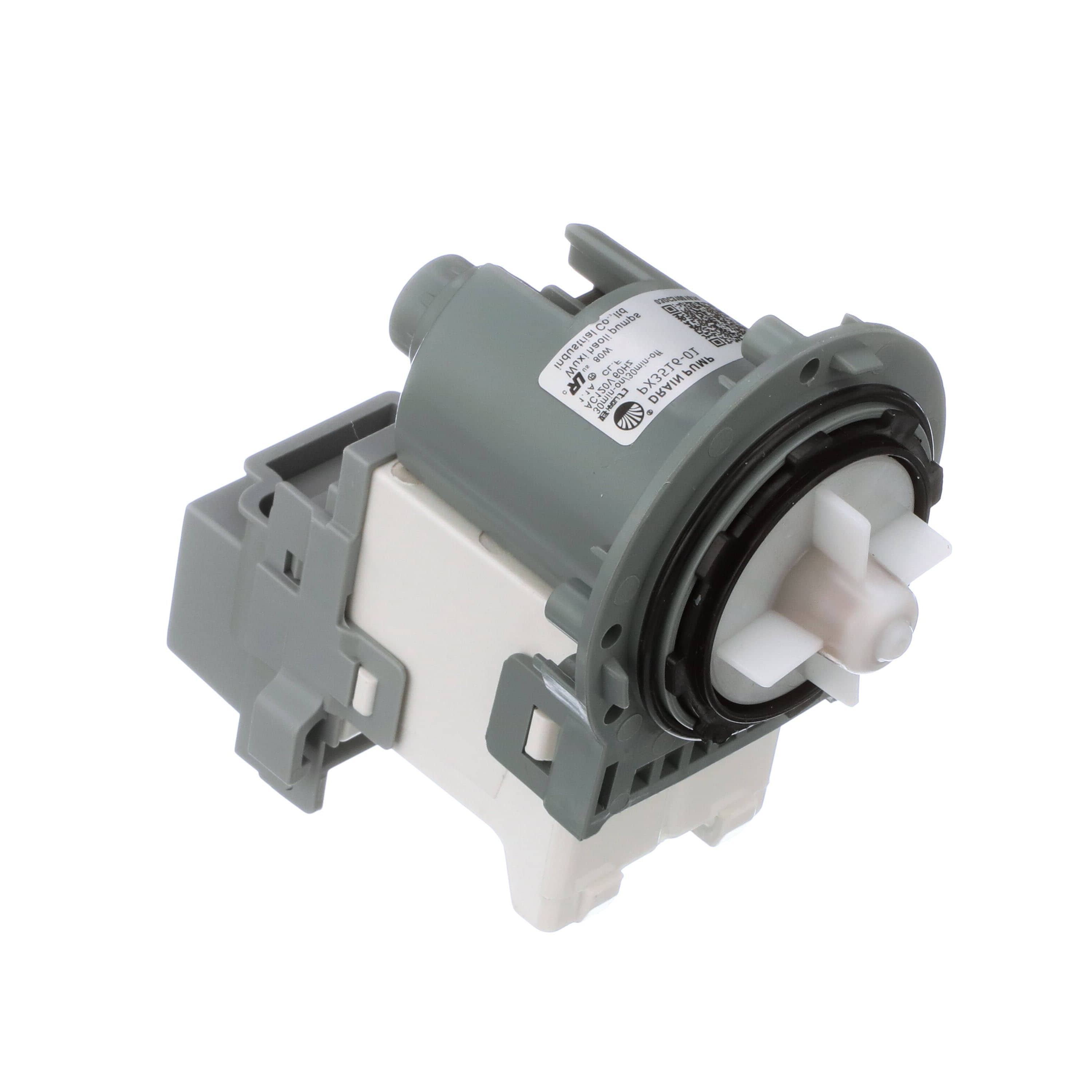

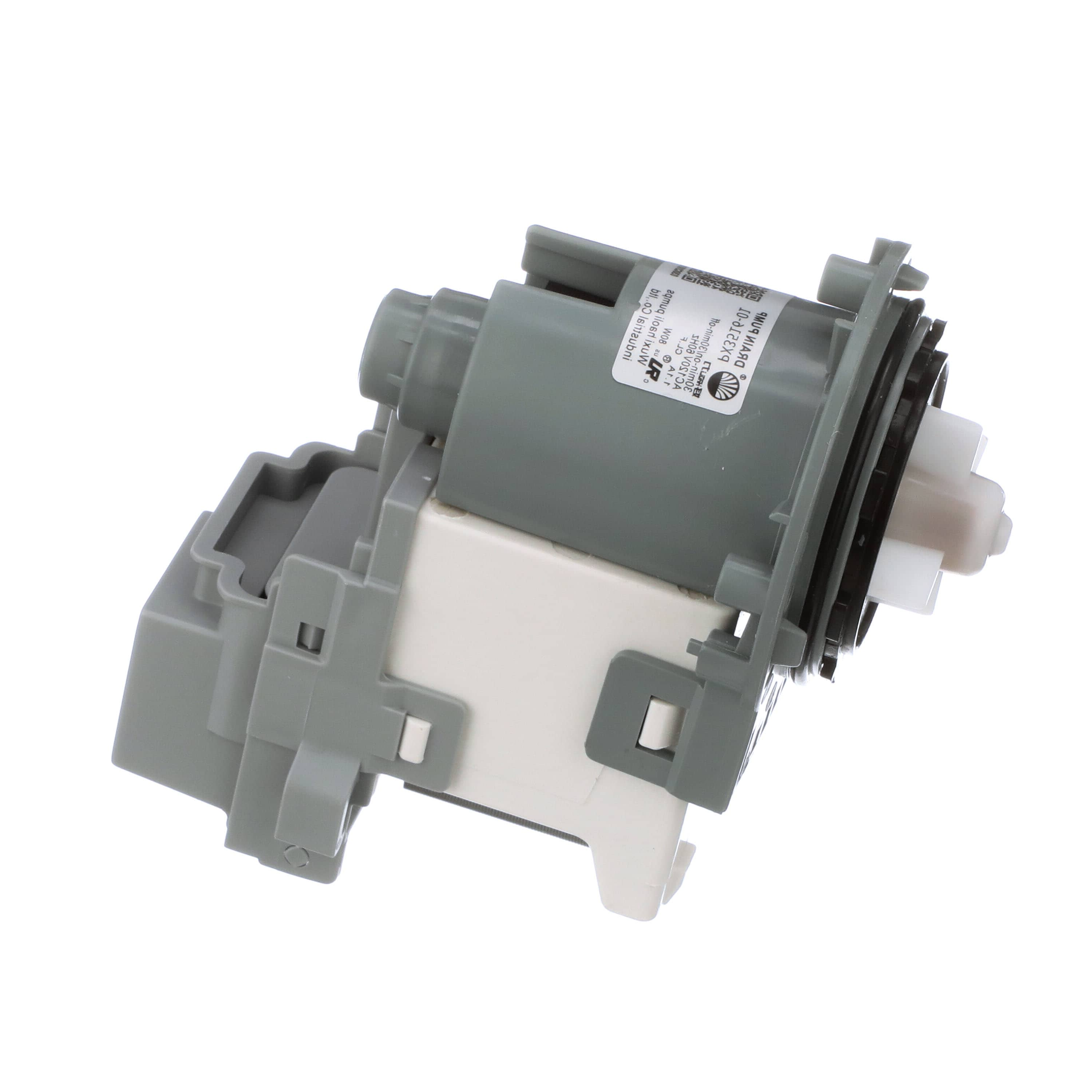

- Part Number: DC31-00187A
- XPart Option: DC31-00187AXP (premium aftermarket, engineered to OEM specifications)
- Type: Washer Drain Pump Assembly
- Replaces: OEM direct-fit drain pump — supersedes DC31-00178A, DC97-20621A (no modification required)
- Brands: Samsung
⚠️ Recommended While Repairing:
While the pump is out, check the drain filter and pump housing for debris, coins, or lint buildup — a blocked filter is often what caused the original pump failure. Clearing the filter at the same time prevents the new pump from failing prematurely.
While the pump is out, check the drain filter and pump housing for debris, coins, or lint buildup — a blocked filter is often what caused the original pump failure. Clearing the filter at the same time prevents the new pump from failing prematurely.
⚙️ Installation
Skill Level: MODERATE — 30–45 minutes. Disconnect power and turn off the water supply before beginning. For front-loaders, access the pump through the lower front panel or by tilting the machine back; for top-loaders, the pump is typically accessed from underneath. Disconnect the wiring harness and hose clamps, swap the pump, and reconnect. Run a short drain cycle to confirm no leaks before reassembly.
💡 Pro Tip
Check the Drain Hose & Filter Before Condemning the Pump:
A kinked drain hose or clogged pump filter causes identical symptoms to a failed pump and takes 2 minutes to rule out. Always clear the filter and straighten the hose first — if the pump still hums but won't move water, the impeller is seized and replacement is confirmed. This saves an unnecessary part purchase and a second service call.
A kinked drain hose or clogged pump filter causes identical symptoms to a failed pump and takes 2 minutes to rule out. Always clear the filter and straighten the hose first — if the pump still hums but won't move water, the impeller is seized and replacement is confirmed. This saves an unnecessary part purchase and a second service call.
✓ Model Hub Pages
WV60A9900AV/A5, WF45T6000AW/A5, WF45R6100AC/US, WF50R8500AV, WF45R6100AP/US, WF45T6000AV/A5, WF45R6100AW/US, WF45R6300AV/US
✓ Model-Specific Repair Pages
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
