Washer Won't Spin or Agitate? Replace the Drive Belt — WG04L05385

Replaces WH01X24180 Replaces WW01F01756 Replaces 290D1101P002 Compatible: GE, Hotpoint, RCA

Is This the Part You Need?

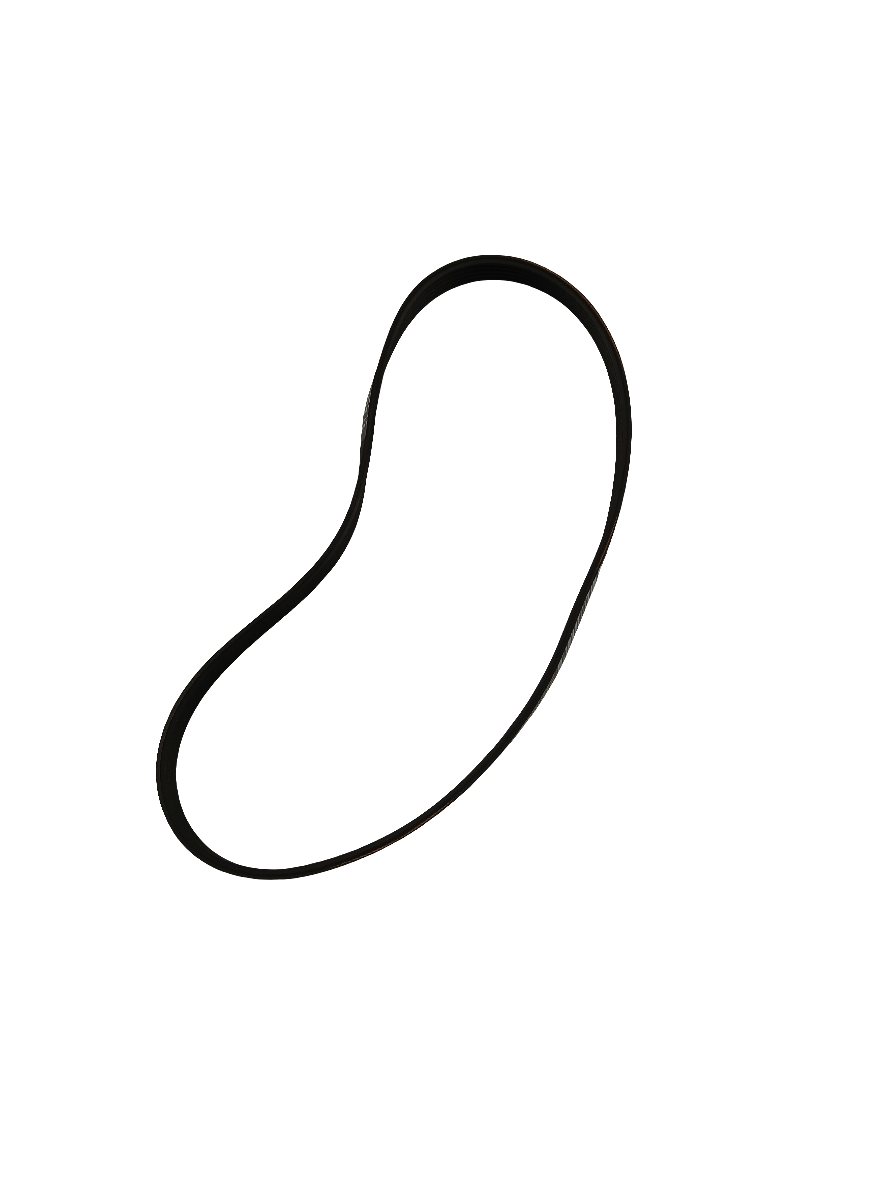

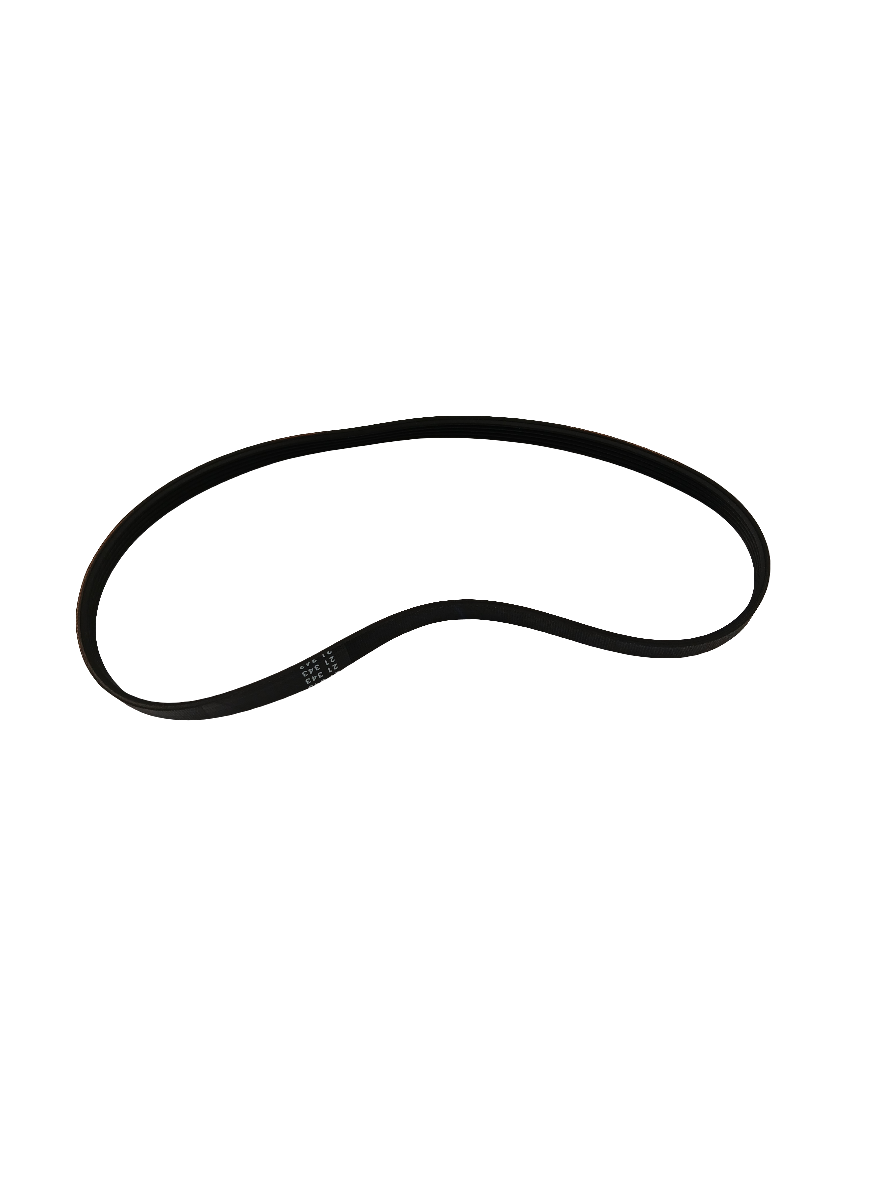

The WG04L05385 is the drive belt used in GE and compatible top-load washers. It connects the drive motor to the transmission or drum, enabling both the wash agitation and spin cycles. If your washer's motor is running but nothing is moving — or you're hearing squealing — this belt is the first place to look. Check the diagram below to confirm part position before ordering.

Symptoms This Part Fixes

  • Washer drum won't spin — clothes come out soaking wet
  • Washer won't agitate — drum sits still during wash cycle
  • Motor runs but nothing moves
  • Squealing, screeching, or slipping noise during operation
  • Visible broken, cracked, frayed, or stretched belt
  • Washer stops mid-cycle with no error code

Part Details

  • OEM Part Number: WG04L05385
  • Replaces: WH01X24180, WW01F01756, 290D1101P002, 5PJ586SJ161
  • Fits Brands: GE, Hotpoint, RCA
  • Part Type: Washer Drive Belt
  • Construction: High-strength, heat- and abrasion-resistant ribbed rubber
  • Function: Transfers motor torque to drum/transmission for agitation and spin
  • Typical Lifespan: 6–12 years; failure accelerated by overloading or worn pulleys

Installation Notes

  • Skill Level: Intermediate — requires partial disassembly of the washer cabinet
  • Always disconnect power before beginning any repair
  • Inspect the motor pulley and idler pulley for wear before installing the new belt — a worn pulley will destroy a new belt quickly
  • Ensure correct belt tension; an overtightened belt strains the motor bearings
  • Refer to your model's service manual for torque specs on cabinet fasteners

Compatible Models

GTW755CSM1WS, GTW755CSM0WS, GTW750CSL1WS, GTW750CSL0WS, GTW685BSL1WS, GTW685BSL0WS, GTW680BSJ7WS, GTW680BSJ6WS, GTW680BSJ5WS, GTW680BSJ4WS, GTW680BSJ3WS, GTW680BSJ2WS, GTW680BSJ1WS, GTW680BSJ0WS, GTW680BMR0WS, GTW680BMM1WS, GTW680BMM0WS, GTW680BMK0WS, GTW580BMR0WS, GTW575BMM1WS, GTW575BMM0WS, GTW560BMM1WW, GTW560BMM0WW, GTW550BMR0WS, GTW490BMR0WS, GTW485BMM0WS, GTW485BMK1WS, GTW485BMK0WS, GTW470BMM1DG, GTW470BMM0DG, GTW465BMM1WS, GTW465BMM0WS, GTW460BMM1WW, GTW460BMM0WW, GTW451BMR0WS, GTW331BMR0WS, GTW330BMM1WW, GTW330BMM0WW, GTW302BMP1WW, GTW302BMP0WW, GTW223BMR0WW, GTW220BMM1WW, GTW220BMM0WW, MTW201BMR0WW, MTW200BMM1WW, MTW200BMM0WW, HTW200BMM0WW, HTW200BMK0WW, and many more — see tags for full model list.

💡 Pro Tip — Check the Idler Pulley & Motor Coupling Too:
A snapped or stretched drive belt is rarely the only casualty. Before buttoning the machine back up, inspect the idler pulley for wobble or seized bearings, and check the motor coupling for cracks. Replacing these at the same time eliminates a second service call and protects your new belt from premature failure.
WG04L05385 GE Washer Drive Belt Parts Diagram

✓ Model-Specific Repair Pages

GE LGA77115CBAB02 Washer Parts & Repair Guide GE GTW685BMR0WS Washer Parts & Repair Guide GE GTW580BMR0WS Washer Parts & Repair Guide GE GTW575BMM1WS Washer Parts & Repair Guide GE GTW560BMM1WW Washer Parts & Repair Guide GE GTW550BMR0WS Washer Parts & Repair Guide GE GTW495DMN1WS Washer Parts & Repair Guide GE GTW490BMR0WS Washer Parts & Repair Guide GE GTW470BMM1DG Washer Parts & Repair Guide GE GTW465BMM1WS Washer Parts & Repair Guide GE GTW460BMM1WW Washer Parts & Repair Guide GE GTW451BMR0WS Washer Parts & Repair Guide GE GTW331BMR0WS Washer Parts & Repair Guide GE GTW330BMM1WW Washer Parts & Repair Guide GE GTW302BMP1WW Washer Parts & Repair Guide GE GTW302BMP0WW Washer Parts & Repair Guide GE GTW223BMR0WW Washer Parts & Repair Guide GE GTW220BMM1WW Washer Parts & Repair Guide GE MTW200BMK0WW Washer Parts & Repair Guide GE GTW485BMK0WS Washer Parts & Repair Guide GE GTW460BMK0WW Washer Parts & Repair Guide GE GTW330BMK1WW Washer Parts & Repair Guide GE GTW330BMK0WW Washer Parts & Repair Guide GE GTW220BMK1WW Washer Parts & Repair Guide GE GTW220BMK0WW Washer Parts & Repair Guide

✅Compatibility & Cross Reference

Item #327 in diagram.

WW01F01756, WH01X24180, 290D1101P002, 5PJ586SJ161

GTW460AMJ0WW, GTW460AMJ2WW, GTW460ASJ0WW, GTW460ASJ2WW, GTW465ASN0WW, GTW485ASJ0WS, GTW485ASJ0WW, GTW485ASJ1WS, GTW485ASJ2WS, GTW485ASJ3WS, GTW485ASJ4WS, GTW485ASJ5WS, GTW490ACJ0WS, GTW490ACJ0WW, GTW490ACJ1WS, GTW490ACJ1WW, GTW490ACJ2WS, GTW490ACJ2WW, GTW490ACJ3WS, GTW490ACJ3WW, GTW490ACJ4WS, GTW490ACJ4WW, GTW490ACJ5WS, GTW490ACJ5WW, GTW500ASN0WS, GTW525ACP0WB, GTW680BPL0DG, GTW680BPL1DG, GTW680BPL2DG, GTW680BSJ0WS, GTW680BSJ1WS, GTW680BSJ2WS, GTW680BSJ3WS, GTW680BSJ4WS, GTW680BSJ5WS, GTW680BSJ6WS, GTW680BSJ7WS, GTW685BPL0DG, GTW685BPL1DG, GTW685BSL0WS, GTW685BSL1WS, GTW750CPL0DG, GTW750CPL1DG, GTW750CSL0DG, GTW750CSL0WS, GTW750CSL1WS, GTW755CPM0DG, GTW755CPM1DG, GTW755CSM0WS, GTW755CSM1WS, YTW4514PN0DG, GTW220BMK0WW, GTW220BMK1WW, GTW220BMM0WW, GTW220BMM1WW, GTW223BMR0WW, GTW302BMP0WW, GTW302BMP1WW, GTW330BMK0WW, GTW330BMK1WW, GTW330BMM0WW, GTW330BMM1WW, GTW331BMR0WS, GTW451BMR0WS, GTW460BMK0WW, GTW460BMK1WW, GTW460BMM0WW, GTW460BMM1WW, GTW465BMK1WS, GTW465BMM0WS, GTW465BMM1WS, GTW470BMM0DG, GTW470BMM1DG, GTW485BMK0WS, GTW485BMK1WS, GTW485BMM0WS, GTW490BMR0WS, GTW495DMN0WS, GTW495DMN1WS, GTW550BMR0WS, GTW560BMM0WW, GTW560BMM1WW, GTW575BMM0WS, GTW575BMM1WS, GTW580BMR0WS, GTW680BMK0DG, GTW680BMK0WS, GTW680BMM0DG, GTW680BMM0WS, GTW680BMM1DG, GTW680BMM1WS, GTW680BMR0DG, GTW680BMR0WS, GTW685BMR0WS, HTW200BMK0WW, HTW200BMM0WW, LEA79115CBAB00, LEA79115CBAB01, LEA79115CBAB02, LEA79115CBAB03, LGA71215CBAB01, LGA77115CBAB00, LGA77115CBAB01, LGA77115CBAB02, LGA79113CBAB00, LGA79113CBAB01, LGA79113CBDB00, LGA79113CBDB01, LGH72201WBAB00, LGH72201WBAB01, LGH73201WBAB00, LIA70213CBAB00, LIA70213CBAB01, LIA71214CBAB00, LIA71214CBAB01, LIH74201WDAB00, LMA70213CBAB00, LMA70213CBAB01, LMA70213CBAB02, LMA70213VBAB00, LMA70213VBAB01, LMA70213VBAB02, LMA70214VBAB00, LMA70214VBAB01, LMA70214VBAB02, LMA70214VBAB03, LMA70215VBAB00, LMA70215VBAB01, LMA70215VBAB02, LMA70215WBAB00, LMA71214VBAB00, LMA71214VBAB01, LMA71214VBAB02, LMA71214VBAB03, LMA71215VBAB00, LMA71215VBAB01, LMA71215VBAB02, LMA71215WBAB00, LMA71215WDAB00, LMA71215WGAB00, LMA71215WGAB01, LMA72215CBAB00, LMA72215CBAB01, LMA72215CBAB02, LMA72215WBAB00, LMA74215WBAB00, LMA74215WBAB01, LMA74215WBAB02, LMA74215WDAB00, LMA78115VBAB00, LMA78115VBAB01, LMA78115VBAB02, LMA78115VBAB03, LMA78115VBAB04, LMA78115VGAB00, LMA78115VGAB01, LMA78115VGAB02, LMA79115CBDK00, LMA79115CBDK01, LMA79115CBDK02, LMA79115CBDK03, LMA79115CBDK10, LMA79115CBEK00, LMA79115CBEK02, LMA79115CBEK03, LMA79115CBEK10, LMA79115CBEK11, LMA79115VBAB00, LMA79115VBAB01, LMA79115VBAB02, LMC70201WGAB00, LMC70201WGAB01, LMC72201WGAB00, LMC72201WGAB01, LMC72201WGAB02, LMC72205WGAB00, LMC72205WGAB01, LMC74201WDAB00, LMC74201WDAB01, LMH70201WBAB00, LMH70201WBAB0, LMH70201WBAB0, LMH70201WBAB0, LMH70201WBAB0, LMH70201WGAB00, LMH70201WGAB01, LMH70201WGAB02, LMH70201WGDK00, LMH70201WGDK01, LMH70201WGDK02, LMH70201WGEB00, LMH70203SBDB00, LMH70203SBEB00, LMH70203WBAB00, LMH70203WBAB01, LMH70203WBAB02, LMH70203WBAB03, LMH70203WBAB04, LMH70203WDAB00, LMH70203WDAB01, LMH70203WDAB02, LMH70203WDAB10, LMH70203WGAB00, LMH70203WGAB01, LMH70203WGAB02, LMH70203WGAB03, LMH72201WBAB00, LMH72201WBAB02, LMH72201WBAB03, LMH72201WBAB04, LMH72201WGAB00, LMH72201WGAB01, LMH72201WGAB02, LMH72201WGAB03, LMH72205SBAB00, LMH72205SBAB01, LMH72205SBAB02, LMH72205SBAB03, LMH72205SBAB04, LMH72205SBAB05, LMH72205WBAB00, LMH72205WBAB01, LMH72205WBAB02, LMH72205WBAB03, LMH72205WBAB04, LMH72205WBAB05, LMH72205WDAB00, LMH72205WDAB01, LMH72205WDAB02, LMH72205WDAB03, LMH72205WDAB04, LMH72205WGAB00, LMH72205WGAB01, LMH72205WGAB02, LMH72205WGAB03, LMH74201WDAB00, LMH74201WDAB01, LMH74201WDAB02, LMH74201WDAB03, LMH74201WDAB04, LMH78103SBAB00, LMH78103SBAB01, LMH78103SBAB02, LMH78103SBAB03, LMH78103SBAB04, LMH78103SBDK00, LMH78103SBDK01, LMH78103SBDK02, LMH79104SBAB00, LMH79104SBAB01, LMH79104SBAB02, LMH79104SBAB03, LMH79104SBAB04, LMH79104SBAB05, LMH79104WBAB00, LMH79104WBAB01, LMH79104WBAB02, LMH79104WBAB03, LMH79104WBAB04, LMH79104WRAB00, LMH79104WRAB01, LMH79104WRAB02, LMP74201WDAB00, MTW200BMK0WW, MTW200BMM0WW, MTW200BMM1WW, MTW201BMR0WW, WEA79115CBAB00, WEA79115CBAB01, WEA79115CBAB02, WEA79115CBAB03, WMA71214CBDB00, WMA71214CBDB01, WMA71214CBDB02, WMA71214CBEB00, WMA71214CBEB01, WMA71214CBEB02, WMA72215CDDB00, WMA72215CDEB00, WMA72215CGDB00, WMA72215CGDB01, WMA72215CGEB00, WMA72215CGEB01, WMH70201WBAB00, WMH70201WBAB01, WMH70201WBAB02, WMH74201WDAB00, WMH74201WDAB01, WMH79104SBAB00, WMH79104SBAB01, WMH79104SBAB02, WMH79104SBAB03, WMH79104WBAB00, WMH79104WBAB01, WMH79104WBAB02, WMH79104WBAB03

Drive Belt, Drum Belt, Motor Belt, Washer Belt

GE, Hotpoint, Mabe, select Kenmore (verify by model)

Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
