GE Washer LMA78115VBAB04 Parts

Model: LMA78115VBAB04

Browse this model’s parts or select a diagram to see its matching parts beside the drawing.

Diagram section

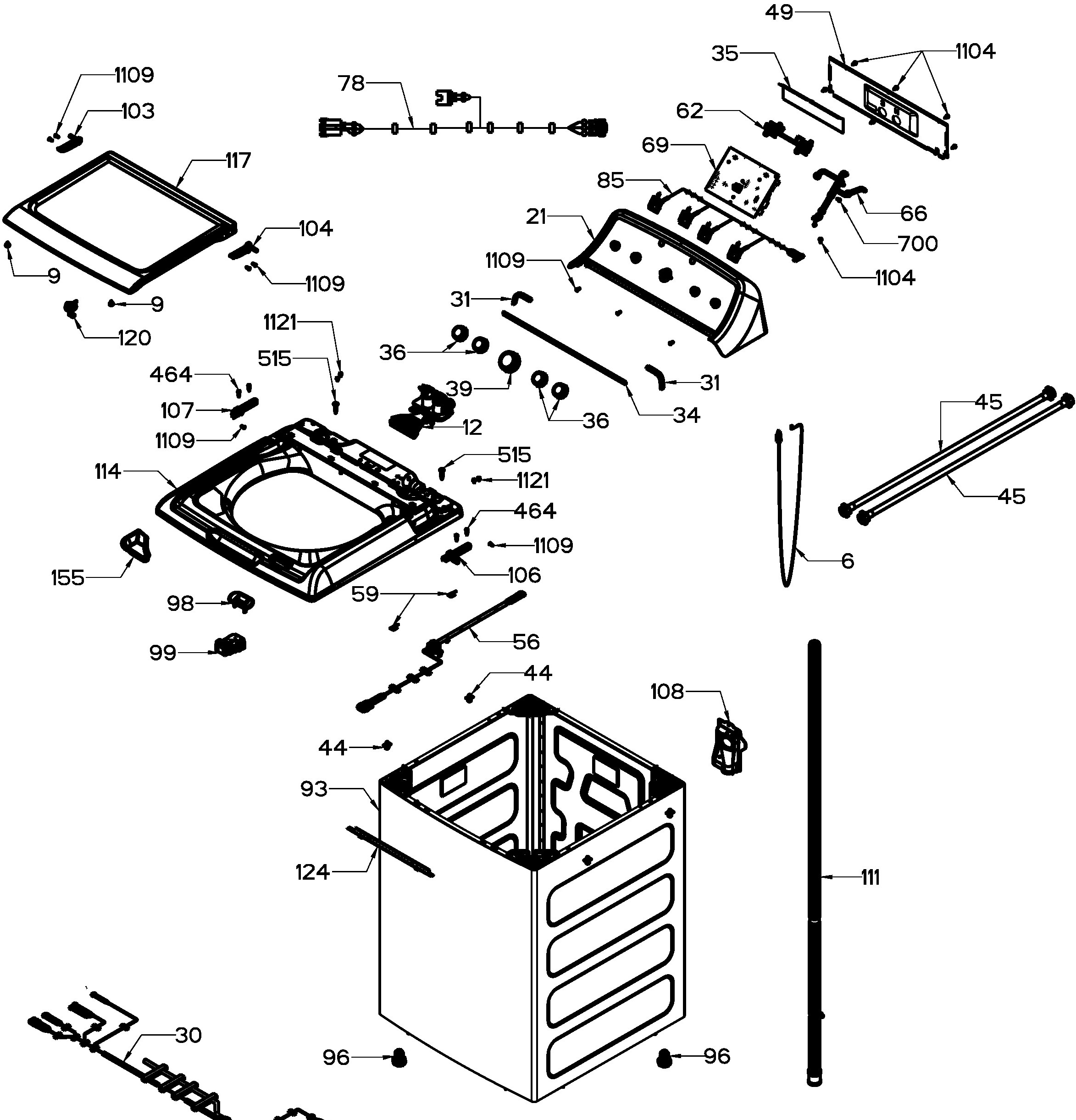

Exploded View 1

12 verified parts

Only verified parts currently linked to this section are shown. More parts are being added.

Double water inlet valve

XPart Number XP10005900

OEMWW01F01773

$31.99 CAD

View buying options

THERMOVOLT PAPER

XPart Number XP10712715

OEMWW01L01668

View buying options

SELECTOR ASSEMBLY

XPart Number XP10000526

OEMWW01F01794

$43.99 CAD

View buying options

LOCK QUICK RELEASE

XPart Number XP10000064

OEMWW01L01660

See available options

Certified Pre-Owned$49.99 CAD OEM Genuine$100.99 CAD

Certified Pre-Owned parts need 1 business day to prepare.

From $49.99 CAD

View buying options

HINGE RIGHT

XPart Number XP10355074

OEMWW01L01633

$7.99 CAD

View buying options

COVER TOP

XPart Number XP10713621

OEMWW01L01508

$50.99 CAD

View buying options

BRACKET COVER

XPart Number XP10712713

OEMWW01A00649

$10.99 CAD

View buying options

COVER SCREW

XPart Number XP10712739

OEMWW01A00660

View buying options

Screw

XPart Number XP10705045

OEMWW01A00582

$1.99 CAD

View buying options

SCR 8-18 AB IHW 7

XPart Number XP10705103

OEMWW01A00097

$0.99 CAD

View buying options

SCR 8-18 B FLP .525 S ZN

XPart Number XP10000609

OEMWW01A00449

See available options

Certified Pre-Owned$5.99 CAD OEM Genuine$11.99 CAD

Certified Pre-Owned parts need 1 business day to prepare.

From $5.99 CAD

View buying options

SCR 8-18 D HXW 3 (TIERRA)

XPart Number XP10705108

OEMWW01A00001

$17.99 CAD

View buying options

Diagram section

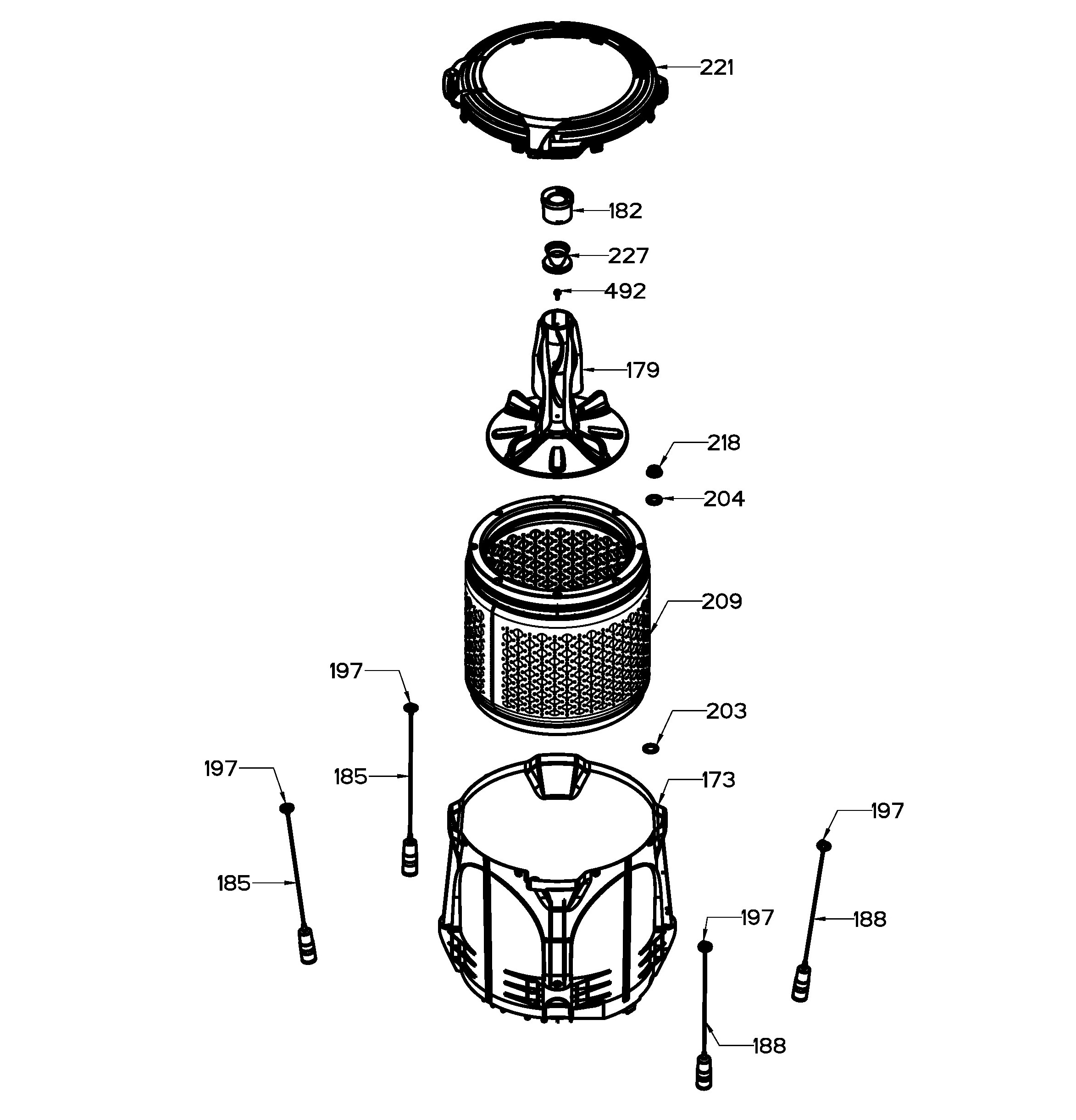

Exploded View 2

7 verified parts

Only verified parts currently linked to this section are shown. More parts are being added.

Tub Assembly

XPart Number XP10002272

OEM233D2316G002

$92.99 CAD

View buying options

AGITATOR

XPart Number XP10007869

OEMWW01L01514

See available options

Certified Pre-Owned$22.99 CAD OEM Genuine$46.99 CAD

Certified Pre-Owned parts need 1 business day to prepare.

From $22.99 CAD

View buying options

Rod and Spring Assembly, Left Side

XPart Number XP10011326

OEMWW01F01681

See available options

Certified Pre-Owned$7.99 CAD OEM Genuine$16.99 CAD

Certified Pre-Owned parts need 1 business day to prepare.

From $7.99 CAD

View buying options

Rod and Spring Assembly

XPart Number XP10011325

OEMWW01F01682

See available options

Certified Pre-Owned$7.99 CAD OEM Genuine$16.99 CAD

Certified Pre-Owned parts need 1 business day to prepare.

From $7.99 CAD

View buying options

Upper Ball Joint

XPart Number XP10712755

OEMWW01F01680

$2.99 CAD

View buying options

BASKET SS

XPart Number XP10718316

OEMWW01F01699

$83.99 CAD

View buying options

Washer tub cover

XPart Number XP10000564

OEMWW01F01661

See available options

Certified Pre-Owned$9.99 CAD OEM Genuine$20.57 CAD

Certified Pre-Owned parts need 1 business day to prepare.

From $9.99 CAD

View buying options

Diagram section

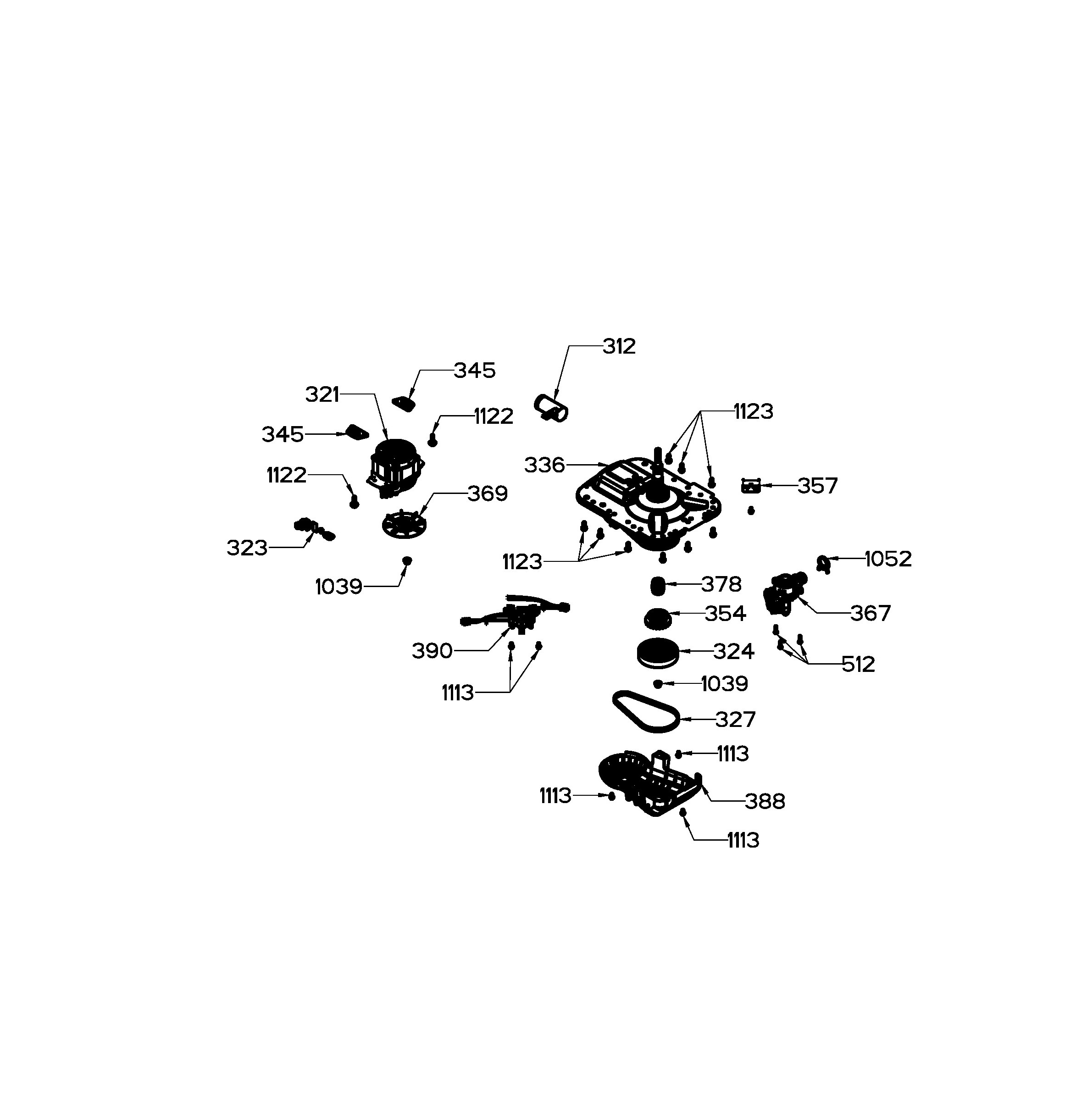

Exploded View 3

9 verified parts

Only verified parts currently linked to this section are shown. More parts are being added.

Double water inlet valve

XPart Number XP10005900

OEMWW01F01773

$31.99 CAD

View buying options

BELT DRIVE (POLYV BELT 6:1)

XPart Number XP10144058

OEMWW01F01756

See available options

Certified Pre-Owned$14.99 CAD XPart Premium$29.99 CAD OEM Genuine$36.25 CAD

Certified Pre-Owned parts need 1 business day to prepare.

From $14.99 CAD

View buying options

ASM TRANSMISSION KIT

XPart Number XP10809836

OEMWW01A00724

View buying options

BRACKET MOTOR

XPart Number XP10712749

OEMWW01A00658

View buying options

Motor Fan and Pulley Assembly

XPart Number XP10011053

OEMWW01F01788

$22.99 CAD

View buying options

Washer Shaft and Mode Shifter Assembly

XPart Number XP10001531

OEMWW02F00671

$29.99 CAD

View buying options

Clamp

XPart Number XP10712769

OEMWW01A00094

$4.99 CAD

View buying options

Screw

XPart Number XP10009617

OEMWW01A00657

See available options

Certified Pre-Owned$0.99 CAD OEM Genuine$2.99 CAD

Certified Pre-Owned parts need 1 business day to prepare.

From $0.99 CAD

View buying options

Screw

XPart Number XP10000604

OEMWW01A00084

See available options

Certified Pre-Owned$1.99 CAD OEM Genuine$3.99 CAD

Certified Pre-Owned parts need 1 business day to prepare.

From $1.99 CAD

View buying options

Parts group

More verified model parts

34 verified parts

Only verified parts currently linked to this section are shown. More parts are being added.

Induction Motor, 1/2 HP

XPart Number XP10000527

OEMWW01F01789

See available options

Certified Pre-Owned$70.99 CAD OEM Genuine$141.99 CAD

Certified Pre-Owned parts need 1 business day to prepare.

Model fitment is verified. A diagram position has not been assigned.

From $70.99 CAD

View buying options

Shifter Spring

XPart Number XP10000585

OEMWW01A00053

See available options

Certified Pre-Owned$1.99 CAD OEM Genuine$4.99 CAD

Certified Pre-Owned parts need 1 business day to prepare.

Model fitment is verified. A diagram position has not been assigned.

From $1.99 CAD

View buying options

Washer Motor Clutch

XPart Number XP10000954

OEMWW01F01784

Model fitment is verified. A diagram position has not been assigned.

$6.99 CAD

View buying options

Washer speed sensor

XPart Number XP10001738

OEMWW01F01977

See available options

Certified Pre-Owned$17.99 CAD OEM Genuine$36.51 CAD

Certified Pre-Owned parts need 1 business day to prepare.

Model fitment is verified. A diagram position has not been assigned.

From $17.99 CAD

View buying options

Screw

XPart Number XP10003425

OEMWW01A00064

See available options

Certified Pre-Owned$2.99 CAD OEM Genuine$6.99 CAD

Certified Pre-Owned parts need 1 business day to prepare.

Model fitment is verified. A diagram position has not been assigned.

From $2.99 CAD

View buying options

Nut

XPart Number XP10003439

OEMWW01A00642

Model fitment is verified. A diagram position has not been assigned.

$9.99 CAD

View buying options

Drive Belt

XPart Number XP10004445

OEMWG04L05385

See available options

Certified Pre-Owned$18.99 CAD XPart Premium$37.99 CAD

Certified Pre-Owned parts need 1 business day to prepare.

Model fitment is verified. A diagram position has not been assigned.

From $18.99 CAD

View buying options

FUNNEL BLEACH

XPart Number XP10005522

OEMWW01L01627

See available options

Certified Pre-Owned$0.99 CAD OEM Genuine$2.99 CAD

Certified Pre-Owned parts need 1 business day to prepare.

Model fitment is verified. A diagram position has not been assigned.

From $0.99 CAD

View buying options

Washer Lock Wire Harness

XPart Number XP10005896

OEMWW01F01679

Model fitment is verified. A diagram position has not been assigned.

$16.99 CAD

View buying options

Washer Fabric Softner Dispenser Cup

XPart Number XP10009181

OEMWW01L01528

See available options

Certified Pre-Owned$5.99 CAD OEM Genuine$12.99 CAD

Certified Pre-Owned parts need 1 business day to prepare.

Model fitment is verified. A diagram position has not been assigned.

From $5.99 CAD

View buying options

Transmission Pulley

XPart Number XP10009216

OEMWW01F01787

Model fitment is verified. A diagram position has not been assigned.

$17.99 CAD

View buying options

Start/Pause Button

XPart Number XP10009368

OEMWW01L01703

See available options

Certified Pre-Owned$6.99 CAD OEM Genuine$14.99 CAD

Certified Pre-Owned parts need 1 business day to prepare.

Model fitment is verified. A diagram position has not been assigned.

From $6.99 CAD

View buying options

Nut

XPart Number XP10009588

OEMWW01A00644

See available options

Certified Pre-Owned$1.99 CAD OEM Genuine$3.99 CAD

Certified Pre-Owned parts need 1 business day to prepare.

Model fitment is verified. A diagram position has not been assigned.

From $1.99 CAD

View buying options

Screw

XPart Number XP10009615

OEMWW01A00082

See available options

Certified Pre-Owned$0.99 CAD OEM Genuine$2.99 CAD

Certified Pre-Owned parts need 1 business day to prepare.

Model fitment is verified. A diagram position has not been assigned.

From $0.99 CAD

View buying options

Washer lid-lock bezel

XPart Number XP10011145

OEMWW01F01763

See available options

Certified Pre-Owned$4.99 CAD OEM Genuine$10.99 CAD

Certified Pre-Owned parts need 1 business day to prepare.

Model fitment is verified. A diagram position has not been assigned.

From $4.99 CAD

View buying options

Actuator assembly

XPart Number XP10012525

OEMWW01L01653

See available options

Certified Pre-Owned$2.99 CAD OEM Genuine$5.99 CAD

Certified Pre-Owned parts need 1 business day to prepare.

Model fitment is verified. A diagram position has not been assigned.

From $2.99 CAD

View buying options

Hinge Left

XPart Number XP10355175

OEMWW01L01632

Model fitment is verified. A diagram position has not been assigned.

$7.99 CAD

View buying options

Washer Hub Washer

XPart Number XP10399358

OEMWW01A00653

Model fitment is verified. A diagram position has not been assigned.

$8.99 CAD

View buying options

WASHER CONICAL

XPart Number XP10549938

OEMWW01A00643

See available options

Certified Pre-Owned$12.99 CAD OEM Genuine$26.99 CAD

Certified Pre-Owned parts need 1 business day to prepare.

Model fitment is verified. A diagram position has not been assigned.

From $12.99 CAD

View buying options

COVER HOSE

XPart Number XP10712721

OEMWW01L01845

Model fitment is verified. A diagram position has not been assigned.

$3.99 CAD

View buying options

LEVELING LEG

XPart Number XP10712733

OEMWW01L01746

Model fitment is verified. A diagram position has not been assigned.

$1.99 CAD

View buying options

HWH SCR 8-18 BT

XPart Number XP10712736

OEMWW01A00659

Model fitment is verified. A diagram position has not been assigned.

View buying options

CLIP CORD

XPart Number XP10712738

OEMWW01A00651

Model fitment is verified. A diagram position has not been assigned.

$4.99 CAD

View buying options

Bracket Connector

XPart Number XP10712751

OEMWW01A00645

Model fitment is verified. A diagram position has not been assigned.

$2.99 CAD

View buying options

SCR TYPE PT HEX HEAD

XPart Number XP10712753

OEMWW01A00330

Model fitment is verified. A diagram position has not been assigned.

$3.99 CAD

View buying options

PIN ALIGNMENT

XPart Number XP10712766

OEMWW01A00641

Model fitment is verified. A diagram position has not been assigned.

$0.99 CAD

View buying options

CONTROL BOARD SUPPORT

XPart Number XP10712767

OEMWW02F00735

Model fitment is verified. A diagram position has not been assigned.

$12.99 CAD

View buying options

BUSHING

XPart Number XP10713618

OEMWW01L01630

Model fitment is verified. A diagram position has not been assigned.

$13.99 CAD

View buying options

BUSHING

XPart Number XP10713639

OEMWW01L01631

Model fitment is verified. A diagram position has not been assigned.

$13.99 CAD

View buying options

CUP FUNNEL FSD

XPart Number XP10713731

OEMWW01L01527

Model fitment is verified. A diagram position has not been assigned.

$2.99 CAD

View buying options

HARNESS VALVES

XPart Number XP10713753

OEMWW01F01677

Model fitment is verified. A diagram position has not been assigned.

$16.99 CAD

View buying options

COLD WATER INLET HOSE ASM

XPart Number XP10787827

OEMWW01F01987

Model fitment is verified. A diagram position has not been assigned.

View buying options

KNOB CONTROL

XPart Number XP10808867

OEMWW01L01637

Model fitment is verified. A diagram position has not been assigned.

View buying options

KNOB ROTARY

XPart Number XP10808869

OEMWW01L01634

Model fitment is verified. A diagram position has not been assigned.

View buying options

Choose a diagram or section

Parts for LMA78115VBAB04
