GENUINE OEM REPLACEMENT PART

WW01F01784 – Washer Won’t Spin, Spins Slowly, or Leaves Clothes Soaking Wet? The Motor Clutch Is Worn Out.

Part# WW01F01784 Replaces 233D2193P001 · WH05X24185 · EAP11774705 GE · Hotpoint · Kenmore Motor Clutch Assembly | OEM

The motor clutch is the friction-based coupling between the drive motor and the spin basket on GE top-load washers. It uses wear pads — similar to brake pads — to progressively engage the spin tub as the motor ramps up. Over time these pads thin from normal use. As they wear, the clutch loses grip: the motor runs at full speed but the tub spins slowly or not at all, leaving clothes dripping wet after every cycle. The grinding or scraping noise you hear is worn friction material struggling to engage. A burning rubber smell means the clutch is slipping so badly it’s overheating. There is no repair — the clutch must be replaced as a complete assembly. Part WW01F01784 is the genuine OEM GE motor clutch for compatible GE, Hotpoint, and Kenmore top-load washers, replacing 233D2193P001 and WH05X24185.

⚠️ Also Check: Before ordering, verify the drive belt is intact (a broken belt causes identical no-spin symptoms) and confirm the lid switch has continuity — a failed lid switch prevents spin engagement entirely. If the motor hums but nothing moves at all, check the motor coupling first.

⚠️ Symptoms This Part Fixes

  • Washer won’t spin at all — motor runs but tub doesn’t rotate
  • Washer spins slowly — doesn’t reach full spin speed
  • Clothes come out soaking wet after the spin cycle
  • Grinding or scraping noise during spin
  • Squealing noise when the spin cycle starts
  • Burning rubber smell during spin
  • Washer takes a very long time to ramp up to spin speed
  • Spin cycle sounds louder than it used to
  • Tub spins intermittently — starts and stops during spin
  • Washer agitates normally but spin is weak or absent
  • Spin speed has gradually decreased over weeks or months
  • Washer vibrates excessively during spin (slow spin not extracting enough water)
  • Water remaining in the tub after spin cycle completes
  • Clutch visibly worn — friction material thin or missing (visible from underneath)

✓ Part Details

  • OEM Part Number: WW01F01784
  • Replaces / Cross-References: 233D2193P001, WH05X24185, EAP11774705, PS11774705
  • Component: Motor clutch assembly — friction pad engagement between drive motor and spin basket
  • Diagram Reference: Item #354 in parts diagram
  • Compatible Brands: GE, General Electric, Hotpoint, Kenmore
  • Condition: Genuine OEM — complete assembly with new friction pads, spring mechanism, and housing

⚙️ Installation Notes

  • Skill Level: Intermediate — 30 to 50 minutes
  • Disconnect power before starting
  • Lay the washer on its back or side to access the clutch from underneath
  • Remove the drive belt from the motor pulley and transmission pulley
  • The clutch assembly is mounted on the transmission input shaft — remove the retaining clip or bolt and slide the old clutch off
  • Slide the new WW01F01784 onto the shaft in the same orientation, reinstall the retaining hardware, and reinstall the belt
  • Stand the washer upright, restore power, and run a spin-only cycle to confirm full spin speed
  • While the washer is on its back, inspect the drive belt for cracks or glazing and the motor coupling for damage — replace either if worn

✓ Compatible Models

Fits GE, Hotpoint, and Kenmore top-load washers including: CLME71214BAT00, GTW220BMK0WW, GTW220BMK1WW, GTW220BMM0WW, GTW220BMM1WW, GTW223BMR0WW, GTW302BMP0WW, GTW302BMP1WW, GTW330BMK0WW, GTW330BMK1WW, GTW330BMM0WW, GTW330BMM1WW, GTW331BMR0WS, GTW451BMR0WS, GTW460BMK0WW, GTW460BMK1WW, GTW460BMM0WW, GTW460BMM1WW, GTW465BMK0WS, GTW465BMK1WS, GTW465BMM0WS, GTW465BMM1WS, GTW470BMM0DG, GTW470BMM1DG, GTW485BMK0WS, GTW485BMK1WS, GTW485BMM0WS, GTW485BMM1WS, GTW490BMR0WS, GTW495DMN0WS, GTW495DMN1WS, GTW550BMR0WS, GTW560BMM0WW, GTW560BMM1WW, GTW575BMM0WS, GTW575BMM1WS, GTW580BMR0WS, GTW680BMK0DG, GTW680BMK0WS, GTW680BMM0DG, GTW680BMM0WS, GTW680BMM1DG, GTW680BMM1WS, GTW680BMR0DG, GTW680BMR0WS, GTW685BMR0WS, GUD24ESMM0WW, GUD24ESSM0WW, GUD24GSSM0WW, GUD27EEMN0WW, GUD27ESMM0WW, GUD27ESMM1WW, GUD27ESPM0DG, GUD27ESPM1DG, GUD27ESSM0WW, GUD27ESSM1WW, GUD27GSPM0DG, GUD27GSPM1DG, GUD27GSSM0WW, GUD27GSSM2WW, GUD37EEMN0DG, GUD37ESMM0DG, GUD37ESMM1DG, HTW200BMK0WW, HTW200BMM0WW, MTW200BMK0WW, MTW200BMM0WW, MTW200BMM1WW, MTW201BMR0WW, UV27ESSM1WW, XLW39FGTWB00, XLW39FGTWB01, XLW39GGTWB00, XLW39GGTWB01, XUD27ESSM1WW, XUD27GSSM1WW, and many LMA, LMH, LMC, LMP, LIA, LGA, WMA, WMH series models.

Don’t see your model? Contact us with your full model number and we’ll verify fit before you order.

💡 Pro Tip — Clothes Still Wet? Rule Out These Before Replacing the Clutch:
A worn clutch is the most common cause of slow spin on GE top-loaders, but three other issues produce identical symptoms. Broken drive belt — no spin at all; check for cracks or a belt lying loose in the cabinet. Failed lid switch — prevents spin engagement entirely; test for continuity with a multimeter. Drain problem — if the tub doesn’t fully drain before spin, the water weight prevents the tub from reaching speed; listen for the drain pump and check for clogs. If agitation is normal but spin is weak or absent and you hear grinding or smell burning rubber, the clutch is your diagnosis.
WW01F01784 – GE Washer Motor Clutch Parts Diagram

✅Compatibility & Cross Reference

Item #354 in diagram.

Part number WW01F01784 replaces 233D2193P001, EAP11774705, PS11774705, WH05X24185

CLME71214BAT00, GTW220BMK0WW, GTW220BMK1WW, GTW220BMM0WW, GTW220BMM1WW, GTW223BMR0WW, GTW302BMP0WW, GTW302BMP1WW, GTW330BMK0WW, GTW330BMK1WW, GTW330BMM0WW, GTW330BMM1WW, GTW331BMR0WS, GTW451BMR0WS, GTW460BMK0WW, GTW460BMK1WW, GTW460BMM0WW, GTW460BMM1WW, GTW465BMK0WS, GTW465BMK1WS, GTW465BMM0WS, GTW465BMM1WS, GTW470BMM0DG, GTW470BMM1DG, GTW485BMK0WS, GTW485BMK1WS, GTW485BMM0WS, GTW485BMM1WS, GTW490BMR0WS, GTW495DMN0WS, GTW495DMN1WS, GTW550BMR0WS, GTW560BMM0WW, GTW560BMM1WW, GTW575BMM0WS, GTW575BMM1WS, GTW580BMR0WS, GTW680BMK0DG, GTW680BMK0WS, GTW680BMM0DG, GTW680BMM0WS, GTW680BMM1DG, GTW680BMM1WS, GTW680BMR0DG, GTW680BMR0WS, GTW685BMR0WS, GUD24ESMM0WW, GUD24ESSM0WW, GUD24GSSM0WW, GUD27EEMN0WW, GUD27ESMM0WW, GUD27ESMM1WW, GUD27ESPM0DG, GUD27ESPM1DG, GUD27ESSM0WW, GUD27ESSM1WW, GUD27GSPM0DG, GUD27GSPM1DG, GUD27GSSM0WW, GUD27GSSM2WW, GUD37EEMN0DG, GUD37ESMM0DG, GUD37ESMM1DG, UV27ESSM1WW, GXCA19011AD00, GXCH20011AD00, HTW200BMK0WW, HTW200BMM0WW, LEA79115CBAB00, LEA79115CBAB01, LEA79115CBAB02, LEA79115CBAB03, LGA71113CBCS00, LGA71113CBCS01, LGA71113CBCU00, LGA71115CBCU00, LGA71215CBAB00, LGA71215CBAB01, LGA77115CBAB00, LGA77115CBAB01, LGA77115CBAB02, LGA79003CBFU00, LGA79003CBFU10, LGA79003CBFU11, LGA79005CBFU00, LGA79113CBAB00, LGA79113CBAB01, LGA79113CBDB00, LGA79113CBDB01, LGA79115CBBU00, LGA79115CBCS00, LGH70203SBBU00, LGH70203SBCS00, LGH72103CBFU00, LGH72105WBFU00, LGH72201WBAB00, LGH72201WBAB01, LGH72205WBBU00, LIA70213CBAB00, LIA70213CBAB01, LIA71214CBAB00, LIA71214CBAB01, LMA70213CBAB00, LMA70213CBAB01, LMA70213CBAB02, LMA70213VBAB00, LMA70213VBAB01, LMA70213VBAB02, LMA70214VBAB00, LMA70214VBAB01, LMA70214VBAB02, LMA70214VBAB03, LMA70215VBAB00, LMA70215VBAB01, LMA70215VBAB02, LMA70215WBAB00, LMA71113CBCU00, LMA71113CBCU01, LMA71113CBCU02, LMA71115CBCU00, LMA71115CBCU01, LMA71115CBCU02, LMA71214VBAB00, LMA71214VBAB01, LMA71214VBAB02, LMA71214VBAB03, LMA71215VBAB00, LMA71215VBAB01, LMA71215VBAB02, LMA71215WBAB00, LMA71215WGAB00, LMA71215WGAB01, LMA72215CBAB00, LMA72215CBAB01, LMA72215CBAB02, LMA72215WBAB00, LMA74215WBAB00, LMA74215WBAB01, LMA74215WBAB02, LMA74215WDAB00, LMA78115VBAB00, LMA78115VBAB01, LMA78115VBAB02, LMA78115VBAB03, LMA78115VBAB04, LMA78115VGAB00, LMA78115VGAB01, LMA78115VGAB02, LMA79003CBFU00, LMA79004CBFU00, LMA79005CBFU00,,LMA79005WBFU00, LMA79115CBBU00, LMA79115CBBU01, LMA79115CBBU02, LMA79115CBBU03, LMA79115CBBU04, LMA79115CBCS00, LMA79115CBCS01, LMA79115CBCS02, LMA79115CBCS10, LMA79115CBCS11, LMA79115CBDK00, LMA79115CBDK01, LMA79115CBDK03, LMA79115CBDK10, LMA79115CBEK00, LMA79115CBEK02, LMA79115CBEK03, LMA79115CBEK10, LMA79115CBEK11, LMA79115VBAB00, LMA79115VBAB01, LMA79115VBAB02, LMA79115VBBU00, LMA79115VBBU01, LMA79115VBBU02, LMA79115VBCS00, LMA79115VBCS01, LMA79115VBCS02, LMA79115VBCS03, LMA79115VBCU00, LMA79115VBCU01, LMC70201WGAB00, LMC70201WGAB01, LMC72201WGAB00, LMC72201WGAB01, LMC72201WGAB02, LMC72205WGAB00, LMC72205WGAB01, LMC74201WDAB00, LMC74201WDAB01, LMH70201WBAB00, LMH70201WBAB01, LMH70201WBAB02, LMH70201WBAB03, LMH70201WBAB04, LMH70201WBBU00, LMH70201WBBU01, LMH70201WBCS00, LMH70201WBCS01, LMH70201WBCU00, LMH70201WBCU01, LMH70201WGAB00, LMH70201WGAB01, LMH70201WGAB02, LMH70201WGBB00, LMH70201WGBU00, LMH70201WGCL00, and LMH70201WGCL01, LMH70201WGCS01, LMH70201WGCU00, LMH70201WGCU01, LMH70201WGDK00, LMH70201WGDK01, LMH70201WGDK02, LMH70201WGEB00, LMH70203SBBU00, LMH70203SBCS00, LMH70203SBDB00, LMH70203SBEB00, LMH70203WBAB00, LMH70203WBAB01, LMH70203WBAB02, LMH70203WBAB03, LMH70203WBAB04, LMH70203WDAB00, LMH70203WDAB01, LMH70203WDAB02, LMH70203WDAB10, LMH70203WGAB00, LMH70203WGAB01, LMH70203WGAB02, LMH70203WGAB03, LMH72101SBFU00, LMH72101SBFU10, LMH72101SBFU11, LMH72101WBFU00, LMH72101WDFU00, LMH72105CBFU00, LMH72201WBAB00, LMH72201WBAB01, LMH72201WBAB02, LMH72201WBAB03, LMH72201WBAB04, LMH72201WDBB00, LMH72201WGAB00, LMH72201WGAB01, LMH72201WGAB02, LMH72201WGAB03, LMH72205SBAB00, LMH72205SBAB01, LMH72205SBAB02, LMH72205SBAB03, LMH72205SBAB04, LMH72205SBAB05, LMH72205SBBU00, LMH72205WBAB00, LMH72205WBAB01, LMH72205WBAB02, LMH72205WBAB03, LMH72205WBAB04, LMH72205WBAB05, LMH72205WBBK00, LMH72205WBBK01, LMH72205WDAB00, LMH72205WDAB01, LMH72205WDAB02, LMH72205WDAB03, LMH72205WDAB04, LMH72205WGAB00, LMH72205WGAB01, LMH72205WGAB02, LMH72205WGAB03, LMH72205WGBK00, LMH74201WDAB00, LMH74201WDAB01, LMH74201WDAB02, LMH74201WDAB03, LMH74201WDAB04, LMH74201WGBU00, LMH78103SBAB00, LMH78103SBAB01, LMH78103SBAB02, LMH78103SBAB03, LMH78103SBAB04, LMH78103SBBU00, LMH78103SBBU01, LMH78103SBBU02, LMH78103SBCS00, LMH78103SBCS01, LMH78103SBDK00, LMH78103SBDK01, LMH78103SBDK02, LMH79104SBAB00, LMH79104SBAB01, LMH79104SBAB03, LMH79104SBAB04, LMH79104SBAB05, LMH79104WBAB00, LMH79104WBAB01, LMH79104WBAB02, LMH79104WBAB03, LMH79104WBAB04, LMH79104WRAB00, MH79104WRAB01, LMH79104WRAB02, LMP74201WDAB00, MTW200BMK0WW, MTW200BMM0WW, MTW200BMM1WW, MTW201BMR0WW, WEA79115CBAB00, WEA79115CBAB01, WEA79115CBAB02, WEA79115CBAB03, WMA71214CBCS00, WMA71214CBCS01, WMA71214CBCS02, WMA71214CBDB00, WMA71214CBDB01, WMA71214CBDB02, WMA71214CBEB00, WMA71214CBEB01, WMA71214CBEB02, WMA72215CDDB00, WMA72215CGCS00, WMA72215CGCS01, WMA72215CGDB00, WMA72215CGDB01, WMA72215CGEB00, WMA72215CGEB01, WMH70201WBAB00, WMH70201WBAB01, WMH70201WBAB02, WMH74201WDAB00, WMH74201WDAB01, WMH79104SBAB00, WMH79104SBAB01, WMH79104SBAB02, WMH79104SBAB03, WMH79104WBAB00, WMH79104WBAB01, WMH79104WBAB02, WMH79104WBAB03, XLW39FGTWB00, XLW39FGTWB01, XLW39GGTWB00, XLW39GGTWB01, XUD27ESSM1WW, XUD27GSSM1WW

WW01F01784, GE washer clutch, washer motor clutch, washer won't spin, washer spins slowly, GE washer spin problem, washer clutch replacement, washer grinding noise spin, washer clothes soaking wet, GE top load washer clutch, Hotpoint washer clutch, Kenmore washer clutch, washer drive clutch, washer clutch assembly, washer spin clutch, washer clutch worn out, washer slow spin, washer clutch noise, GE washer repair, washer clutch slipping

Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.

What Customers Say About XPart Supply

4.82 ★ (252)
Verified

Buy Online Pick Up In-Store

Address
101 Trillium Dr
Kitchener, Ontario N2E 1W8
Phone
1-877-899-7278
Hours
Mon–Fri 9 AM–5 PM • Sat 9 AM–1 PM
Get Directions
Map showing warehouse location at 101 Trillium Dr, Kitchener
View on Google Maps
GE Washer Spring Shifter WW01A00053 – Genuine OEM

GE Washer Spring Shifter WW01A00053 – Genuine OEM

$5.91
GE WW01F01756 Washer Drive Belt — Won't Spin or Agitate? OEM & XPart Replacement

GE WW01F01756 Washer Drive Belt — Won't Spin or Agitate? OEM & XPart Replacement

$36.25 $19.99

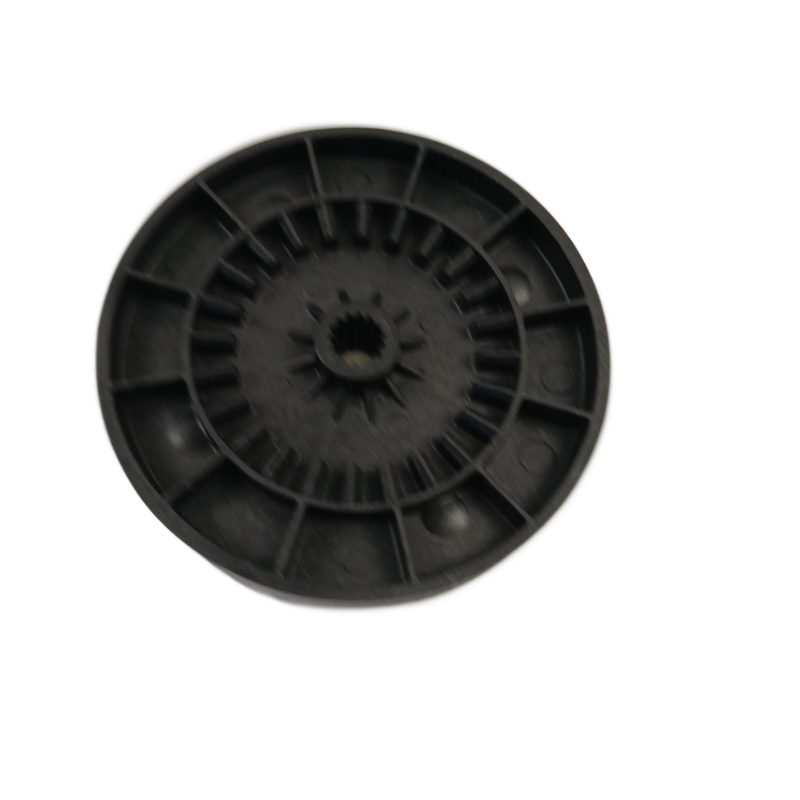

GE Washer Transmission Pulley WW01F01787 (Replaces WG04F09371, WH07X24183)
