GE Washer LMA71215VBAB02 Parts
Model: LMA71215VBAB02
Browse this model’s parts or select a diagram to see its matching parts beside the drawing.
No matching verified parts in this model. Check the complete part number or try a description.
Parts for LMA71215VBAB02
Diagram section

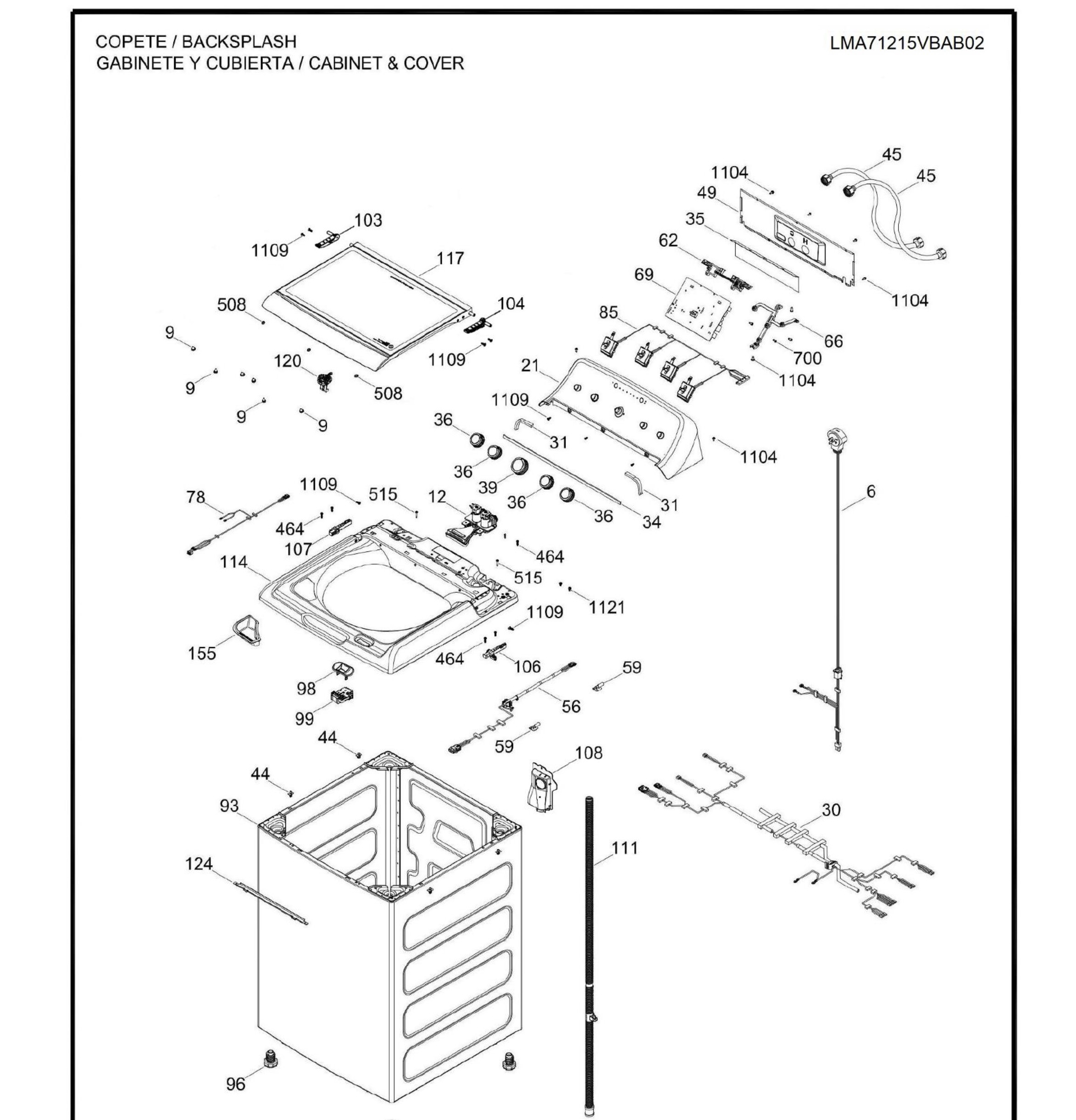

Exploded View 1
This diagram could not load. The verified parts remain available.
Only verified parts currently linked to this section are shown. More parts are being added.
Item9
Item12
Item35
Item36
Item44
Item45
Item56
Item59
Item62
Item66
Item78
Item85
Item96
Item98
Item99
Item103
Item104
Item107
Item108
Item114
Item120
Item124
Item155
Item464
Item515
Item1104
Item1109
Item1121
No matching parts in this section. Clear your search or choose All model parts.
Diagram section

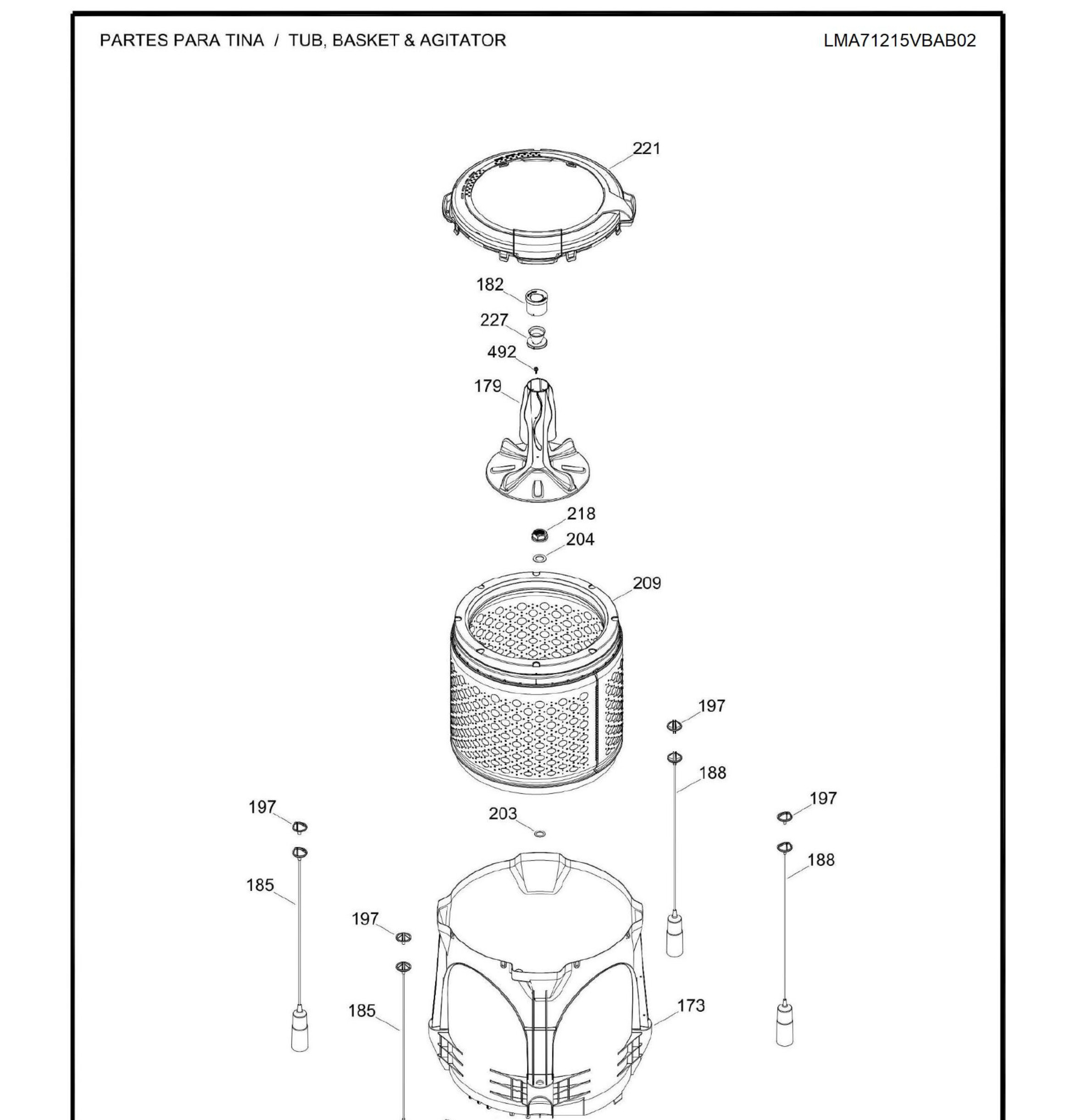

Exploded View 2
This diagram could not load. The verified parts remain available.
Only verified parts currently linked to this section are shown. More parts are being added.
Item173
Item179
Item182
Item188
Item209
Item218
Item221
Item227
Item492
No matching parts in this section. Clear your search or choose All model parts.
Diagram section

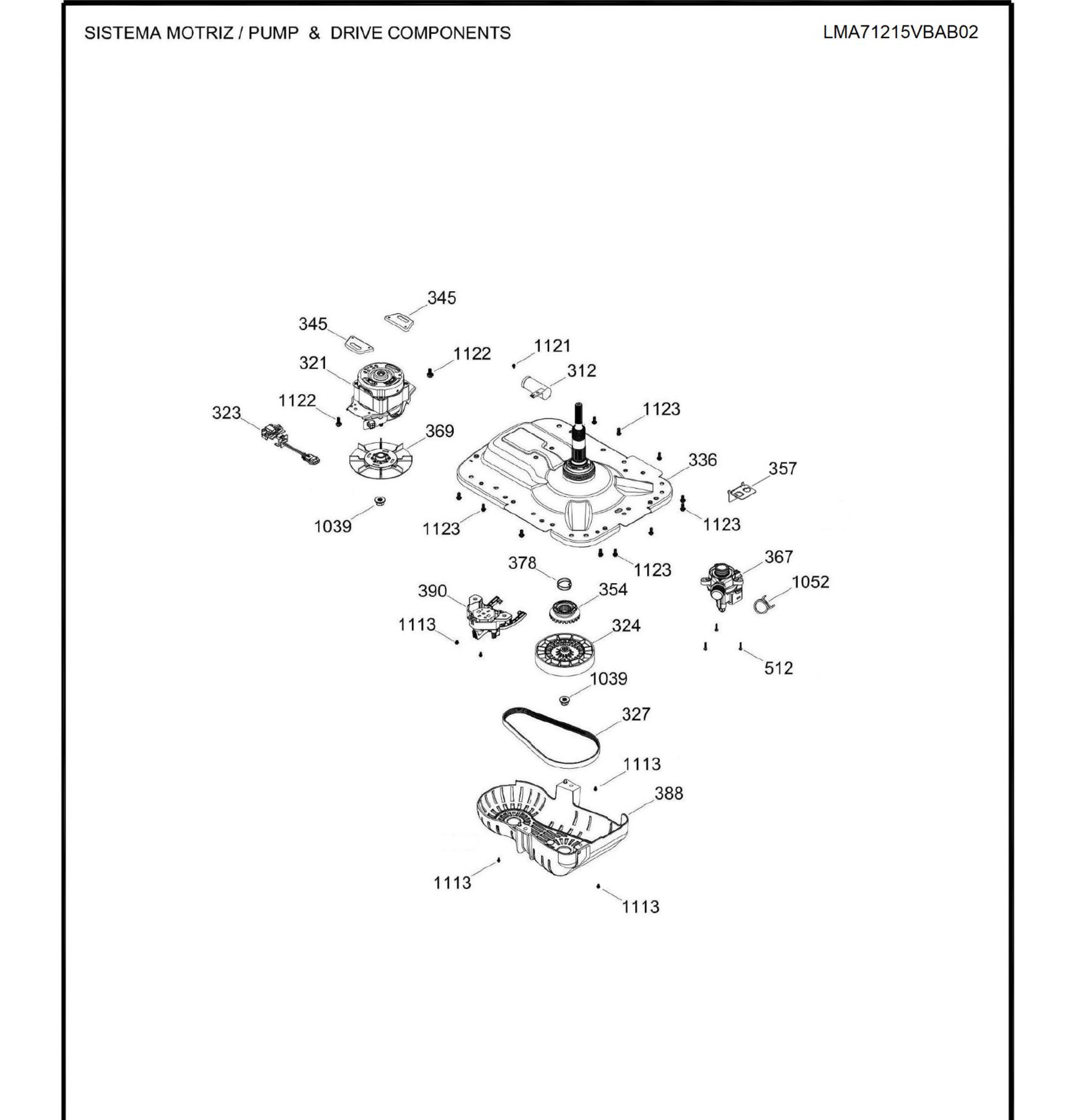

Exploded View 3
This diagram could not load. The verified parts remain available.
Only verified parts currently linked to this section are shown. More parts are being added.
Item323
Item324
Item327
Item336
Item345
Item354
Item357
Item378
Item390
Item512
Item1039
Item1052
Item1113
Item1121
Item1122
Item1123
No matching parts in this section. Clear your search or choose All model parts.
Parts group
More verified model parts
This diagram could not load. The verified parts remain available.
Only verified parts currently linked to this section are shown. More parts are being added.
XPart Number XP10000527
OEMWW01F01789
Model fitment is verified. A diagram position has not been assigned.
XPart Number XP10004445
OEMWG04L05385
Model fitment is verified. A diagram position has not been assigned.
XPart Number XP10005635
OEMWW01A00637
Model fitment is verified. A diagram position has not been assigned.
XPart Number XP10011053
OEMWW01F01788
Model fitment is verified. A diagram position has not been assigned.
XPart Number XP10011326
OEMWW01F01681
Model fitment is verified. A diagram position has not been assigned.
XPart Number XP10399358
OEMWW01A00653
Model fitment is verified. A diagram position has not been assigned.
XPart Number XP10549938
OEMWW01A00643
Model fitment is verified. A diagram position has not been assigned.
XPart Number XP10705045
OEMWW01A00582
Model fitment is verified. A diagram position has not been assigned.
XPart Number XP10712755
OEMWW01F01680
Model fitment is verified. A diagram position has not been assigned.
XPart Number XP10713618
OEMWW01L01630
Model fitment is verified. A diagram position has not been assigned.
No matching parts in this section. Clear your search or choose All model parts.
