Oven Burner Not Heating? Surface Element WG02F05393 – Fix Dead Coil Fast

If your GE electric range has a burner that won't heat, heats unevenly, or glows red in only one spot, the coil surface element is the most common cause. In most GE electric ranges, the 8" surface element is a high-cycle wear component that eventually burns out or develops an open circuit. When it fails, the burner produces no heat at all, heats only partially, or trips the breaker during use. ⚡ Common failure point in GE and compatible electric ranges. Part WG02F05393 is the direct-fit OEM replacement — and our XPart alternative (CM30T10074) delivers the same 8" / 2400W spec at a lower price point.

❓ Is This the Right Part?

This is the correct fix if ALL of the following are true:

• ✔ Range powers on and other burners work normally
• ✔ The infinite switch (burner control knob) clicks and turns freely
• ✔ The burner receptacle block shows no visible burn damage or melting
• ✔ The circuit breaker for the range has not tripped
• ✔ ONLY problem is one 8" burner produces no heat or heats unevenly

Not sure? Send us your model number — we'll confirm before you order.

🔧 Common Symptoms

• 8" burner won't heat at any setting — most common complaint
• Burner glows red in one section only, not evenly across the coil
• Burner heats on low but cuts out on high
• Visible break, crack, or blister in the coil element
• Burning smell or smoke from the burner area without food contact
• Breaker trips when that specific burner is turned on

✔ If these symptoms match, the surface element is the most likely failed component in the system.

✔ In most cases, replacing the coil surface element restores full burner operation immediately.

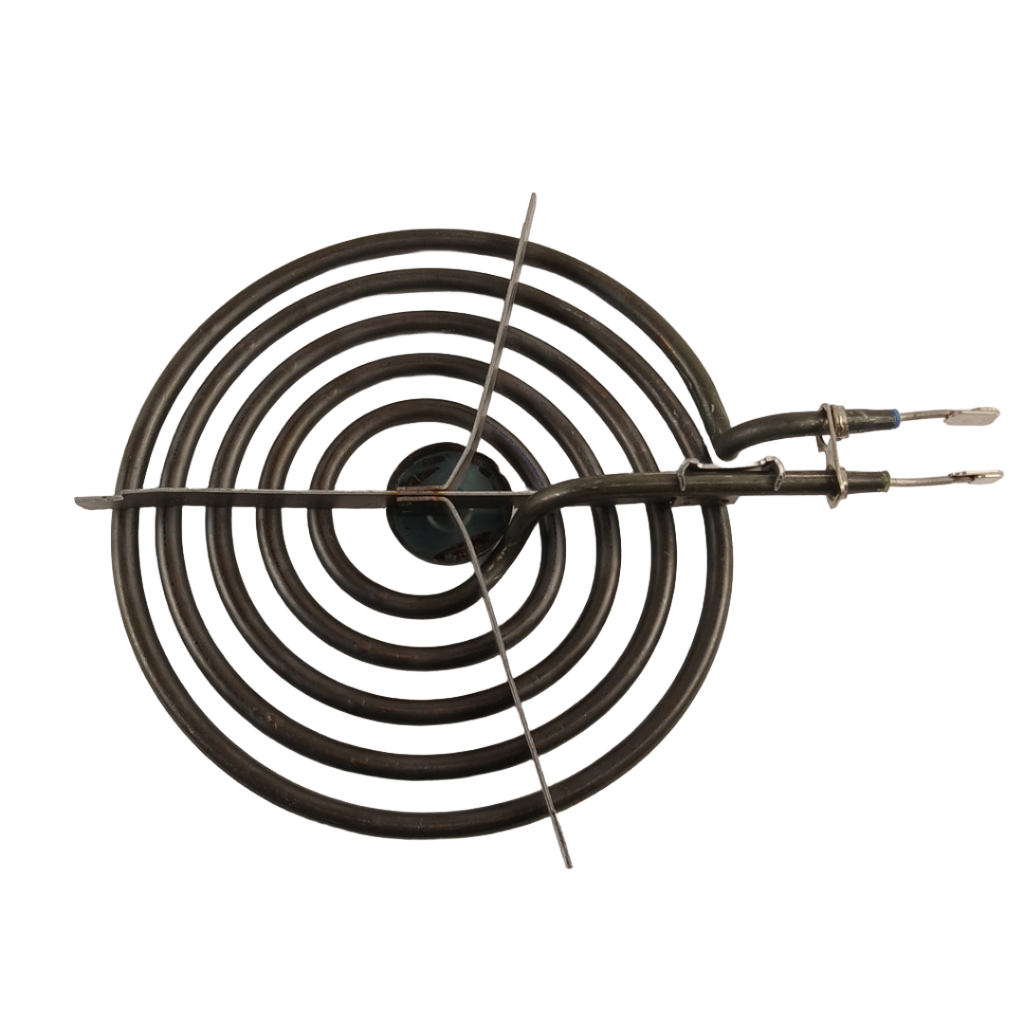

📦 Part Details

• Part Number: WG02F05393
• Type: 8" coil surface element — 2400W, plug-in style with drip bowl spade terminals
• Replaces: OEM direct-fit surface element — supersedes WB30M264 (no modification required)
• Brands: GE, Hotpoint, RCA, and compatible electric ranges

⚙️ Installation

Skill Level: Easy — 5 minutes. No tools required and no need to unplug the range for element removal, but always turn the burner control to OFF before handling. Lift the element slightly, pull the two prongs straight out of the receptacle block, plug the new element in until fully seated, and lower it onto the drip bowl. Turn on and verify even red glow across the full coil.

✓ Compatible Models

Confirmed compatible with 31-2649-00-09, plus additional GE and compatible electric range models. Contact us to verify your model number before ordering.
