GE Range Surface Element Receptacle WG02A00459 — Fixes Burner Not Heating / Restores Electrical Connection — U.S. Cross-Reference WB2X8228

WG02A00459 Range Surface Element Receptacle (WS01F00759, WS01A00907, WS01F06840, WS01F06841, WS01F06842, WS01F06843)

GE Range Surface Element Receptacle WG02A00459 — Fixes Burner Not Heating / Restores Electrical Connection — U.S. Cross-Reference WB2X8228

Price: $34.95

Buying Options: OEM

XPart

$14.99

OEM

$34.95

Product variant with selected options does not exist!

Frequently Bought Together

GE Range Surface Element Receptacle WG02A00459 — Fixes Burner Not Heating / Restores Electrical Connection — U.S. Cross-Reference WB2X8228

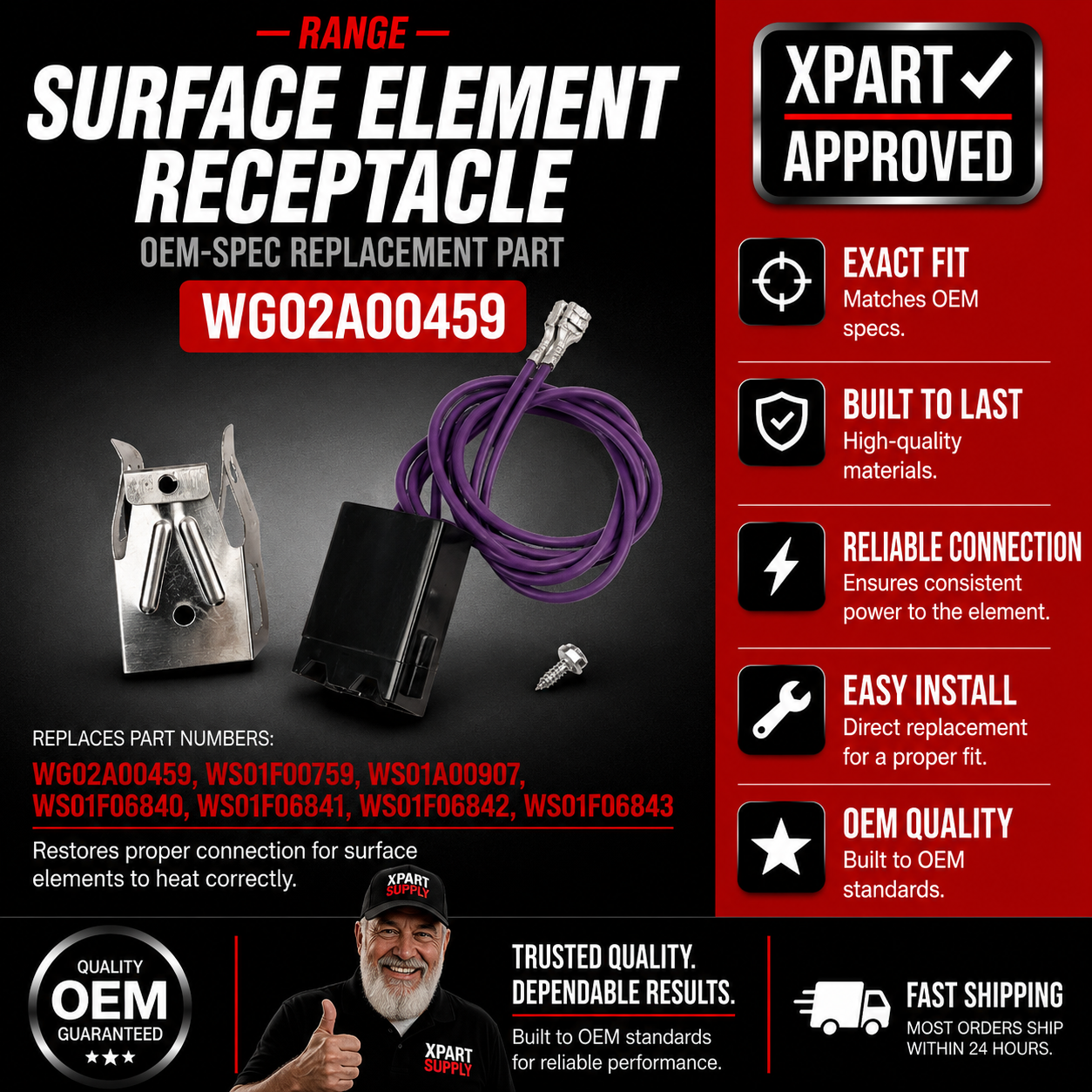

WG02A00459 is a genuine GE range surface-element receptacle. The matching U.S. service number is WB2X8228.

The receptacle connects a plug-in coil surface element to the range wiring. Burned contacts, loose terminals or heat-damaged wiring may cause the burner not to heat, operate intermittently or arc near the element connection.

Similar symptoms can also result from a failed surface element, infinite switch, damaged wiring or an electrical-supply problem. Confirm the complete range model and inspect both the receptacle and the element terminals before ordering.

⚠️ Safety: Disconnect electrical power at the circuit breaker before service. Replace any burned or damaged mating terminals rather than connecting a new receptacle to a heat-damaged element. Connector design, lead length and mounting position vary by model — confirm exact fitment before installation.

❓ Is This the Right Part?

This is the correct fix if ALL of the following are true:

✔ Range powers on and other burners or oven functions operate normally
✔ The surface element itself has been tested or swapped and is confirmed good
✔ Visible burning, arcing, pitting or heat damage is present at the receptacle terminals
✔ ONLY problem is one surface burner not heating or heating intermittently

Not sure? Send us your model number — we’ll confirm before you order.

🔧 Common Symptoms

Surface burner does not heat at all
Burner heats intermittently or only at certain settings
Visible burn marks, pitting or arcing at the element connection point
Burning smell from the surface element area
Element wobbles or does not seat securely in the receptacle

✔ If these symptoms match, this is the most likely failed component in the system.

✔ In most cases, replacing the receptacle restores reliable surface element power.

📦 Part Details

Canadian Part Number: WG02A00459 (current)
U.S. Cross-Reference: WB2X8228 (current U.S. regional equivalent)
Replaces: WB02X8228, WB62X5358, WB62X5393, WB62X5394, WB62X5397, WB62X5401, WB62X5405
Related Components: WS01F00759 (block), WS01A00907 (clip), WS01F06840–WS01F06843 (harness assemblies) — related service parts, pending confirmed supersession documentation
Compatible Elements: WS01F01189, WS01F04016
Brands: GE, Mabe, Hotpoint, RCA
OEM: Genuine GE replacement part
Diagram Reference: Item #83 in the range parts diagram

⚙️ Installation Notes

Skill Level: Easy — 15–20 minutes. Disconnect electrical power at the circuit breaker before servicing. Access the surface element area per your model’s service procedure. Remove the element, unplug the old receptacle from the wiring harness, and install the replacement. Connector design, lead length and mounting position vary by model — confirm exact fitment before installation. Reconnect the element and restore power to test.

💡 Pro Tip

Inspect the Element Terminals Too:
If the receptacle terminals show burning or arcing damage, inspect the element terminals as well. A damaged element can cause receptacle failure, and a damaged receptacle can damage a new element. Replace any burned or damaged mating terminals at the same time to ensure a reliable repair.

JBP19BC1WH, JBP19BB1, JBP15WJ2WW, JBP15WJ1WW, JBP15CJ2CC, JBP15CJ1CC, JBP15BJ2BB, JBP15BJ1BB, JBC27GW2, JBC27GW1AD, JBC27GW1, JBC27BY3, JBC27BY2, JBC27BY1, JBC17GV3, JBC17GV1, JBC17GS2, JBC17GS1, JBC17GR3, JBC16GR3, JAS02SN1SS, ABS300K1BB, ABS300J1WW, 155910, 154510

WG02A00459 – GE Range Surface Element Receptacle

✅Compatibility & Cross Reference

WB02X8228, WB62X5358, WB62X5393, WB62X5394, WB62X5397, WB62X5401, WB62X5405, WB2X8228 (U.S. regional equivalent)

36261741000, 36261742000, 36261748000, 36262492000, 36262781000, 36262788000, 36291201000, 36291208000, 36291211000, 36291218000, 9114282790, 91193401993, 91193712021, 154510, 155910, ABS300J1WW, ABS300K1BB, JAS02SN1SS, JBC16GR3, JBC17GR3, JBC17GS1, JBC17GS2, JBC17GV1, JBC17GV3, JBC27BY1, JBC27BY2, JBC27BY3, JBC27GW1, JBC27GW1AD, JBC27GW2, JBP15BJ1BB, JBP15BJ2BB, JBP15CJ1CC, JBP15CJ2CC, JBP15WJ1WW, JBP15WJ2WW, JBP19BB1, JBP19BC1WH, JBP19BY1, JBP19BY2, JBP19BY3, JBP19BY4, JBP19GS1, JBP19GS2, JBP19GV1, JBP19GV2, JBP20GS1, JBP21BB1, JBP21BC1AD, JBP21BC1CT, JBP21BC1WH, JBP21BC2AD, JBP21BC2CT, JBP21BC2WH, JBP21BC3AD, JBP21BC3CT, JBP21BC3WH, JBP21BC4AD, JBP21BC4WH, JBP21BH1CT, JBP21BH1WH, JBP21BH2CT, JBP21BH2WH, JBP21BY1, JBP21BY2, JBP21BY3, JBP21BY4, JBP21GS1, JBP21GS2, JBP21GV1, JBP21GV2, JBP21SV1, JBP21SV2, JBP21WA1, JBP21WB1, JBP21WC1WW, JBP21WC2WW, JBP21WC3WW, JBP21WC4WW, JBP21WH1WW, JBP21WH2WW, JBP22BK1CT, JBP22BK1WH, JBP22BK2CT, JBP22BK2WH, JBP22DA1, JBP22GES1, JBP22GES2, JBP22GR3, JBP22R3, JBP22S1, JBP22S2, JBP22V1, JBP23GS1, JBP23GS2, JBP23GV1, JBP23GV2, JBP24BB1CT, JBP24BY1, JBP24BY2, JBP24BY3, JBP24BY4, JBP24DB1CT, JBP24DW1, JBP24DY1, JBP24DY2, JBP24DY3, JBP24DY4, JBP24GR3, JBP24GS1, JBP24GS2, JBP24GV1, JBP24GV2, JBP24GW1, JBP25GR3, JBP25GS1, JBP25GS2, JBP25GV1, JBP25GV2, JBP25WY1, JBP25WY2, JBP25WY3, JBP25WY4, JBP26AV1, JBP26AV2, JBP26AV3, JBP26AY1, JBP26AY2, JBP26AY3, JBP26AY4, JBP26AY5, JBP26AY6, JBP26AY7, JBP26BY1, JBP26BY2, JBP26BY3, JBP26BY4, JBP26BY5, JBP26BY6, JBP26BY7, JBP26GR3, JBP26GS1, JBP26GS2, JBP26GV2, JBP26GV3, JBP26WT1, JBP26WV1, JBP26WV2, JBP26WY1, JBP26WY2, JBP26WY3, JBP26WY4, JBP26WY5, JBP26WY6, JBP26WY7, JBP27BL1BB, JBP27CL1CC, JBP27GR3, JBP27WL1WW, JBP28GR3, JBP30AA1, JBP30AA2, JBP30AA3, JBP30AA4, JBP30BA1, JBP30BA2, JBP30BA3, JBP30BA4, JBP30BB1CT, JBP30BB4WH, JBP30CB1CC, JBP30GY1AD, JBP30GY1WH, JBP30WA1, JBP30WA2, JBP30WA3, JBP30WA4, JBP30WB4WW, JBP30WY1, JBP35CD1CC, JBP35ED1BB, JBP45AS1, JBP45AS2, JBP45AV1, JBP45AV2, JBP45AW1, JBP45GR3, JBP45GS1, JBP45GS2, JBP45GV1, JBP45GV2, JBP45WS1, JBP45WS2, JBP45WV1, JBP45WV2, JBP45WW1, JBP46GIV1, JBP46GS1, JBP46GS2, JBP46GV1, JBP46GV2, JBP46GV3, JBP46WIY2, JBP46WIY3, JBP46WIY4, JBP47GS1, JBP47GS2, JBP47GV1, JBP47GV2, JBP48AA1, JBP48AA2, JBP48AA3, JBP48AA4, JBP48AB4AA, JBP48AB5AA, JBP48AY1, JBP48BA1, JBP48BA2, JBP48BA3, JBP48BB4BB, JBP48BB5BB, JBP48CB1CC, JBP48GS1, JBP48GS2, JBP48GV1, JBP48WA1, JBP48WA2, JBP48WA3, JBP48WA4, JBP48WB4WW, JBP48WB5WW, JBP48WY1, JBP55GR3, JBP55GS1, JBP55GS2, JBP56GR3, JBP56GS1, JBP56GS2, JBP58GS1, JBP58GS2, JBP80AS1, JBP80AS2, JBP80AV1, JBP80GS1, JBP80GS2, JBP80GV1, JBP80WS1, JBP80WS2, JBP80WV1, JBS02BB1, JBS02C1WH, JBS02R3, JBS02S1, JBS02S2, JBS034S1, JBS034S2, JBS034V1, JBS03BC1AD, JBS03BC1CT, JBS03BC1WH, JBS03BC2AD, JBS03BC2CT, JBS03BC2WH, JBS03BC3WH, JBS03BH2CT, JBS03BH2WH, JBS03BY1, JBS03C1AD, JBS03C1CT, JBS03C1WH, JBS03C2AD, JBS03C2CT, JBS03C2WH, JBS03C3AD, JBS03C3WH, JBS03GR3, JBS03GS1, JBS03GS2, JBS03GV1, JBS03GV2, JBS03GV3, JBS03GV4, JBS03GV5, JBS03GV6, JBS03H2CT, JBS03H2WH, JBS03R3, JBS03S1, JBS03V1, JBS03V2, JBS03V3, JBS03V4, JBS03V5, JBS06GR3, JBS06GS1, JBS06GS2, JBS06R3, JBS07C1WW, JBS07C2WW, JBS07C3WW, JBS07H1BB, JBS07H2CC, JBS07H2WW, JBS07PIY2, JBS07PIY3, JBS07T1, JBS07V1, JBS07V2, JBS07V3, JBS07V4, JBS07V5, JBS07V6, JBS08PIC1WW, JBS08PIC2WW, JBS08PIC3WW, JBS12GR3, JBS12GS1, JBS15F1CT, JBS15F1WH, JBS15F2CT, JBS15F2WH, JBS15F3CT, JBS15F3WH, JBS15H1BB, JBS15H1CC, JBS15H1WW, JBS16GR3, JBS16GS1, JBS16GS2, JBS16GV1, JBS16GV2, JBS16GV3, JBS16R3, JBS16S1, JBS16S2, JBS16V1, JBS16V2, JBS17GR3, JBS17GS1, JBS17GS2, JBS17GV1, JBS17GV2, JBS17GV3, JBS18GR3, JBS18GS1, JBS18GS2, JBS18GV1, JBS18GV2, JBS18GV3, JBS23BB1, JBS23BC1AD, JBS23BC1CT, JBS23BC1WH, JBS23BC2AD, JBS23BC2WH, JBS23BD2WH, JBS23BD3WH, JBS26C1AD, JBS26C1CT, JBS26C1WH, JBS26C2AD, JBS26C2CT, JBS26C2WH, JBS26C3CT, JBS26C3WH, JBS26C4WH, JBS26GR3, JBS26R3, JBS26S1, JBS26S2, JBS26W1, JBS26W2, JBS26W3, JBS26W4, JBS26W5, JBS27AC1AA, JBS27AC2AA, JBS27AW1, JBS27AW2, JBS27AY1, JBS27AY2, JBS27AY3, JBS27BC1AD, JBS27BC1CT, JBS27BC1WH, JBS27BC2AD, JBS27BC2CT, JBS27BC2WH, JBS27BC3CT, JBS27BC3WH, JBS27BC4WH, JBS27BH2BB, JBS27BY1, JBS27BY2, JBS27BY3, JBS27CC1CC, JBS27CC2CC, JBS27CC3CC, JBS27CH2CC, JBS27GS1, JBS27GS2, JBS27GT1, JBS27GV1, JBS27GV2, JBS27GV3, JBS27GV4, JBS27GV5, JBS27WC1WW, JBS27WC2WW, JBS27WC3WW, JBS27WC4WW, JBS27WH2WW, JBS27WW1, JBS27WW2, JBS27WY1, JBS27WY2, JBS27WY3, JCBS25J1BB, JCBS25J1WW, JCBS28WJ1WW, JCBS35WJ1WW, JCSP38BK1BB, JCSP38BK2BB, JCSP38BK3BB, JCSP38BK4BB, JCSP38DN1BB, JCSP38DN1WW, JCSP38DN2BB, JCSP38DN2WW, JCSP38DN3BB, JCSP38DN3WW, JCSP38DN4BB, JCSP38DN4WW, JCSP38WK1WW, JCSP38WK2WW, JCSP38WK3WW, JCSP38WK4WW, JDP39BK1BB, JDP39BK2BB, JDP39BK3BB, JDP39BK4BB, JDP39CK1CC, JDP39CK2CC, JDP39CK3CC, JDP39CK4CC, JDP39DN1BB, JDP39DN1CC, JDP39DN1WW, JDP39DN2BB, JDP39DN2CC, JDP39DN2WW, JDP39DN3BB, JDP39DN3CC, JDP39DN3WW, JDP39DN4BB, JDP39DN4CC, JDP39DN4WW, JDP39WK1WW, JDP39WK2WW, JDP39WK3WW, JDP39WK4WW, JDS28CK1CC, JDS28CK2CC, JDS28CK3CC, JDS28CK4CC, JDS28DF1WW, JDS28DN1WW, JDS28DN2WW, JDS28DN3WW, JDS28DN4WW, JDS28WK1WW, JDS28WK2WW, JDS28WK3WW, JDS28WK4WW, JGHP66GEN7, JP383B9R1BC, JP383B9T1BC, JP3849R1BL, JP3849T1BL, JS250RF3SS, JSP39BK2BB, RB526V4, RB753BC1AD

Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
