Surface Element Receptacle, Terminal Block, Burner Socket, Plug-In Block, Element Connector, Receptacle Kit

Part number 330031 replaces 5303935058, 08002879, 08002916, 08002917, 08002918, 08002919, 08003109, 08008697, 08008699, 08010475, 08011433, 08011962, 08012830, 08012865, 08067829, 08950054, 09957075, 1167733, 1315483, 2010222-2, 2010231-9, 203363-102, 203363-105, 203363-1050, 203363-106, 203363-901, 203363-902, 203363-903, 203363-904, 203363-905, 203363-906, 203363-907, 203363-908, 203363-909, 203363-910, 203363-911, 203363-912, 203363-913, 203363102, 203363105, 203363106, 203363901, 203363902, 203363903, 203363904, 203363905, 203363907, 203363908, 203618-1010, 203618101, 204656-1010, 2046561010, 204680-901, 204680-9010, 204680-902, 204680-9030, 204680-904, 204680-9040, 204680-9050, 204680-9060, 204680-9070, 204680901, 204680902, 2046809020, 2046809030, 2046809040, 2046809050, 2046809060, 2046809060A, 2046809080, 211495-901, 211495-9010, 211495-902, 211495-9020, 211495-903, 211495-9030, 211495-904, 211495-906, 211495-907, 211495-908, 211495901, 2114959010, 211495902, 2114959020, 211495904, 2114959040, 2114959050, 2114959060, 2114959070, 211495908, 3008769, 3016957, 3051402, 3051825, 318112500, 318366400, 355L120S01, 5301167733, 5303016957, 5303211301, 5303285957, 5303304731, 5303310284, 5303310284A, 5303912666, 709T026P01, 709T026S01, 709T026S02, 709T034P01, 709T034S01, 709T045P01, 709T045S01, 902437, A1505240, A1505979, AE042023, AP042024, G54972, G55667, K001167470, K001167733, K001315483, K001319226, K1167204, K1167205, K1167470, K1167733, K1310415, K1311332, K1312169, K1312179, K1312800, K1315200, K1315483, K1319226, K1323861, K1323982, K5043104, K5043105, K5118101, K5118102, K5118103, K5118104, K5118105, K5137801, K99-A05, K99-A06, K99-A07, K99-A08, K99A05, K99A06, K99A07, P042024, PP042024, Q000160979, Q000212097, Q000219245, Q160979, REPS-2-01, REPS201, S5303310284, WB17-M101, WB17M101, WB17M137

Whirlpool, Kenmore, Maytag, KitchenAid, Roper, Estate, Inglis, Jenn-Air, Amana

1196458010, 1196458011, 1196458110, 1196458111, 1196458112, 1196468010, 1196468011, 1196468110, 1196468111, 1196468112, 1196478010, 1196478011, 1196478110, 1196478111, 1196478112, 1196488010, 1196488011, 1196488110, 1196488111, 1196488112, 1196498210, 1196508210, 1199008710, 1199008810, 1199018710, 1199018810, 1199018811, 1199018813, 1199018883, 1199028410, 1199028510, 1199028710, 1199038710, 1199038810, 1199038811, 1199038813, 1199038883, 1199048210, 1199048211, 1199048310, 1199048710, 1199058410, 1199058510, 1199058710, 1199058810, 1199058811, 1199058813, 1199058883, 1199068010, 1199068011, 1199068012, 1199068110, 1199068111, 1199068210, 1199068710, 1199078410, 1199078510, 1199078710, 1199078810, 1199078811, 1199078813, 1199078883, 1199088210, 1199088710, 1199098410, 1199098510, 1199098710, 1199098810, 1199728310, 1199728710, 1199738410, 1199738510, 1199738710, 1199738810, 1199738991, 1199748310, 12-1238-00, 13-1238-00, 13-1247-00, 13-1278-00, 13-2620-00-01, 13-2620-00-02, 13-2620-08-02, 13-2620-23-01, 13-2620-23-02, 13-2626-00, 13-2626-00-10, 13-2626-08-10, 13-2626-23, 13-2626-23-10, 13-2626-57-10, 13-2626-66-10, 13-2629-00, 13-2689-00, 13-3028-00-02, 13-3028-08-02, 13-3028-23-02, 13-3329-00, 13-3399-00, 13-3399-00/01, (13339900/01,, 13, 3399, 00/01), 13-3620-00-01, 13-3620-00-02, 13-3620-23-01, 13-3620-23-02, 13-3621-00, 13-3626-00, 13-3626-23, 13-3628-00-01, 13-3628-00-02, 13-3628-00-03, 13-3628-00-04, 13-3628-00-05, 13-3628-00-06, 13-3628-08-01, 13-3628-08-02, 13-3628-08-03, 13-3628-08-05, 13-3628-23-01, 13-3628-23-02, 13-3628-23-03, 13-3628-23-04, 13-3628-23-05, 13-3628-23-06, 13-3628-32-04, 13-3628-32-06, 13-3628-45-01, 13-3628-57-01, 13-3628-66-01, 13-5311-00, 13-6228-00, 13-6321-00, 21-1419-00, 21KEMAWAD3, 21KEMAWAD3-23, 21KEMAWAP3, 21KEMAWAP4, 21KEMAWAP5, 24DEMBWAD4, 24KEMAWAD3, 24KEMAWAD4, 24KEMAWAD5, 30DEMBWDD1, 30DEMBWDD1-23, 30DEMDWED0, 30DEMDWED0-23, 30KEMAWAD3, 30KEMAWAD5, 31-1049-00-01, 31-1049-00-02, 31-1049-00-03, 31-1049-00-04, 31-1049-00-05, 31-1049-00-06, 31-1049-23-01, 31-1049-23-02, 31-1049-23-03, 31-1049-23-04, 31-1049-23-05, 31-1049-23-06, 31-1419-00, 31-1449-00, 31-1549-00, 31-1649-00, 31-1749-00, 31-2012-06, 31-2022-00, 31-2022-06, 31-2024-00, 31-2026-00, 31-2032-00, 31-2032-06, 31-2032-06-01, 31-2032-06-02, 31-2032-06-03, 31-2032-06-04, 31-2032-06-05, 31-2032-06-06, 31-2032-06-07, 31-2037-00, 31-2037-23, 31-2202-00, 31-2202-23, 31-2202-26, 31-2207-00-01, 31-2207-00-02, 31-2207-00-03, 31-2207-23-01, 31-2207-23-02, 31-2207-23-03, 31-2208-00-01, 31-2208-00-02, 31-2208-00-03, 31-2208-23-01, 31-2208-23-02, 31-2208-23-03, 31-2208-66-01, 31-2208-66-02, 31-2208-66-03, 31-2224-23, 31-2232-00-01, 31-2232-00-02, 31-2232-00-03, 31-2232-06, 31-2232-23-01, 31-2232-23-02, 31-2232-23-03, 31-2236-00, 31-2237-00-01, 31-2237-00-02, 31-2237-00-03, 31-2237-23-01, 31-2237-23-02, 31-2237-23-03, 31-2237-66-01, 31-2237-66-02, 31-2237-66-03, 31-2238-00, 31-2238-00-05, 31-2238-00-06, 31-2238-23, 31-2238-23-05, 31-2238-23-06, 31-2238-66-05, 31-2238-66-06, 31-2239-00-01, 31-2239-00-02, 31-2239-00-03, 31-2239-00-04, 31-2239-00-05, 31-2239-00-06, 31-2239-23-01, 31-2239-23-02, 31-2239-23-03, 31-2239-23-04, 31-2239-23-05, 31-2239-23-06, 31-2339-00-01, 31-2339-23-01, 31-2422-06, 31-2423-23, 31-2428-00, 31-2432-00, 31-2432-23, 31-2442-00-01, 31-2442-00-02, 31-2442-23-01, 31-2442-23-02, 31-2452-00-01, 31-2512-00, 31-2512-23, 31-2512-26, 31-2525-00, 31-2528-00-01, 31-2528-00-02, 31-2528-00-03, 31-2528-00-04, 31-2528-23-01, 31-2528-23-02, 31-2528-23-03, 31-2528-23-04, 31-2528-66-01, 31-2528-66-02, 31-2528-66-03, 31-2528-66-04, 31-2537-00-01, 31-2537-00-02, 31-2537-00-03, 31-2537-23-01, 31-2537-23-02, 31-2537-23-03, 31-2537-66-01, 31-2537-66-02, 31-2537-66-03, 31-2538-00-01, 31-2538-00-02, 31-2538-00-03, 31-2538-00-04, 31-2538-00-05, 31-2538-00-06, 31-2538-00-07, 31-2538-23-01, 31-2538-23-02, 31-2538-23-03, 31-2538-23-04, 31-2538-23-05, 31-2538-23-06, 31-2538-23-07, 31-2538-66-01, 31-2538-66-02, 31-2538-66-03, 31-2538-66-04, 31-2538-66-05, 31-2538-66-06, 31-2538-66-07, 31-2539-00-01, 31-2539-23-01, 31-2539-66-01, 31-2542-00, 31-2542-23, 31-2542-45, 31-2549-00-01, 31-2549-00-02, 31-2549-00-03, 31-2549-23-01, 31-2549-23-02, 31-2549-23-03, 31-2645-00, 31-2649-00-01, 31-2649-00-02, 31-2649-00-03, 31-2649-00-04, 31-2649-00-05, 31-2649-00-06, 31-2649-00-07, 31-2649-00-08, 31-2649-00-09, 31-2649-00-10, 31-2649-23-02, 31-2649-23-03, 31-2649-23-04, 31-2649-23-05, 31-2649-23-06, 31-2649-23-07, 31-2649-23-08, 31-2649-23-09, 31-2649-23-10, 31-2697-00, 31-2697-23, 31-2752-00-01, 31-2752-00-02, 31-2752-00-03, 31-2752-23-01, 31-2752-23-02, 31-2752-23-03, 31-2757-00-01, 31-2757-00-02, 31-2757-23-01, 31-2757-23-02, 31-2757-66-01, 31-2757-66-02, 31-2758-00-02, 31-2758-00-03, 31-2758-00-04, 31-2758-00-05, 31-2758-23-02, 31-2758-23-03, 31-2758-23-04, 31-2758-23-05, 31-2758-66-02, 31-2758-66-03, 31-2758-66-04, 31-2758-66-05, 31-2759, 31-2759-00-01, 31-2759-00-02, 31-2759-00-03, 31-2759-00-04, 31-2759-00-05, 31-2759-23-01, 31-2759-23-02, 31-2759-23-03, 31-2759-23-04, 31-2759-23-05, 31-2769-00-01, 31-2769-23-01, 31-2849-00, 31-2852-00-01, 31-2852-00-02, 31-2852-00-03, 31-2852-23-01, 31-2852-23-02, 31-2852-23-03, 31-2862-00-01, 31-2862-00-02, 31-2872-23-01, 31-2872-23-02, 31-2872-23-03, 31-3026-00, 31-3026-23, 31-3138-00-05, 31-3138-23-05, 31-3138-66-05, 31-3226-00, 31-3226-23, 31-3342-00-01, 31-3342-00-02, 31-3342-23-01, 31-3342-23-02, 31-3347-00-01, 31-3347-00-02, 31-3347-00-03, 31-3347-23-01, 31-3347-23-03, 31-3347-66-01, 31-3347-66-03, 31-3348-00-03, 31-3348-00-04, 31-3348-00-05, 31-3348-23-03, 31-3348-23-04, 31-3348-23-05, 31-3348-66-03, 31-3348-66-04, 31-3348-66-05, 31-3349-00-01, 31-3349-00-03, 31-3349-00-04, 31-3349-00-05, 31-3349-23-01, 31-3349-23-02, 31-3349-23-03, 31-3349-23-04, 31-3349-23-05, 31-3437-00-01, 31-3437-00-02, 31-3437-00-03, 31-3437-23-01, 31-3437-23-02, 31-3437-23-03, 31-3437-66-01, 31-3437-66-02, 31-3437-66-03, 31-3438-00-01, 31-3438-00-02, 31-3438-00-03, 31-3438-00-04, 31-3438-00-05, 31-3438-00-06, 31-3438-23-01, 31-3438-23-02, 31-3438-23-03, 31-3438-23-04, 31-3438-23-05, 31-3438-23-06, 31-3438-66-01, 31-3438-66-02, 31-3438-66-03, 31-3438-66-04, 31-3438-66-05, 31-3438-66-06, 31-3449-00, 31-3647-00-01, 31-3647-00-02, 31-3647-00-03, 31-3647-23-01, 31-3647-23-02, 31-3647-23-03, 31-3647-66-01, 31-3647-66-02, 31-3647-66-03, 31-3648-00-01, 31-3648-00-02, 31-3648-00-03, 31-3648-00-04, 31-3648-00-05, 31-3648-23-01, 31-3648-23-02, 31-3648-23-03, 31-3648-23-04, 31-3648-23-05, 31-3648-66-01, 31-3648-66-02, 31-3648-66-03, 31-3648-66-04, 31-3648-66-05, 31-3649-00, 31-3697-00, 31-3857-00-01, 31-3857-00-02, 31-3857-23-01, 31-3857-23-02, 31-3857-66-01, 31-3857-66-02, 31-3858-00-01, 31-3858-00-02, 31-3858-00-03, 31-3858-00-04, 31-3858-23-01, 31-3858-23-02, 31-3858-23-03, 31-3858-23-04, 31-3858-66-01, 31-3858-66-02, 31-3858-66-03, 31-3858-66-04, 31-3962-00-01, 31-3962-00-02, 31-3962-00-03, 31-3962-23-01, 31-3962-23-02, 31-3962-23-03, 31-3968-00-01, 31-3968-00-02, 31-3968-00-03, 31-3968-00-04, 31-3968-23-01, 31-3968-23-02, 31-3968-23-03, 31-3968-23-04, 31-3968-66-01, 31-3968-66-02, 31-3968-66-03, 31-3968-66-04, 31-3969, 31-3969-00-01, 31-3969-00-02, 31-3969-00-03, 31-3969-00-04, 31-3969-23-01, 31-3969-23-02, 31-3969-23-03, 31-3969-23-04, 31-3972-00-01, 31-3972-00-02, 31-3972-00-03, 31-3978-00-01, 31-3978-00-02, 31-3978-00-03, 31-3978-00-04, 31-3978-00-05, 31-3978-23-01, 31-3978-23-02, 31-3978-23-03, 31-3978-23-04, 31-3978-23-05, 31-3978-66-01, 31-3978-66-02, 31-3978-66-03, 31-3978-66-05, 31-3979-00-01, 31-3979-00-02, 31-3979-00-03, 31-3979-23-01, 31-3979-23-02, 31-3979-23-03, 31-3982-00-01, 31-3982-00-02, 31-3982-00-03, 31-3982-23-01, 31-3982-23-02, 31-3982-23-03, 31-4667-00-01, 31-4667-00-02, 31-4667-00-03, 31-4667-18-01, 31-4667-18-02, 31-4667-18-03, 31-4667-23-01, 31-4667-23-02, 31-4667-23-03, 31-4667-66-01, 31-4667-66-02, 31-4667-66-03, 31-4668-00-01, 31-4668-00-02, 31-4668-00-03, 31-4668-00-04, 31-4668-18-01, 31-4668-18-02, 31-4668-18-03, 31-4668-18-04, 31-4668-23-01, 31-4668-23-02, 31-4668-23-03, 31-4668-23-04, 31-4668-66-01, 31-4668-66-02, 31-4668-66-03, 31-4668-66-04, 31-4849-00, 31-4967-00-01, 31-4967-00-02, 31-4967-23-01, 31-4967-23-02, 31-4967-66-01, 31-4967-66-02, 31-4968-00-02, 31-4968-00-03, 31-4968-00-04, 31-4968-00-05, 31-4968-08-05, 31-4968-18-01, 31-4968-18-02, 31-4968-18-03, 31-4968-18-04, 31-4968-23-02, 31-4968-23-03, 31-4968-23-04, 31-4968-23-05, 31-4968-32-01, 31-4968-66-02, 31-4968-66-03, 31-4968-66-04, 31-4968-66-05, 31-4989-00-01, 31-4989-00-02, 31-4989-00-03, 31-4998-00-01, 31-4998-00-02, 31-4998-08-01, 31-4998-08-02, 31-4998-23-01, 31-4998-23-02, 31-4998-66-01, 31-4998-66-02, 31-4999-00-01, 31-4999-08-01, 31-4999-23-01, 31-4999-66-01, 31-5268-00, 31-5268-23, 31-6237-00-01, 31-6237-00-02, 31-6237-00-03, 31-6237-23-01, 31-6237-23-02, 31-6237-23-03, 31-6237-66-01, 31-6237-66-02, 31-6237-66-03, 31-6238-00-05, 31-6238-00-06, 31-6238-23-05, 31-6238-23-06, 31-6238-66-05, 31-6238-66-06, 31-6239-00-01, 31-6239-00-02, 31-6239-23-02, 31-6537-00-01, 31-6537-00-02, 31-6537-00-03, 31-6537-23-01, 31-6537-23-02, 31-6537-23-03, 31-6537-66-01, 31-6537-66-02, 31-6537-66-03, 31-6538-00-01, 31-6538-00-02, 31-6538-00-03, 31-6538-00-04, 31-6538-00-05, 31-6538-00-06, 31-6538-00-07, 31-6538-23-01, 31-6538-23-02, 31-6538-23-03, 31-6538-23-04, 31-6538-23-05, 31-6538-23-06, 31-6538-23-07, 31-6538-66-01, 31-6538-66-02, 31-6538-66-03, 31-6538-66-04, 31-6538-66-05, 31-6538-66-06, 31-6538-66-07, 31-6645-00, 31-6757-00-01, 31-6757-00-02, 31-6757-23-01, 31-6757-23-02, 31-6757-66-01, 31-6757-66-02, 31-6758-00-02, 31-6758-00-03, 31-6758-00-04, 31-6758-00-05, 31-6758-23-02, 31-6758-23-03, 31-6758-23-05, 31-6758-66-01, 31-6758-66-02, 31-6758-66-03, 31-6758-66-04, 31-6758-66-05, 31-6759-00-01, 31-6759-00-02, 31-6759-23-02, 31-6969-00-01, 31-6969-00-02, 31-6969-23-02, 31-7024-00, 31-7026-00, 31-7026-23, 31-7042-06, 31-7224-00, 31-7226-00, 31-7226-23, 31-7242-06, 31-7347-00-02, 31-7347-00-03, 31-7347-23-02, 31-7347-23-03, 31-7347-66-02, 31-7347-66-03, 31-7348-00-03, 31-7348-00-04, 31-7348-00-05, 31-7348-23-03, 31-7348-23-04, 31-7348-23-05, 31-7348-66-03, 31-7348-66-04, 31-7348-66-05, 31-7647-00-01, 31-7647-00-02, 31-7647-00-03, 31-7647-23-01, 31-7647-23-02, 31-7647-23-03, 31-7647-66-01, 31-7647-66-02, 31-7647-66-03, 31-7648-00-01, 31-7648-00-02, 31-7648-00-03, 31-7648-00-04, 31-7648-00-06, 31-7648-23-01, 31-7648-23-02, 31-7648-23-03, 31-7648-23-04, 31-7648-23-06, 31-7648-66-01, 31-7648-66-02, 31-7648-66-03, 31-7648-66-04, 31-7648-66-06, 31-7968-00-01, 31-7968-00-02, 31-7968-00-03, 31-7968-00-04, 31-7968-23-01, 31-7968-23-02, 31-7968-23-03, 31-7968-23-04, 31-7968-66-01, 31-7968-66-02, 31-7968-66-03, 31-7968-66-04, 31-9243-23, 33-1027-00-01, 33-1027-00-02, 33-1027-23-01, 33-1027-23-02, 33-1038-00, 33-1038-23, 33-1048-00, 33-1048-23, 33-1248-00, 33-1248-23, 33-1458-00, 33-1458-23, 33-1464-00, 33-1467-00-01, 33-1467-00-02, 33-1467-00-03, 33-1468-00, 33-1468-23, 33-5248-00, 33-5248-23, 33-5468-00, 33-5468-23, 33DEMBWAD3, 35-1302-00, 35-4552-00, 35-4552-04, 37-0007-00-02, 37-0007-00-03, 37-0007-00-05, 37-0007-00-06, 37-0007-00-07, 37-0007-23-02, 37-0007-23-03, 37-0007-23-05, 37-0007-23-06, 37-0007-23-07, 37-1004-00-01, 37-1004-23-01, 37-1006-00, 37-1006-23, 37-1007-00-01, 37-1007-00-02, 37-1007-00-03, 37-1007-00-04, 37-1007-00-05, 37-1007-23-01, 37-1007-23-02, 37-1007-23-03, 37-1007-23-04, 37-1007-23-05, 37-1007-66-01, 37-1007-66-02, 37-1007-66-03, 37-1007-66-04, 37-1007-66-05, 37-1009-00-01, 37-1009-00-02, 37-1009-00-03, 37-1009-00-04, 37-1009-00-05, 37-1009-00-06, 37-1009-23-01, 37-1009-23-02, 37-1009-23-03, 37-1009-23-04, 37-1009-23-05, 37-1009-23-06, 37-1012-00, 37-1012-23-01, 37-1012-23-02, 37-1012-23-03, 37-1012-23-04, 37-1012-23-05, 37-1012-57-01, 37-1012-57-02, 37-1012-57-03, 37-1012-57-04, 37-1012-57-05, 37-1012-66-01, 37-1012-66-02, 37-1012-66-03, 37-1012-66-04, 37-1012-66-05, 37-1015-00-01, 37-1015-00-02, 37-1015-00-03, 37-1015-00-04, 37-1015-00-05, 37-1022-00-01, 37-1022-00-03, 37-1022-00-04, 37-1022-23-03, 37-1022-23-04, 37-1022-57-01, 37-1022-57-03, 37-1022-57-04, 37-1022-66-01, 37-1022-66-03, 37-1022-66-04, 37-1026-00, 37-1028-00-01, 37-1028-23-01, 37-1039-00-01, 37-1039-00-02, 37-1039-00-03, 37-1039-00-04, 37-1039-00-05, 37-1039-23-01, 37-1039-23-02, 37-1039-23-03, 37-1039-23-04, 37-1039-23-05, 37-1042-00-01, 37-1042-00-02, 37-1042-00-03, 37-1042-00-04, 37-1042-00-05, 37-1042-23-01, 37-1042-23-02, 37-1042-23-03, 37-1042-23-04, 37-1042-23-05, 37-1042-66-04, 37-1048-00-01, 37-1048-00-02, 37-1048-00-03, 37-1048-00-04, 37-1048-00-05, 37-1048-23-01, 37-1048-23-02, 37-1048-23-03, 37-1048-23-04, 37-1048-23-05, 37-1048-66-01, 37-1048-66-02, 37-1048-66-03, 37-1048-66-04, 37-1048-66-05, 37-1117-00-01, 37-1117-00-02, 37-1117-23-01, 37-1117-23-02, 37-1117-66-01, 37-1117-66-02, 37-1118-00-01, 37-1118-00-02, 37-1118-00-03, 37-1118-00-04, 37-1118-23-01, 37-1118-23-02, 37-1118-23-03, 37-1118-23-04, 37-1118-66-01, 37-1118-66-02, 37-1118-66-03, 37-1118-66-04, 37-2227-00-01, 37-2227-00-02, 37-2227-00-03, 37-2227-23-01, 37-2227-23-02, 37-2227-23-03, 37-2227-66-01, 37-2227-66-02, 37-2227-66-03, 37-2537-23-01, 37-2537-23-02, 37-2537-23-03, 37-2538-23-01, 37-2538-23-02, 37-2538-23-03, 37-2539-00-01, 37-2539-23-01, 37-2637-00-01, 37-2637-00-02, 37-2637-00-03, 37-2637-00-04, 37-2637-23-01, 37-2637-23-02, 37-2637-23-03, 37-2637-23-04, 37-2638-00-01, 37-2638-00-02, 37-2638-00-03, 37-2638-00-04, 37-2639-00-01, 37-2957-00-01, 4129B, 4231, 4408A, 4408C, 4408D, 4409A, 4418A, 4418B, 4420A, 4427A, 4428A, 4428B, 4438A, 4438B, 4447A, 4448A, 4448B, 4450A, 4458A, 4458B, 4460B, 4467A, 4468A, 4468B, 4468C, 4468D, 4468E, 4478A, 4478B, 4488A, 4488B, 4507A, 4509A, 4530A, 4803A, 48044, 480440A, 480440D, 480440E, 480440F, 480447A, 480447D, 480447E, 480447F, 4809A, 4809B, 4811, 4813-80B, 4813A, 4819A, 4820A, 4821-80A, 4821A, 4823A, 4829A, 4839A, 484240A, 48436, 484360A, 484360B, 484360D, 484367A, 484367B, 484367D, 484440A, 484440C, 484440D, 484447C, 484447D, 484560A, 484560B, 484567A, 484567B, 484640A, 4851A, 4853, 4853A, 4863A, 4869A, 4871A, 4879A, 4881, 4889A, 4891A, 4893-80B, 4893A, 4899A, 53-4457-00, 53-4457-23, 6286232190, 6286232890, 73-1248-00, 73-3751-00-01, 73-3751-00-02, 73-3751-00-03, 73-3751-00-04, 73-3751-23-01, 73-3751-23-02, 73-3751-23-03, 73-3751-23-04, 73-3751-66-01, 73-3751-66-02, 73-3757-00-01, 73-3757-00-02, 73-3757-00-03, 73-3757-00-04, 73-3757-00-05, 73-3757-00-06, 73-3757-00-07, 73-3757-00-08, 73-3757-00-09, 73-3757-23-01, 73-3757-23-02, 73-3757-23-03, 73-3757-23-04, 73-3757-23-05, 73-3757-23-06, 73-3757-23-07, 73-3757-23-08, 73-3757-23-09, 73-3757-66-01, 73-3757-66-02, 73-3757-66-03, 73-3757-66-04, 73-3757-66-05, 73-3757-66-06, 73-3757-66-07, 73-3757-66-08, 73-3757-66-09, 73-3951-00, 73-3951-00-01, 73-3951-00-02, 73-3951-00-03, 73-3951-00-04, 73-3951-01, 73-3951-23-01, 73-3951-23-02, 73-3951-23-03, 73-3951-23-04, 73-3957-00-01, 73-3957-00-02, 73-3957-00-03, 73-3957-00-04, 73-3957-00-05, 73-3957-00-06, 73-3957-00-07, 73-3957-00-08, 73-3957-00-09, 73-3957-23-01, 73-3957-23-02, 73-3957-23-03, 73-3957-23-04, 73-3957-23-05, 73-3957-23-06, 73-3957-23-07, 73-3957-23-08, 73-3957-23-09, 73-3957-66-01, 73-3957-66-02, 73-3957-66-03, 73-3957-66-04, 73-3957-66-05, 73-3957-66-06, 73-3957-66-07, 73-3957-66-08, 73-3957-66-09, 73-4232-00, 73-4236-00, 73-4236-00-01, 73-4236-00-02, 73-4236-23, 73-4236-23-01, 73-4236-23-02, 73-4237-00, 73-4237-23, 73-4237-66, 73-4452-00, 73-4452-23, 73-4457-00, 73-4457-23, 73-4552-00, 73-4624-00, 73-7857-00-02, 73-7857-00-03, 73-7857-00-04, 73-7857-00-05, 73-7857-00-06, 73-7857-23-02, 73-7857-23-03, 73-7857-23-04, 73-7857-23-05, 73-7857-23-06, 73-7857-66-01, 73-7857-66-02, 73-7857-66-03, 73-7857-66-04, 73-7857-66-05, 73-7857-66-06, 73-8542-00, 77-1399-00, 77-4950-00-01, 77-4950-00-02, 77-4950-00-03, 77-4950-00-04, 77-4950-00-05, 77-4950-23-01, 77-4950-23-02, 77-4950-23-03, 77-4950-23-04, 77-4950-23-05, 77-4957-00-01, 77-4957-00-02, 77-4957-00-03, 77-4957-00-04, 77-4957-00-05, 77-4957-00-06, 77-4957-00-07, 77-4957-00-08, 77-4957-00-09, 77-4957-00-10, 77-4957-08-05, 77-4957-08-06, 77-4957-08-07, 77-4957-08-08, 77-4957-23-01, 77-4957-23-02, 77-4957-23-03, 77-4957-23-04, 77-4957-23-05, 77-4957-23-06, 77-4957-23-07, 77-4957-23-08, 77-4957-23-09, 77-4957-23-10, 77-4957-32-09, 77-4957-32-10, 77-4957-45-05, 77-4957-45-06, 77-4957-45-07, 77-4957-45-08, 77-4957-66-01, 77-4957-66-02, 77-4957-66-03, 77-4957-66-04, 77-4957-66-05, 77-4957-66-06, 77-4957-66-07, 77-4957-66-08, 77-4957-66-09, 77-4957-66-10, 77-4967-00, 77-4971-00, 77-4971-23, 77-4971-57, 77-4972-00, 77-4972-23, 77-5402-23, 77-8957-00-01, 77-8957-00-02, 77-8957-00-03, 77-8957-00-04, 77-8957-00-05, 77-8957-08-05, 77-8957-23-01, 77-8957-23-02, 77-8957-23-03, 77-8957-23-04, 77-8957-23-05, 77-8957-45-05, 77-8957-66-01, 77-8957-66-02, 77-8957-66-03, 77-8957-66-04, 77-8957-66-05, 77-8967-00, 77-8971-00, 79015011400, 79015021400, 79045262500, 79045262501, 79045262502, 79045262503, 79045482501, 79045489502, 79045582901, 79045582902, 79045582903, 79045582904, 79045582905, 79045589900, 79045589903, 79045589904, 79045589905, 79046262500, 79046262502, 79046264500, 79046582501, 79046582503, 79046584502, 79046589501, 79046589503, 79046762900, 79046762901, 79046762903, 79046762904, 79046762905, 79046762906, 79046762907, 79046762908, 79046763900, 79046763902, 79046763903, 79046763904, 79046763905, 79046763906, 79046763907, 79046763908, 79046764900, 79046764901, 79046764903, 79046769903, 79046769904, 79046769905, 79046769906, 79046769907, 79046769908, 79060042400, 79060042402, 79060042403, 79060042405, 79060071790, 79060071791, 79060071792, 79060071794, 79060201200, 79060201201, 79060301300, 79060702902, 79061130101, 79061130102, 79061130103, 79061131100, 79061131101, 79061131102, 79061750100, 79061750102, 79061750103, 79061750104, 79061750105, 79061750106, 79061751102, 79061751103, 79061751104, 79061751105, 79061751106, 79061752102, 79061752103, 79061752104, 79061752105, 79061754102, 79061754103, 79061754104, 79061754105, 79061754106, 79061759300, 79061759301, 79061759302, 79062090101, 79062090102, 79064090300, 79064090302, 79064090303, 79064090305, 79064090308, 79064090309, 7906409030B, 79064091300, 79064091301, 79064091307, 79064091309, 7906409130C, 7906409130D, 7906409130E, 7906409130F, 79065312210, 79065312211, 79065312212, 79065312213, 79065312214, 79065312215, 79065319210, 79090010310, 79090011310, 79090011311, 79090011312, 79090011313, 79090011314, 79090012310, 79090012311, 79090012313, 79090012314, 79090014310, 79090014311, 79090019310, 79090033500, 79090033504, 79090043600, 79090102201, 79090102202, 79090102203, 79090102204, 79090102206, 79090102207, 79090104201, 79090112013, 79090113010, 79090113012, 79090113013, 79090119011, 79090119012, 79090119013, 79090133701, 79090133703, 79090133704, 79090133705, 79090212012, 79090212013, 79090212014, 79090213010, 79090213012, 79090213013, 79090213014, 79090214010, 79090214011, 79090214012, 79090214013, 79090214014, 79090218010, 79090218011, 79090218012, 79090218013, 79090219012, 79090219013, 79090219014, 79090312010, 79090312012, 79090312013, 79090312014, 79090313011, 79090313012, 79090313013, 79090313014, 79090319012, 79090319013, 79090319014, 79090800400, 79090800402, 79090800403, 79090801400, 79090801404, 79090801405, 79090801406, 79090810402, 79090810404, 79090811401, 79090811405, 79090811406, 79090812400, 79090812401, 79090812402, 79090812404, 79090812405, 79090812406, 79090814403, 79090814404, 79090814405, 79090819400, 79090819401, 79090819402, 79090819405, 79090820400, 79090820401, 79090820405, 79090820406, 79090820409, 7909082040A, 7909082040B, 7909082040C, 79090821400, 79090821406, 79090821407, 79090821408, 79090821409, 7909082140A, 7909082140B, 79090830601, 79090830603, 79090830604, 79090830605, 79090830607, 79090830608, 79090831601, 79090831605, 79090831607, 79090831608, 79090832601, 79090832604, 79090832605, 79090832606, 79090832607, 79090832608, 79090834601, 79090834602, 79090834604, 79090834606, 79090834607, 79090834608, 79090839600, 79090839601, 79090839602, 79090839603, 79090839604, 79090839605, 79090839607, 79090900600, 79090900603, 79090900604, 79090900606, 79090900607, 79090900608, 79090900609, 7909090060A, 79090901601, 79090901602, 79090901603, 79090901606, 79090901607, 79090901608, 79090901609, 7909090160A, 79090902600, 79090902603, 79090902606, 79090902607, 79090904600, 79090904602, 79090904606, 79090904607, 79090910400, 79090910402, 79090910403, 79090911400, 79090911401, 79090911402, 79090912400, 79090912401, 79090912402, 79090914400, 79090914401, 79090914402, 79090914403, 79090920400, 79090921400, 79090921401, 79090921402, 79090922400, 79090922402, 79090924400, 79090929401, 79090929402, 79090930601, 79090931600, 79090931602, 79090932600, 79090932602, 79090934600, 79090934602, 79090939601, 79091012300, 79091012301, 79091014300, 79091014301, 79091014302, 79091023300, 79091023302, 79091032400, 79091032403, 79091033400, 79091033401, 79091033403, 79091034403, 79091034404, 79091039401, 79091039402, 79091042400, 79091042404, 79091043400, 79091043402, 79091044400, 79091044402, 79091044404, 79091049402, 79091049403, 79091062601, 79091063703, 79091063704, 79091064600, 79091064601, 79091069601, 79091069602, 79091072602, 79091072603, 79091074601, 79091079600, 79091079603, 79091102000, 79091102001, 79091105890, 79091105892, 79091106890, 79091106891, 79091106892, 79091107000, 79091107001, 7909115892, 79092850300, 79092850301, 79092851300, 79092851301, 79092852300, 79092852301, 79092853300, 79092853301, 79092853302, 79092853303, 79092854300, 79092854301, 79092854302, 79092859301, 79092859302, 79093002310, 79093002313, 79093002314, 79093003310, 79093003311, 79093003312, 79093003313, 79093003314, 79093009310, 79093009313, 79093009314, 79093022310, 79093022311, 79093553300, 79093553301, 79093553303, 79093671001, 79093750100, 79093750102, 79093750103, 79093750104, 79093751100, 79093751103, 79093751104, 79093752100, 79093752103, 79093752104, 79093754100, 79093754101, 79093754103, 79093754104, 79093761000, 79093762000, 79093762001, 79093767000, 79093767001, 79093768000, 79093768001, 79093771100, 79093772100, 79093777100, 79093778100, 79093850300, 79093850301, 79093850302, 79093851300, 79093851301, 79093851302, 79093852300, 79093852302, 79093853300, 79093853301, 79093853302, 79093853303, 79093854300, 79093854301, 79093854302, 79093854303, 79093859302, 79093859303, 79094000400, 79094000401, 79094000402, 79094000403, 79094001400, 79094001403, 79094002601, 79094012600, 79094013600, 79094014600, 79094019601, 79094024600, 79094024601, 79094029600, 79094032700, 79094032701, 79094032702, 79094032703, 79094034700, 79094034702, 79094038701, 79094038702, 79094039700, 79094039701, 79094039702, 79094039703, 79094044700, 79094044701, 79094048701, 79094049701, 79094102700, 79094102703, 79094102704, 79094110400, 79094110401, 79094111405, 79094111406, 79094111407, 79094112405, 79094113400, 79094113403, 79094113407, 79094113408, 79094114405, 79094114406, 79094119400, 79094119401, 79094119402, 79094119407, 79094120401, 79094120402, 79094120405, 79094121401, 79094122401, 79094123400, 79094123402, 79094123405, 79094123407, 79094123408, 79094124402, 79094129402, 79094129405, 79094129407, 79094142310, 79094142311, 79094142312, 79094143310, 79094143312, 79094144310, 79094144311, 79094144312, 79094149310, 79094149311, 79094149312, 79094152311, 79094153310, 79094153312, 79094159310, 79094159311, 79094159312, 79094212401, 79094212403, 7909421240A, 7909421240B, 7909421240C, 7909421240E, 79094213400, 79094213401, 79094213403, 79094213404, 79094213405, 7909421340C, 7909421340D, 7909421340E, 7909421340H, 79094214400, 79094214401, 79094214403, 79094214404, 79094214405, 7909421440C, 7909421440D, 7909421440E, 79094219403, 79094219407, 79094219408, 7909421940A, 79094222403, 79094222408, 7909422240A, 7909422240B, 79094223401, 79094223402, 79094223407, 79094223408, 79094223409, 7909422340A, 7909422340C, 7909422340F, 79094224400, 79094224403, 79094224404, 79094224407, 7909422440C, 79094229401, 79094229403, 79094229407, 79094229408, 7909422940A, 7909422940B, 7909422940D, 79094232400, 79094233400, 79094234400, 79094239400, 7909462990, 7909464990, 7909468895, 79094852300, 79094852301, 79094853300, 79094853301, 79094854301, 79094859300, 79094859301, 79095711890, 79095711891, 79095711893, 79095711894, 79095715890, 79095715893, 79095715894, 79095716890, 79095716893, 79095716894, 79095718891, 79095718892, 79095718893, 79095718894, 79095721990, 79095722990, 79095727990, 79095728990, 79097471790, 79097475790, 79097476790, 79097478790, 7916262190, 7916262890, 7916272190, 7916272890, 7916412190, 7916412890, 7919338983, 8448A, 8468A, 8488A, 970-598421, 970598421, 970598434, AS139K1K1, B31-2032-06, BE30B7BY, BEC212ES1, BEC212ES2, BEC212ES3, CCRE312GWWA, CCRE312GWWB, CCRE312GWWC, CCRE350GBBA, CCRE350GBBB, CCRE350GWWA, CCRE350GWWB, CCRE3530LBA, CCRE3530LBD, CCRE3530LWA, CCRE3530LWD, CCRE3530LWE, CCRE3530LWF, CCRE3530LWG, CCRE3860LBA, CCRE3860LBB, CCRE3860LBE, CCRE3860LWA, CCRE3860LWB, CCRE3860LWE, CCRE3860LWF, CCRE3860LWG, CD302VP3D02, CD302VP3D1, CD302VP3W02, CD302VP3W1, CE026SP2D2, CE026SP2W2, CE0S4WKAA, CE200SP2D0, CE200SP2D1, CE200SP2D2, CE200SP2W0, CE200SP2W1, CE200SP2W2, CE200SP2WD01, CE200SP2WW02, CE206SP2D0, CE206SP2D1, CE206SP2W-00, CE206SP2W-23, CE206SP2W0, CE206SP2W1, CE206SP2WD01, CE206SP2WL01, CE206SP2WW01, CE206SP2WW02, CE240SP2D0, CE240SP2W0, CE300SP2D1, CE300SP2J01, CE300SP2W01, CE300SP2W1, CE300SP2Y01, CE300SP2Y1, CE301SP2D01, CE301SP2D1, CE301SP2D2, CE301SP2J01, CE301SP2L01, CE301SP2W01, CE301SP2W1, CE301SP2W2, CE301SP2Y1, CE302BP2D1, CE302BP2H1, CE302BP2W1, CE302BP2WD01, CE302BP2WJ01, CE302BP2WW01, CE303VC3D1, CE303VC3W1, CE303VP2D01, CE303VP2D1, CE303VP2H01, CE303VP2H1, CE303VP2J01, CE303VP2W01, CE303VP2W01-00, CE303VP2W01-23, CE303VP2W01-66, CE303VP2W1, CE303VP2WD01, CE303VP2WH01, CE303VP2WJ01, CE303VP2WW01, CE303VP2WY01, CE303VP2Y01, CE305WP2W1, CE307SP2D1, CE307SP2W1, CE30M4WMAA, CE30M5DRAA, CE30M5WHAC, CE30M5WKAA, CE30M5WMAA, CE30M6WMAA, CE30S4WKAA, CE30S6WMAC, CE40C4WKAA, CE40C6WMAA, CE40C6WMAB, CEA1M1WSTA, CEA1M1WSTB, CEA1M1WSTC, CEA1M1WSTD, CEA1M1WSTE, CEA1M1WSTF, CEA1M1WSTG, CEA1M2WSTA, CEA1M2WSTB, CEA1M2WSTC, CEA1M2WSTD, CEA3M2WSTA, CEA3M2WSTB, CEA3M2WSTC, CEA3M2WSTD, CEB1M1WSTA, CEB1M1WSTB, CEB1M3WSTA, CEB1M3WSTB, CEB3M2WSTA, CEB3M2WSTB, CEB3M2WSTC, CEB3M2WSTD, CEB3M2WSTE, CEB3M2WSTF, CEB3M2WSTG, CEC1M1DTAA, CEC1M1WSTA, CEC1M1WSTB, CEC1M1WSTC, CEC1M1WSTD, CEC1M1WSTE, CEC1M1WTAA, CEC1M1WTAB, CEC1M1WTAC, CEC1M1WXA, CEC1M1WXB, CEC1M1WXC, CEC1M1WXD, CEC1M1WXE, CEC1M2WSAA, CEC1M2WSAB, CEC1M2WSAC, CEC1M2WSAD, CEC1M2WXA, CEC1M2WXB, CEC1M2WXC, CEC1M2WXD, CEC1S3WSAA, CEC1S3WSAB, CEC1S3WSAC, CEC2M4WSAA, CEC2M4WSAB, CEC2M4WSAC, CEC2M4WSAD, CEC2M4WXA, CEC2M4WXB, CEC2M4WXC, CEC2M4WXD, CEC2M4WXE, CEC2S5WSAA, CEC2S5WSAB, CEC2S5WSAC, CEC3M2WXA, CEC3M2WXB, CEC3M5WSAA, CEC3M5WSAB, CEC3M5WSAC, CEC3M5WSAD, CEC3S5WSAA, CEC3S5WSAB, CEC3S5WSAC, CEC3S5WSAD, CEC3S5WSAE, CEC3S5WXA, CEC3S5WXB, CEC3S5WXC, CEC3S5WXD, CEC4C4WSAB, CEC4C4WSAC, CEC4M4WXA, CEC4M4WXB, CEC4M4WXC, CEC4M4WXD, CEC4M4WXE, CEC4M7WSAA, CEC4S6DXE, CEC4S6WSAA, CEC4S6WSAB, CEC4S6WSAC, CEC4S6WSAD, CEC4S6WXD, CEC4S6WXE, CEE2M4WS5, CEE2M4WSAA, CEE2M4WSE, CFEF210CS4, CFEF210CS5, CFEF210CS6, CFEF210CS7, CFEF2405LWA, CFEF2405LWB, CFEF2405LWC, CFEF2405LWD, CFEF2415LWA, CFEF2415LWC, CFEF257CS3, CFEF257CS4, CFEF257CS5, CFEF257CS6, CFEF3005LWA, CFEF3005LWB, CFEF3005LWC, CFEF3005LWD, CFEF3005LWE, CFEF3007LBB, CFEF3007LBC, CFEF3007LBD, CFEF3007LBE, CFEF3007LWB, CFEF3007LWC, CFEF3007LWD, CFEF3007LWE, CFEF3007LWF, CFEF3011TSA, CFEF3011TWA, CFEF3012PBB, CFEF3012PBC, CFEF3012PBD, CFEF3012PWB, CFEF3012PWC, CFEF3012PWD, CFEF3012TWA, CFEF3012TWB, CFEF3016LBA, CFEF3016LBB, CFEF3016LBD, CFEF3016LBE, CFEF3016LBF, CFEF3016LBG, CFEF3016LWA, CFEF3016LWB, CFEF3016LWC, CFEF3016LWD, CFEF3016LWE, CFEF3016LWF, CFEF

CRITICAL SAFETY WARNING: This repair involves working with 240V electrical components. Always unplug the range from the electrical outlet or turn off the circuit breaker before beginning work to prevent electrical shock. Never touch electrical components while the range is powered. If uncomfortable with this repair or unfamiliar with range electrical systems, hire a qualified appliance technician. IMPORTANT: Before replacing the surface element receptacle, verify the receptacle is actually faulty and inspect the coil element terminals for damage—damaged element terminals should be replaced along with the receptacle.TOOLS REQUIRED: Phillips screwdriver, flathead screwdriver, needle-nose pliers, wire strippers (if needed), flashlight, work gloves, multimeter (optional, for testing).IMPORTANT: This repair requires accessing the range wiring beneath the cooktop, which may require lifting the cooktop or removing the rear access panel depending on range model.

1. Unplug the range from the electrical outlet or turn off the circuit breaker to ensure complete power disconnection. CRITICAL: Never work on the range while it's plugged in.
2. Allow all burners to cool completely if the range was recently used (at least 30 minutes). CRITICAL: Never work on hot burners—severe burns can result.
3. Remove the coil surface element from the receptacle by lifting the element slightly and pulling straight away to disconnect the pigtail terminals. Important: The element should pull out easily—do not force it.
4. Take multiple photos of the receptacle location, wire connections, mounting bracket position, and surrounding components before disassembly. CRITICAL: Proper reassembly requires exact component positioning.
5. Lift the cooktop (if applicable) by removing any screws securing it and lifting the front edge upward. Important: Some ranges have a hinged cooktop that lifts up for access, while others require rear panel removal.
6. Locate the damaged receptacle beneath the cooktop (typically mounted to the range frame with a metal bracket and mounting screw).
7. Take detailed close-up photos of: the wire connections to the receptacle (wire colors and terminal positions), the mounting bracket configuration, the receptacle orientation, and any other wiring nearby.
8. Inspect the receptacle for damage indicators: burn marks or blackening (arcing or overheating), melted or damaged receptacle block (severe overheating), corroded or damaged contact pins (poor electrical contact), or loose mounting (physical damage). This confirms the diagnosis.
9. Inspect the coil element pigtail terminals for damage: burned or corroded terminals, bent or damaged terminals, or blackening around the terminals. CRITICAL: If the element terminals are damaged, the element must be replaced along with the receptacle—damaged terminals will destroy the new receptacle.
10. Disconnect the wire connections from the old receptacle by unscrewing the ceramic wire nuts (turn counterclockwise) and separating the wires. Caution: Do not pull on the wires—grasp the wire nut and turn.
11. If heat-shrink tubing is present, note its position for reinstallation.
12. Remove the mounting screw securing the receptacle bracket to the range frame using a Phillips screwdriver. Caution: Support the receptacle while removing the screw.
13. Carefully remove the old receptacle and bracket from the range.

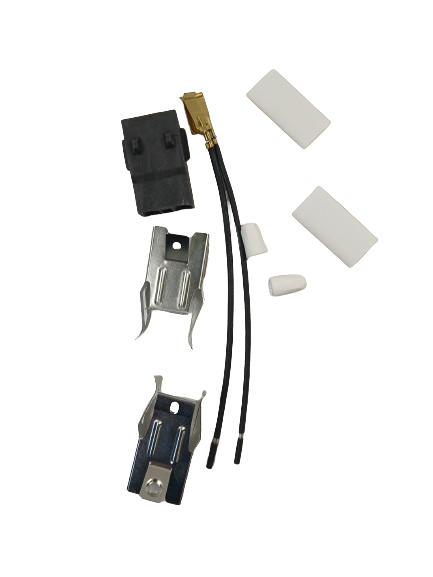

14. Unpack the new 330031 receptacle kit from its packaging. Important: The kit includes: receptacle block, two mounting brackets (use one that matches your range), two wire leads, two ceramic wire nuts, two heat-shrink insulators, and one mounting screw.
15. Select the correct mounting bracket from the kit by comparing both brackets to the old bracket you removed. Important: Use the bracket that matches your range configuration.
16. Attach the new receptacle block to the selected mounting bracket if not pre-assembled. Important: The receptacle should snap or screw onto the bracket securely.
17. Position the new receptacle and bracket in the mounting location, aligning the mounting hole with the range frame hole. Important: Ensure the receptacle is oriented correctly—the contact pins should face the direction where the element plugs in.
18. Install the mounting screw to secure the bracket to the range frame. Important: Tighten firmly but do not over-tighten—over-tightening can crack the receptacle block.
19. Verify the receptacle is securely mounted with no excessive play or movement.
20. Prepare the wire connections by stripping 1/2 inch of insulation from the wire ends if needed (the kit wires are typically pre-stripped).
21. Connect the range wiring to the new receptacle wires using the ceramic wire nuts: Hold the two wires together (range wire and receptacle wire), insert them into the ceramic wire nut, and turn the wire nut clockwise until tight. Important: The wires should be securely connected with no exposed copper visible.
22. Repeat for the second wire connection (the receptacle has two wires for 240V power).
23. Slide the heat-shrink insulators over the wire nut connections if provided in the kit. Important: Heat-shrink tubing provides additional protection from moisture and heat.
24. If heat-shrink tubing is used, apply gentle heat with a heat gun or hair dryer to shrink the tubing around the connection. Caution: Do not overheat—this can damage the wires.
25. Verify all wire connections are secure by gently tugging on each wire—they should not come apart.
26. Verify no bare wire is exposed at the connections—all copper should be covered by the wire nut or heat-shrink tubing.
27. Position the wires so they're not pinched or stressed when the cooktop is lowered.
28. Lower the cooktop back into position (if applicable) and secure with any screws that were removed.
29. Restore electrical power by plugging in the range or turning on the circuit breaker.
30. Install the coil surface element by aligning the pigtail terminals with the receptacle pins and pushing straight in until fully seated. Important: The element should push in smoothly—do not force it.
31. Verify the element is fully seated by trying to pull it away—it should not come out easily.
32. Run a test cycle to verify proper receptacle operation:Turn the burner control to medium heatObserve the coil element for 2-3 minutesThe coil should begin to glow red within 1-2 minutesVerify the coil heats evenly across the entire diameterListen for any unusual sounds (arcing, sparking, buzzing)Check for any unusual smells (burning insulation)Allow the element to heat for 5 minutesTurn off the burner controlAllow the element to cool for 10 minutes
33. Check for proper heating during the test cycle. The coil should glow red evenly with no dark spots or uneven heating.
34. Monitor for any unusual sounds or smells during the test cycle. There should be no arcing, sparking, buzzing, or burning smells.
35. Inspect the receptacle area for any signs of overheating, smoke, or burning smells.
36. If the burner heats evenly and operates normally at all settings, the repair is complete.

Safety Notes: Always unplug the range or turn off the circuit breaker before working on electrical components. Allow all burners to cool completely before beginning work (at least 30 minutes). Handle the receptacle carefully—the ceramic block is fragile. Verify all wire connections are secure with no exposed copper. Use ceramic wire nuts provided in the kit—they're rated for high-temperature applications. Position wires so they're not pinched when the cooktop is lowered. Always replace both the receptacle and the coil element together if the element terminals are damaged. Test operation at all heat settings to verify proper function. This repair typically takes 20-30 minutes and requires basic electrical knowledge. If uncomfortable working with range electrical components or unfamiliar with receptacle replacement procedures, hire a professional appliance technician.

Always replace both the receptacle and the coil element together if the element terminals are damaged—a damaged receptacle damages the element terminals, and damaged element terminals damage the new receptacle. The receptacle and coil element work as a matched pair. If the receptacle is damaged and causes arcing or overheating, the element pigtail terminals become burned or corroded. If you install a new receptacle but reuse the damaged element, the damaged terminals cause poor electrical contact in the new receptacle, leading to arcing, overheating, and premature receptacle failure within days or weeks. Always inspect the element terminals carefully when replacing the receptacle. If the terminals are burned, blackened, corroded, or damaged in any way, replace the element along with the receptacle. This ensures reliable operation and prevents premature receptacle failure.

1. The ceramic wire nuts provided in the kit are rated for high-temperature applications and must be used for all connections—standard wire nuts are not suitable for range applications. The ceramic wire nuts in the 330031 kit are specifically designed to withstand the high temperatures near the range cooktop. Standard plastic wire nuts will melt or fail in this environment, causing electrical failures or fire hazards. Always use the ceramic wire nuts provided in the kit. If additional connections are needed, use ceramic wire nuts rated for high-temperature applications. Never substitute standard wire nuts—this creates a serious fire hazard.
2. The receptacle block must be oriented correctly with the contact pins facing the direction where the element plugs in—incorrect orientation prevents proper electrical connection. The receptacle has two metal contact pins inside that must align with the element pigtail terminals when the element is plugged in. If the receptacle is installed backward or at an incorrect angle, the element terminals won't make proper contact with the pins. When installing the new receptacle, verify the orientation by checking against your detailed photos of the old receptacle. The pins should face upward or outward (depending on your range design) so the element can plug in smoothly.
3. The coil element must be pushed straight in until fully seated—forcing or twisting the element can damage the receptacle pins or element terminals. When installing the coil element into the receptacle, align the pigtail terminals with the receptacle pins and push straight in with firm, steady pressure. The element should insert smoothly without resistance. If resistance is felt, stop and verify the alignment—do not force the element. Forcing the element can bend the receptacle pins or damage the element terminals, causing poor electrical contact or receptacle failure.
4. Burn marks or blackening on the receptacle indicates arcing and overheating—this is a sign of poor electrical contact or excessive current draw. Arcing occurs when there's a gap between the contact surfaces, causing electrical current to jump across the gap and create heat and sparks. This burns the contact surfaces and damages the receptacle. Burn marks indicate the receptacle has been subjected to arcing and should be replaced immediately. Do not continue using a burned receptacle—this is a fire hazard. If the receptacle burns out repeatedly, investigate the cause: poor element terminal contact (replace element), loose wire connections (tighten connections), or excessive current draw (check element for short circuit).
5. The mounting bracket must be securely fastened to the range frame—a loose receptacle can cause poor electrical contact and arcing. The receptacle is mounted to the range frame using a metal bracket and mounting screw. If the bracket is loose or the mounting screw is not tight, the receptacle can move or vibrate, causing poor electrical contact between the receptacle pins and element terminals. This poor contact causes resistance heating, arcing, and receptacle failure. When installing the new receptacle, tighten the mounting screw firmly so the receptacle doesn't move. Verify the bracket is secure by trying to move the receptacle—it should not move or wobble.
6. Wire connections must be made with ceramic wire nuts and should be covered with heat-shrink tubing for additional protection—exposed connections can corrode or cause electrical failures. The wire connections between the range wiring and receptacle wires must be secure and protected from moisture and heat. Use the ceramic wire nuts provided in the kit and tighten them firmly. If heat-shrink tubing is provided, slide it over the wire nut connection and apply gentle heat to shrink it around the connection. This provides additional protection from moisture, heat, and physical damage. Exposed wire connections can corrode, causing poor electrical contact and receptacle failure.
7. The receptacle should be tested at all heat settings (low, medium, high) to verify proper operation—uneven heating or hot spots indicate poor electrical contact. After installing the new receptacle and element, run a test cycle at all heat settings. The element should heat evenly at all settings with no dark spots, uneven heating, or hot spots. If the element heats unevenly or has dark spots, there may be poor electrical contact in the receptacle. This indicates the connection is not secure or the receptacle is not properly installed. Stop using the burner and verify the connections are secure.
8. The coil element pigtail terminals should be inspected for damage before reusing the element—damaged terminals cause poor electrical contact in the new receptacle. When you remove the old coil element, inspect the pigtail terminals carefully. The terminals should be clean, smooth, and free of burn marks, corrosion, or damage. If the terminals are burned, blackened, corroded, or bent, the element should be replaced. Do not reuse an element with damaged terminals—this will cause poor electrical contact in the new receptacle and lead to arcing and premature failure.
9. If the receptacle burns out repeatedly, the coil element may have a short circuit causing excessive current draw—the element should be tested and replaced if faulty. A properly functioning coil element draws a specific amount of current (typically 20-30 amps at 240V depending on element wattage). If the element has a short circuit or internal damage, it can draw excessive current, causing the receptacle to overheat and burn out. If the receptacle burns out repeatedly after replacement, the element should be tested by a qualified technician or replaced. Do not continue using a faulty element—this is a fire hazard.
10. Heat-shrink tubing should be applied carefully with gentle heat to avoid damaging the wires or connections—excessive heat can melt the wire insulation. If heat-shrink tubing is provided in the kit, it should be slid over the wire nut connection and then heated to shrink around the connection. Use a heat gun on low setting or a hair dryer on medium setting. Apply heat gradually and move the heat source around to avoid overheating one spot. The tubing should shrink snugly around the connection without melting the wire insulation. If the wire insulation melts, the connection is unsafe and should be redone.
11. Never attempt to repair a damaged receptacle by cleaning, sanding, or replacing individual contact pins—these repairs are unsafe and will fail immediately. A damaged receptacle cannot be safely repaired. Attempting to clean or sand the contact pins will not restore proper electrical contact. Attempting to replace individual pins requires specialized tools and expertise. Never attempt any repair of a damaged receptacle. Always replace the entire receptacle kit with a new one. Using a repaired receptacle is a serious fire hazard and will result in arcing, overheating, and potential electrical fires.
