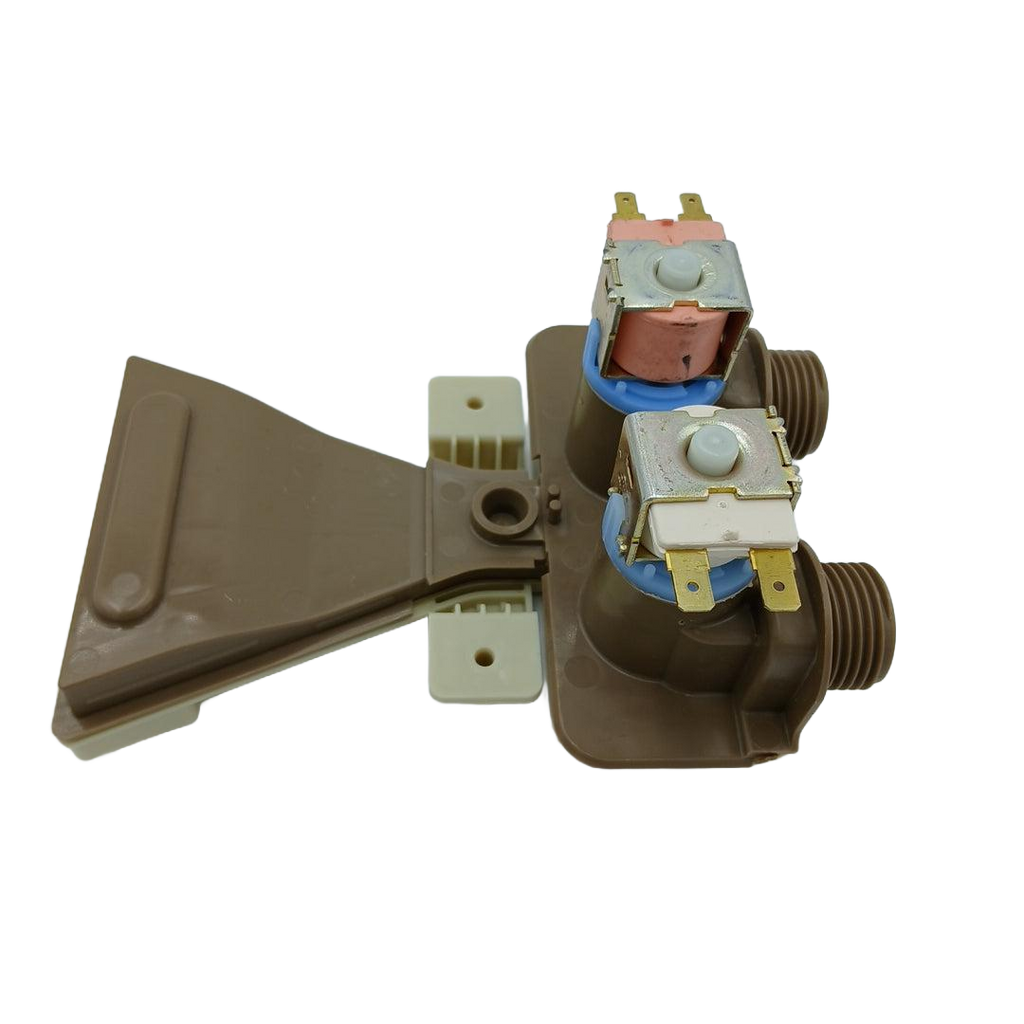

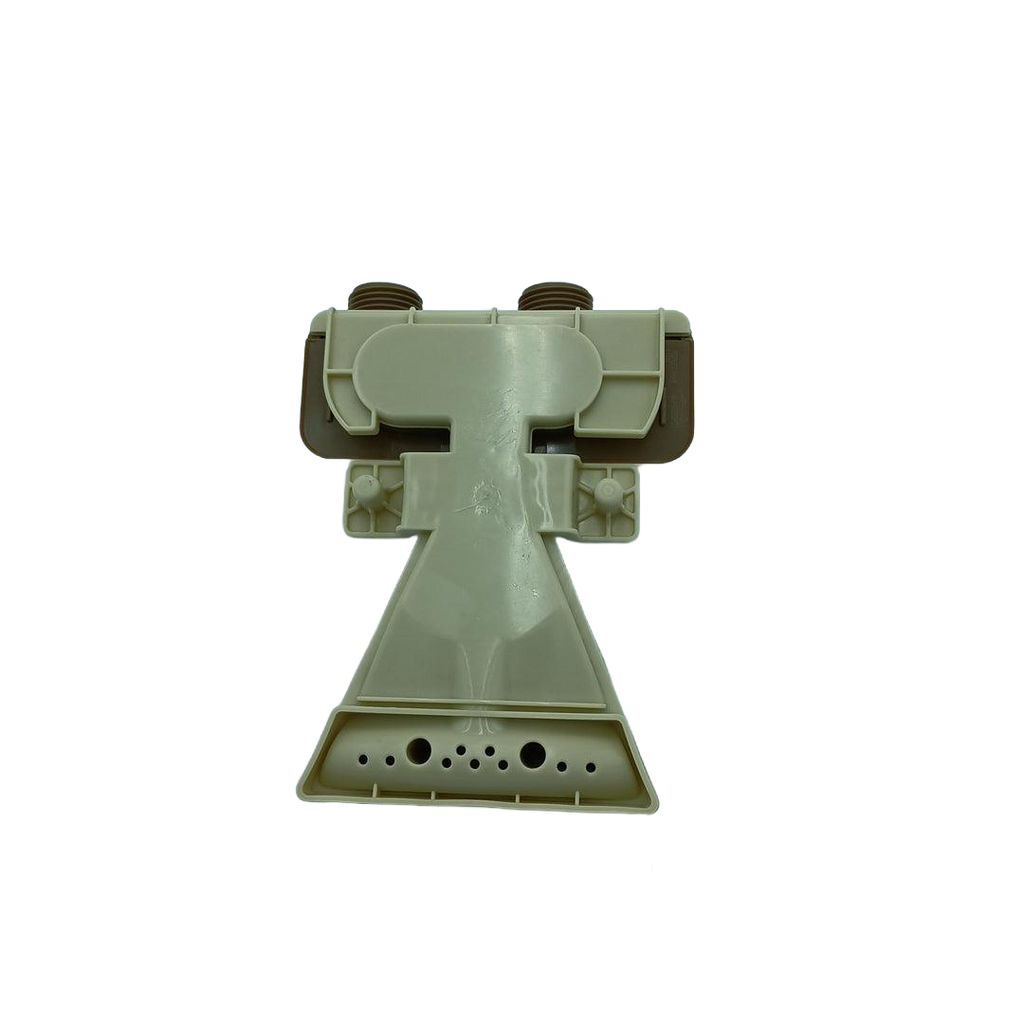

GE Appliances / Mabe Washer Double water inlet valve WW01F01773, Replaces 290D1316G004, 290D1316G009

Genuine washer double water inlet valve used to control water flow into automatic washing machines. Mabe documentation also identifies the part as a double water valve and lists a 127 V, 35 W water-inlet-valve specification in trade documentation.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• No cold water entering the washer.
• No hot water entering the washer.
• Water leaking from the inlet-valve area.

Check Before Replacing

• Confirm both household hot- and cold-water supply valves are fully open.
• Verify the inlet hoses are connected to the matching HOT (H) and COLD (C) washer connections.
• Run separate hot and cold fill selections to observe whether one water source is absent; this does not by itself prove the valve has failed.
• With the water supply shut off, inspect the inlet-hose and valve-inlet screens for debris or scale.
• Verify adequate household water pressure and that inlet hoses are not restricted or kinked.

Pro Tip

Part Details

Key Features

• Genuine GE Appliances service part.
• Double water valve design for washer water-fill operation.
• GE Appliances lists a one-year limited warranty.

Installation Notes

• Confirm the washer model uses WW01F01773 before service.
• Disconnect electrical power and shut off both household water supplies before servicing the water-valve area.
• Keep hot and cold hose connections matched to the washer markings; GE identifies H as hot and C as cold.
• After installation, restore the water supply and inspect the valve and hose connections for leaks.

Verified Compatible Models

GTW220BMK0WW, GTW220BMK1WW, GTW220BMM0WW, GTW220BMM1WW, GTW223BMR0WW, GTW302BMP0WW, GTW302BMP1WW, GTW330BMK0WW, GTW330BMK1WW, GTW330BMM0WW, GTW330BMM1WW, GTW331BMR0WS, HTW200BMK0WW, HTW200BMM0WW, LCA77104VBAB00, LCA77104VBAB01, LCA77104VBAB02, LCA77114CBAB01, LCA77114CBAB02, LEA77113CBAB01, LEA77113CBAB02, LEA77113CGAB01, LEA77114CBAB00, LEA77114CBAB01, LEA77114CBAB02, LEA77114CBAB03, LEA79115CBAB00, LEA79115CBAB01, LEA79115CBAB02, LEA79115CBAB03, LGA71215CBAB00, LGA71215CBAB01, LGA79113CBAB00, LGA79113CBAB01, LGA79113CBDB00, LGA79113CBDB01, LIA70213CBAB00, LIA70213CBAB01, LIA71214CBAB00, LIA71214CBAB01, LIA79113CBAB00, LIA79113CBAB01, LIA79113VBAB00, LIA79113VBAB01, LMA70213CBAB00, LMA70213CBAB01, LMA70213VBAB00, LMA70213VBAB01, LMA70213VBAB02, LMA70214CBAB00, LMA70214VBAB00, LMA70214VBAB01, LMA70214VBAB02, LMA70214VBAB03, LMA70215VBAB00, LMA70215VBAB01, LMA70215VBAB02, LMA70215WBAB00, LMA71214VBAB00, LMA71214VBAB01, LMA71214VBAB02, LMA71214VBAB03, LMA71215VBAB00, LMA71215VBAB01, LMA71215VBAB02, LMA71215WBAB00, LMA71215WDAB00, LMA71215WGAB00, LMA71215WGAB01, LMA72215CBAB00, LMA72215CBAB01, LMA72215WBAB00, LMA74215WBAB00, LMA74215WBAB01, LMA74215WBAB02, LMA74215WBAB10, LMA74215WDAB00, LMA77113CBAB00, LMA77113CBAB01, LMA77113CBAB02, LMA77113CBAB03, LMA77113CBAB04, LMA77113CBDK01, LMA77113CBDK02, LMA77113CBDK10, LMA77113CBEK01, LMA77113CBEK02, LMA77113CBEK10, LMA77113VBAB00, LMA77113VBAB01, LMA77114CBAB00, LMA77114CBAB01, LMA77114CBAB02, LMA77114CBAB03, LMA77114CBDK01, LMA77114CBDK02, LMA77114CBEK01, LMA77114CBEK02, LMA77114SBAB01, LMA77114SBAB02, LMA77114SBAB03, LMA77114SBAB04, LMA78113CBAB00, LMA78115VBAB00, LMA78115VBAB01, LMA78115VBAB02, LMA78115VBAB03, LMA78115VBAB04, LMA78115VGAB00, LMA78115VGAB01, LMA78115VGAB02, LMA79113VBAB00, LMA79113VBAB02, LMA79114SBAB00, LMA79114SBAB01, LMA79114SBAK00, LMA79114VBAB00, LMA79114WBAB00, LMA79114WBAB01, LMA79114WBAB02, LMA79114WBAK00, LMA79114WBAK01, LMA79115CBDK00, LMA79115CBDK01, LMA79115CBDK02, LMA79115CBDK03, LMA79115CBDK10, LMA79115CBEK00, LMA79115CBEK02, LMA79115CBEK03, LMA79115CBEK10, LMA79115CBEK11, LMA79115VBAB00, LMA79115VBAB01, LMA79115VBAB02, LME79114CBAB00, LME79114SBAB00, LME79114SBAB01, LME79114SBAB02, LME79114VBAB00, LME79114WBAB00, LME79114WBAB01, LME79114WBAB02, LTA72215CBAB00, LTA77113CBDK01, LTA77113CBDK02, LTA77113CBDK10, LTA77113CBEK01, LTA77113CBEK02, LTA77113CBEK10, LTA77114CBAB01, LTA77114CBAB02, MTW200BMK0WW, MTW200BMM0WW, MTW200BMM1WW, MTW201BMR0WW, WEA77114CBAB01, WEA77114CBAB02, WEA79115CBAB00, WEA79115CBAB01, WEA79115CBAB02, WEA79115CBAB03, WMA71214CBDB00, WMA71214CBDB01, WMA71214CBDB02, WMA71214CBEB00, WMA71214CBEB01, WMA71214CBEB02, WMA72215CDDB00, WMA72215CDEB00, WMA72215CGDB00, WMA72215CGDB01, WMA72215CGEB00, WMA72215CGEB01, WMA77113CBDB00, WMA77113CBDB01, WMA77113CBDB02

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
