Drum Glide Kit, Drum Slide Kit, Drum Support Glide Assembly

WP306508, AP6008107, PS11741239, EAP11741239, 306508VP, 306509, 306510, 8540020, 8540021, 3-6508

Whirlpool, Kenmore, Maytag, Amana, Roper, Estate

WhirlpoolWED4815EW0, WED4815EW1, WED4815EW2, WED4815EW3, WED4815EZ0, WED4815EZ1, WED4815EZ2, WED4815EZ3, WED4815HW0, WED4815HW1, WED4815HW2, WED4815HW3, WED4815HZ0, WED4815HZ1, WED4815HZ2, WED4815HZ3, WED4816EW0, WED4816EW1, WED4816EW2, WED4816EW3, WED4816EZ0, WED4816EZ1, WED4816EZ2, WED4816EZ3, WED4816HW0, WED4816HW1, WED4816HW2, WED4816HW3, WED4816HZ0, WED4816HZ1, WED4816HZ2, WED4816HZ3, WED4817EW0, WED4817EW1, WED4817EW2, WED4817EW3, WED4817EZ0, WED4817EZ1, WED4817EZ2, WED4817EZ3, WED4817HW0, WED4817HW1, WED4817HW2, WED4817HW3, WED4817HZ0, WED4817HZ1, WED4817HZ2, WED4817HZ3, WED5840SW0, WED5840SW1, WED5840SW2, WED5840SW3

Kenmore110.60132100, 110.60132101, 110.60132102, 110.60132103, 110.60132200, 110.60132201, 110.60132202, 110.60132203, 110.60132300, 110.60132301, 110.60132302, 110.60132303, 110.60132400, 110.60132401, 110.60132402, 110.60132403, 110.60132500, 110.60132501, 110.60132502, 110.60132503, 110.60132600, 110.60132601, 110.60132602, 110.60132603, 110.60132700, 110.60132701, 110.60132702, 110.60132703, 110.60132800, 110.60132801, 110.60132802, 110.60132803, 110.60132900, 110.60132901, 110.60132902, 110.60132903

MaytagMEDC215EW0, MEDC215EW1, MEDC215EW2, MEDC215EW3, MEDC215EZ0, MEDC215EZ1, MEDC215EZ2, MEDC215EZ3, MEDC215HW0, MEDC215HW1, MEDC215HW2, MEDC215HW3, MEDC215HZ0, MEDC215HZ1, MEDC215HZ2, MEDC215HZ3, MEDC216EW0, MEDC216EW1, MEDC216EW2, MEDC216EW3, MEDC216EZ0, MEDC216EZ1, MEDC216EZ2, MEDC216EZ3, MEDC216HW0, MEDC216HW1, MEDC216HW2, MEDC216HW3, MEDC216HZ0, MEDC216HZ1, MEDC216HZ2, MEDC216HZ3

AmanaNED4655EW0, NED4655EW1, NED4655EW2, NED4655EW3, NED4655EZ0, NED4655EZ1, NED4655EZ2, NED4655EZ3, NED4655HW0, NED4655HW1, NED4655HW2, NED4655HW3, NED4655HZ0, NED4655HZ1, NED4655HZ2, NED4655HZ3, NED4656EW0, NED4656EW1, NED4656EW2, NED4656EW3, NED4656EZ0, NED4656EZ1, NED4656EZ2, NED4656EZ3

RoperRED4516FW0, RED4516FW1, RED4516FW2, RED4516FW3, RED4516FZ0, RED4516FZ1, RED4516FZ2, RED4516FZ3, RED4516HW0, RED4516HW1, RED4516HW2, RED4516HW3

EstateTEDS840JQ0, TEDS840JQ1, TEDS840JQ2, TEDS840JQ3, TEDS840PQ0, TEDS840PQ1, TEDS840PQ2, TEDS840PQ3

Professional Repair Time: 60-90 minutes
DIY Repair Time: 90-150 minutes
Difficulty Rating: Moderate (3/5) — Requires drum removal, glide removal and installation, and careful positioning; moderate mechanical skill and basic tools required

1. Unplug the dryer from the electrical outlet to ensure complete power disconnection.
2. Close the gas supply valve (if applicable for gas dryers) to prevent gas discharge during disassembly.
3. Empty the dryer of any clothes or items inside.
4. Remove the lint filter from the lint trap and set it aside.
5. Remove the top panel of the dryer by unscrewing the fasteners along the back edge (typically 2-4 screws) and lifting the panel up and away from the cabinet.
6. Take multiple photos of the drum glide location, mounting position, and the front panel area before disassembly. Document the glide position, orientation, and any visible components from multiple angles. This is critical for proper reassembly.
7. Remove the front panel of the dryer by locating and removing the fasteners (typically 4-6 screws along the sides or bottom). Disconnect any wire harness connectors attached to the door switch. Carefully pull the front panel away and set it aside.
8. Support the drum as you remove the front panel to prevent it from falling forward.
9. Locate the drum glides on the front panel. They're typically positioned on the left and right sides of the panel where the drum rim contacts the panel.
10. Take a photo of the old glides and their exact position on the front panel before removal.
11. Remove the drum belt from the motor pulley and idler pulley by carefully pulling the belt off. Note the belt routing for reassembly.
12. Carefully lift the drum out of the dryer cabinet and set it aside in a safe location. The drum is heavy—use proper lifting techniques or get assistance.
13. Inspect the drum rim where it contacts the glides. Look for wear marks, grooves, or damage. A damaged drum rim may need resurfacing or the drum may need replacement.
14. Locate the old drum glides on the front panel. They may be secured with screws, clips, or adhesive.
15. Remove the old drum glides by unscrewing the mounting screws (if present) or carefully prying them off if they're adhesive-mounted. Use a flathead screwdriver or putty knife to carefully pry adhesive-mounted glides.
16. Clean the glide mounting area on the front panel thoroughly with a clean cloth. Remove any old adhesive, lint, or debris. The mounting surface must be clean and smooth for proper glide adhesion.
17. Inspect the front panel for damage, cracks, or corrosion. Repair or replace the front panel if damage is present.

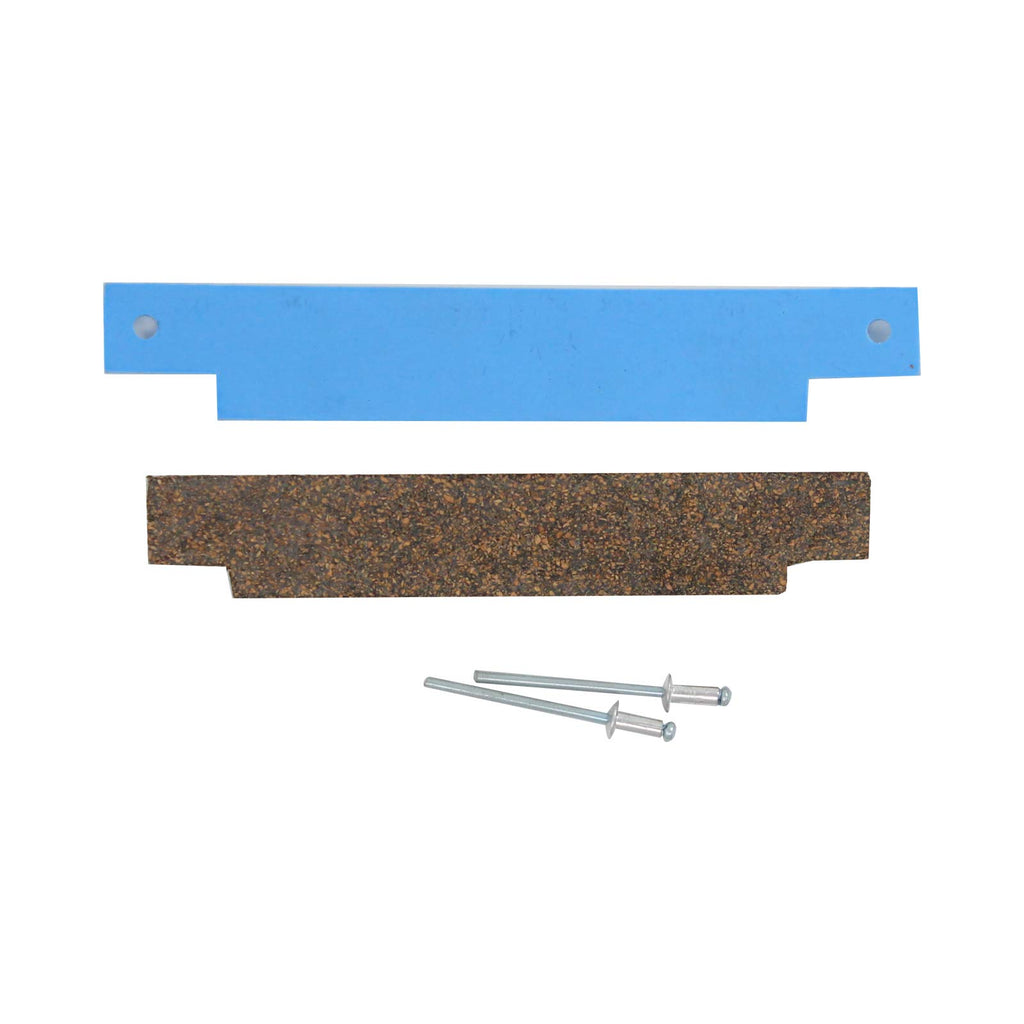

18. Unpack the new 306508 drum glide kit from its packaging. Handle carefully to avoid damaging the glides or components.
19. Verify all components are included in the kit: glide pieces (typically 2 or 4 pieces), mounting screws (if applicable), and adhesive strips (if applicable).
20. Compare the new glides to the old ones to verify the size, shape, and configuration match. Ensure you have the correct replacement kit.
21. Inspect the new glides for any damage or defects before installation.
22. Position the new glides on the front panel in the exact location as the old glides. Use your photos as a reference.
23. For screw-mounted glides: Align the glide mounting holes with the front panel holes and secure with the mounting screws. Tighten firmly but not over-tightening (which can crack the glides or strip threads).
24. For adhesive-mounted glides: Remove the protective backing from the adhesive strip on the glide. Carefully position the glide on the front panel in the exact location as the old glide. Press firmly for 30-60 seconds to ensure proper adhesion.
25. Verify the glides are properly positioned by comparing them to your photos. The glides should be at the same position and orientation as the old glides.
26. Verify the glides are level and aligned with each other. Misaligned glides can cause uneven drum rotation and premature wear.
27. Allow adhesive-mounted glides to cure for at least 30 minutes before reinstalling the drum. This ensures proper adhesion.
28. Reinstall the drum by carefully lowering it into the dryer cabinet and aligning it with the rear drum support and front glides.
29. Verify the drum rim rests properly on the front glides. The drum should be centered and level on the glides.
30. Reinstall the drum belt by routing it around the drum, motor pulley, and idler pulley exactly as shown in your photos. The belt should be centered on all pulleys and not twisted.
31. Verify belt tension by pressing on the belt midway between pulleys. The belt should deflect approximately 1/2 inch (12-15mm) under moderate pressure.
32. Manually rotate the drum by hand to verify it rotates smoothly without binding or resistance. The drum should spin freely and quietly.
33. Verify the drum does not wobble or shift during rotation. The drum should rotate smoothly and stay centered on the glides.
34. Reinstall the front panel by aligning it with the dryer and securing all fasteners. Reconnect any wire harness connectors to the door switch.
35. Reinstall the top panel by aligning it with the dryer and securing all fasteners along the back edge.
36. Reinstall the lint filter into the lint trap.
37. Restore the gas supply (if applicable) by opening the gas supply valve.
38. Plug the dryer back in and restore power.
39. Run a test cycle (without clothes) on a short drying cycle to verify proper glide operation.
40. Verify the drum rotates smoothly during the test cycle without unusual noises or vibrations.
41. Listen for squealing, squeaking, or grinding noises during the entire cycle. The drum should rotate quietly with only normal mechanical sounds.
42. Monitor for unusual vibrations throughout the test cycle. The dryer should operate smoothly without excessive shaking.
43. If squealing or squeaking noises occur, the glides may not be properly positioned or the drum rim may be damaged. Stop the cycle and verify glide position and drum rim condition.
44. If grinding noises occur, the drum may be rubbing against the front panel or the glides may be misaligned. Stop the cycle and verify glide alignment.
45. If the drum wobbles or shifts, the glides may be misaligned or not level. Stop the cycle and verify glide position and alignment.
46. Run a full drying cycle with a typical load of clothes to confirm the repair is complete and the dryer operates normally.
47. Monitor the dryer for 24-48 hours of normal use to ensure it operates properly without unusual noises, vibrations, or performance issues.

Safety Notes: Always unplug the dryer before working on it. Close the gas supply valve (if applicable) to prevent accidental gas discharge. The drum is heavy—use proper lifting techniques or get assistance. Never operate the dryer without the drum glides installed—this can damage the drum rim and front panel. Ensure the glides are properly positioned and secured before operating the dryer. Allow adhesive-mounted glides to cure fully before reinstalling the drum.

Always inspect the drum rim for damage before installing new glides. A damaged or worn drum rim will cause the new glides to wear prematurely. Inspect the drum rim carefully for grooves, wear marks, or damage. If the drum rim is damaged, it may need to be resurfaced with fine sandpaper (400-600 grit) or the drum may need replacement.

Clean the glide mounting area thoroughly before installation. Any lint, debris, or old adhesive left on the front panel will prevent the new glides from adhering properly. Clean the mounting surface with a clean cloth and rubbing alcohol if necessary to ensure proper adhesion.

Verify glide alignment before finalizing installation. Misaligned glides cause uneven drum rotation and premature wear. Use a level or straightedge to verify the glides are level and aligned with each other before securing them.

This glide kit is model-specific. The 306508 is designed for specific Whirlpool and affiliated brand dryers. Always verify your dryer model number matches one of the compatible models before ordering. Using an incorrect glide kit can result in non-fit or improper drum support.

This is a complete glide kit. The 306508 includes all necessary glide pieces and mounting hardware for proper installation. Install all glides included in the kit—do not attempt to install only some

nstall all glides included in the kit—do not attempt to install only some of the glides. All glides must be installed for proper drum support and smooth rotation.Drum glide replacement is a moderate repair. This repair requires significant mechanical skill, specialized tools (socket sets, torque wrench, pry bar), and knowledge of dryer mechanics. If you're uncomfortable with the process, consult a professional technician. Improper installation can cause poor performance, uneven drum rotation, or damage to other dryer components.Monitor the first few drying cycles after installation. After installing the new glides, run several drying cycles and monitor for smooth drum rotation, quiet operation, and proper performance. Address any issues immediately before they affect drying performance or indicate improper installation.Glide failure can have multiple causes. If the new glides don't solve the problem, the issue may be with the drum rim (damaged or worn), the drum bearing, the motor, or another component. Further diagnosis may be required to identify the root cause.Keep the glides clean. Lint accumulation between the glide and drum rim can cause squeaking and premature wear. Clean the lint filter before every drying cycle and periodically inspect the glide area for lint accumulation.This repair extends dryer life significantly. Worn drum glides cause the drum rim to contact the metal front panel directly, causing severe damage to both the drum and cabinet. Replacing glides before severe damage occurs prevents expensive drum and cabinet replacement.Verify the drum bearing is functioning properly. The drum bearing supports the rear of the drum. If the bearing is worn, it causes friction that makes the drum rotate roughly even with new glides. If the drum rotates roughly after glide replacement, the bearing may be worn and need replacement.Check the idler pulley for wear. The idler pulley maintains tension on the drum belt. A worn idler pulley causes belt slipping and rough drum rotation. If the drum rotates roughly after glide replacement, the idler pulley may be worn and need replacement.This repair prevents catastrophic drum damage. Worn glides allow the drum rim to contact the metal front panel directly, causing severe scratching, denting, and damage. Replacing glides before this occurs prevents expensive drum replacement (typically $200-400).Monitor for noise changes after installation. The dryer should be noticeably quieter after glide replacement. If the dryer remains loud or noisy, the glides may not be properly installed or the drum rim may be damaged.Adhesive-mounted glides require proper curing time. If glides are adhesive-mounted, allow at least 30 minutes for the adhesive to cure before operating the dryer. Premature operation can cause the glides to shift or separate from the front panel.For screw-mounted glides, verify screw tightness periodically. Vibration from dryer operation can cause mounting screws to loosen over time. Periodically check that all glide mounting screws are tight to prevent glide shifting or separation.If the drum wobbles after glide replacement, check for misalignment. Misaligned glides cause uneven drum support and wobbling. Verify the glides are level and aligned with each other. Adjust if necessary to ensure proper alignment.This repair is cost-effective preventive maintenance. The cost of glide replacement ($50-100) is far less than the cost of drum replacement ($200-400) or cabinet damage repair. Replace glides promptly when wear is detected to prevent expensive damage.Verify proper drum support after installation. The drum should rest evenly on all glides and the rear drum support. Verify the drum is centered and level on the glides before operating the dryer.

• Dryer makes squealing or squeaking noises (especially during drum rotation)
• Dryer makes grinding noises
• Drum rotates roughly or unevenly
• Visible wear marks or grooves on glide surfaces
• Drum wobbles or shifts during rotation
• Dryer vibrates excessively during operation
• Drum rubs against front panel
• Drum rotation is not smooth
• Loud thumping or banging noises during drum rotation
• Drum difficult to rotate by hand
• Front panel shows wear marks from drum contact
• Dryer louder than normal during operation
