AUTOMOTIVE PART

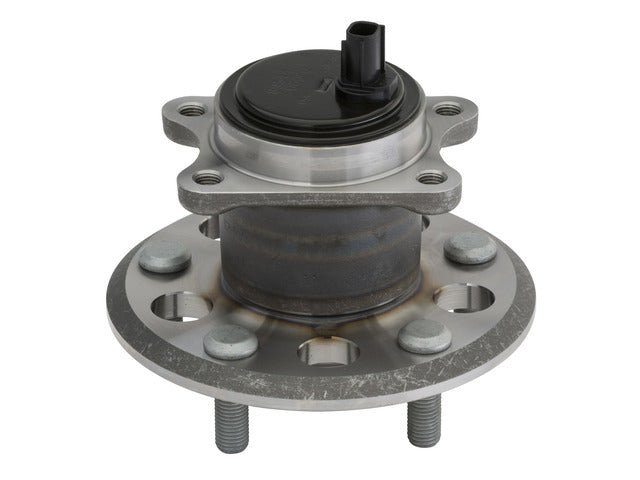

Moog Wheel Hub Assembly 512454
Wheel Hub Assembly
Part 512454MoogWheel Hub Assembly
Match your exact vehicle configuration to the verified applications below.
Confirm the year, make, model, engine, drivetrain and required position before ordering.
Confirm the year, make, model, engine, drivetrain and required position before ordering.
Is This the Right Part?
Manufacturer Part Number512454
ManufacturerMoog
Part TypeWheel Hub Assembly
Part Details
Part Specifications
| Anti-Lock Brake Sensor Included | Yes |
|---|---|
| Brake Pilot Diameter | 62.000 MM |
| Flange Bolt Hole Quantity | 4 |
| Flange Diameter | 152.000 MM |
| Flange Offset | 67.500 MM |
| Hub Pilot Diameter | 74.000 MM |
| Wheel Pilot Diameter | 60.000 MM |
| Wheel Stud Quantity | 5 |
Verified Vehicle Fitment
Make: Lexus, Toyota
Model: 4 verified models — see exact combinations below.
Years: 2012–2019 — varies by model and configuration.
Check before ordering: Match the year, make, model, position, and every engine, transmission or other restriction in the same row. Listed years do not apply to every model.
View vehicle applications (8 configuration groups)
| Years | Make | Model | Position | Engine / transmission / notes |
|---|---|---|---|---|
| 2013–2018 | Lexus | ES300h | Rear Left | with ABS Wheel Speed Sensor, Replaces Part 512542 |
| 2013–2019 | Lexus | ES350 | Rear Left | with ABS Wheel Speed Sensor, Except Japan Built, Replaces Part 512542 |
| 2015–2018 | Toyota | Avalon | Rear Left | with ABS Wheel Speed Sensor, Replaces Part 512542 |
| 2013–2014 | Toyota | Avalon | Rear Left | Sub Model: Hybrid Limited; with ABS Wheel Speed Sensor, Replaces Part 512542 |
| 2013–2014 | Toyota | Avalon | Rear Left | Sub Model: Hybrid XLE; with ABS Wheel Speed Sensor, Replaces Part 512542 |
| 2013–2014 | Toyota | Avalon | Rear Left | Sub Model: Limited; with ABS Wheel Speed Sensor, Replaces Part 512542 |
| 2013–2014 | Toyota | Avalon | Rear Left | Sub Model: XLE; with ABS Wheel Speed Sensor, Replaces Part 512542 |
| 2012–2017 | Toyota | Camry | Rear Left | Replaces Part 512542 |
Source: supplier-verified applications for Moog 512454. A vehicle not listed is not confirmed compatible.
