LG Dryer Gas Igniter 5318EL3001A – Fix Gas Dryer Not Heating & No Ignition Fast
Your LG gas dryer runs, tumbles, and the motor works — but there’s no heat and clothes come out wet, because the gas igniter has failed. In most LG gas dryers, the igniter is a silicon carbide (SiC) element that glows red-hot to ignite the gas burner at the start of each cycle. When it cracks or burns out, the gas valve never opens, the burner never lights, and the dryer runs cold. ⚡ Most common no-heat failure in LG-built gas dryers. Part 5318EL3001A is the genuine OEM replacement igniter — complete with bracket and harness — that restores full gas ignition and normal drying heat.
❓ Is This the Right Part?
This is the correct fix if ALL of the following are true:
- ✔ Your LG gas dryer powers on, the drum tumbles, and the motor runs normally
- ✔ The dryer produces no heat — clothes are wet after a full cycle
- ✔ Gas supply to the dryer is confirmed on and the shutoff valve is open
- ✔ ONLY problem is no heat — not a drum, motor, or electrical issue
Not sure? Send us your model number — we’ll confirm before you order.
🔧 Common Symptoms
- Gas dryer runs but produces zero heat — clothes completely wet after cycle
- Burner never lights — no glow visible through the burner access panel
- Dryer starts normally but shuts off early with no heat produced
- Igniter visibly cracked, broken, or discoloured when inspected
✔ If these symptoms match, this is the most likely failed component in the gas heating system.
✔ In most cases, replacing this igniter restores full gas ignition and normal drying heat immediately.
📦 Part Details
- Part Number: 5318EL3001A

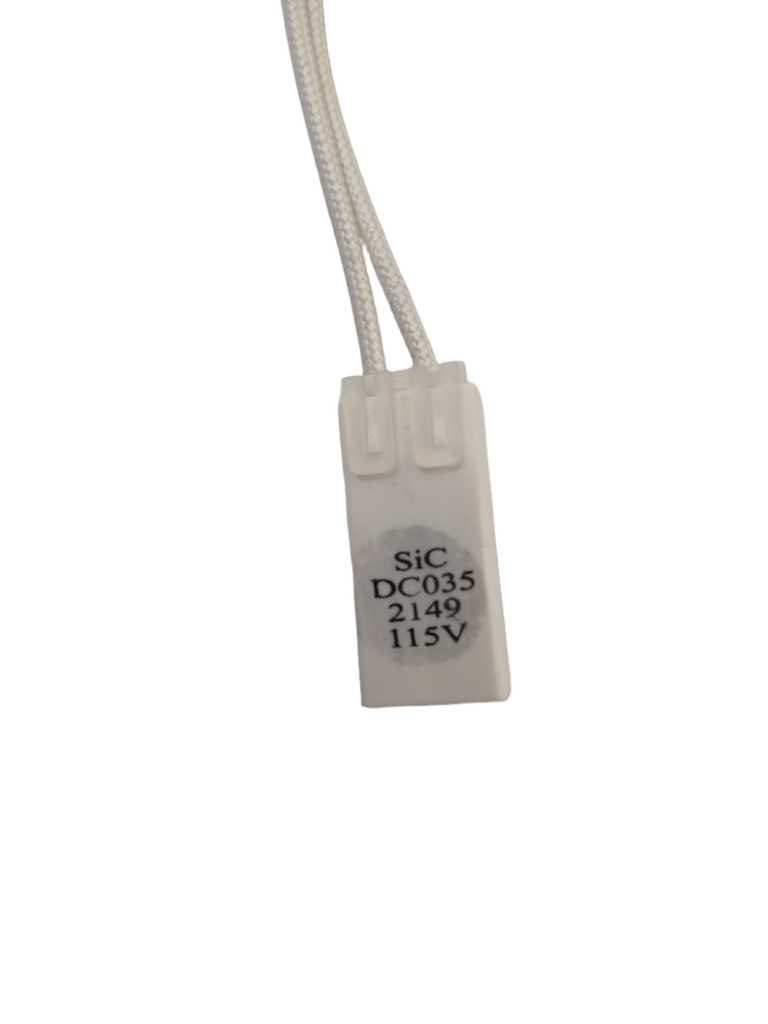

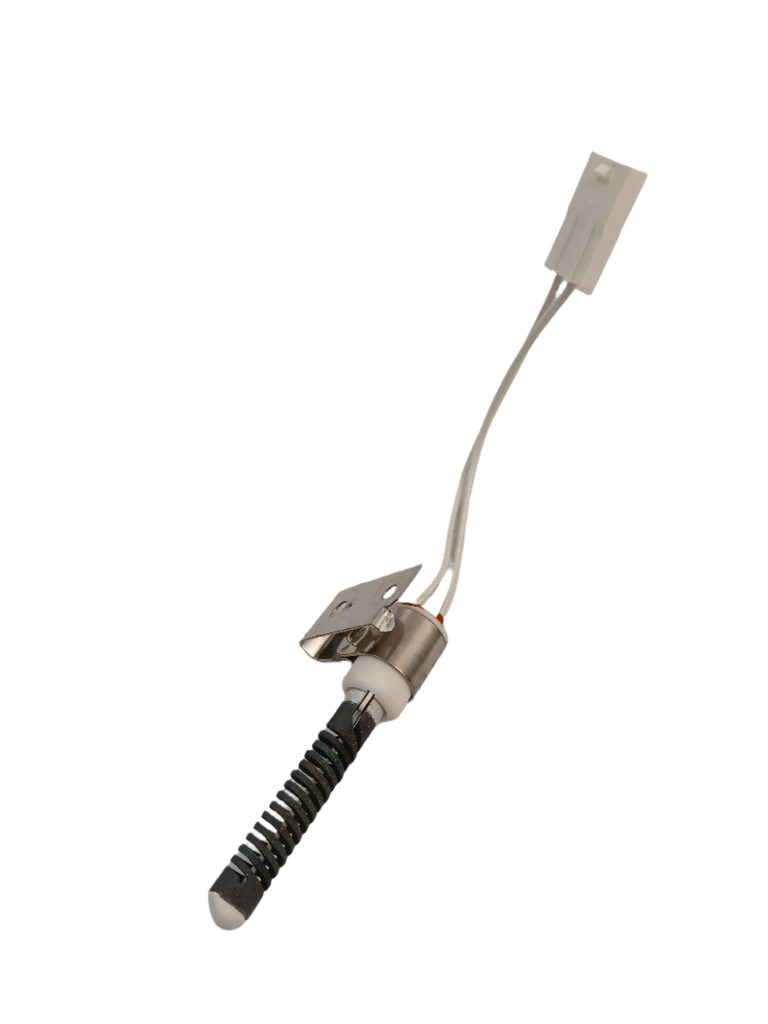

- Type: Gas Dryer Igniter — Silicon Carbide (SiC), 115V, complete with mounting bracket and wiring harness
- Replaces: MEQ61841001, AP4439620, 1266860, 5318EL3001B, 5318EL9001A — no modification required
- Brands: LG, Gibson, Kenmore (LG-built)

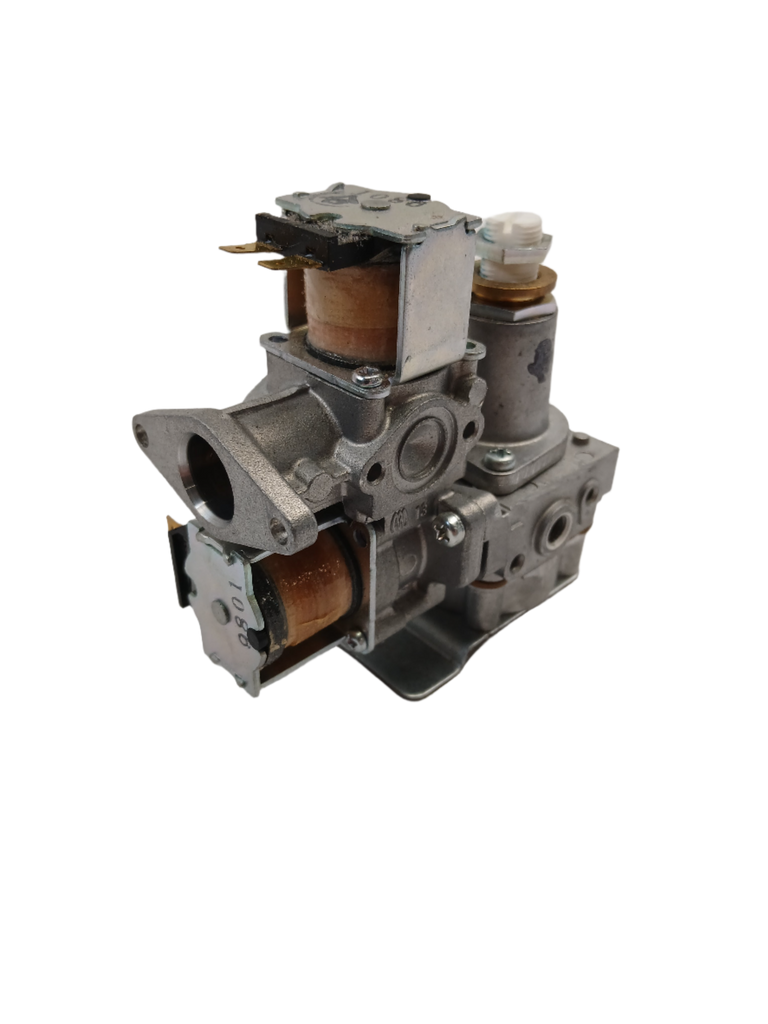

Test the gas valve coils (solenoids) while the burner assembly is open. A failed igniter often causes the gas valve coils to overheat and fail at the same time — if you replace only the igniter and the coils are weak, the dryer will heat once and then stop again. Testing or replacing the coil kit in the same visit eliminates a second no-heat callback.
⚙️ Installation
Skill Level: Moderate — 20–30 minutes. Disconnect power and shut off the gas supply before servicing. Remove the dryer front panel and lower access panel to reach the burner assembly. Disconnect the igniter harness connector, remove the single mounting screw securing the bracket, and slide out the old igniter assembly. Install the new 5318EL3001A, reconnect the harness, reassemble the panels, restore gas and power, and run a test cycle to confirm the burner lights within the first 30 seconds.
✓ Compatible Models
Confirmed compatible with DLGX5001W, DLGX3251W, DLGX4271W, DLGX7601WE, DLGX9001W, DLG3744W, DLG5988W, DLG7101W, DLGY1702W, CDG3389WD plus 500+ additional LG, Gibson, and Kenmore gas dryer models. Contact us to verify your model number before ordering.
💡 Pro Tip
The silicon carbide igniter is extremely fragile and will crack from the oils on your skin, causing it to fail prematurely. Handle the new 5318EL3001A only by the bracket and harness — never touch the white ceramic element itself. If you accidentally touch it, wipe it clean with isopropyl alcohol before installing. A cracked igniter from mishandling is not covered under warranty.
✓ Model-Specific Repair Pages
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
